Convertitori CA/CC
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

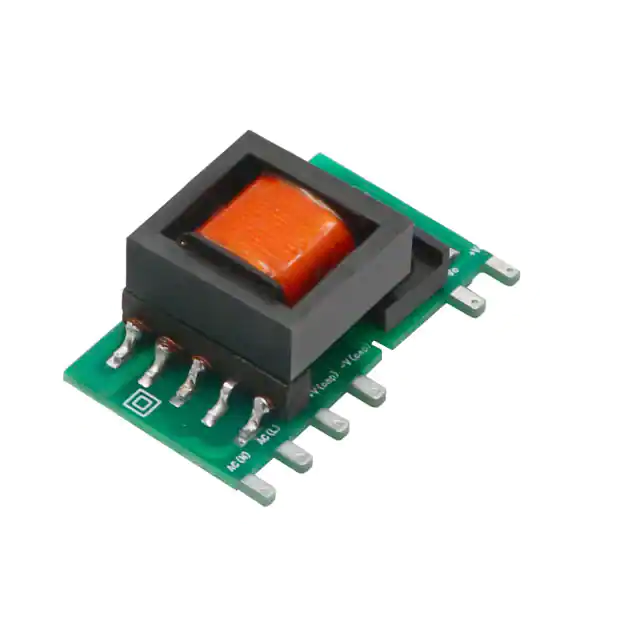

LS10-13B12R3AC/DC CONVERTER 12V 10W Mornsun America, LLC |
36,592 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | 305RAC / LS-R3 | Active | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 830mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 1.26 L x 0.59 W x 0.68 H (32.0mm x 15.1mm x 17.2mm) | CB, CE, cURus |
|

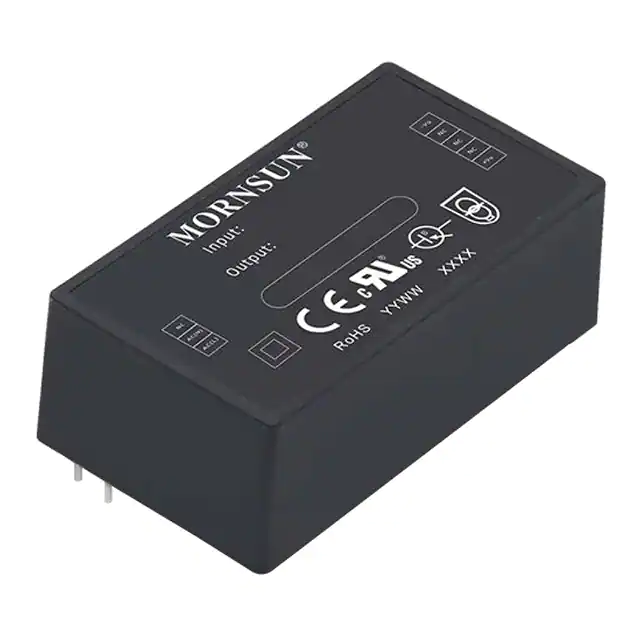

LD30-23B24R2AC/DC CONVERTER 24V 31W Mornsun America, LLC |
1,895 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Tray | 305RAC / LD-R2 | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 1.3A | 31 W | Household Appliances, ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 88% | Through Hole | 2.74 L x 1.54 W x 0.94 H (69.5mm x 39.0mm x 24.0mm) | - |
|

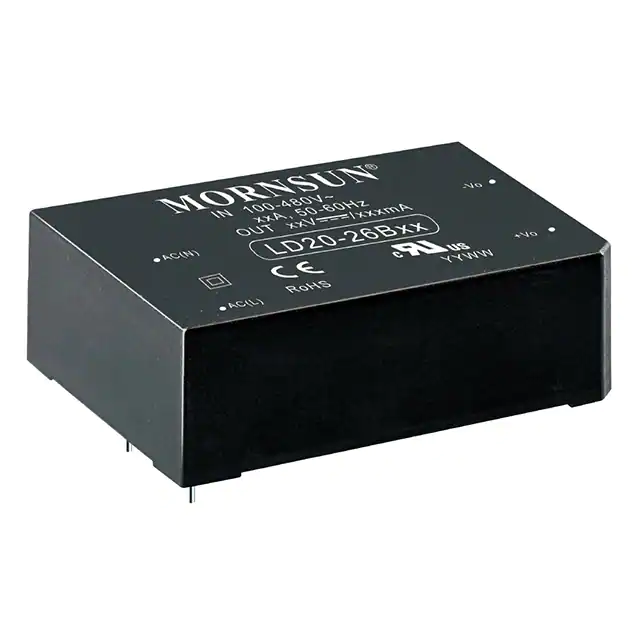

LD20-26B24AC/DC CONVERTER 24V 20W Mornsun America, LLC |
645 | - |
RFQ |
Scheda tecnica |
8-DIP Module, 4 Leads | Tray | LD20-26Bxx (20W) | Active | Enclosed | 1 | 90 ~ 528 VAC, 100 ~ 745 VDC | 24V | - | - | - | 833mA | 20 W | ITE (Commercial) | Adjustable Output | -40°C ~ 70°C (With Derating) | 83% | Through Hole | 2.76 L x 1.89 W x 1.18 H (70.0mm x 48.0mm x 30.0mm) | CE, cURus, UL |
|

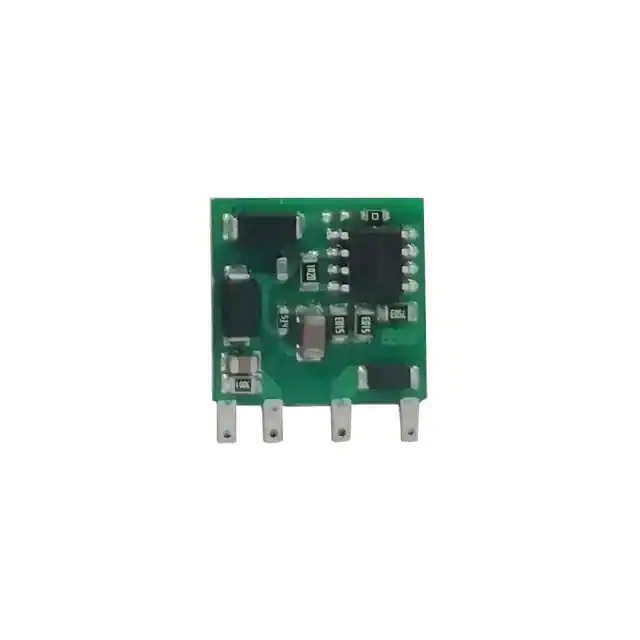

LS01-K3B05SSAC/DC CONVERTER 5V 1W Mornsun America, LLC |
1,925 | - |
RFQ |
Scheda tecnica |
4-SIP Module | Tray | LS-K (1W) | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 5V | - | - | - | 200mA | 1 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 57% | Through Hole | 0.64 L x 0.37 W x 0.59 H (16.1mm x 9.5mm x 15.1mm) | CE |
|
|
LS03-K3B12SSAC/DC CONVERTER 12V 3W Mornsun America, LLC |
2,663 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | LS-K (3W) | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | 250mA | 3 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | Through Hole | 1.04 L x 0.43 W x 0.50 H (26.4mm x 11.0mm x 12.6mm) | CE |
|

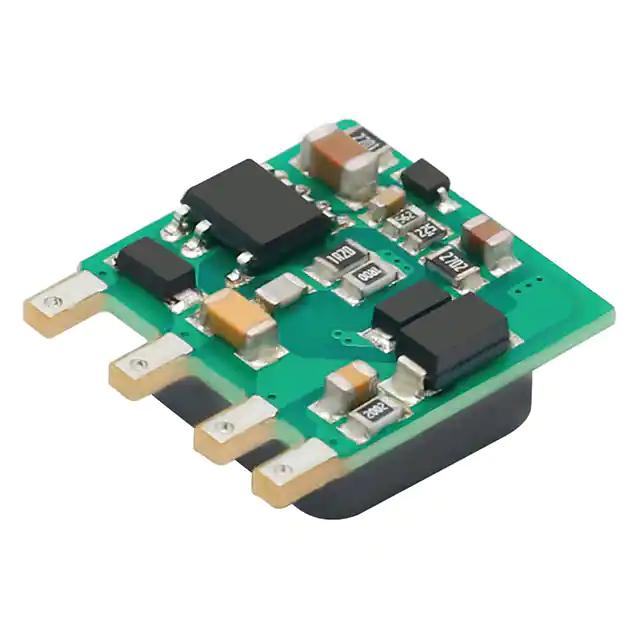

LS05-K3B12SSAC/DC CONVERTER 12V 4W Mornsun America, LLC |
1,065 | - |
RFQ |
Scheda tecnica |
4-SIP Module | Tray | LS-K (5W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | 330mA | 4 W | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 75% | Through Hole | 0.64 L x 0.37 W x 0.72 H (16.1mm x 9.5mm x 18.2mm) | CE |
|

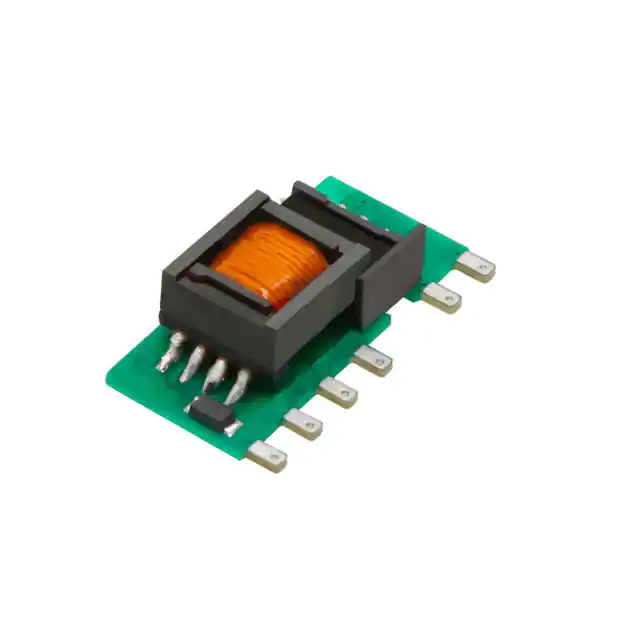

LS03-13B05R3AC/DC CONVERTER 5V 3W Mornsun America, LLC |
4,484 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | 305RAC / LS-R3 | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 5V | - | - | - | 600mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | Through Hole | 1.04 L x 0.43 W x 0.50 H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus |
|
|
LS03-13B12R3AC/DC CONVERTER 12V 3W Mornsun America, LLC |
4,356 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | 305RAC / LS-R3 | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | 250mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77% | Through Hole | 1.04 L x 0.43 W x 0.50 H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus |
|
|
LS03-13B15R3AC/DC CONVERTER 15V 3W Mornsun America, LLC |
3,733 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | 305RAC / LS-R3 | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 15V | - | - | - | 200mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 1.04 L x 0.43 W x 0.50 H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus |
|

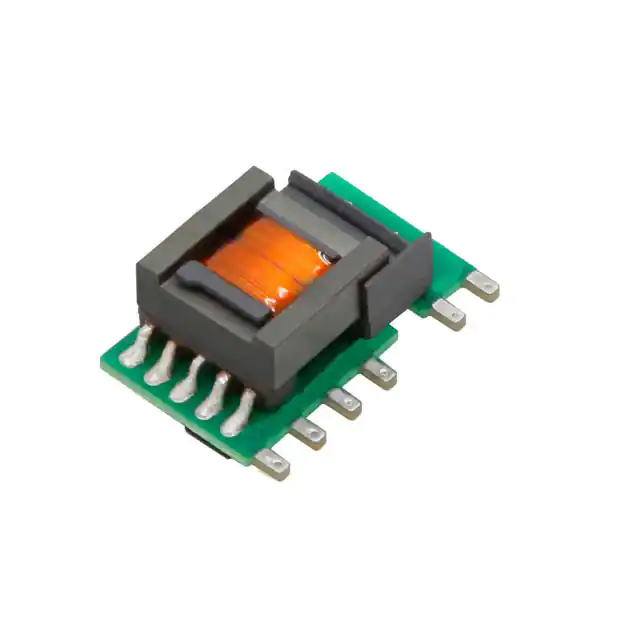

LS05-13B12R3AC/DC CONVERTER 12V 5W Mornsun America, LLC |
7,073 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | 305RAC / LS-R3 | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | 420mA | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.04 L x 0.43 W x 0.50 H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus |
|
|
LS05-13B05R3AC/DC CONVERTER 5V 5W Mornsun America, LLC |
5,220 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | 305RAC / LS-R3 | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 5V | - | - | - | 1A | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 76% | Through Hole | 1.04 L x 0.43 W x 0.58 H (26.4mm x 11.0mm x 14.7mm) | CB, CE, cURus |
|
|
LS10-13B24R3AC/DC CONVERTER 24V 10W Mornsun America, LLC |
20,115 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | 305RAC / LS-R3 | Active | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 420mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 1.26 L x 0.59 W x 0.68 H (32.0mm x 15.1mm x 17.2mm) | CB, CE, cURus |
|
|
LS10-13B05R3AC/DC CONVERTER 5V 10W Mornsun America, LLC |
1,837 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | 305RAC / LS-R3 | Active | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 2A | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77% | Through Hole | 1.26 L x 0.59 W x 0.68 H (32.0mm x 15.1mm x 17.2mm) | CB, CE, cURus |
|

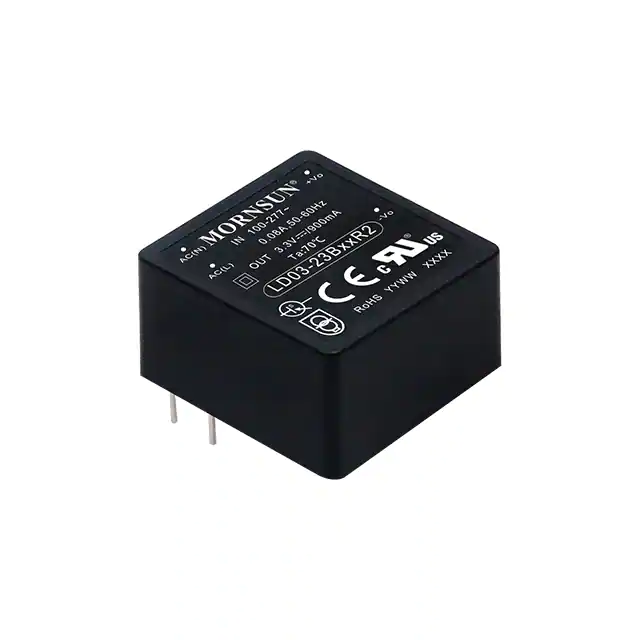

LD03-23B03R2AC/DC CONVERTER 3.3V 3W Mornsun America, LLC |
1,242 | - |
RFQ |
Scheda tecnica |
5-DIP Module, 4 Leads | Tray | 305RAC / LD-R2 | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | 900mA | 3 W | Household Appliances, ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 72% | Through Hole | 1.00 L x 1.00 W x 0.69 H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus, UL |
|

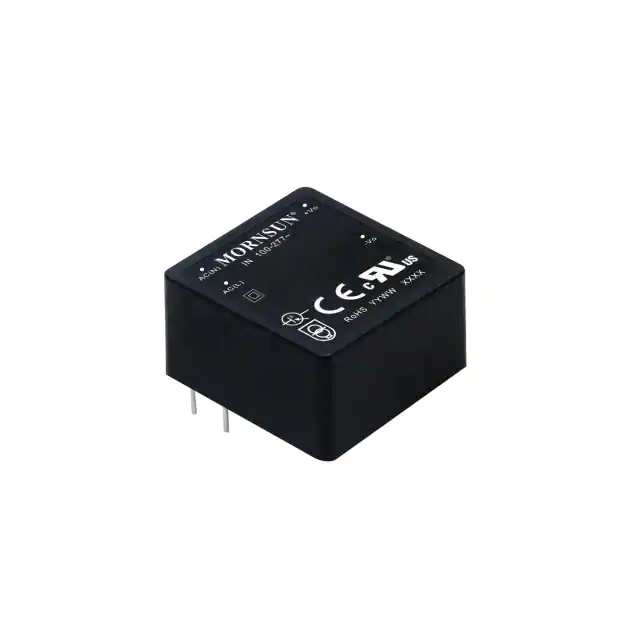

LD05-23B09R2AC/DC CONVERTER 9V 5W Mornsun America, LLC |
120 | - |
RFQ |
Scheda tecnica |
5-DIP Module, 4 Leads | Tray | 305RAC / LD-R2 | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | 555mA | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80.5% | Through Hole | 1.00 L x 1.00 W x 0.69 H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus |
|
|
LD03-23B24R2AC/DC CONVERTER 24V 3W Mornsun America, LLC |
3,235 | - |
RFQ |
Scheda tecnica |
5-DIP Module, 4 Leads | Tray | 305RAC / LD-R2 | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 125mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.00 L x 1.00 W x 0.69 H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus |
|
|
LD03-23B12R2AC/DC CONVERTER 12V 3W Mornsun America, LLC |
1,171 | - |
RFQ |
Scheda tecnica |
5-DIP Module, 4 Leads | Tray | 305RAC / LD-R2 | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 250mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 1.00 L x 1.00 W x 0.69 H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus |
|

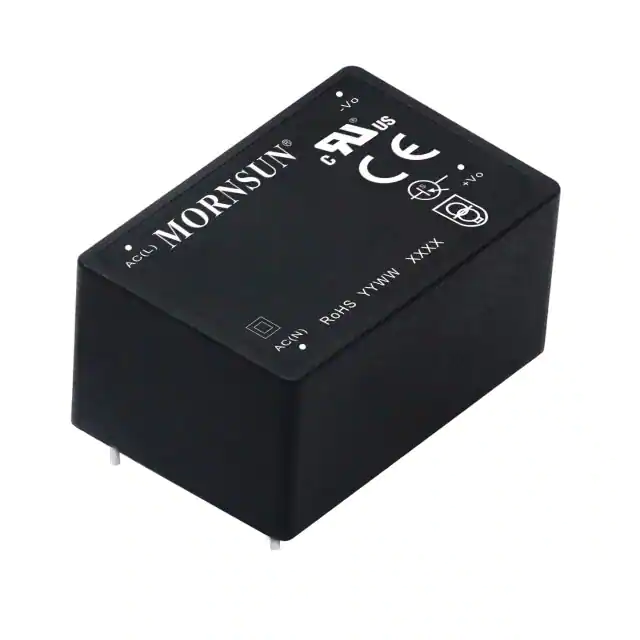

LD10-23B05R2AC/DC CONVERTER 5V 10W Mornsun America, LLC |
1,007 | - |
RFQ |
Scheda tecnica |
6-DIP Module, 4 Leads | Tray | 305RAC / LD-R2 | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 2A | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.57 L x 1.00 W x 0.83 H (40.0mm x 25.4mm x 21.0mm) | CB, CE, cURus |
|
|
LD10-23B24R2AC/DC CONVERTER 24V 10W Mornsun America, LLC |
695 | - |
RFQ |
Scheda tecnica |
6-DIP Module, 4 Leads | Tray | 305RAC / LD-R2 | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 410mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | Through Hole | 1.57 L x 1.00 W x 0.83 H (40.0mm x 25.4mm x 21.0mm) | CB, CE, cURus |
|
|
LD05-23B05R2AC/DC CONVERTER 5V 5W Mornsun America, LLC |
2,309 | - |
RFQ |
Scheda tecnica |
5-DIP Module, 4 Leads | Tray | 305RAC / LD-R2 | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 1A | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77.5% | Through Hole | 1.00 L x 1.00 W x 0.69 H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus |
