Convertitori CA/CC
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

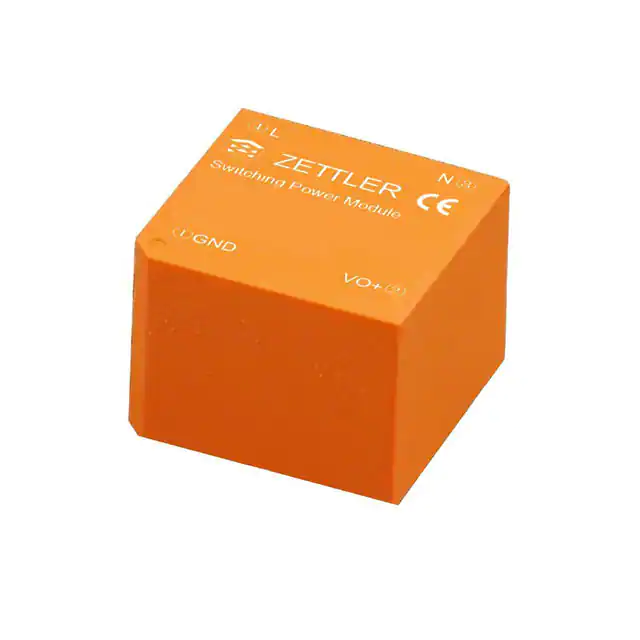

ZP05S0500WBAC/DC CONVERTER 5V 5W Zettler Magnetics |
266 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | ZP05 (5W) | Active | Enclosed | 1 | 85 ~ 265 VAC, 100 ~ 370 VDC | 5V | - | - | - | 1A | 5 W | Household Appliances, ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 70% | Through Hole | 1.26 L x 1.07 W x 0.76 H (32.1mm x 27.1mm x 19.3mm) | CE |
|

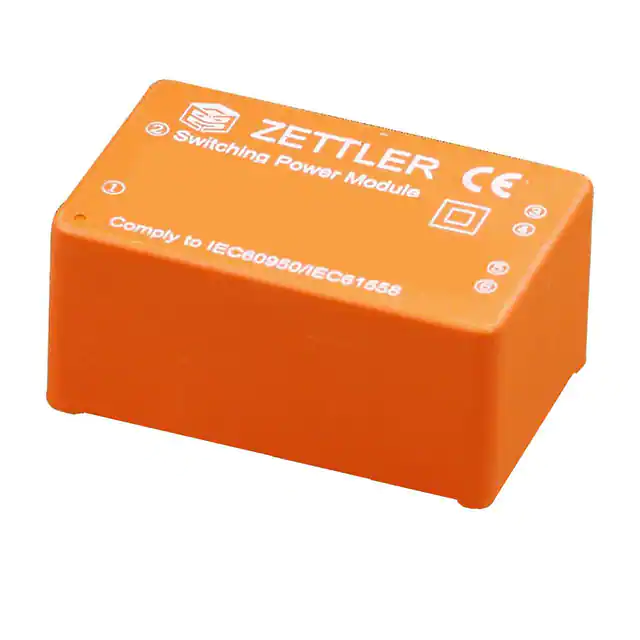

HP03S0500WJAC/DC CONVERTER 5V 3W Zettler Magnetics |
311 | - |
RFQ |
Scheda tecnica |
5-DIP Module | Box | HP03 (3W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 600mA | 3 W | Household Appliances, ITE (Commercial) | - | -25°C ~ 85°C | 72% | Through Hole | 1.46 L x 0.94 W x 0.59 H (37.0mm x 24.0mm x 15.0mm) | CE, cURus, TUV |
|
|
HP01S0600WIAC/DC CONVERTER 6V 996MW Zettler Magnetics |
2,956 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | HP01 (1W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 6V | - | - | - | 166mA | 996 mW | Household Appliances, ITE (Commercial) | - | -25°C ~ 85°C | 70% | Through Hole | 1.33 L x 0.87 W x 0.59 H (33.7mm x 22.2mm x 15.0mm) | CE |
|
|
HP01S2400WIAC/DC CONVERTER 24V 1W Zettler Magnetics |
2,054 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | HP01 (1W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 42mA | 1 W | Household Appliances, ITE (Commercial) | - | -25°C ~ 85°C | 77% | Through Hole | 1.33 L x 0.87 W x 0.59 H (33.7mm x 22.2mm x 15.0mm) | CE |
|
|
HP02S0500WI-AAC/DC CONVERTER 5V 2W Zettler Magnetics |
3,429 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | HP02 (2W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 400mA | 2 W | ITE (Commercial) | - | - | 70% | Through Hole | 1.33 L x 0.87 W x 0.59 H (33.7mm x 22.2mm x 15.0mm) | CE |
|
|
HP02S2400WI-AAC/DC CONVERTER 24V 2W Zettler Magnetics |
3,553 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | HP02 (2W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 84mA | 2 W | ITE (Commercial) | - | - | 77% | Through Hole | 1.33 L x 0.87 W x 0.59 H (33.7mm x 22.2mm x 15.0mm) | CE |
|
|
HP02S0600WI-AAC/DC CONVERTER 6V 2W Zettler Magnetics |
3,222 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | HP02 (2W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 6V | - | - | - | 333mA | 2 W | Household Appliances, ITE (Commercial) | - | -25°C ~ 85°C | 70% | Through Hole | 1.33 L x 0.87 W x 0.59 H (33.7mm x 22.2mm x 15.0mm) | CE, cURus |
|
|
HP03S0600WJAC/DC CONVERTER 6V 3W Zettler Magnetics |
2,779 | - |
RFQ |
Scheda tecnica |
5-DIP Module | Box | HP03 (3W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 6V | - | - | - | 500mA | 3 W | Household Appliances, ITE (Commercial) | - | -25°C ~ 85°C | 72% | Through Hole | 1.46 L x 0.94 W x 0.59 H (37.0mm x 24.0mm x 15.0mm) | CE, cURus, TUV |
|
|
HP03S2400WJAC/DC CONVERTER 24V 3W Zettler Magnetics |
2,766 | - |
RFQ |
Scheda tecnica |
5-DIP Module | Box | HP03 (3W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 125mA | 3 W | Household Appliances, ITE (Commercial) | - | -25°C ~ 85°C | 78% | Through Hole | 1.46 L x 0.94 W x 0.59 H (37.0mm x 24.0mm x 15.0mm) | CE, cURus, TUV |
|
|
ZP05S2400WBAC/DC CONVERTER 24V 5W Zettler Magnetics |
2,492 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | ZP05 (5W) | Active | Enclosed | 1 | 85 ~ 265 VAC, 100 ~ 370 VDC | 24V | - | - | - | 210mA | 5 W | Household Appliances, ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 70% | Through Hole | 1.26 L x 1.07 W x 0.76 H (32.1mm x 27.1mm x 19.3mm) | CE |
|
|
ZP05S0600WBAC/DC CONVERTER 6V 5W Zettler Magnetics |
3,894 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | ZP05 (5W) | Active | Enclosed | 1 | 85 ~ 265 VAC, 100 ~ 370 VDC | 6V | - | - | - | 830mA | 5 W | Household Appliances, ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 70% | Through Hole | 1.26 L x 1.07 W x 0.76 H (32.1mm x 27.1mm x 19.3mm) | CE |
|

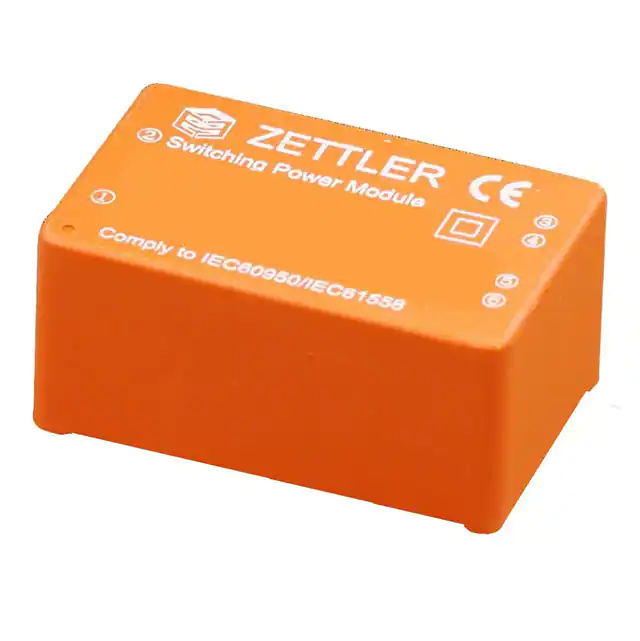

ZP20S1200WLAC/DC CONVERTER 12V 20W Zettler Magnetics |
2,701 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | ZP20 (20W) | Active | Enclosed | 1 | 85 ~ 265 VAC, 100 ~ 370 VDC | 12V | - | - | - | 1.67A | 20 W | ITE (Commercial) | Universal Input | -25°C ~ 50°C | 85% | Through Hole | 2.06 L x 1.07 W x 0.94 H (52.4mm x 27.2mm x 24.0mm) | cURus |
|
|
HP01S1200WIAC/DC CONVERTER 12V 996MW Zettler Magnetics |
2,744 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | HP01 (1W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 83mA | 996 mW | Household Appliances, ITE (Commercial) | - | -25°C ~ 85°C | 74% | Through Hole | 1.33 L x 0.87 W x 0.59 H (33.7mm x 22.2mm x 15.0mm) | CE |
|
|
HP01S0500WIAC/DC CONVERTER 5V 1W Zettler Magnetics |
3,318 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | HP01 (1W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 200mA | 1 W | Household Appliances, ITE (Commercial) | - | -25°C ~ 85°C | 70% | Through Hole | 1.33 L x 0.87 W x 0.59 H (33.7mm x 22.2mm x 15.0mm) | CE |
|
|
HP02S1200WI-AAC/DC CONVERTER 12V 2W Zettler Magnetics |
3,596 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | HP02 (2W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 166mA | 2 W | ITE (Commercial) | - | - | 74% | Through Hole | 1.33 L x 0.87 W x 0.59 H (33.7mm x 22.2mm x 15.0mm) | CE |
|
|
HP03S1200WJAC/DC CONVERTER 12V 3W Zettler Magnetics |
2,289 | - |
RFQ |
Scheda tecnica |
5-DIP Module | Box | HP03 (3W) | Active | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 250mA | 3 W | Household Appliances, ITE (Commercial) | - | -25°C ~ 85°C | 76% | Through Hole | 1.46 L x 0.94 W x 0.59 H (37.0mm x 24.0mm x 15.0mm) | CE, cURus, TUV |
|
|
ZP05S1200WBAC/DC CONVERTER 12V 5W Zettler Magnetics |
2,551 | - |
RFQ |
Scheda tecnica |
4-DIP Module | Box | ZP05 (5W) | Active | Enclosed | 1 | 85 ~ 265 VAC, 100 ~ 370 VDC | 12V | - | - | - | 420mA | 5 W | Household Appliances, ITE (Commercial) | Universal Input | -25°C ~ 85°C (With Derating) | 70% | Through Hole | 1.26 L x 1.07 W x 0.76 H (32.1mm x 27.1mm x 19.3mm) | CE |
