Induttanze di modo comune

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
SCM25-601T-RC 600 OHMS 25% 1000MA, COMMON Allied Components International	2,707	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	-	2	600 Ohms @ 100 MHz	-	1A	200mOhm	60V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.094 (2.40mm)
SCM30S-601T-RC 600 OHM, SMD WIREWOUND COMMON MO Allied Components International	2,773	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	2	600 Ohms @ 100 MHz	-	1.5A	240mOhm	50V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.118 (3.00mm)

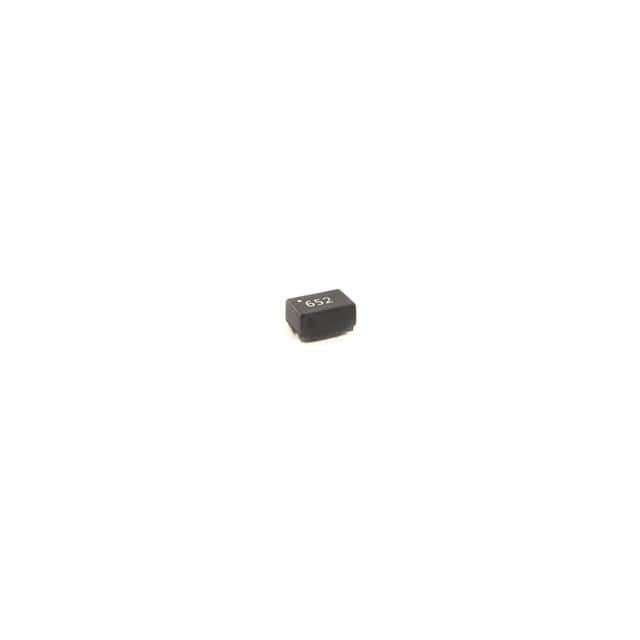

SCM0905-652-RC 6500UH 50%, 18.4K OHM IMPEDANCE Allied Components International	120	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	2	18.4 kOhms @ 10 kHz	6.5 mH @ 10 kHz	400mA	950mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.362 L x 0.236 W (9.20mm x 6.00mm)	0.209 (5.30mm)

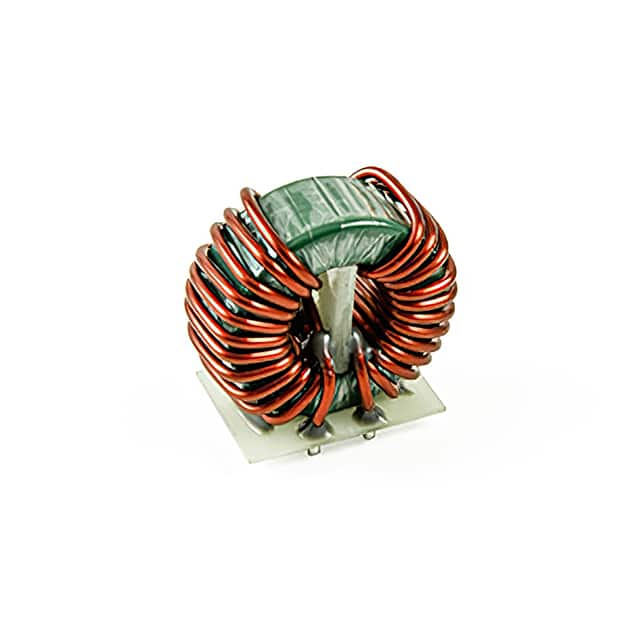

VCMBE8104-RC 10mH Min, 2.4A Common Mode Choke Allied Components International	103	-	RFQ	Scheda tecnica	Box	-	Active	-	2	-	10 mH @ 1 kHz	2.4A	170mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.200 L x 0.600 W (30.48mm x 15.24mm)	1.200 (30.48mm)
VCMBE8107-RC 2mH Min, 6.6A Common Mode Choke Allied Components International	112	-	RFQ	Scheda tecnica	Box	-	Active	-	2	-	2 mH @ 1 kHz	6.6A	22mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.200 L x 0.600 W (30.48mm x 15.24mm)	1.200 (30.48mm)
SCM20-102T-RC 1000 OHMS 25% COMMON MODE Allied Components International	2,947	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	1 kOhms @ 100 MHz	-	230mA	1Ohm	50V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.083 (2.10mm)
SCM10-900M-RC 90 OHMS 20% COMMON MODE Allied Components International	3,425	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	90 Ohms @ 100 MHz	-	330mA	350mOhm	120V	-	-40°C ~ 150°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)
SCM10-670M-RC 67 OHMS 20% COMMON MODE Allied Components International	3,618	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	67 Ohms @ 100 MHz	-	400mA	250mOhm	120V	-	-40°C ~ 150°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)
SCM30SH-142-RC 1000 OHM, COMMON MODE FILTER Allied Components International	3,822	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	2	1.4 kOhms @ 100 MHz	-	2A	100mOhm	50V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.118 (3.00mm)
SCM05-900M-RC 900OHMS 20% USB 3.0 COMMON Allied Components International	3,935	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	90 Ohms @ 100 MHz	-	250mA	300mOhm	50V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.049 L x 0.039 W (1.25mm x 1.00mm)	0.043 (1.10mm)
VCMBE8118-RC 7.3mH Min,9.3A Common Mode Choke Allied Components International	2,724	-	RFQ	Scheda tecnica	Box	-	Active	-	2	-	7.3 mH @ 1 kHz	9.3A	32mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.650 L x 0.800 W (41.91mm x 20.32mm)	1.650 (41.91mm)
PCMF1211S-102 750 oHms SMD Common Mode Filter Allied Components International	3,067	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	Power Line	2	1 kOhms @ 100 MHz	-	8A	14mOhm	125V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.472 L x 0.425 W (12.00mm x 10.80mm)	0.252 (6.40mm)
SCM10-371M-RC 370 OHMS 20% COMMON MODE Allied Components International	2,938	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	370 Ohms @ 100 MHz	-	280mA	450mOhm	120V	-	-40°C ~ 150°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)
SCM05-161M-RC 160 OHMS 20% USB 3.0 COMMON Allied Components International	3,393	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	160 Ohms @ 100 MHz	-	160mA	430mOhm	50V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.049 L x 0.039 W (1.25mm x 1.00mm)	0.043 (1.10mm)
SCM10-121M-RC 120 OHMS 20% SMD COMMON Allied Components International	2,092	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	120 Ohms @ 100 MHz	-	400mA	300mOhm	120V	-	-40°C ~ 150°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)

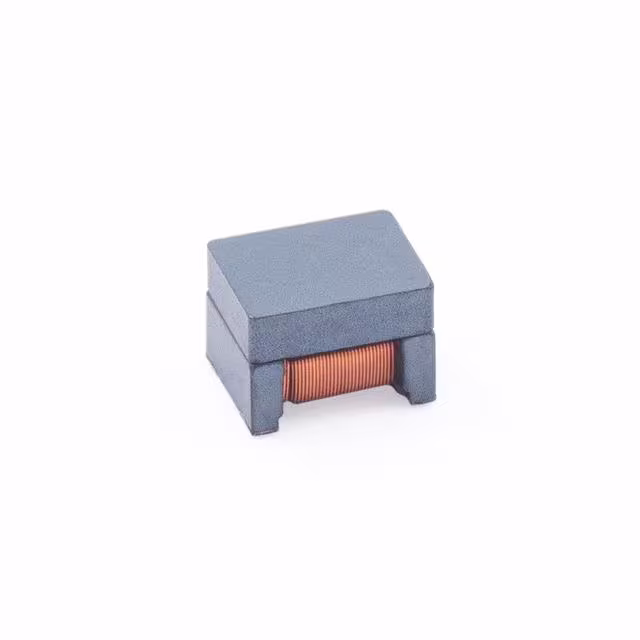

SCM25FDV-101-RC 100UH +50/-30%, 5100Z IMP SMD Allied Components International	2,280	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	-	2	5.1 kOhms @ 10 MHz	100 µH @ 100 kHz	150mA	1.5Ohm	80V	-	-55°C ~ 150°C	-	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)
SCM30F-510-RC 51UH 30% WIREWOUND COMMON Allied Components International	3,190	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	-	51 µH @ 100 kHz	200mA	1Ohm	50V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.178 L x 0.126 W (4.52mm x 3.20mm)	0.118 (3.00mm)
SCM10-361M-RC 360 OHM, USB 2.0 COMMON MODE CHO Allied Components International	2,033	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	2	360 Ohms @ 100 MHz	-	280mA	450mOhm	120V	-	-40°C ~ 150°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)
SCM10S-900 90 OHMS 25% 0805 WIREWOUND Allied Components International	3,744	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	-	2	90 Ohms @ 100 MHz	-	400mA	300mOhm	50V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)
SCM20-601M-RC 600 OHMS 20% COMMON MODE Allied Components International	2,622	-	RFQ	Scheda tecnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	600 Ohms @ 100 MHz	-	260mA	800mOhm	50V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.083 (2.10mm)
