Trasduttori di corrente

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	ForMeasuring	SensorType	Current-Sensing	NumberofChannels	Output	Sensitivity	Frequency	Linearity	Accuracy	Voltage-Supply	ResponseTime	Current-Supply(Max)	OperatingTemperature	Polarization	MountingType

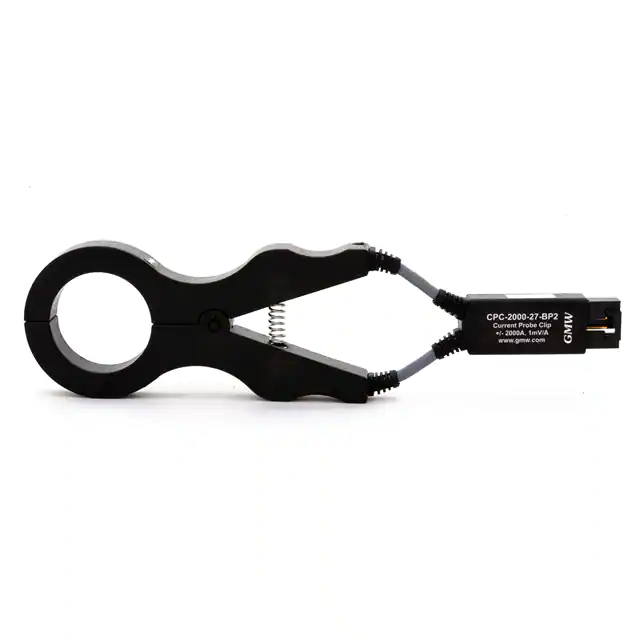

CPC-1000-27-BP2 DC-AC CURRENT PROBE, CLIP-ON, 1K GMW Associates	2,729	-	RFQ	Scheda tecnica	Box	CPC	Active	AC/DC	Open Loop	1000A	1	Ratiometric, ±2V	-	DC ~ 75kHz	±0.2%	1%	3.5V ~ 5.5V	10µs	85mA	-40°C ~ 100°C	Bidirectional	Free Hanging
CPC-2000-27-BP2 DC-AC CURRENT PROBE, CLIP-ON, 2K GMW Associates	3,083	-	RFQ	Scheda tecnica	Box	CPC	Active	AC/DC	Open Loop	2000A	1	Ratiometric, ±2V	-	DC ~ 75kHz	±0.2%	1%	3.5V ~ 5.5V	10µs	85mA	-40°C ~ 100°C	Bidirectional	Free Hanging
CPC-250-27-BP2 DC-AC CURRENT PROBE, CLIP-ON, 25 GMW Associates	2,502	-	RFQ	Scheda tecnica	Box	CPC	Active	AC/DC	Open Loop	250A	1	Ratiometric, ±2V	-	DC ~ 75kHz	±0.2%	1%	3.5V ~ 5.5V	10µs	85mA	-40°C ~ 100°C	Bidirectional	Free Hanging
CPC-500-27-BP2 DC-AC CURRENT PROBE, CLIP-ON, 50 GMW Associates	2,242	-	RFQ	Scheda tecnica	Box	CPC	Active	AC/DC	Open Loop	500A	1	Ratiometric, ±2V	-	DC ~ 75kHz	±0.2%	1%	3.5V ~ 5.5V	10µs	85mA	-40°C ~ 100°C	Bidirectional	Free Hanging
CPCO-1000-77-MA DC-AC CURRENT PROBE, CLAMP-ON, 1 GMW Associates	3,285	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	1000A	1	Ratiometric, 4mA ~ 20mA	-	DC ~ 40kHz	±0.5%	1%	11V ~ 26V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-4000-77-RMS DC-AC CURRENT PROBE, CLAMP-ON, 4 GMW Associates	2,239	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	4000A	1	Ratiometric, 0V ~ 3V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	1s	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-2000-77-RMS DC-AC CURRENT PROBE, CLAMP-ON, 2 GMW Associates	3,338	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	2000A	1	Ratiometric, 0V ~ 3V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	1s	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-1000-77-RMS DC-AC CURRENT PROBE, CLAMP-ON, 1 GMW Associates	3,899	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	1000A	1	Ratiometric, 0V ~ 3V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	1s	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-2000-77-BP10 DC-AC CURRENT PROBE, CLAMP-ON, 2 GMW Associates	2,543	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	2000A	1	Ratiometric, ±10V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-4000-77-SE DC-AC CURRENT PROBE, CLAMP-ON, 4 GMW Associates	2,650	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	4000A	1	Ratiometric, 0V ~ 10V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-1000-77-BP5 DC-AC CURRENT PROBE, CLAMP-ON, 1 GMW Associates	3,138	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	1000A	1	Ratiometric, ±5V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-1000-77-BP10 DC-AC CURRENT PROBE, CLAMP-ON, 1 GMW Associates	2,858	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	1000A	1	Ratiometric, ±10V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-4000-77-MA DC-AC CURRENT PROBE, CLAMP-ON, 4 GMW Associates	2,007	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	4000A	1	Ratiometric, 4mA ~ 20mA	-	DC ~ 40kHz	±0.5%	1%	11V ~ 26V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-4000-77-BP5 DC-AC CURRENT PROBE, CLAMP-ON, 4 GMW Associates	2,473	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	4000A	1	Ratiometric, ±5V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-2000-77-BP5 DC-AC CURRENT PROBE, CLAMP-ON, 2 GMW Associates	2,520	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	2000A	1	Ratiometric, ±5V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-1000-77-SE DC-AC CURRENT PROBE, CLAMP-ON, 1 GMW Associates	3,794	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	1000A	1	Ratiometric, 0V ~ 10V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-2000-77-SE DC-AC CURRENT PROBE, CLAMP-ON, 2 GMW Associates	2,951	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	2000A	1	Ratiometric, 0V ~ 10V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-12000-77-BP5 DC-AC CURRENT PROBE, CLAMP-ON, 1 GMW Associates	2,972	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	12000A	1	Ratiometric, ±5V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-8000-77-SE DC-AC CURRENT PROBE, CLAMP-ON, 8 GMW Associates	2,105	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	8000A	1	Ratiometric, 0V ~ 10V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	10µs	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
CPCO-8000-77-RMS DC-AC CURRENT PROBE, CLAMP-ON, 8 GMW Associates	3,961	-	RFQ	Scheda tecnica	Box	CPCO	Active	AC/DC	Open Loop	8000A	1	Ratiometric, 0V ~ 3V	-	DC ~ 40kHz	±0.5%	1%	11V ~ 31V	1s	47mA	-40°C ~ 100°C	Bidirectional	Panel Mount
