Condensatori passanti
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | Current | DCResistance(DCR)(Max) | OperatingTemperature | InsertionLoss | TemperatureCoefficient | Ratings | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN7560-10-M3CAP FEEDTHRU 0.01UF 650V AXIAL Schaffner EMC Inc. |
120 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 10000 pF | ±20% | 650V | 10 A | 0.8mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 0.591 Dia x 2.244 L (15.00mm x 57.00mm) | - |
|
FN7562-200-M10CAP FEEDTHRU 1UF 20% 650V AXIAL Schaffner EMC Inc. |
2,165 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 1 µF | ±20% | 650V | 200 A | 0.18mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.496 Dia x 5.787 L (38.00mm x 147.00mm) | - |
|
FN7511-10-M3CAP FEEDTHRU 4700PF 1KV AXIAL Schaffner EMC Inc. |
190 | - |
RFQ |
Scheda tecnica |
Tray | FN 751X | Active | 4700 pF | ±20% | 1000V (1kV) | 10 A | 0.8mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 0.663 Dia x 2.244 L (16.85mm x 57.00mm) | - |
|
FN7561-100-M8CAP FEEDTHRU 0.1UF 650V AXIAL Schaffner EMC Inc. |
102 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 0.1 µF | ±20% | 650V | 100 A | 0.23mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260 Dia x 4.449 L (32.00mm x 113.00mm) | - |
|
FN7514-32-M4CAP FEEDTHRU 0.1UF 20% 1KV AXIAL Schaffner EMC Inc. |
3,562 | - |
RFQ |
Scheda tecnica |
Tray | FN 751X | Active | 0.1 µF | ±20% | 1000V (1kV) | 32 A | 0.58mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 1.061 Dia x 3.031 L (26.95mm x 77.00mm) | - |
|
FN7511-100-M8CAP FEEDTHRU 0.1UF 20% 1KV AXIAL Schaffner EMC Inc. |
3,147 | - |
RFQ |
Scheda tecnica |
Tray | FN 751X | Active | 0.1 µF | ±20% | 1000V (1kV) | 100 A | 0.23mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 1.260 Dia x 4.449 L (32.00mm x 113.00mm) | - |
|
FN7561-200-M10CAP FEEDTHRU 0.47UF 650V AXIAL Schaffner EMC Inc. |
2,594 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 0.47 µF | ±20% | 650V | 200 A | 0.16mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260 Dia x 5.118 L (32.00mm x 130.00mm) | - |
|
FN7563-32-M4CAP FEEDTHRU 0.47UF 650V AXIAL Schaffner EMC Inc. |
3,270 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 0.47 µF | ±20% | 650V | 32 A | 0.63mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260 Dia x 3.228 L (32.00mm x 82.00mm) | - |
|
FN7510-100-M8CAP FEEDTHRU 0.047UF 1KV AXIAL Schaffner EMC Inc. |
3,815 | - |
RFQ |
Scheda tecnica |
Tray | FN 751X | Active | 0.047 µF | ±20% | 1000V (1kV) | 100 A | 0.23mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 1.260 Dia x 4.449 L (32.00mm x 113.00mm) | - |
|

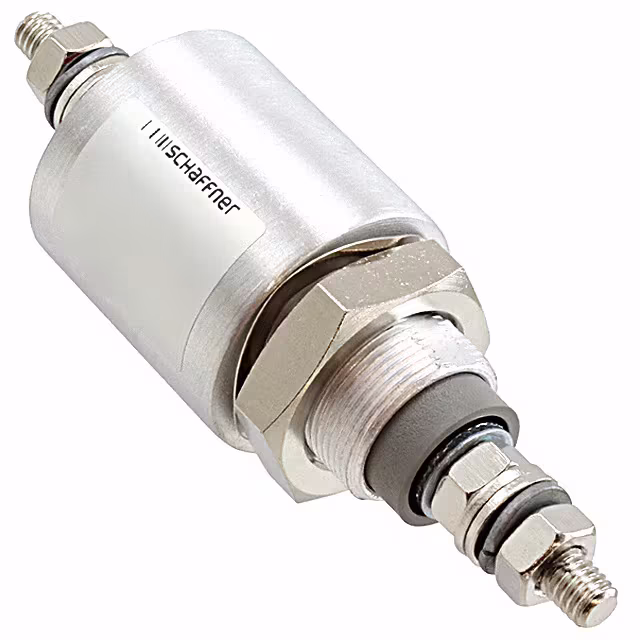

FN7563-63-M6CAP FEEDTHRU 0.47UF 650V AXIAL Schaffner EMC Inc. |
3,827 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 0.47 µF | ±20% | 650V | 63 A | 0.43mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260 Dia x 3.898 L (32.00mm x 99.00mm) | - |
|

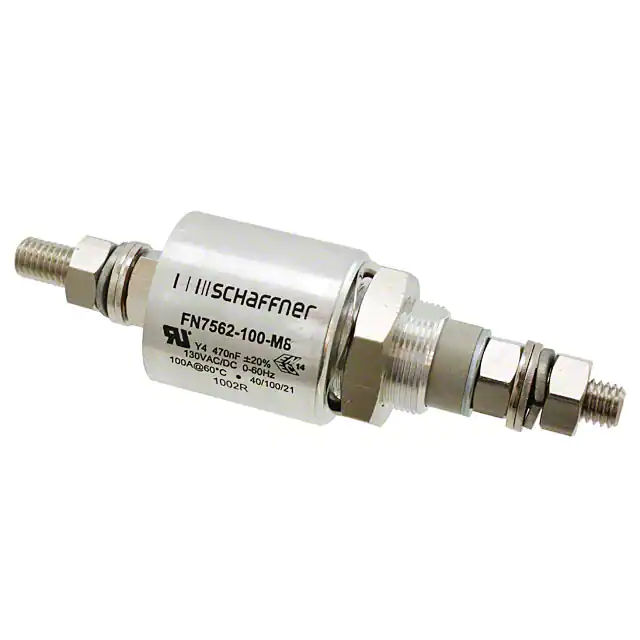

FN7562-100-M8CAP FEEDTHRU 0.47UF 650V AXIAL Schaffner EMC Inc. |
2,229 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 0.47 µF | ±20% | 650V | 100 A | 0.23mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260 Dia x 4.449 L (32.00mm x 113.00mm) | - |
|
FN7513-16-M4CAP FEEDTHRU 0.1UF 20% 1KV AXIAL Schaffner EMC Inc. |
2,367 | - |
RFQ |
Scheda tecnica |
Tray | FN 751X | Active | 0.1 µF | ±20% | 1000V (1kV) | 16 A | 0.58mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 1.061 Dia x 3.031 L (26.95mm x 77.00mm) | - |
|

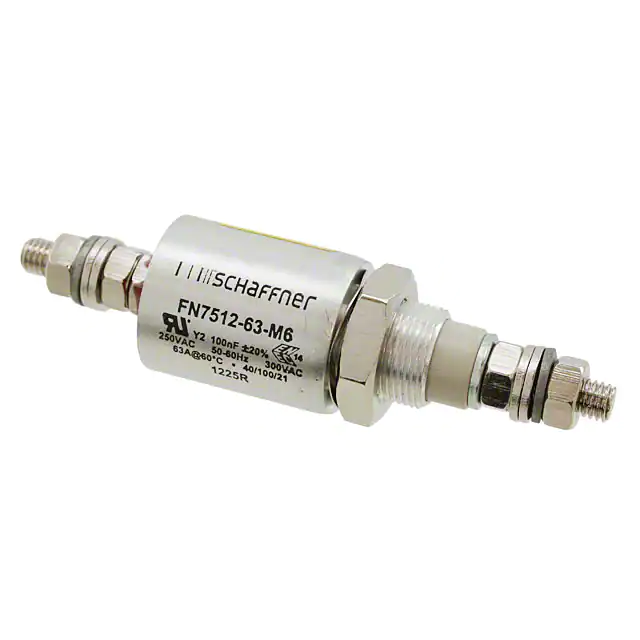

FN7512-63-M6CAP FEEDTHRU 0.1UF 20% 1KV AXIAL Schaffner EMC Inc. |
2,507 | - |
RFQ |
Scheda tecnica |
Tray | FN 751X | Active | 0.1 µF | ±20% | 1000V (1kV) | 63 A | 0.3mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 0.984 Dia x 3.780 L (25.00mm x 96.00mm) | - |
|

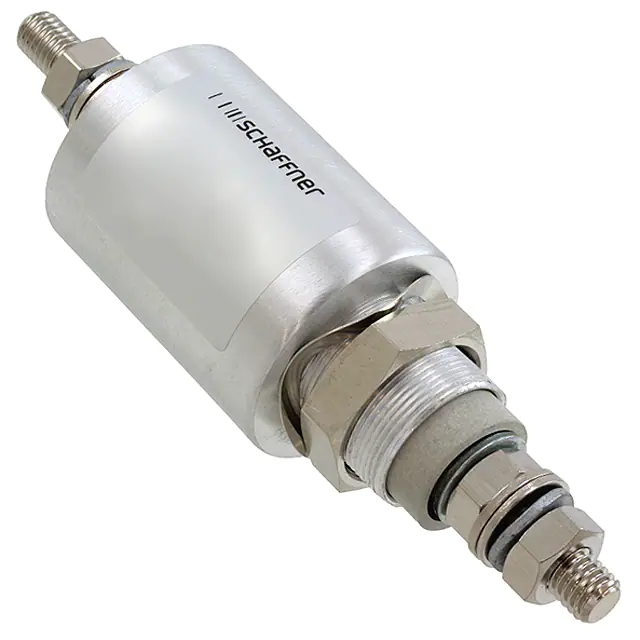

FN7563-100-M8CAP FEEDTHRU 1UF 20% 650V AXIAL Schaffner EMC Inc. |
2,253 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 1 µF | ±20% | 650V | 100 A | 0.25mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.496 Dia x 5.236 L (38.00mm x 133.00mm) | - |
|

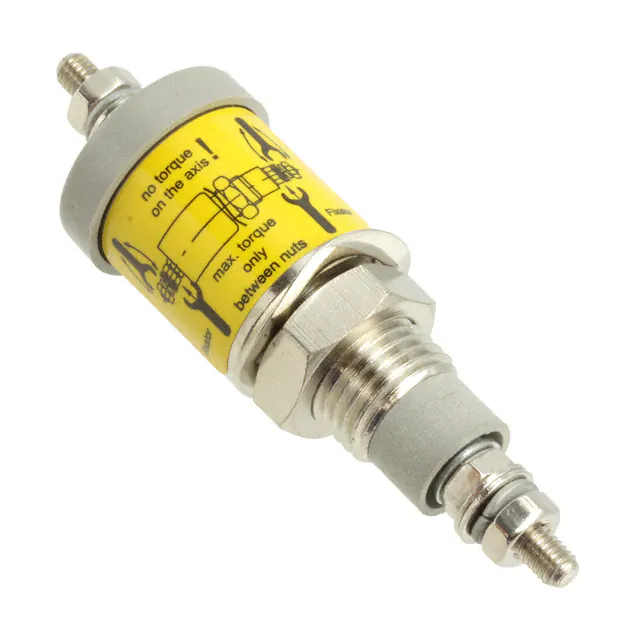

FN7510-10-M3CAP FEEDTHRU 2200PF 1KV AXIAL Schaffner EMC Inc. |
2,856 | - |
RFQ |
Scheda tecnica |
Tray | FN 751X | Active | 2200 pF | ±20% | 1000V (1kV) | 10 A | 0.8mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 0.663 Dia x 2.244 L (16.85mm x 57.00mm) | - |
|

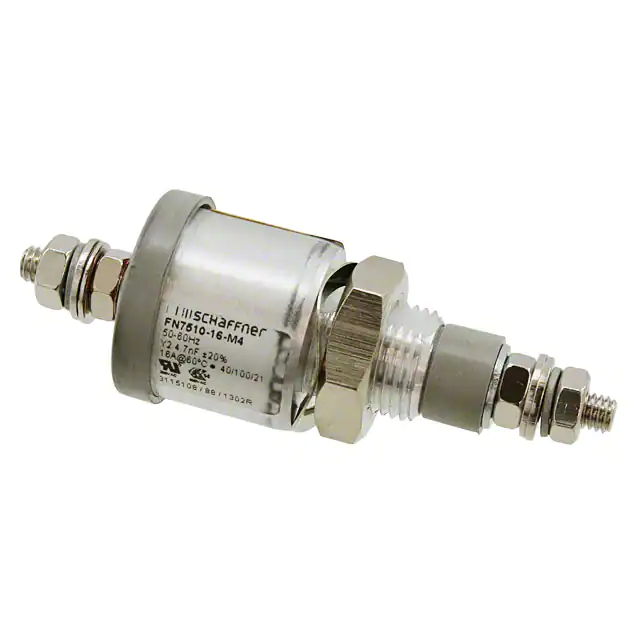

FN7510-16-M4CAP FEEDTHRU 4700PF 1KV AXIAL Schaffner EMC Inc. |
3,521 | - |
RFQ |
Scheda tecnica |
Tray | FN 751X | Active | 4700 pF | ±20% | 1000V (1kV) | 16 A | 0.5mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 0.864 Dia x 2.480 L (21.95mm x 63.00mm) | - |
|

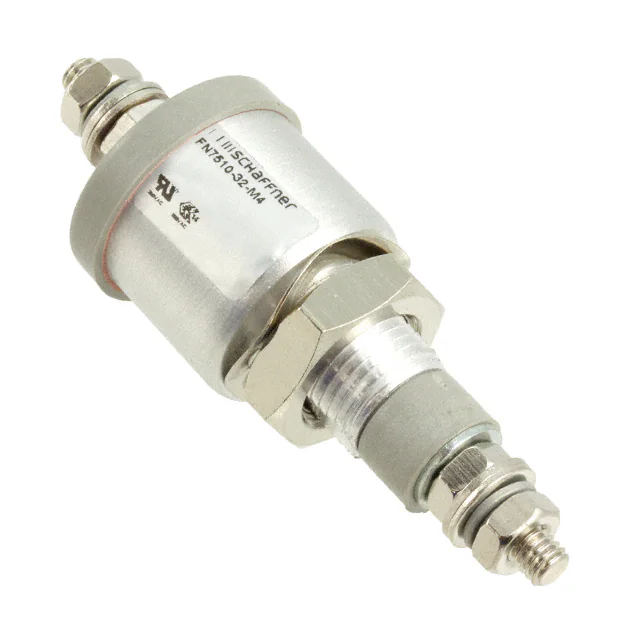

FN7510-32-M4CAP FEEDTHRU 4700PF 1KV AXIAL Schaffner EMC Inc. |
3,637 | - |
RFQ |
Scheda tecnica |
Tray | FN 751X | Active | 4700 pF | ±20% | 1000V (1kV) | 32 A | 0.52mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 0.864 Dia x 2.480 L (21.95mm x 63.00mm) | - |
|
FN7562-16-M4CAP FEEDTHRU 0.1UF 650V AXIAL Schaffner EMC Inc. |
3,616 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 0.1 µF | ±20% | 650V | 16 A | 0.62mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 0.787 Dia x 2.953 L (20.00mm x 75.00mm) | - |
|

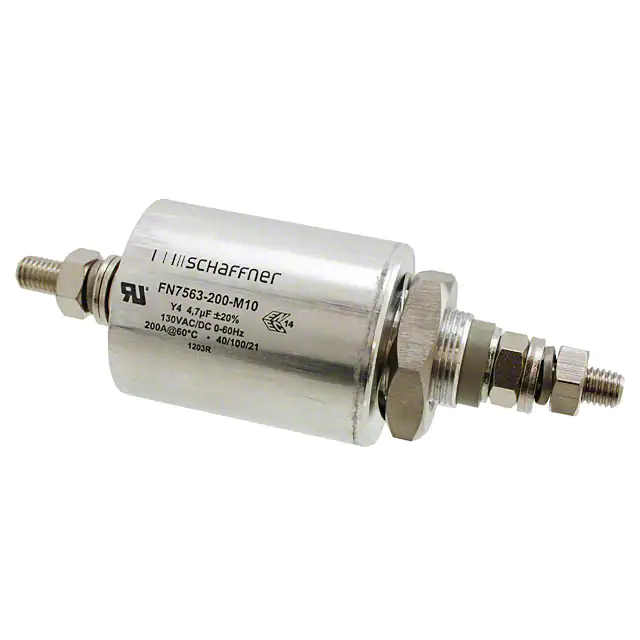

FN7563-200-M10CAP FEEDTHRU 4.7UF 650V AXIAL Schaffner EMC Inc. |
2,995 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 4.7 µF | ±20% | 650V | 200 A | 0.14mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 2.126 Dia x 6.496 L (54.00mm x 165.00mm) | - |
|
FN7562-32-M4CAP FEEDTHRU 0.1UF 650V AXIAL Schaffner EMC Inc. |
2,363 | - |
RFQ |
Scheda tecnica |
Tray | FN 756X | Active | 0.1 µF | ±20% | 650V | 32 A | 0.62mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | Bolt Mount | 0.787 Dia x 1.654 L (20.00mm x 42.00mm) | - |
