Isolatori - Driver di gate
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

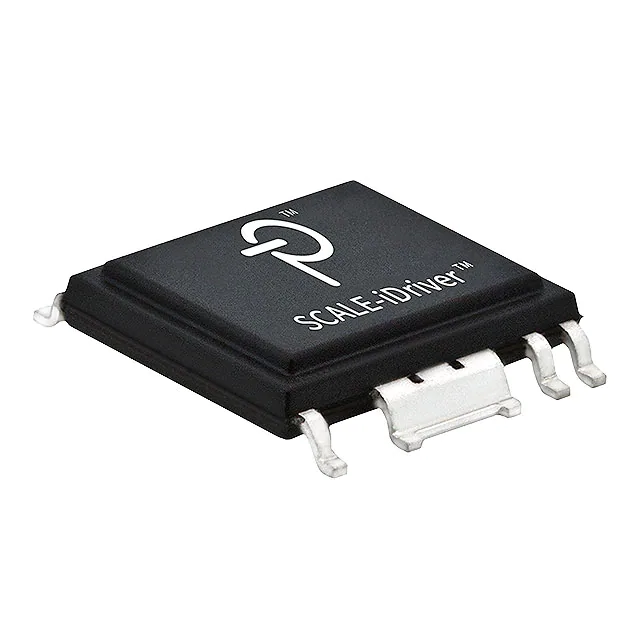

SID1152K-TLDGTL ISO 5KV GATE DRVR ESOP-R16B Power Integrations |
3,099 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | - | 340ns, 330ns | - | 225ns, 225ns (Max) | 2.4A, 2.6A | 5A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1132KDGTL ISO 5KV GATE DRVR ESOP-R16B Power Integrations |
444 | - |
RFQ |
Scheda tecnica |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | - | 340ns, 330ns | - | 450ns, 450ns (Max) | 1.2A, 1.3A | 2.5A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1132KQ-TL2.5A, 1200V REINFORCED ISOLATION Power Integrations |
2,822 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 450ns, 450ns | 1.2A, 1.3A | 2.5A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
SIC1182KDGTL ISO 1.2KV SIC DRVR ESOP-R16 Power Integrations |
321 | - |
RFQ |
Scheda tecnica |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1102KDGTL ISO GATE DRVR Power Integrations |
426 | - |
RFQ |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 1000Vrms | 100kV/µs | 350ns, 350ns | - | 29ns, 14ns | 5A, 5A | - | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount | |
|
|
SID1112KDGTL ISO GATE DRVR Power Integrations |
207 | - |
RFQ |
Scheda tecnica |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 1125ns, 1125ns (Max) | 480mA, 520mA | 1A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
SIC1181KQ-TL8A 750V ESOP IGBT SIC IN T/R Power Integrations |
3,521 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 35kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1181KQ-TL8A 750V ESOP IGBT T/R Power Integrations |
3,604 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Capacitive Coupling | 1 | 5000Vrms | 50kV/µs | 340ns, 330ns | - | 465ns, 460ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SIC1182K-TLDGTL ISO 1.2KV SIC DRVR ESOP-R16 Power Integrations |
3,521 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 500V/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1182KQ-TL8A, 1200V REINFORCED ISOLATION Power Integrations |
3,481 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 150ns, 150ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SIC1182KQ-TL8A 1200V ESOP IGBT SIC IN T/R Power Integrations |
2,793 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 35kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SIC1181KQ8A 750V ESOP SIC IN TUBES Power Integrations |
3,402 | - |
RFQ |
Scheda tecnica |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 35kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1181KQ8A 750V ESOP IGBT Power Integrations |
2,629 | - |
RFQ |
Scheda tecnica |
Tube | SCALE-iDriver™ | Active | Capacitive Coupling | 1 | 5000Vrms | 50kV/µs | 340ns, 330ns | - | 465ns, 460ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1132KQ2.5A, 1200V REINFORCED ISOLATION Power Integrations |
220 | - |
RFQ |
Scheda tecnica |
Tube | Automotive, AEC-Q100, SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 450ns, 450ns | 1.2A, 1.3A | 2.5A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1182KQ8A, 1200V REINFORCED ISOLATION Power Integrations |
392 | - |
RFQ |
Scheda tecnica |
Tube | Automotive, AEC-Q100, SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 150ns, 150ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SIC1182KQ8A 1200V ESOP IGBT SIC IN TUBES Power Integrations |
2,942 | - |
RFQ |
Scheda tecnica |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 35kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1102K-TLDGTL ISO GATE DRVR Power Integrations |
939 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 1000Vrms | 100kV/µs | 350ns, 350ns | - | 29ns, 14ns | 5A, 5A | - | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount | |
|
|
SID1112K-TLDGTL ISO GATE DRVR Power Integrations |
990 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 1125ns, 1125ns (Max) | 480mA, 520mA | 1A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1152KDGTL ISO 5KV GATE DRVR ESOP-R16B Power Integrations |
251 | - |
RFQ |
Scheda tecnica |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | - | 340ns, 330ns | - | 225ns, 225ns (Max) | 2.4A, 2.6A | 5A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1132K-TLDGTL ISO 5KV GATE DRVR ESOP-R16B Power Integrations |
3,221 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | - | 340ns, 330ns | - | 450ns, 450ns (Max) | 1.2A, 1.3A | 2.5A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
