Microfoni
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | OutputType | Direction | FrequencyRange | Sensitivity | S/NRatio | Impedance | Voltage-Rated | VoltageRange | Current-Supply | PortLocation | Ratings | Termination | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP23DB01HPTRAUTO & INDUSTRIAL SENSORS STMicroelectronics |
2,241 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | - | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 10 kHz | -24dB ±1dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 800 µA | Bottom | - | Solder Pads | 0.138 L x 0.104 W (3.50mm x 2.65mm) | 0.043 (1.08mm) |
|
MP34DT06JTRMICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
2,521 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | - | 650 µA | Top | - | Solder Pads | 0.118 L x 0.157 W (3.00mm x 4.00mm) | 0.043 (1.10mm) |
|
IMP23ABSUTRANALOG BOTTOM PORT MICROPHONE WI STMicroelectronics |
3,090 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | MEMS (Silicon) | Analog | Omnidirectional | 35 Hz ~ 15 kHz | -38db ±1dB | 64dB | - | 2.75 V | 1.52 V ~ 3.6 V | 150 µA | Bottom | - | Solder Pads | 0.130 L x 0.097 W (3.31mm x 2.46mm) | 0.039 (0.98mm) | |
|
MP23DB02MMTRMICROPHONE STMicroelectronics |
3,619 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MP34DT05TR-AMICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
2,205 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | - | 650 µA | Top | - | Solder Pads | 0.118 L x 0.157 W (3.00mm x 4.00mm) | 0.043 (1.10mm) |
|
MP23ABS1TRMICROPHONE MEMS ANALOG OMNI STMicroelectronics |
2,547 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | MEMS (Silicon) | Analog | Omnidirectional | 35 Hz ~ 1.5 kHz | -38dB ±1dB @ 94dB SPL | 64dB | - | 2.75 V | - | 150 µA | Bottom | - | Solder Pads | 0.138 L x 0.104 W (3.50mm x 2.65mm) | 0.043 (1.08mm) |
|
|
IMP34DT05TRMICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
2,297 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | - | 650 µA | Top | - | Solder Pads | 0.118 L x 0.157 W (3.00mm x 4.00mm) | 0.043 (1.10mm) |
|

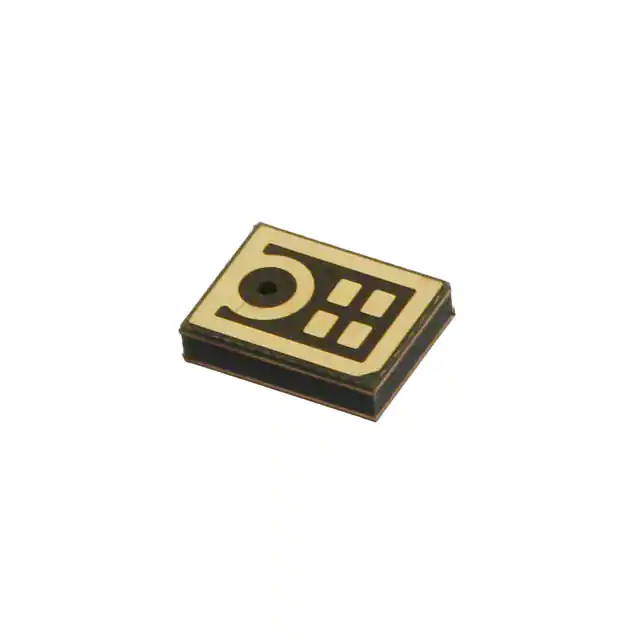

MP34DB01TRMICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
3,230 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 20 kHz | -26dB ±3dB @ 94dB SPL | 62.6dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Bottom | - | Solder Pads | 0.157 L x 0.118 W (4.00mm x 3.00mm) | 0.043 (1.10mm) |
|

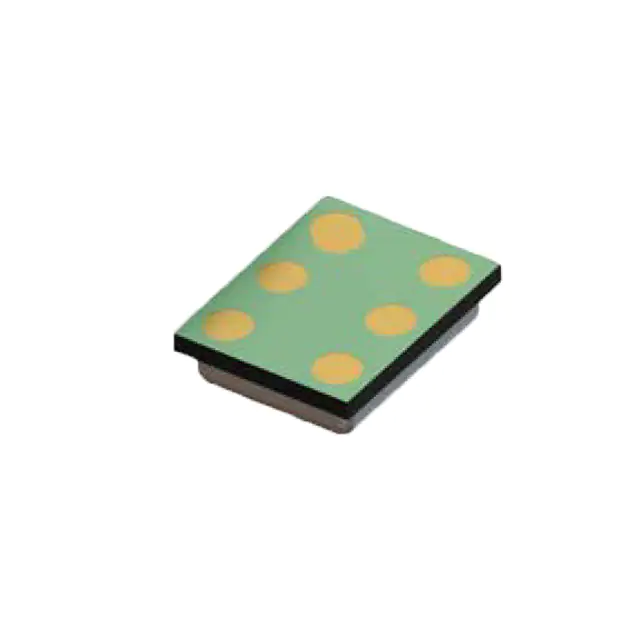

MP45DT02TRMICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
3,418 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.186 L x 0.148 W (4.72mm x 3.76mm) | 0.054 (1.38mm) |
|
|
MP34DB01MICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
2,824 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 20 kHz | -26dB ±3dB @ 94dB SPL | 62.6dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Bottom | - | Solder Pads | 0.157 L x 0.118 W (4.00mm x 3.00mm) | 0.043 (1.10mm) |
|

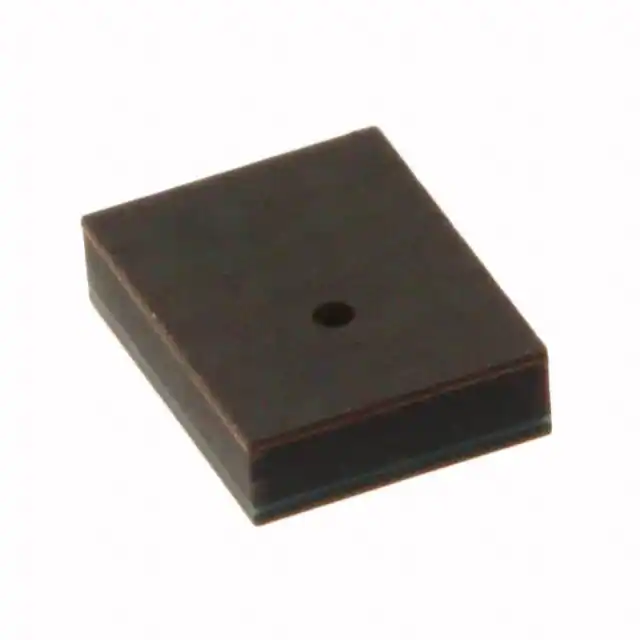

MP34DT01TRMICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
3,868 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 63dB | - | 1.8 V | 1.64 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.157 L x 0.118 W (4.00mm x 3.00mm) | 0.043 (1.10mm) |
|
|
MP34DT01MICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
3,170 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 63dB | - | 1.8 V | 1.64 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.157 L x 0.118 W (4.00mm x 3.00mm) | 0.043 (1.10mm) |
|
MP45DT02MICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
2,622 | - |
RFQ |
Scheda tecnica |
Tray | - | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.186 L x 0.148 W (4.72mm x 3.76mm) | 0.054 (1.38mm) |
|
MP33AB01MICROPHONE MEMS ANALOG OMNI STMicroelectronics |
3,090 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 63dB | - | 2.2 V | 1.5 V ~ 3.6 V | 250 µA | Bottom | - | Solder Pads | 0.148 L x 0.116 W (3.76mm x 2.95mm) | 0.043 (1.10mm) |
|
|
MP33AB01HMICROPHONE MEMS ANALOG OMNI STMicroelectronics |
3,547 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 66dB | - | 2.2 V | 1.5 V ~ 3.6 V | 250 µA | Bottom | - | Solder Pads | 0.148 L x 0.116 W (3.76mm x 2.95mm) | 0.043 (1.10mm) |
|

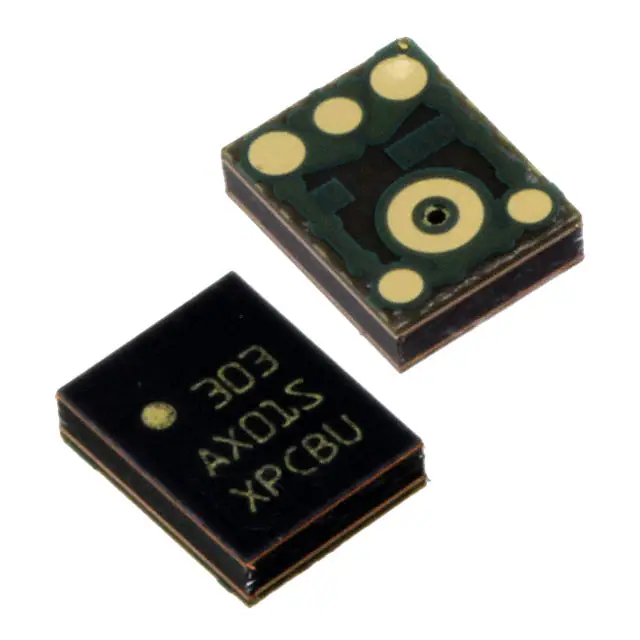

MP33AB01HTRMICROPHONE MEMS ANALOG OMNI STMicroelectronics |
2,344 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 66dB | - | 2.2 V | 1.5 V ~ 3.6 V | 250 µA | Bottom | - | Solder Pads | 0.148 L x 0.116 W (3.76mm x 2.95mm) | 0.043 (1.10mm) |
|

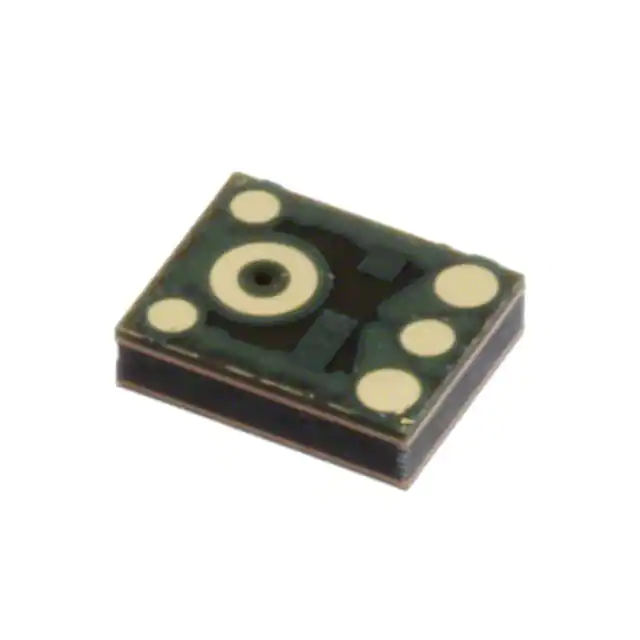

MP33AB01TRMICROPHONE MEMS ANALOG OMNI STMicroelectronics |
3,498 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 63dB | - | 2.2 V | 1.5 V ~ 3.6 V | 250 µA | Bottom | - | Solder Pads | 0.148 L x 0.116 W (3.76mm x 2.95mm) | 0.043 (1.10mm) |
|
MP23AB02BTRMICROPHONE MEMS ANALOG OMNI STMicroelectronics |
2,371 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 220 µA | Bottom | - | Solder Pads | 0.132 L x 0.098 W (3.35mm x 2.50mm) | 0.043 (1.08mm) |
|
MP34DT02TRMICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
3,072 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 60dB | - | 1.8 V | 1.64 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.157 L x 0.118 W (4.00mm x 3.00mm) | 0.046 (1.16mm) |
|
MP34DT01TR-MMICROPHONE MEMS DIGITAL PDM OMNI STMicroelectronics |
3,156 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.157 L x 0.118 W (4.00mm x 3.00mm) | 0.046 (1.16mm) |
