AC CC Desktop, Adattatori da parete
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | RegionUtilized | Form | InputType | Voltage-Input | Voltage-Output | Current-Output(Max) | Power(Watts) | NoLoadPowerConsumption | Polarization | Applications | Efficiency | OperatingTemperature | OutputConnector | CordLength | InputConnector | Features | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R120DM-120-C8AC/DC DESKTOP ADAPTER 12V 108W Tri-Mag, LLC |
2,846 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R120DM (120W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 9A | 108 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 39.4 (1.00m) | IEC 320-C8 | - | 6.50 L x 2.60 W x 1.54 H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

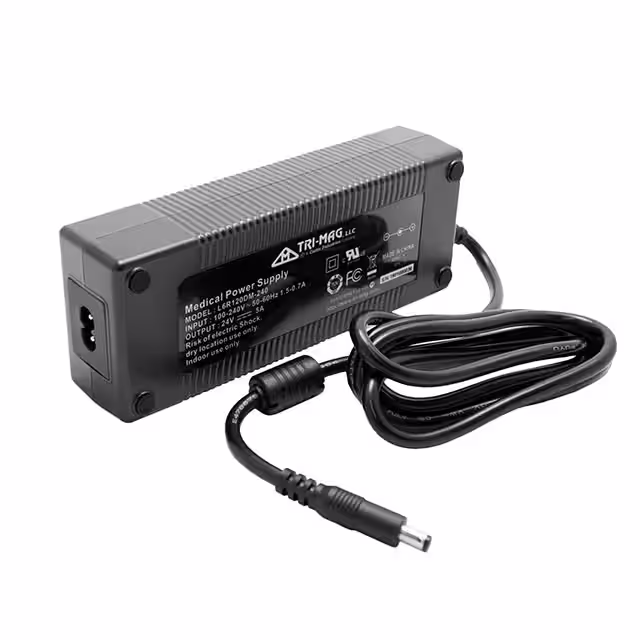

L6R120DM-240-C8AC/DC DESKTOP ADAPTER 24V 120W Tri-Mag, LLC |
3,550 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R120DM (120W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 5A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C8 | - | 6.50 L x 2.60 W x 1.54 H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

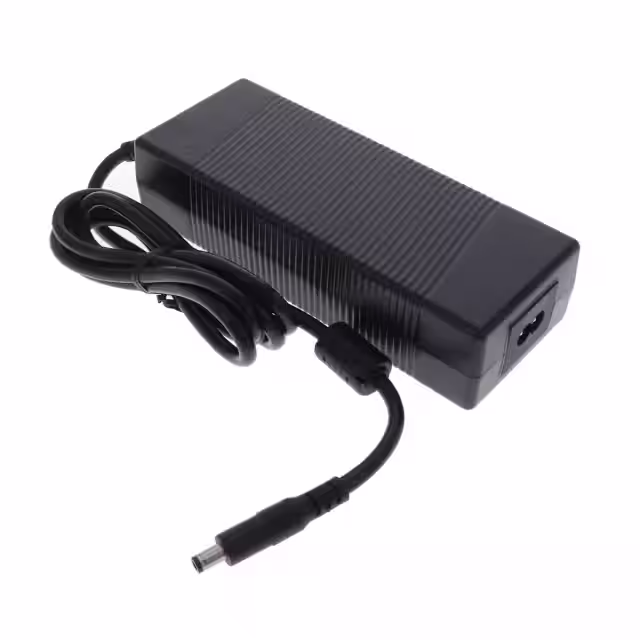

L6R120DM-190-C8AC/DC DESKTOP ADAPTER 19V 120W Tri-Mag, LLC |
2,148 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R120DM (120W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 6.3A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C8 | - | 6.50 L x 2.60 W x 1.54 H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

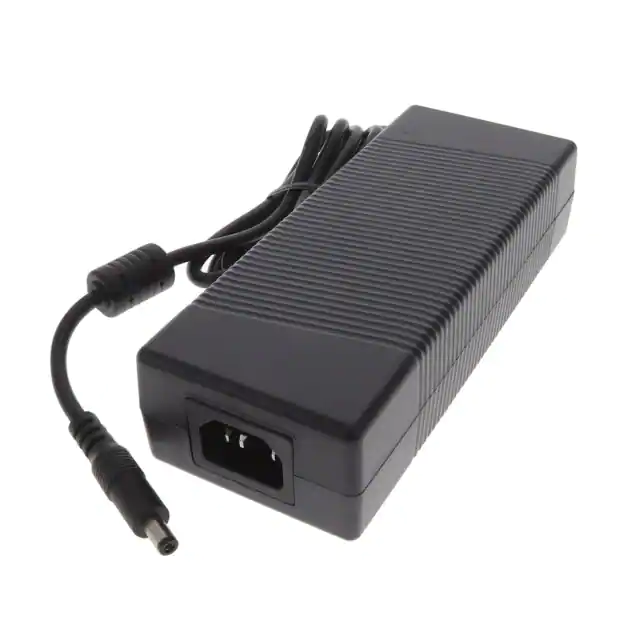

L6R120DM-480-C14AC/DC DESKTOP ADAPTER 48V 120W Tri-Mag, LLC |
3,652 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R120DM (120W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2.5A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C14 | - | 6.50 L x 2.60 W x 1.54 H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

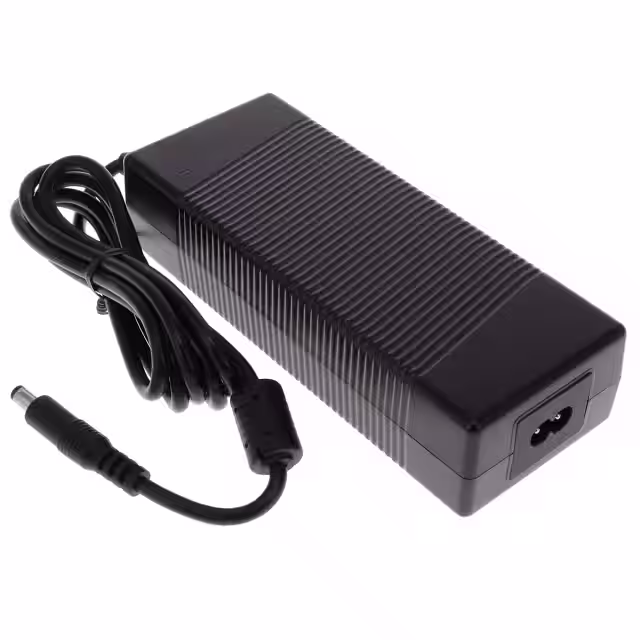

L6R120DM-480-C8AC/DC DESKTOP ADAPTER 48V 120W Tri-Mag, LLC |
2,018 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R120DM (120W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2.5A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C8 | - | 6.50 L x 2.60 W x 1.54 H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|

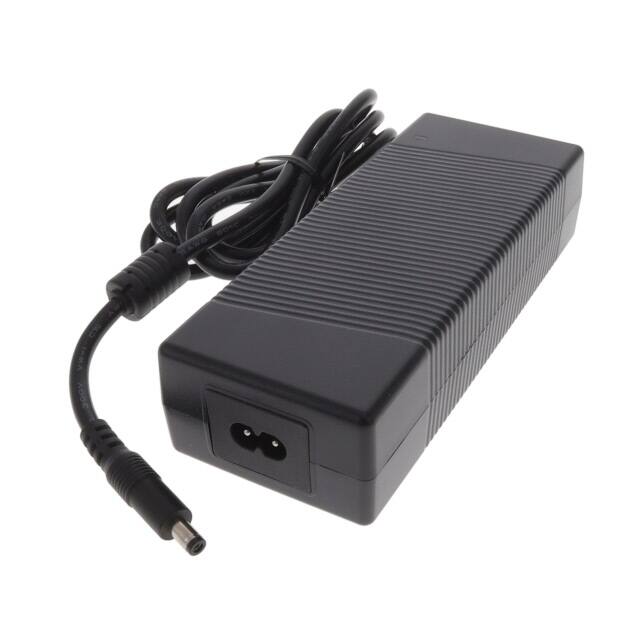

L6R120DM-180-C8AC/DC DESKTOP ADAPTER 18V 120W Tri-Mag, LLC |
3,324 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R120DM (120W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 6.67A | 120 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C8 | - | 6.50 L x 2.60 W x 1.54 H (165.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R200DM-120-C14AC/DC DESKTOP ADAPTER 12V 192W Tri-Mag, LLC |
3,021 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R200DM (200W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 16A | 192 W | 150mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2 (1.20m) | IEC 320-C14 | - | 8.03 L x 3.19 W x 1.67 H (204.0mm x 81.0mm x 42.4mm) | CE, cULus, EN, FCC, TUV |
|

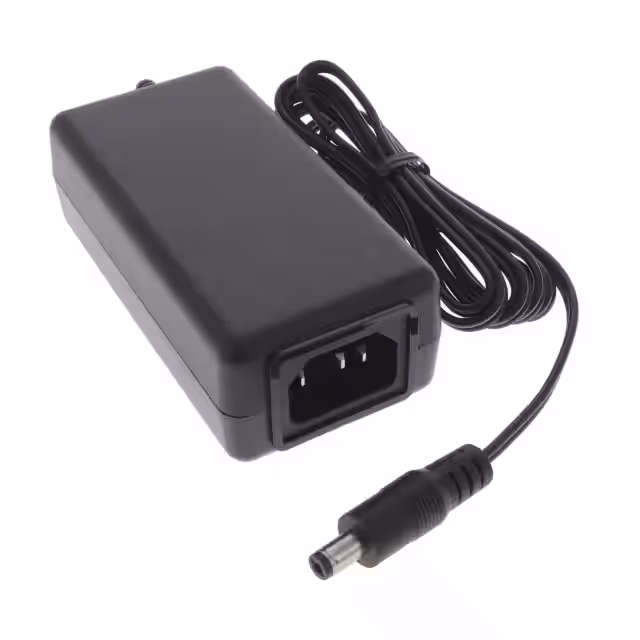

L6R36DM-120-C14AC/DC DESKTOP ADAPTER 12V 36W Tri-Mag, LLC |
2,889 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R36DM (36W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C14 | - | 3.94 L x 1.97 W x 1.30 H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R48D-090-500-C14AC/DC DESKTOP ADAPTER 9V 45W Tri-Mag, LLC |
2,961 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R48D (48W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 5A | 45 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4 (1.00m) | IEC 320-C14 | - | 4.72 L x 2.01 W x 1.34 H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
|
|
L6R48D-240-C14AC/DC DESKTOP ADAPTER 24V 48W Tri-Mag, LLC |
3,758 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R48D (48W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2A | 48 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4 (1.00m) | IEC 320-C14 | - | 4.72 L x 2.01 W x 1.34 H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
|

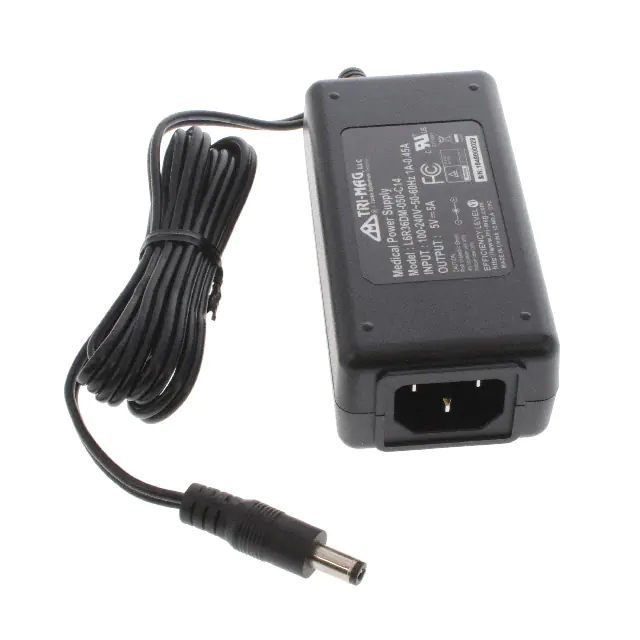

L6R36DM-050-C14AC/DC DESKTOP ADAPTER 5V 25W Tri-Mag, LLC |
3,377 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R36DM (36W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C14 | - | 3.94 L x 1.97 W x 1.30 H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV |
|

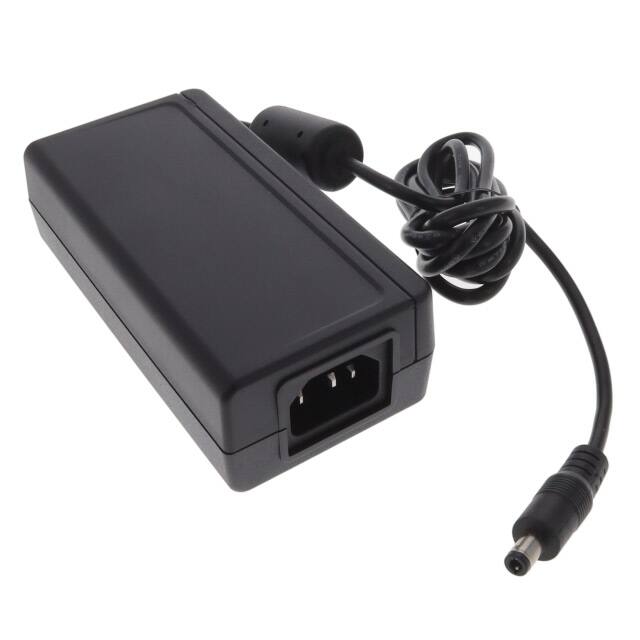

L6R65DM-150-C14AC/DC DESKTOP ADAPTER 15V 65W Tri-Mag, LLC |
2,662 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R65DM (65W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4.34A | 65 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C14 | - | 4.69 L x 2.36 W x 1.42 H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV |
|

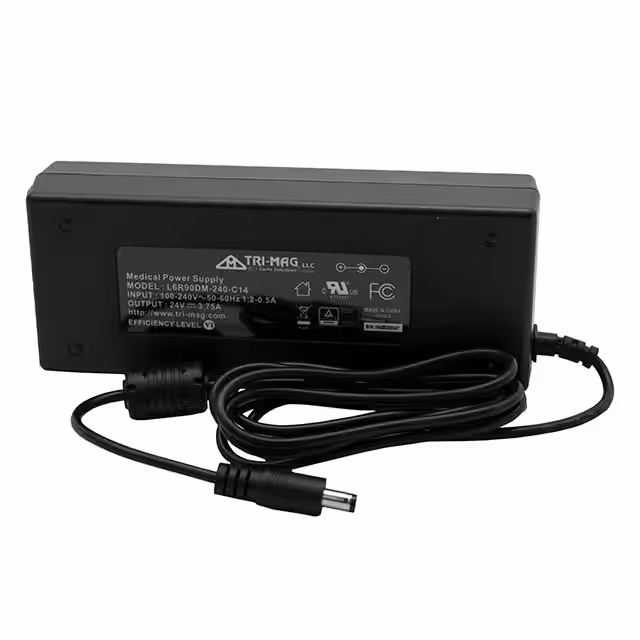

L6R90DM-240-C14AC/DC DESKTOP ADAPTER 24V 90W Tri-Mag, LLC |
2,105 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R90DM (90W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C14 | - | 5.94 L x 2.52 W x 1.38 H (150.9mm x 64.0mm x 35.1mm) | CE, cULus, EN, FCC, TUV |
|
L6R120D-240AC/DC DESKTOP ADAPTER 24V 120W Tri-Mag, LLC |
2,225 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R120D (120W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 5A | 120 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C14 | - | 6.61 L x 2.60 W x 1.54 H (168.0mm x 66.0mm x 39.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R12H-090AC/DC WALL MOUNT ADAPTER 9V 12W Tri-Mag, LLC |
2,061 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R12H (12W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | NEMA 1-15P | - | 1.54 L x 0.95 W x 1.71 H (39.2mm x 24.0mm x 43.5mm) | cUL, FCC, UL |
|
L6R60D-120-C6AC/DC DESKTOP ADAPTER 12V 65W Tri-Mag, LLC |
2,606 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R60D (65W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5.41A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4 (1.00m) | IEC 320-C6 | - | 4.72 L x 2.01 W x 1.34 H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL |
|

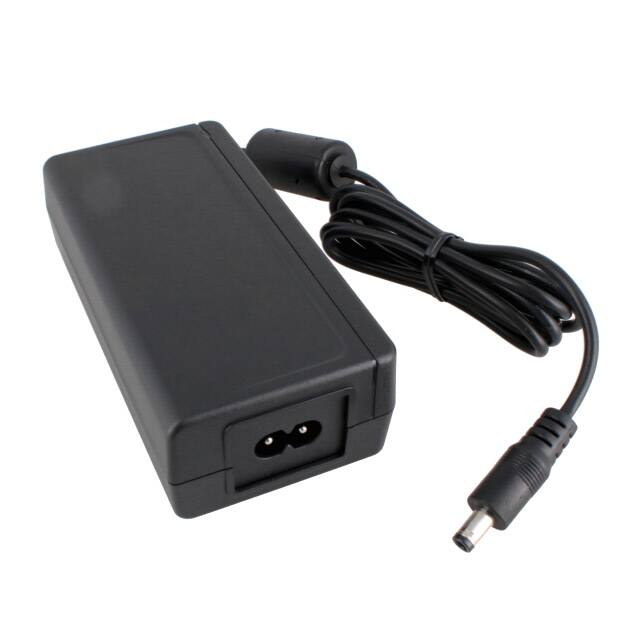

L6R65DM-180-C8AC/DC DESKTOP ADAPTER 18V 65W Tri-Mag, LLC |
2,796 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R65DM (65W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.62A | 65 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C8 | - | 4.69 L x 2.36 W x 1.42 H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV |
|
L6R90D-240-C14AC/DC DESKTOP ADAPTER 24V 90W Tri-Mag, LLC |
2,097 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R90D (90W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C14 | - | 5.94 L x 2.52 W x 1.42 H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R200D-120AC/DC DESKTOP ADAPTER 12V 192W Tri-Mag, LLC |
3,056 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R200D (200W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 16A | 192 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2 (1.20m) | IEC 320-C14 | - | 7.20 L x 3.19 W x 1.65 H (183.0mm x 81.0mm x 42.0mm) | CE, cULus, EN, FCC, TUV |
|
L6R24D-090-C8AC/DC DESKTOP ADAPTER 9V 24W Tri-Mag, LLC |
2,136 | - |
RFQ |
Scheda tecnica |
Box | Tri-Mag®, L6R24D (24W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 2.7A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C8 | - | 3.62 L x 1.79 W x 1.08 H (91.9mm x 45.4mm x 27.5mm) | cUL, FCC, UL |
