AC CC Desktop, Adattatori da parete
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | RegionUtilized | Form | InputType | Voltage-Input | Voltage-Output | Current-Output(Max) | Power(Watts) | NoLoadPowerConsumption | Polarization | Applications | Efficiency | OperatingTemperature | OutputConnector | CordLength | InputConnector | Features | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QFWC-18-12-USCRAC/DC WALL MT ADPT 5V/9V/12V 18W Qualtek |
2,880 | - |
RFQ |
Scheda tecnica |
Bulk | QFWC-18 (18W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V, 9V, 12V | 3A, 2A, 1.5A | 18 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB C Power Delivery (PD) | 47.2 (1.20m) | NEMA 1-15P | - | 1.89 L x 1.89 W x 1.10 H (48.0mm x 48.0mm x 28.0mm) | cULus, FCC |
|
WSX240-1000-13AC/DC WALL MOUNT ADAPTER 24V 24W Triad Magnetics |
3,025 | - |
RFQ |
Scheda tecnica |
Bulk | WSX | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 60 (1.52m) | Multi-Blade | - | 3.02 L x 1.87 W x 1.38 H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM |
|
|
WSX090-2500-13AC/DC WALL MOUNT ADAPTER 9V 23W Triad Magnetics |
3,567 | - |
RFQ |
Scheda tecnica |
Bulk | WSX | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 2.5A | 23 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 60 (1.52m) | Multi-Blade | - | 3.02 L x 1.87 W x 1.38 H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM |
|
GST18A05-P1JAC/DC DESKTOP ADAPTER 5V 15W MEAN WELL USA Inc. |
3,196 | - |
RFQ |
Scheda tecnica |
Box | GST18A (18W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2 (1.20m) | IEC 320-C14 | - | 3.66 L x 2.13 W x 1.42 H (93.0mm x 54.0mm x 36.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GST25A05-P1JAC/DC DESKTOP ADAPTER 5V 20W MEAN WELL USA Inc. |
3,279 | - |
RFQ |
Scheda tecnica |
Box | GST25A (25W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 5V | 4A | 20 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | IEC 320-C14 | - | 3.66 L x 2.13 W x 1.42 H (93.0mm x 54.0mm x 36.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
KTPS24-05040WA-VI-P1AC/DC WALL MOUNT ADAPTER 5V 24W Kaga Electronics USA |
3,189 | - |
RFQ |
Scheda tecnica |
Box | KTPS24 (24W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 4A | 24 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | NEMA 1-15P | - | 2.83 L x 1.34 W x 2.05 H (72.0mm x 34.0mm x 52.0mm) | IEC |
|
SDI18-9-U-P6AC/DC DESKTOP ADAPTER 9V 20W CUI Inc. |
2,808 | - |
RFQ |
Scheda tecnica |
Box | SDI18-U (18W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 2.2A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | IEC 320-C14 | - | 3.94 L x 1.97 W x 1.30 H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL |
|
ACM36US09AC/DC WALL MOUNT ADAPTER 9V 36W XP Power |
2,203 | - |
RFQ |
Scheda tecnica |
Box | ACM36 (36W) | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 4A | 36 W | 75mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59 (1.50m) | Multi-Blade (Sold Separately) | - | 3.93 L x 1.29 W x 2.34 H (96.7mm x 33.0mm x 59.5mm) | CB, CE, CSA, TUV, UL |
|
|
ACM36US12AC/DC WALL MOUNT ADAPTER 12V 36W XP Power |
2,592 | - |
RFQ |
Scheda tecnica |
Box | ACM36 (36W) | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59 (1.50m) | Multi-Blade (Sold Separately) | - | 3.93 L x 1.29 W x 2.34 H (96.7mm x 33.0mm x 59.5mm) | CB, CE, CSA, TUV, UL |
|
|
ACM36US24AC/DC WALL MOUNT ADAPTER 24V 36W XP Power |
2,352 | - |
RFQ |
Scheda tecnica |
Box | ACM36 (36W) | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59 (1.50m) | Multi-Blade (Sold Separately) | - | 3.93 L x 1.29 W x 2.34 H (96.7mm x 33.0mm x 59.5mm) | CB, CE, CSA, TUV, UL |
|
KTPS24-05040MP-VI-P1AC/DC WALL MOUNT ADAPTER 5V 24W Kaga Electronics USA |
3,982 | - |
RFQ |
Scheda tecnica |
Box | KTPS24 (24W) | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 5V | 4A | 24 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | Multi-Blade | - | 2.95 L x 1.41 W x 2.58 H (75.0mm x 35.8mm x 65.6mm) | IEC |
|
|
KTPS24-24010MP-VI-P1AC/DC WALL MOUNT ADAPTER 24V 24W Kaga Electronics USA |
2,855 | - |
RFQ |
Scheda tecnica |
Box | KTPS24 (24W) | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 24V | 1A | 24 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | Multi-Blade | - | 2.95 L x 1.41 W x 2.58 H (75.0mm x 35.8mm x 65.6mm) | IEC |
|
GST40A18-P1JAC/DC DESKTOP ADAPTER 18V 40W MEAN WELL USA Inc. |
2,330 | - |
RFQ |
Scheda tecnica |
Box | GST40A (40W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9 (1.80m) | IEC 320-C14 | - | 4.92 L x 1.97 W x 1.24 H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
RR9LB3750T00NAIMR6BAC/DC DSKTP/WALL MT ADAPT 6V 23W GlobTek, Inc. |
2,001 | - |
RFQ |
Scheda tecnica |
Bulk | GTM96300-36VV-R3A | Active | International | Desktop, Wall Mount (Class I) | Cord (Sold Separately), Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 6V | 3.75A | 23 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2 (1.20m) | IEC 320-C6, Multi-Blade (Single Blade Included) | - | 4.00 L x 1.83 W x 1.50 H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI |
|
GST36B12-P1JAC/DC DESKTOP ADAPTER 12V 36W MEAN WELL USA Inc. |
3,083 | - |
RFQ |
Scheda tecnica |
Box | GST36B (36W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | IEC 320-C8 | - | 3.11 L x 2.13 W x 1.30 H (79.0mm x 54.0mm x 33.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|

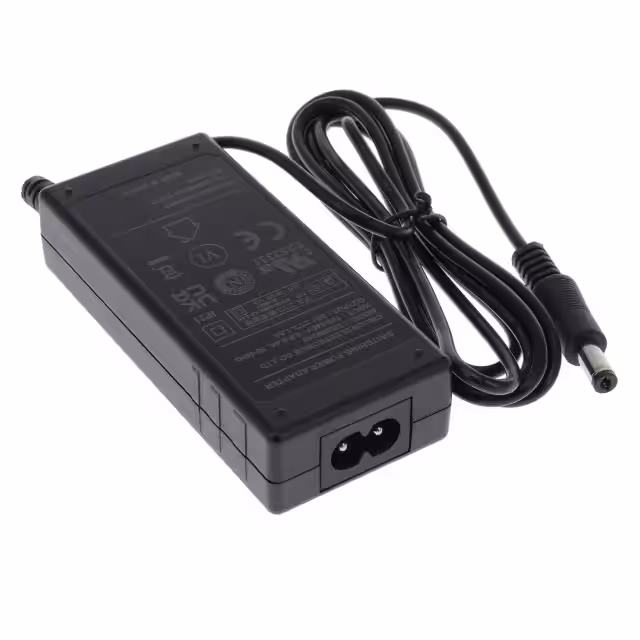

TR36M240-11G03 VIAC/DC DESKTOP ADAPTER 24V 36W Cincon Electronics Co. LTD |
3,429 | - |
RFQ |
Box | TR36M (36W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | Medical | Level VI, CoC Tier 2 | -30°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9 (1.80m) | IEC 320-C8 | - | 3.94 L x 1.77 W x 0.89 H (100.0mm x 45.0mm x 22.5mm) | CE, cURus, FCC, NEMKO, PSE | |
|
GST60A12-P1MAC/DC DESKTOP ADAPTER 12V 60W MEAN WELL USA Inc. |
2,425 | - |
RFQ |
Scheda tecnica |
Box | GST60A (60W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | IEC 320-C14 | - | 4.92 L x 1.97 W x 1.24 H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GST60A24-P1MAC/DC DESKTOP ADAPTER 24V 60W MEAN WELL USA Inc. |
2,875 | - |
RFQ |
Scheda tecnica |
Box | GST60A (60W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.5A | 60 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 70.9 (1.80m) | IEC 320-C14 | - | 4.92 L x 1.97 W x 1.24 H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
SMI24-12-V-P6AC/DC WALL MOUNT ADAPTER 12V 24W CUI Inc. |
3,101 | - |
RFQ |
Scheda tecnica |
Bulk,Box | SMI24 (24W) | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | Multi-Blade | - | 2.95 L x 1.38 W x 2.58 H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL |
|
|
SMI24-12-V-P5RAC/DC WALL MOUNT ADAPTER 12V 24W CUI Inc. |
2,879 | - |
RFQ |
Scheda tecnica |
Box | SMI24 (24W) | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | Multi-Blade | - | 2.95 L x 1.38 W x 2.58 H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL |
