Allarmi, Buzzer e sirene
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

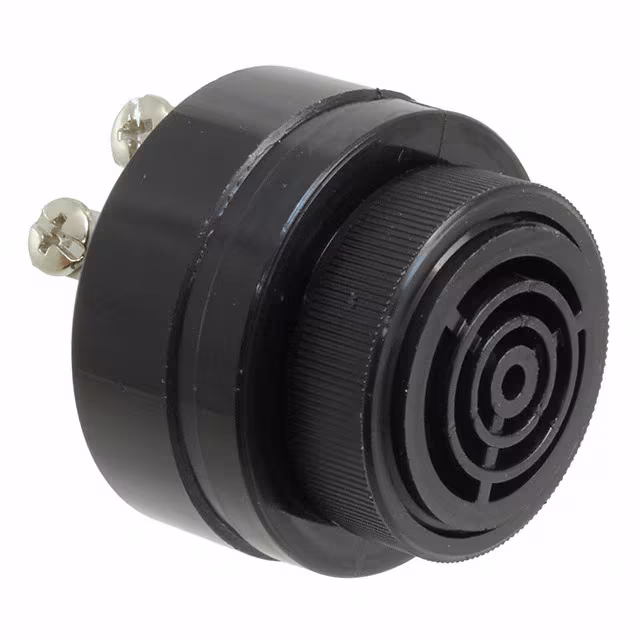

SC628WBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,057 | - |
RFQ |
Scheda tecnica |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Warble, Fast | 2 ~ 10 PPS | 68dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminals | 1.687 Dia (42.85mm) |
|

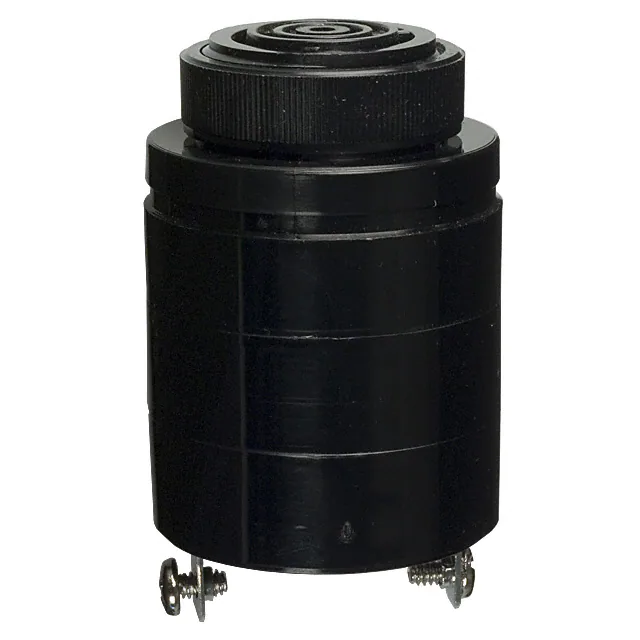

SC110JBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
2,355 | - |
RFQ |
Scheda tecnica |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
SC250JBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
2,605 | - |
RFQ |
Scheda tecnica |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 60V, 61cm | 4 ~ 13mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SCE028MD3DP3BBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,960 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687 Dia (42.85mm) |
|
|
SC250DJBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,983 | - |
RFQ |
Scheda tecnica |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 60dB @ 60V, 61cm | 5 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
ZT120LACTR30BUZZER PIEZO 30.74MM PNL MNT Mallory Sonalert Products Inc. |
2,036 | - |
RFQ |
Scheda tecnica |
Bulk | ZT | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.7kHz | Piezo | Single Tone, Visual Indicator | 30 Sec On-Time | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZT120LAFP1RBUZZER PIEZO 30.74MM PNL MNT Mallory Sonalert Products Inc. |
2,233 | - |
RFQ |
Scheda tecnica |
Bulk | ZT | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
SCE048LD2DP2BBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,054 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687 Dia (42.85mm) |
|
|
SCE028MD2DP2BBUZZER PIEZO 42.98MM PNL MNT Mallory Sonalert Products Inc. |
2,574 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Double Pulse, Fast | 2 PPS | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692 Dia (42.98mm) |
|
|
SCE028LD2DP2BBUZZER PIEZO 42.98MM PNL MNT Mallory Sonalert Products Inc. |
3,706 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692 Dia (42.98mm) |
|
|
SCE016SD2DP2BBUZZER PIEZO 42.98MM PNL MNT Mallory Sonalert Products Inc. |
2,807 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Double Pulse, Fast | 2 PPS | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692 Dia (42.98mm) |
|
|
SCE016SD2DP3BBUZZER PIEZO 42.98MM PNL MNT Mallory Sonalert Products Inc. |
2,918 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692 Dia (42.98mm) |
|
|
SCE028SD2DP2BBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
2,168 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Double Pulse, Fast | 2 PPS | 65dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687 Dia (42.85mm) |
|
|
SCE028SD2DP3BBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
2,087 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 65dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687 Dia (42.85mm) |
|
|
SCE048LD2DP3BBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,931 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687 Dia (42.85mm) |
|
|
SCE048MD2DP2BBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,395 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Double Pulse, Fast | 2 PPS | 75dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687 Dia (42.85mm) |
|
|
SCE048MD2DP3BBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,180 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 75dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687 Dia (42.85mm) |
|
|
SCE048SD2DP2BBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,717 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Double Pulse, Fast | 2 PPS | 65dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687 Dia (42.85mm) |
|
|
SCE048SD2DP3BBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,044 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 65dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687 Dia (42.85mm) |
|
|
SCE028LD2DP3BBUZZER PIEZO 42.98MM PNL MNT Mallory Sonalert Products Inc. |
2,067 | - |
RFQ |
Scheda tecnica |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692 Dia (42.98mm) |
