Condensatori elettrolitici in alluminio
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

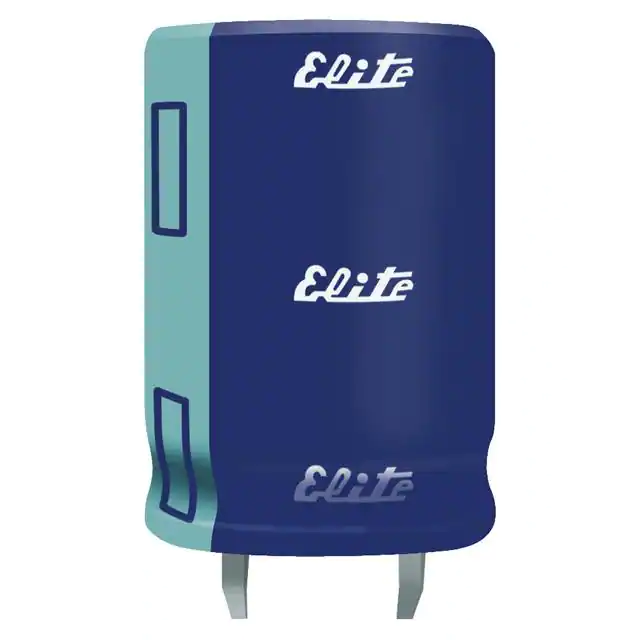

GM2H681MW43551YALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
2,657 | - |
RFQ |
Scheda tecnica |
Bulk | GM | Active | 680 µF | ±20% | 500 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 4.004 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.087 (53.00mm) | - | Through Hole |
|
PL2W471MND3040ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
2,748 | - |
RFQ |
Scheda tecnica |
Bulk | PL | Active | 470 µF | ±20% | 450 V | 435mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.503 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
GM2G122MKD4570RALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
3,767 | - |
RFQ |
Scheda tecnica |
Bulk | GM | Active | 1200 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 7.865 A @ 50 kHz | - | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 2.835 (72.00mm) | - | Through Hole |
|
|
GM2W681MND3551ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
2,590 | - |
RFQ |
Scheda tecnica |
Bulk | GM | Active | 680 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.718 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.087 (53.00mm) | - | Through Hole |
|
|
PL2W821MND3060RYALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
3,651 | - |
RFQ |
Scheda tecnica |
Bulk | PL | Active | 820 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.147 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.441 (62.00mm) | - | Through Hole |
|
PX2W471MRD3045ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
2,483 | - |
RFQ |
Scheda tecnica |
Bulk | PX | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.646 A @ 50 kHz | - | 0.315 (8.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
PL2G102MND3570ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
3,461 | - |
RFQ |
Scheda tecnica |
Bulk | PL | Active | 1000 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.432 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.835 (72.00mm) | - | Through Hole |
|
|
PL2G152MK64575ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
3,857 | - |
RFQ |
Scheda tecnica |
Bulk | PL | Active | 1500 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.433 A @ 100 kHz | - | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 3.031 (77.00mm) | - | Through Hole |
|
|
GM2S152MK44570RALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
2,934 | - |
RFQ |
Scheda tecnica |
Bulk | GM | Active | 1500 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.5 A @ 120 Hz | 9.295 A @ 50 kHz | - | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 2.835 (72.00mm) | - | Through Hole |
|
|
GM2H471MNN3551ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
3,966 | - |
RFQ |
Scheda tecnica |
Bulk | GM | Active | 470 µF | ±20% | 500 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.48 A @ 120 Hz | 3.546 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.087 (53.00mm) | - | Through Hole |
|
|
PL2W871MND3060YALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
3,027 | - |
RFQ |
Scheda tecnica |
Bulk | PL | Active | 870 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.061 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.441 (62.00mm) | - | Through Hole |
|
|
PL2D332MND3560ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
3,239 | - |
RFQ |
Scheda tecnica |
Bulk | PL | Active | 3300 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5 A @ 120 Hz | 7.5 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.441 (62.00mm) | - | Through Hole |
|
|
GM2W152MK64580ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
3,114 | - |
RFQ |
Scheda tecnica |
Bulk | GM | Active | 1500 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 8.008 A @ 50 kHz | - | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 2.835 (72.00mm) | - | Through Hole |
|
|
PL2G681MND3050B9RYALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
3,924 | - |
RFQ |
Scheda tecnica |
Bulk | PL | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.075 A @ 100 kHz | 220 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

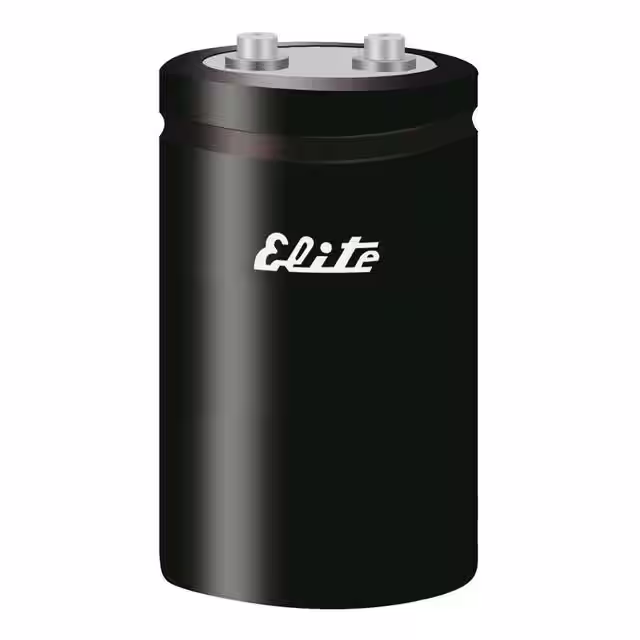

SC2W562MLS90A0ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
2,100 | - |
RFQ |
Scheda tecnica |
Bulk | SC | Active | 5600 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 120 Hz | 19.46 A @ 100 kHz | - | 1.240 (31.50mm) | 3.543 Dia (90.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
SC2W682MLS76E3ALUMINUM ELECTROLYTIC CAPACITORS Chinsan (Elite) |
2,998 | - |
RFQ |
Scheda tecnica |
Bulk | SC | Active | 6800 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16 A @ 120 Hz | 22.4 A @ 100 kHz | - | 1.240 (31.50mm) | 2.992 Dia (76.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
