Condensatori elettrolitici in alluminio
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

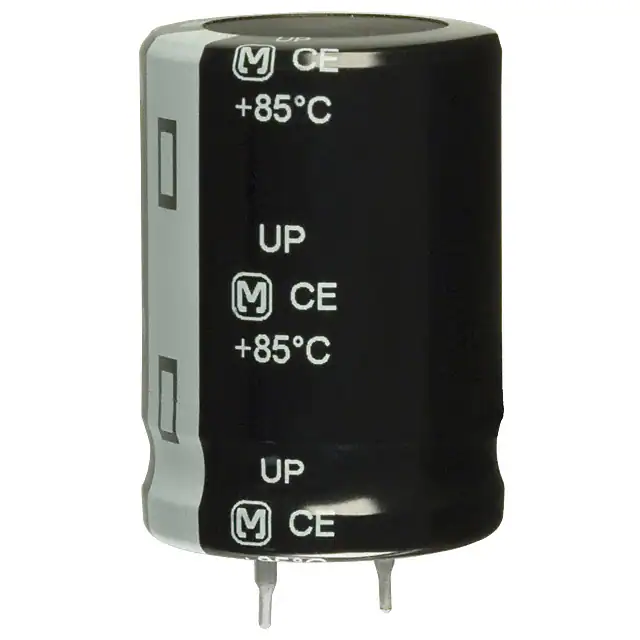

ECO-S2HP101CACAP ALUM 100UF 20% 500V SNAP Panasonic Electronic Components |
2,837 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 100 µF | ±20% | 500 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.39 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
ECO-S2HP121BACAP ALUM 120UF 20% 500V SNAP Panasonic Electronic Components |
3,168 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 120 µF | ±20% | 500 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.582 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
ECO-S2HP121DACAP ALUM 120UF 20% 500V SNAP Panasonic Electronic Components |
3,330 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 120 µF | ±20% | 500 V | 1.382Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.582 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECO-S2HP151CACAP ALUM 150UF 20% 500V SNAP Panasonic Electronic Components |
3,143 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 150 µF | ±20% | 500 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.8 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
ECO-S2HP151EACAP ALUM 150UF 20% 500V SNAP Panasonic Electronic Components |
3,729 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 150 µF | ±20% | 500 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

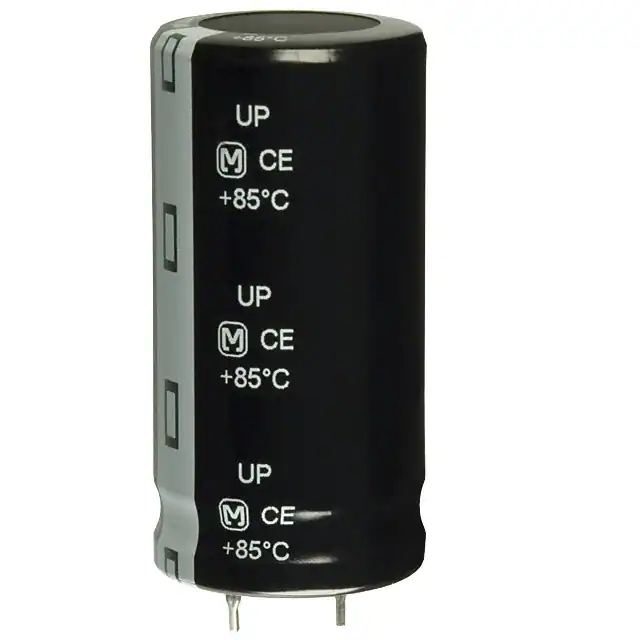

ECO-S2HP181CACAP ALUM 180UF 20% 500V SNAP Panasonic Electronic Components |
3,213 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 180 µF | ±20% | 500 V | 921mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.932 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
ECO-S2HP181EACAP ALUM 180UF 20% 500V SNAP Panasonic Electronic Components |
2,879 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 180 µF | ±20% | 500 V | 921mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.904 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECO-S2AA471BACAP ALUM 470UF 20% 100V SNAP Panasonic Electronic Components |
2,757 | - |
RFQ |
Scheda tecnica |
Bulk | TS-HA | Obsolete | 470 µF | ±20% | 100 V | 388mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.058 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ECO-S2DA151BACAP ALUM 150UF 20% 200V SNAP Panasonic Electronic Components |
3,148 | - |
RFQ |
Scheda tecnica |
Bulk | TS-HA | Obsolete | 150 µF | ±20% | 200 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 952 mA @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ECO-S2GA330BACAP ALUM 33UF 20% 400V SNAP Panasonic Electronic Components |
3,470 | - |
RFQ |
Scheda tecnica |
Bulk | TS-HA | Obsolete | 33 µF | ±20% | 400 V | 4.521Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 420 mA @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ECO-S2GA470BACAP ALUM 47UF 20% 400V SNAP Panasonic Electronic Components |
3,904 | - |
RFQ |
Scheda tecnica |
Bulk | TS-HA | Obsolete | 47 µF | ±20% | 400 V | 2.822Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 602 mA @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEV-FK1H151PCAP ALUM 150UF 20% 50V SMD Panasonic Electronic Components |
3,111 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 150 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 670 mA @ 100 kHz | 180 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEV-FK1J220XPCAP ALUM 22UF 20% 63V SMD Panasonic Electronic Components |
3,843 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 120 mA @ 100 kHz | 1.2 Ohms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1J680PCAP ALUM 68UF 20% 63V SMD Panasonic Electronic Components |
3,880 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 68 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 400 mA @ 100 kHz | 350 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEV-FK1K100XPCAP ALUM 10UF 20% 80V SMD Panasonic Electronic Components |
3,874 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 10 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 60 mA @ 100 kHz | 2.4 Ohms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ECO-S2HP221DACAP ALUM 220UF 20% 500V SNAP Panasonic Electronic Components |
3,728 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 220 µF | ±20% | 500 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
ECO-S2HP221EACAP ALUM 220UF 20% 500V SNAP Panasonic Electronic Components |
3,017 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 220 µF | ±20% | 500 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 2.156 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
ECO-S2HP271EACAP ALUM 270UF 20% 500V SNAP Panasonic Electronic Components |
3,902 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 270 µF | ±20% | 500 V | 614mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.76 A @ 120 Hz | 2.464 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
ECO-S2HP331EACAP ALUM 330UF 20% 500V SNAP Panasonic Electronic Components |
2,461 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 330 µF | ±20% | 500 V | 502mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.786 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
ECO-S2HP391EACAP ALUM 390UF 20% 500V SNAP Panasonic Electronic Components |
2,596 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UP | Obsolete | 390 µF | ±20% | 500 V | 425mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 3.108 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
