Condensatori elettrolitici in alluminio
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2W820BACAP ALUM 82UF 20% 450V SNAP Panasonic Electronic Components |
2,063 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UQ | Obsolete | 82 µF | ±20% | 450 V | 2.426Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 830 mA @ 120 Hz | 1.162 A @ 10 kHz | - | - | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

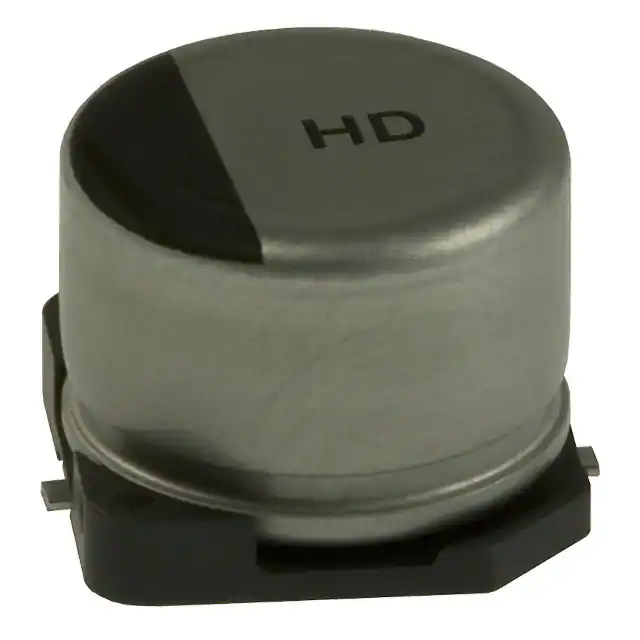

EEV-HD1J100PCAP ALUM 10UF 20% 63V SMD Panasonic Electronic Components |
3,257 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | HD | Obsolete | 10 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 76.5 mA @ 10 kHz | 2 Ohms | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEV-HD1J220PCAP ALUM 22UF 20% 63V SMD Panasonic Electronic Components |
3,819 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | HD | Obsolete | 22 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | 1.5 Ohms | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEV-HD1J330PCAP ALUM 33UF 20% 63V SMD Panasonic Electronic Components |
3,323 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | HD | Obsolete | 33 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 136 mA @ 10 kHz | 800 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEV-HD2A100PCAP ALUM 10UF 20% 100V SMD Panasonic Electronic Components |
3,158 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | HD | Obsolete | 10 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 93.5 mA @ 10 kHz | 1.5 Ohms | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-HD2A220PCAP ALUM 22UF 20% 100V SMD Panasonic Electronic Components |
3,819 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | HD | Obsolete | 22 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 119 mA @ 10 kHz | 800 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEV-HD2A3R3PCAP ALUM 3.3UF 20% 100V SMD Panasonic Electronic Components |
3,624 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | HD | Obsolete | 3.3 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 51 mA @ 10 kHz | 2 Ohms | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-HD2A4R7PCAP ALUM 4.7UF 20% 100V SMD Panasonic Electronic Components |
2,660 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | HD | Obsolete | 4.7 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 85 mA @ 10 kHz | 1.5 Ohms | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEV-TG1A101PCAP ALUM 100UF 20% 10V SMD Panasonic Electronic Components |
3,930 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 100 µF | ±20% | 10 V | 1Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-TG1A221UPCAP ALUM 220UF 20% 10V SMD Panasonic Electronic Components |
3,866 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 220 µF | ±20% | 10 V | 500mOhm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEV-TG1A331UPCAP ALUM 330UF 20% 10V SMD Panasonic Electronic Components |
500 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 330 µF | ±20% | 10 V | 500mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 128.1 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEV-TG1A471UPCAP ALUM 470UF 20% 10V SMD Panasonic Electronic Components |
3,541 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 470 µF | ±20% | 10 V | 300mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEV-TG1C101PCAP ALUM 100UF 20% 16V SMD Panasonic Electronic Components |
2,108 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 100 µF | ±20% | 16 V | 500mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 128.1 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-TG1C221PCAP ALUM 220UF 20% 16V SMD Panasonic Electronic Components |
3,917 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 220 µF | ±20% | 16 V | 300mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEV-TG1C221UPCAP ALUM 220UF 20% 16V SMD Panasonic Electronic Components |
3,262 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 220 µF | ±20% | 16 V | 500mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 128.1 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-TG1E101PCAP ALUM 100UF 20% 25V SMD Panasonic Electronic Components |
2,558 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 100 µF | ±20% | 25 V | 500mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 128.1 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-TG1E101UPCAP ALUM 100UF 20% 25V SMD Panasonic Electronic Components |
3,003 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 100 µF | ±20% | 25 V | 1Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-TG2A220PCAP ALUM 22UF 20% 100V SMD Panasonic Electronic Components |
3,341 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 22 µF | ±20% | 100 V | 1Ohm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEV-TG2A220UPCAP ALUM 22UF 20% 100V SMD Panasonic Electronic Components |
3,695 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 22 µF | ±20% | 100 V | 1.3Ohm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 45.5 mA @ 120 Hz | 70 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-TG2A330PCAP ALUM 33UF 20% 100V SMD Panasonic Electronic Components |
2,455 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | TG | Obsolete | 33 µF | ±20% | 100 V | 1Ohm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
