Condensatori elettrolitici in alluminio
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RFS-25V330MG3#5CAP ALUM 33UF 20% 25V RADIAL Elna America |
3,931 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Last Time Buy | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 120 mA @ 120 Hz | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.453 (11.50mm) | - | Through Hole |
|

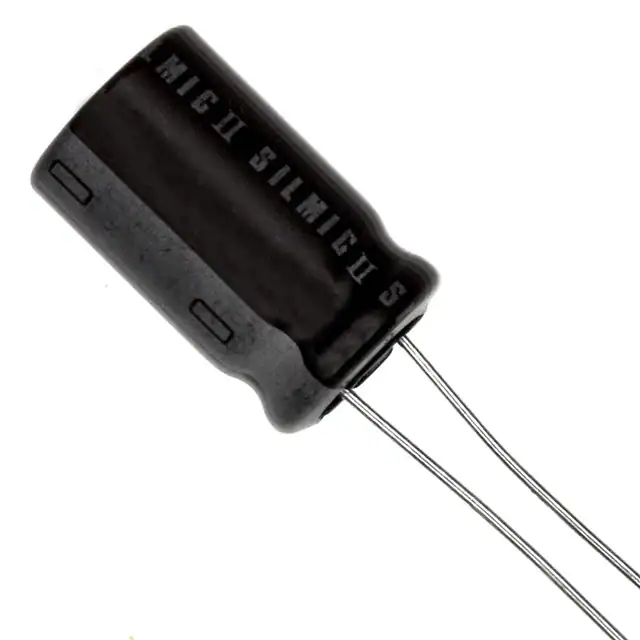

RFS-100V100MH4#5CAP ALUM 10UF 20% 100V RADIAL Elna America |
315 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Last Time Buy | 10 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 95 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
|
RFS-50V470MH4#5CAP ALUM 47UF 20% 50V RADIAL Elna America |
838 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Last Time Buy | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 210 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
RFS-50V330MH4#5CAP ALUM 33UF 20% 50V RADIAL Elna America |
160 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Active | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 175 mA @ 120 Hz | 227.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
RFS-100V330MI5#5CAP ALUM 33UF 20% 100V RADIAL Elna America |
892 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Active | 33 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 220 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|

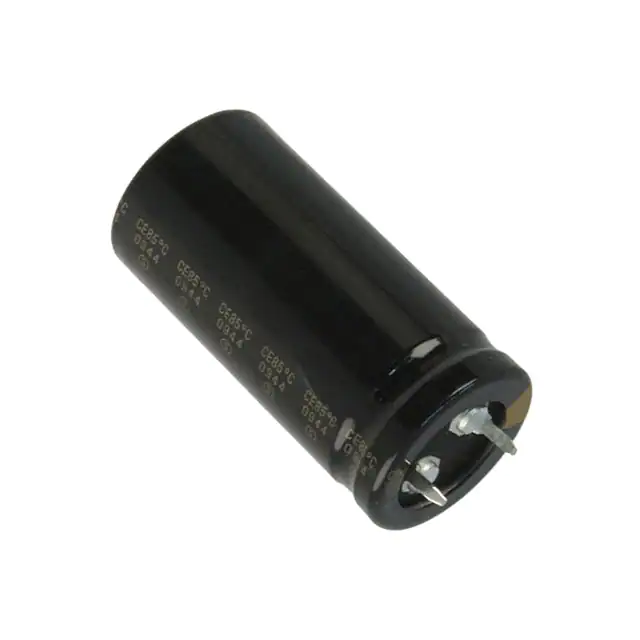

LAO-25V682MS26PX#BCAP ALUM 6800UF 20% 25V SNAP Elna America |
736 | - |
RFQ |
Scheda tecnica |
Bulk | LAO, TONEREX | Active | 6800 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.2 A @ 120 Hz | 2.53 A @ 20 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
RV2-35V4R7MU-RCAP 4.7UF 35V SMD Elna America |
3,591 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | RV2 | Not For New Designs | 4.7 µF | ±20% | 35 V | 42Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 28 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
RSVV23R3M1UBC3001UCAP ALUM 3.3UF 20% 50V SMD Elna America |
2,915 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | RV2 | Not For New Designs | 3.3 µF | ±20% | 50 V | 50Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 28.5 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
RVS-16V100MD55U-RCAP 10UF 16V SMD Elna America |
2,262 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | RVS | Active | 10 µF | ±20% | 16 V | 36Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 20 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
RFS-50VR47ME3#5CAP ALUM 0.47UF 20% 50V RADIAL Elna America |
2,173 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Last Time Buy | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 9 mA @ 120 Hz | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.433 (11.00mm) | - | Through Hole |
|
|
RSVV2101M1EDC3001UCAP ALUM 100UF 20% 16V SMD Elna America |
3,690 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | RV2 | Not For New Designs | 100 µF | ±20% | 16 V | 3.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 103 mA @ 120 Hz | 128.75 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
RV-16V101MG68U-RCAP ALUM 100UF 20% 16V SMD Elna America |
3,704 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | RV | Not For New Designs | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 193.75 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.268 (6.80mm) | 0.331 L x 0.331 W (8.40mm x 8.40mm) | Surface Mount |
|
|
RV-63V101MH10UQ-R2CAP ALUM 100UF 20% 63V SMD Elna America |
3,674 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RV | Not For New Designs | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 226 mA @ 120 Hz | 323 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.409 L x 0.409 W (10.40mm x 10.40mm) | Surface Mount |
|
RFS-6V471MH5#5CAP ALUM 470UF 20% 6.3V RADIAL Elna America |
3,569 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Last Time Buy | 470 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 390 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
RTT-35V101MH10SU-R2CAP ALUM 100UF 20% 35V SMD Elna America |
2,753 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RTT | Not For New Designs | 100 µF | ±20% | 35 V | 150mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 385 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394 Dia x 0.394 L (10.00mm x 10.00mm) | 0.413 (10.50mm) | 0.409 L x 0.409 W (10.40mm x 10.40mm) | Surface Mount |
|
|
RVS-6V101MF55U-RCAP ALUM 100UF 20% 6.3V SMD Elna America |
2,497 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RVS | Active | 100 µF | ±20% | 6.3 V | 5Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 61 mA @ 120 Hz | 76.25 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
RSRE3222M1GJ25300TCAP 2200UF 35V RADIAL Elna America |
2,171 | - |
RFQ |
Scheda tecnica |
Bulk | RE3 | Active | 2200 µF | ±20% | 35 V | 120mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.535 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.083 (27.50mm) | - | Through Hole |
|

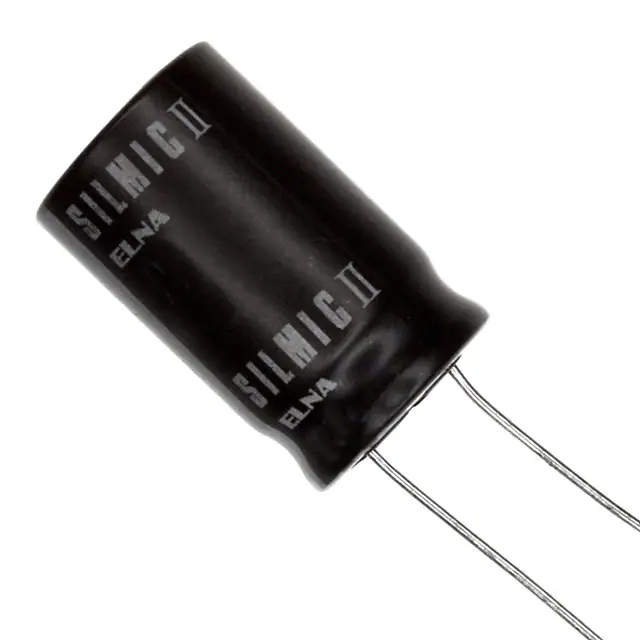

RFS-16V102MJ7#5CAP ALUM 1000UF 20% 16V RADIAL Elna America |
2,951 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Last Time Buy | 1000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.315 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
|
RFS-25V220ME3#5CAP ALUM 22UF 20% 25V RADIAL Elna America |
3,540 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Last Time Buy | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 60 mA @ 120 Hz | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
RFS-25V101MH4#5CAP ALUM 100UF 20% 25V RADIAL Elna America |
2,704 | - |
RFQ |
Scheda tecnica |
Bulk | RFS, SILMIC II | Last Time Buy | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 270 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
