Alluminio - Condensatori polimerici
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Ratings | Applications | Features | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSS1E470MCN1GSCAP ALUM POLY 47UF 20% 25V SMD Nichicon |
1,416 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FPCAP, RSS | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.236 (6.00mm) | 0.256 L x 0.256 W (6.50mm x 6.50mm) | Surface Mount |
|
4SEPC560MX+TSSCAP ALUM POLY 560UF 20% 4V T/H Panasonic Electronic Components |
2,956 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | OS-CON™, SEPC | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.354 (9.00mm) | - | Through Hole |
|
4SVPS150MCAP ALUM POLY 150UF 20% 4V SMD Panasonic Electronic Components |
1,987 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPS | Active | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128.5 mA @ 120 Hz | 2.57 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.236 (6.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
16SVPS39MCAP ALUM POLY 39UF 20% 16V SMD Panasonic Electronic Components |
1,581 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPS | Active | Polymer | 39 µF | ±20% | 16 V | 24mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 123 mA @ 120 Hz | 2.46 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.236 (6.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
2SEPC820MX+TSSCAP ALUM POLY 820UF 20% 2.5V T/H Panasonic Electronic Components |
1,309 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | OS-CON™, SEPC | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.354 (9.00mm) | - | Through Hole |
|
EEF-UE0D391LECAP ALUM POLY 390UF 20% 2V SMD Panasonic Electronic Components |
8,465 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap UE | Obsolete | Polymer | 390 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.165 (4.20mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UE0E331LECAP ALUM POLY 330UF 20% 2.5V SMD Panasonic Electronic Components |
3,875 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap UE | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.165 (4.20mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-CD0J220RCAP ALUM POLY 22UF 20% 6.3V SMD Panasonic Electronic Components |
6,135 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CD | Obsolete | Polymer | 22 µF | ±20% | 6.3 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.075 (1.90mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0K150RCAP ALUM POLY 15UF 20% 8V SMD Panasonic Electronic Components |
3,452 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CD | Obsolete | Polymer | 15 µF | ±20% | 8 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.075 (1.90mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-CS1D150RCAP ALUM POLY 15UF 20% 20V SMD Panasonic Electronic Components |
3,395 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CS | Not For New Designs | Polymer | 15 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.047 (1.20mm) | - | Surface Mount |
|
|
EEF-CD1B150RCAP ALUM POLY 15UF 20% 12.5V SMD Panasonic Electronic Components |
1,504 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CD | Obsolete | Polymer | 15 µF | ±20% | 12.5 V | 50mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.075 (1.90mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount |
|
PCJ0G271MCL1GSCAP ALUM POLY 270UF 20% 4V SMD Nichicon |
2,000 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCJ | Active | Polymer | 270 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.236 (6.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
PCJ0J271MCL1GSCAP ALUM POLY 270UF 20% 6.3V SMD Nichicon |
1,800 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCJ | Active | Polymer | 270 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.47 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
25SVPD10MCAP ALUM POLY 10UF 20% 25V SMD Panasonic Electronic Components |
1,718 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPD | Active | Polymer | 10 µF | ±20% | 25 V | 65mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 23.7 mA @ 120 Hz | 474 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.236 (6.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
PCS0J391MCL1GSCAP ALUM POLY 390UF 20% 6.3V SMD Nichicon |
1,980 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCS | Active | Polymer | 390 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
PLF0E152MDO6TDCAP ALUM POLY 1500UF 2.5V T/H Nichicon |
1,614 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLF | Active | Polymer | 1500 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
PLF0G102MDO1TDCAP ALUM POLY 1000UF 20% 4V T/H Nichicon |
1,352 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLF | Active | Polymer | 1000 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.64 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

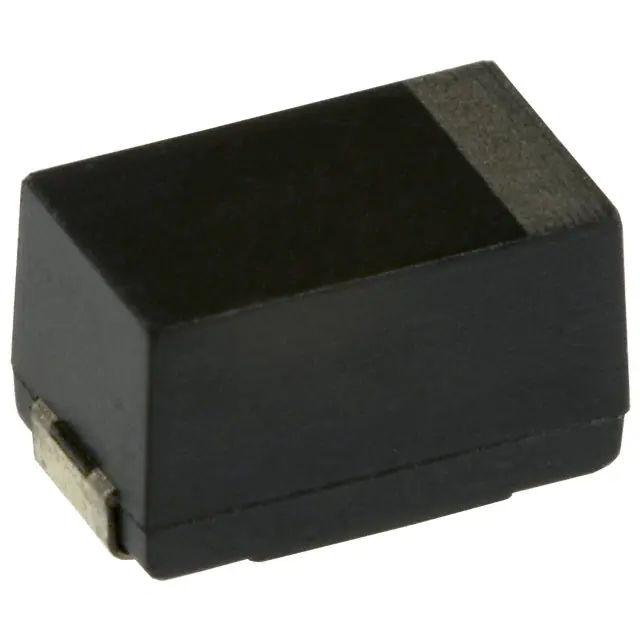

EEF-SE0E391ERCAP ALUM POLY 390UF 20% 2.5V SMD Panasonic Electronic Components |
3,845 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap SE | Obsolete | Polymer | 390 µF | ±20% | 2.5 V | 5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.165 (4.20mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount |
|
|
10SVPS15MCAP ALUM POLY 15UF 20% 10V SMD Panasonic Electronic Components |
1,904 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPS | Active | Polymer | 15 µF | ±20% | 10 V | 200mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 37 mA @ 120 Hz | 740 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
10SVPS10MCAP ALUM POLY 10UF 20% 10V SMD Panasonic Electronic Components |
1,680 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPS | Active | Polymer | 10 µF | ±20% | 10 V | 220mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 35 mA @ 120 Hz | 700 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
