Alluminio - Condensatori polimerici
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Ratings | Applications | Features | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCF0E152MCL9GSCAP ALUM POLY 1500UF 2.5V SMD Nichicon |
552 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCF | Active | Polymer | 1500 µF | ±20% | 2.5 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.44 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.500 (12.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCF0G122MCL1GSCAP ALUM POLY 1200UF 20% 4V SMD Nichicon |
765 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCF | Active | Polymer | 1200 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.504 (12.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
PLS0J821MDO1TDCAP ALUM POLY 820UF 20% 6.3V T/H Nichicon |
892 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLS | Active | Polymer | 820 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
RNS0G821MDN1CAP ALUM POLY 820UF 20% 4V T/H Nichicon |
500 | - |
RFQ |
Scheda tecnica |
Bulk | FPCAP, RNS | Active | Polymer | 820 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|

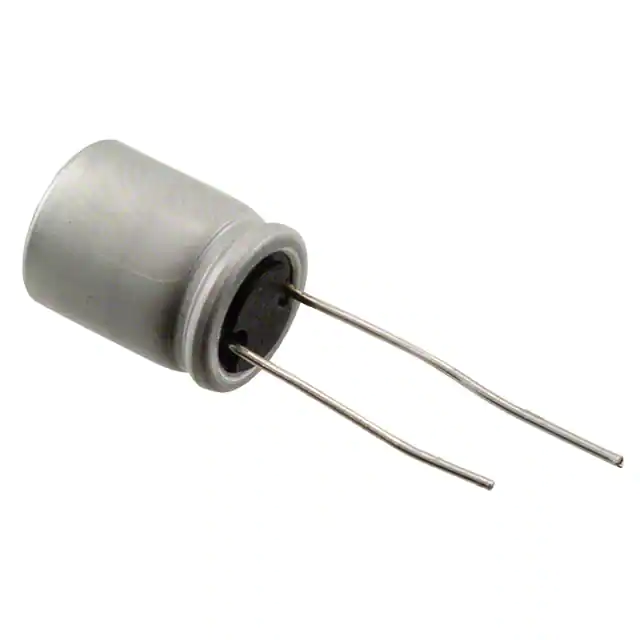

PLG0E272MDO1TDCAP ALUM POLY 2700UF 2.5V T/H Nichicon |
980 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLG | Active | Polymer | 2700 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.56 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
PLG0E392MDO1TDCAP ALUM POLY 3900UF 2.5V T/H Nichicon |
867 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLG | Active | Polymer | 3900 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
PLG0J182MDO1TDCAP ALUM POLY 1800UF 6.3V T/H Nichicon |
718 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLG | Active | Polymer | 1800 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.6 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
PLG1A122MDO1TDCAP ALUM POLY 1200UF 20% 10V T/H Nichicon |
990 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLG | Active | Polymer | 1200 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.2 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
PLS0E152MDO1TDCAP ALUM POLY 1500UF 2.5V T/H Nichicon |
839 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLS | Active | Polymer | 1500 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
PCK0E222MCO1GSCAP ALUM POLY 2200UF 2.5V SMD Nichicon |
998 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCK | Active | Polymer | 2200 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCF0J821MCL1GSCAP ALUM POLY 820UF 20% 6.3V SMD Nichicon |
777 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCF | Active | Polymer | 820 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.8 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.500 (12.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
HT-Series.jpg)
|
RHT0J821MDN1CAP ALUM POLY 820UF 20% 6.3V T/H Nichicon |
878 | - |
RFQ |
Scheda tecnica |
Bulk | FPCAP, RHT | Active | Polymer | 820 µF | ±20% | 6.3 V | 12mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 545 mA @ 120 Hz | 5.45 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
PLS0G122MDO1TDCAP ALUM POLY 1200UF 20% 4V T/H Nichicon |
995 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLS | Active | Polymer | 1200 µF | ±20% | 4 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
A755MS158M0EAAE013CAP ALUM POLY 1500UF 20% 2.5V TH KEMET |
299 | - |
RFQ |
Scheda tecnica |
Bulk | A755 | Active | Polymer | 1500 µF | ±20% | 2.5 V | 13mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 262.5 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
870235175008CAP ALUM POLY 1500UF 6.3V T/H Würth Elektronik |
600 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | WCAP-PT5H | Active | Polymer | 1500 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 332 mA @ 120 Hz | 6.64 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
PLS1A471MDO1TDCAP ALUM POLY 470UF 20% 10V T/H Nichicon |
701 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLS | Active | Polymer | 470 µF | ±20% | 10 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

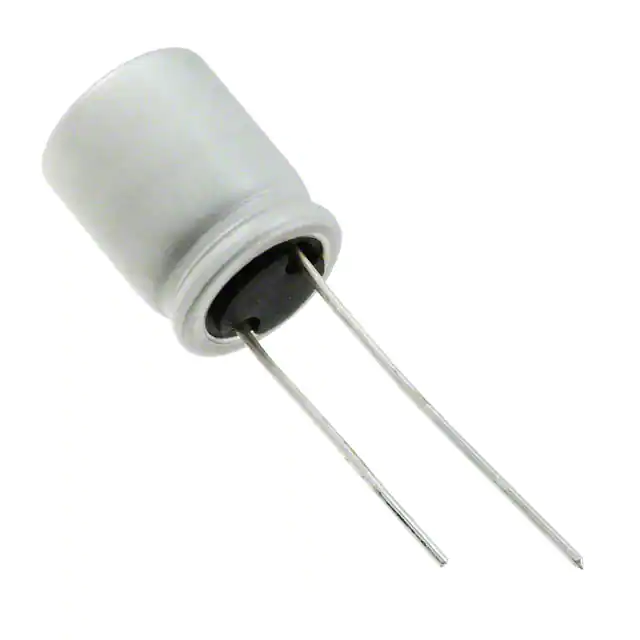

PLS1C471MDO1TDCAP ALUM POLY 470UF 20% 16V T/H Nichicon |
506 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLS | Active | Polymer | 470 µF | ±20% | 16 V | 9mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
A755MS567M1CAAE013CAP ALUM POLY 560UF 20% 16V T/H KEMET |
312 | - |
RFQ |
Scheda tecnica |
Bulk | A755 | Active | Polymer | 560 µF | ±20% | 16 V | 13mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 262.5 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

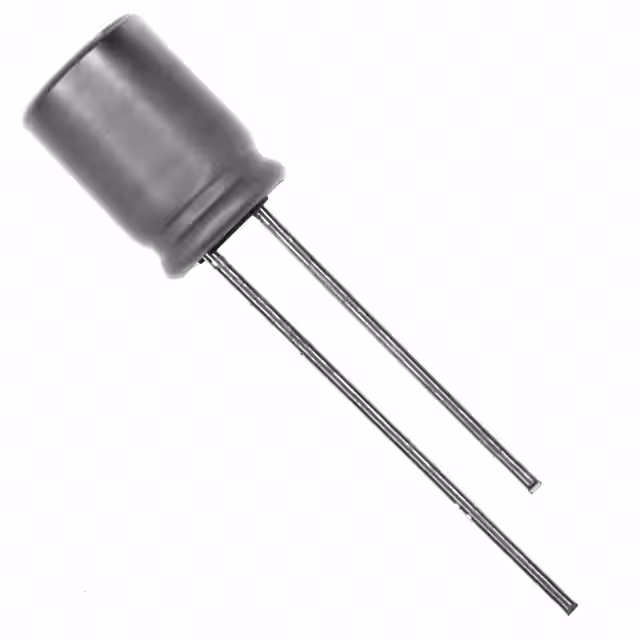

APSC4R0ELL681MHB5SCAP ALUM POLY 680UF 20% 4V T/H United Chemi-Con |
461 | - |
RFQ |
Scheda tecnica |
Bulk | NPCAP™-PSC | Active | Polymer | 680 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
PCV1J270MCL1GSCAP ALUM POLY 27UF 20% 63V SMD Nichicon |
990 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCV | Active | Polymer | 27 µF | ±20% | 63 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
