Trasformatori audio

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)

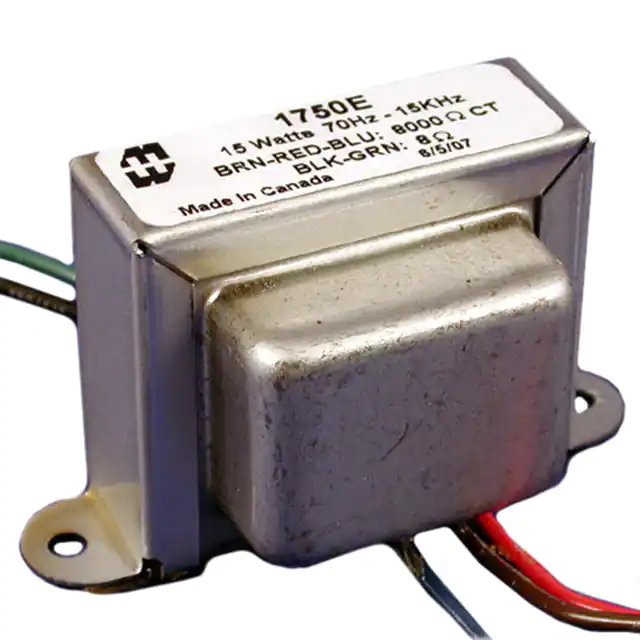

1750E TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3,498	-	RFQ	Scheda tecnica	Box	1750	Active	32.61:1	8kCT	8	150Ohm, 300Ohm	450mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	15W	-	-	Chassis Mount	3.250 L x 2.085 W (82.55mm x 52.96mm)	2.058 (52.27mm)
1627SEA AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	3,616	-	RFQ	Scheda tecnica	Box	1600	Active	-	2.5k	4, 8, 16	30Ohm, 47.44Ohm	402mOhm, 502mOhm, 700mOhm	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	2828VDC @ 1 Second	±1dB	-	30W	-	-	Chassis Mount	4.500 L x 3.750 W (114.30mm x 95.25mm)	4.560 (115.82mm)
102B TRANSFORMER AUDIO 50/1500 Hammond Manufacturing	2,179	-	RFQ	Scheda tecnica	Bulk	102	Active	-	50	1.5k	4Ohm	95Ohm	Miniature Epoxy Potted	310Hz	-1dB	100V	1.5dB	-	20mW	-	-	Through Hole	0.570 L x 0.570 W (14.48mm x 14.48mm)	0.480 (12.19mm)
107J TRANSFORMER AUDIO 1KCT/600CT Hammond Manufacturing	2,382	-	RFQ	Scheda tecnica	Bulk	107	Active	1.29:1	1kCT	600CT	92Ohm	70Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630 L x 0.586 W (16.00mm x 14.88mm)	0.630 (16.00mm)
107R TRANSFORMER AUDIO 10KCT/4KCT Hammond Manufacturing	2,558	-	RFQ	Scheda tecnica	Bulk	107	Active	1.58:1	10kCT	4kCT	720Ohm	350Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630 L x 0.586 W (16.00mm x 14.88mm)	0.630 (16.00mm)
107P TRANSFORMER AUDIO 10KCT/1.5KCT Hammond Manufacturing	2,435	-	RFQ	Scheda tecnica	Bulk	107	Active	2.58:1	10kCT	1.5kCT	700Ohm	122Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630 L x 0.586 W (16.00mm x 14.88mm)	0.630 (16.00mm)
107L TRANSFORMER AUDIO 10KCT/3.2 Hammond Manufacturing	2,130	-	RFQ	Scheda tecnica	Bulk	107	Active	55.3:1	10kCT	3.2	650Ohm	360mOhm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630 L x 0.586 W (16.00mm x 14.88mm)	0.630 (16.00mm)
146K TRANSFORMER AUDIO 1KCT/8 IMPED Hammond Manufacturing	3,466	-	RFQ	Scheda tecnica	Bulk	146	Active	-	1kCT	8	56Ohm	700mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
145C TRANSFORMER AUDIO 50K/1.5K IMPED Hammond Manufacturing	2,203	-	RFQ	Scheda tecnica	Bulk	145	Active	-	50k	1.5kCT	2.4kOhm	52Ohm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	50mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
146C TRANSFORMER AUDIO 48CT/8 IMPED Hammond Manufacturing	3,709	-	RFQ	Scheda tecnica	Bulk	146	Active	-	48CT	8	2.4Ohm	700mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
145H TRANSFORMER AUDIO 2K/500CT IMPED Hammond Manufacturing	3,820	-	RFQ	Scheda tecnica	Bulk	145	Active	-	2k	500CT	148Ohm	17Ohm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	135mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
146H TRANSFORMER AUDIO 500CT/3.2 IMP Hammond Manufacturing	2,703	-	RFQ	Scheda tecnica	Bulk	146	Active	-	500CT	3.2	26Ohm	300mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
146J TRANSFORMER AUDIO 1KCT/3.2 IMPED Hammond Manufacturing	2,055	-	RFQ	Scheda tecnica	Bulk	146	Active	-	1kCT	3.2	56Ohm	300mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
146I TRANSFORMER AUDIO 500CT/8 IMPED Hammond Manufacturing	3,313	-	RFQ	Scheda tecnica	Bulk	146	Active	-	500CT	8	26Ohm	700mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
146S TRANSFORMER AUDIO 4K/8 IMPEDANCE Hammond Manufacturing	2,167	-	RFQ	Scheda tecnica	Bulk	146	Active	-	4kCT	8	220Ohm	700mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
146N TRANSFORMER AUDIO 2K/8 IMPEDANCE Hammond Manufacturing	2,390	-	RFQ	Scheda tecnica	Bulk	146	Active	-	2kCT	8	97Ohm	700mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
144F TRANSFORMER AUDIO 500CT/3.2 IMP Hammond Manufacturing	2,668	-	RFQ	Scheda tecnica	Bulk	144	Active	-	500CT	3.2	27Ohm	330mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	150mW	-	-	Chassis Mount	1.000 L x 0.690 W (25.40mm x 17.53mm)	0.690 (17.53mm)
145P TRANSFORMER AUDIO 20K/1KCT IMPED Hammond Manufacturing	2,838	-	RFQ	Scheda tecnica	Bulk	145	Active	-	20k	1kCT	1.18kOhm	50Ohm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	135mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
145D TRANSFORMER AUDIO 200K/1K IMPED Hammond Manufacturing	3,414	-	RFQ	Scheda tecnica	Bulk	145	Active	-	200k	1k	3.6kOhm	33Ohm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	10mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
145J TRANSFORMER AUDIO 4K/600CT IMPED Hammond Manufacturing	3,899	-	RFQ	Scheda tecnica	Bulk	145	Active	-	4k	600CT	340Ohm	24Ohm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	135mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
