Induttanze di modo comune

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
SPDL3216-221-2P-T CHOKE CMC 2 LINE 220 OHM Signal Transformer	3,056	-	RFQ	Scheda tecnica	Tape & Box (TB)	-	Active	Signal Line	2	220 Ohms @ 100 MHz	-	300mA	450mOhm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.087 (2.20mm)
SPDL3216-161-2P-T CHOKE CMC 2 LINE 160 OHM Signal Transformer	2,107	-	RFQ	Scheda tecnica	Tape & Box (TB)	-	Active	Signal Line	2	160 Ohms @ 100 MHz	-	350mA	400mOhm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.087 (2.20mm)
SPDL3225-110-2P-T CHOKE CMC 2 LINE 11 UH Signal Transformer	3,791	-	RFQ	Scheda tecnica	Tape & Box (TB)	-	Active	Signal Line	2	500 Ohms @ 10 MHz	11 µH @ 100 kHz	300mA	400mOhm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.130 L x 0.098 W (3.30mm x 2.50mm)	0.106 (2.70mm)
SPDL3225-510-2P-T CHOKE CMC 2 LINE 51 UH Signal Transformer	2,398	-	RFQ	Scheda tecnica	Tape & Box (TB)	-	Active	Signal Line	2	2.6 kOhms @ 10 MHz	51 µH @ 100 kHz	200mA	700mOhm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.130 L x 0.098 W (3.30mm x 2.50mm)	0.106 (2.70mm)
SPDL3225-220-2P-T CHOKE CMC 2 LINE 22 UH Signal Transformer	2,616	-	RFQ	Scheda tecnica	Tape & Box (TB)	-	Active	Signal Line	2	1.1 kOhms @ 10 MHz	22 µH @ 100 kHz	250mA	500mOhm	50V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.130 L x 0.098 W (3.30mm x 2.50mm)	0.106 (2.70mm)

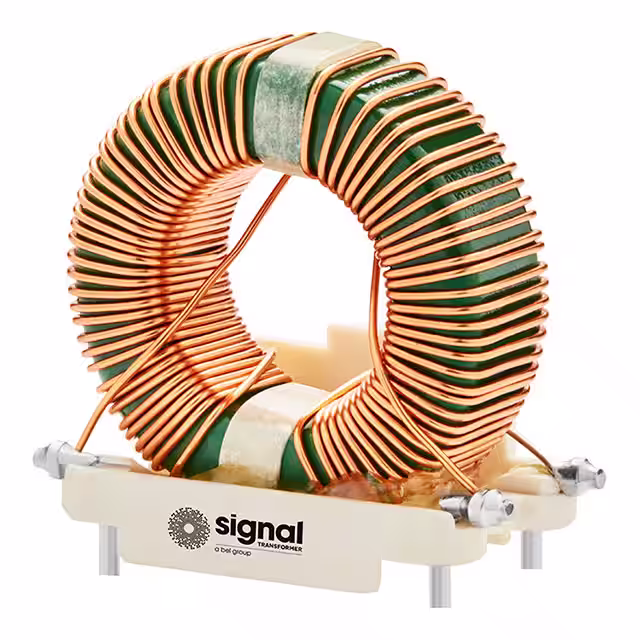

HCTC-7-2.8 CMC 7MH 2.8A 2LN TH Signal Transformer	3,257	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	7 mH @ 1 kHz	2.8A	120mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.200 L x 0.400 W (30.48mm x 10.16mm)	1.200 (30.48mm)

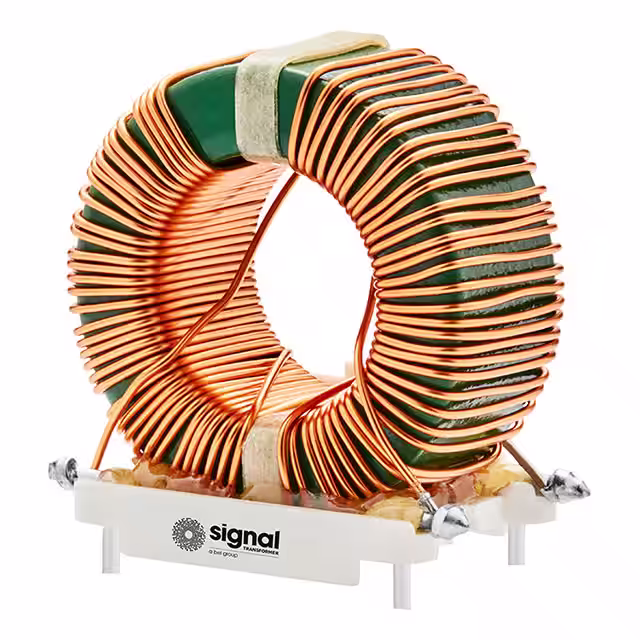

HCTC-12-4 CMC 12MH 4A 2LN TH Signal Transformer	3,306	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	12 mH @ 1 kHz	4A	110mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.350 L x 0.600 W (34.29mm x 15.24mm)	1.450 (36.83mm)

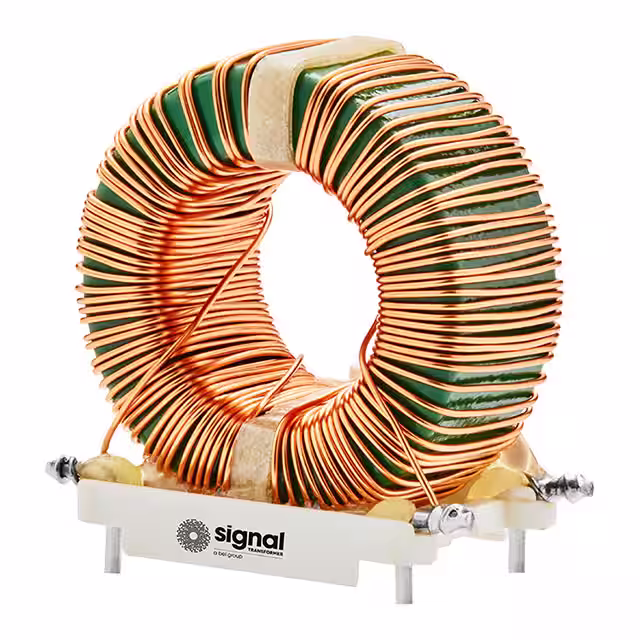

HCTC-20-2.9 CMC 20MH 2.9A 2LN TH Signal Transformer	2,962	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	20 mH @ 1 kHz	2.9A	210mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.350 L x 0.600 W (34.29mm x 15.24mm)	1.450 (36.83mm)

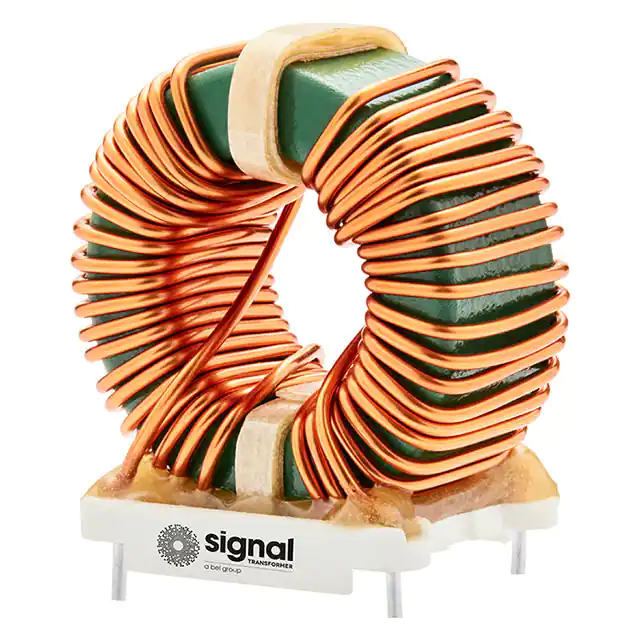

HCTC-5-8.9 CMC 5MH 8.9A 2LN TH Signal Transformer	2,256	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	5 mH @ 1 kHz	8.9A	22mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.450 L x 0.600 W (36.83mm x 15.24mm)	1.500 (38.10mm)
HCTC-2.5-12.5 CMC 2.5MH 12.5A 2LN TH Signal Transformer	3,857	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	2.5 mH @ 1 kHz	12.5A	11mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.450 L x 0.600 W (36.83mm x 15.24mm)	1.500 (38.10mm)
HCTC-36-2.9 CMC 36MH 2.9A 2LN TH Signal Transformer	2,243	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	36 mH @ 1 kHz	2.9A	300mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.550 L x 0.600 W (39.37mm x 15.24mm)	1.650 (41.91mm)
HCTC-7.3-9.3 CMC 7.3MH 9.3A 2LN TH Signal Transformer	2,873	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	7.3 mH @ 1 kHz	9.3A	32mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.650 L x 0.600 W (41.91mm x 15.24mm)	1.650 (41.91mm)

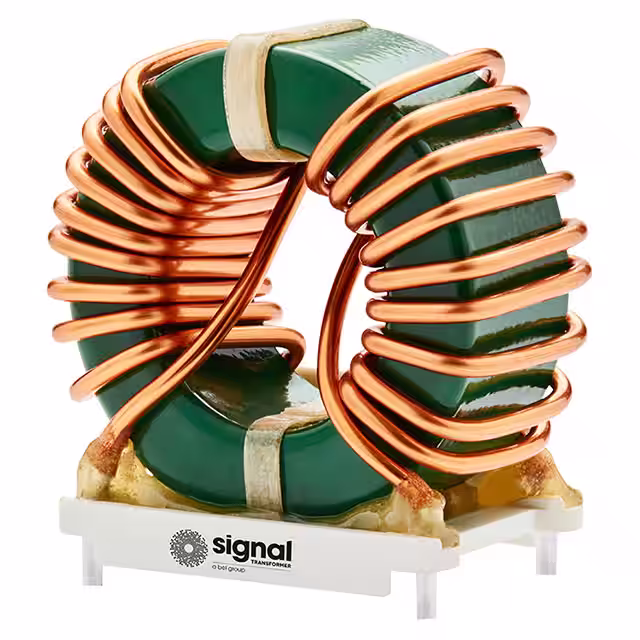

HCTC-1-20 CMC 1MH 20A 2LN TH Signal Transformer	2,840	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	1 mH @ 1 kHz	20A	7mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.700 L x 0.700 W (43.18mm x 17.78mm)	1.650 (41.91mm)
HCTC-2.4-17 CMC 2.4MH 17A 2LN TH Signal Transformer	2,373	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	2.4 mH @ 1 kHz	17A	8mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.700 L x 0.700 W (43.18mm x 17.78mm)	1.650 (41.91mm)
HCTC-4-14.5 CMC 4MH 14.5A 2LN TH Signal Transformer	3,345	-	RFQ	Scheda tecnica	Tray	HCTC	Active	Power Line	2	-	4 mH @ 1 kHz	14.5A	12mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.700 L x 0.700 W (43.18mm x 17.78mm)	1.650 (41.91mm)
LPTC-V-42.5-2-200 COMMON MODE CHOKE TOROID 42.5MH Signal Transformer	3,057	-	RFQ	Scheda tecnica	Tray	LPTC-V	Active	Power Line	2	-	42.5 mH @ 1 kHz	2A	200mOhm	-	-	-55°C ~ 125°C	-	-	-	Through Hole	1.260 Dia x 0.827 L (32.00mm x 21.00mm)	1.220 (31.00mm)
