Induttanze di modo comune

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
PA2747NL CMC 7A 2LN SMD Pulse Electronics Power	2,978	-	RFQ	Scheda tecnica	Tube	-	Active	-	2	-	-	7A	2.9mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.508 L x 0.500 W (12.90mm x 12.70mm)	0.220 (5.60mm)
PH9455.826NL CMC 82MH 3A 2LN 37KOHM TH Pulse Electronics Power	3,997	-	RFQ	Scheda tecnica	Tray	-	Active	-	2	37 kOhms @ 130 kHz	82 mH @ 130 kHz	3A	150mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.748 W (30.00mm x 19.00mm)	1.102 (28.00mm)
PH9455.156NL CMC 15MH 6A 2LN 10KOHM TH Pulse Electronics Power	2,191	-	RFQ	Scheda tecnica	Tray	-	Active	-	2	10 kOhms @ 760 kHz	15 mH @ 760 kHz	6A	30mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.748 W (30.00mm x 19.00mm)	1.102 (28.00mm)
PA2749NL CMC 3.8A 2LN SMD Pulse Electronics Power	2,202	-	RFQ	Scheda tecnica	Tube	-	Active	-	2	-	-	3.8A	17.1mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.560 L x 0.646 W (14.22mm x 16.40mm)	0.350 (8.90mm)
PA5140.205NLT COMMON MODE CHOKE 198UH 18A Pulse Electronics Power	3,518	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	PA5140.XXXNL	Active	Signal Line	2	1.09 kOhms @ 3.66 MHz	-	20A	2.6mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.780 L x 0.768 W (19.80mm x 19.50mm)	0.756 (19.20mm)
PH9455.155NL CMC 1.62MH 19A 2LN 1.8KOHM TH Pulse Electronics Power	3,407	-	RFQ	Scheda tecnica	Tray	-	Active	-	2	1.8 kOhms @ 10 MHz	1.62 mH @ 10 MHz	19A	3.2mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.748 W (30.00mm x 19.00mm)	1.102 (28.00mm)
BWCU00201212900Y03 CMC 500MA 2LN 90 OHM SMD Pulse Electronics Power	3,508	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	BWCU_02	Active	-	2	90 Ohms @ 100 MHz	-	500mA	300mOhm	50V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)
BWCU00121008900Y03 CMC 250MA 2LN 90 OHM SMD Pulse Electronics Power	3,522	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	BWCU_02	Active	-	2	90 Ohms @ 100 MHz	-	250mA	300mOhm	50V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.049 L x 0.039 W (1.25mm x 1.00mm)	0.035 (0.90mm)
PH9408.814NLT CMC 18A 2LN 3.4KOHM SMD Pulse Electronics Power	3,993	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	PH9408	Active	-	2	3.4 kOhms @ 1.3 MHz	-	18A	6.3mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	1.201 L x 1.063 W (30.50mm x 27.00mm)	0.709 (18.00mm)
PE-62896NL CMC 4MH 5.2A 2LN TH Pulse Electronics Power	2,764	-	RFQ		Tray	-	Active	-	2	-	4 mH @ 1 kHz	5.2A	40mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.500 L x 1.500 W (38.10mm x 38.10mm)	0.810 (20.57mm)
FE2X03-3-3NL CMC 1.5A 2LN TH Pulse Electronics Power	2,682	-	RFQ	Scheda tecnica	Tube	FE2X	Active	-	2	-	-	1.5A	215mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.705 L x 0.705 W (17.91mm x 17.91mm)	0.508 (12.90mm)
FE2X27-3-3NL CMC 400MA 2LN TH Pulse Electronics Power	2,561	-	RFQ	Scheda tecnica	Tube	FE2X	Active	-	2	-	-	400mA	1.7Ohm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.705 L x 0.705 W (17.91mm x 17.91mm)	0.508 (12.90mm)
PA3747.205NL CMC 4A 2LN TH Pulse Electronics Power	3,627	-	RFQ	Scheda tecnica	Tray	PA3747	Active	-	2	-	-	4A	25.5mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.760 L x 0.717 W (19.30mm x 18.20mm)	0.902 (22.90mm)
PE-96179NL CMC 3.15A 2LN TH Pulse Electronics Power	3,502	-	RFQ	Scheda tecnica	Tray	-	Active	Power Line	2	-	-	3.15A (Typ)	40mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.909 L x 0.614 W (23.10mm x 15.60mm)	1.108 (28.15mm)

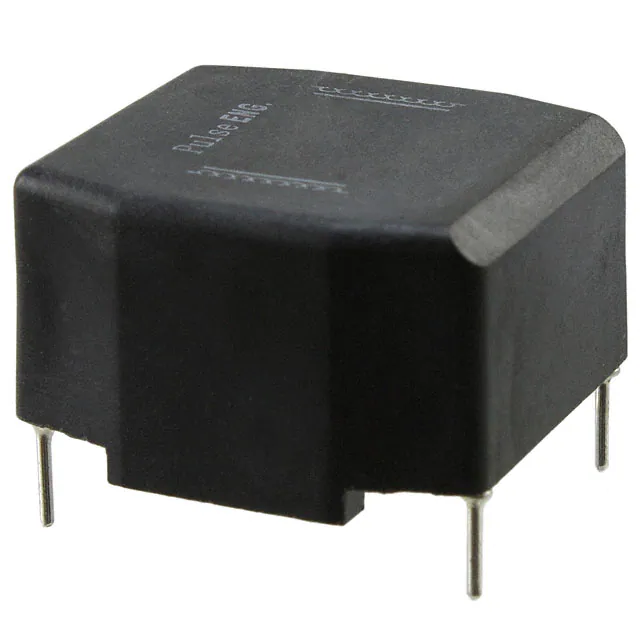

PE-96178NL CMC 3.15A 2LN TH Pulse Electronics Power	2,232	-	RFQ	Scheda tecnica	Tray	-	Active	Power Line	2	-	-	3.15A (Typ)	40mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.102 L x 1.070 W (28.00mm x 27.18mm)	0.650 (16.51mm)
PE-96177NL CMC 3.15A 2LN TH Pulse Electronics Power	3,764	-	RFQ	Scheda tecnica	Tray	-	Active	Power Line	2	-	-	3.15A (Typ)	60mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.102 L x 1.070 W (28.00mm x 27.18mm)	0.660 (16.76mm)
PE-96175NL CMC 3.15A 2LN TH Pulse Electronics Power	3,573	-	RFQ	Scheda tecnica	Tray	-	Active	Power Line	2	-	-	3.15A (Typ)	70mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.102 L x 1.070 W (28.00mm x 27.18mm)	0.660 (16.76mm)
PE-96181NL CMC 5A 2LN TH Pulse Electronics Power	3,987	-	RFQ	Scheda tecnica	Tube	-	Active	Power Line	2	-	-	5A (Typ)	60mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.299 L x 0.720 W (33.00mm x 18.29mm)	1.350 (34.29mm)
FE2X03-8-3NL CMC 8A 2LN TH Pulse Electronics Power	2,638	-	RFQ	Scheda tecnica	Tray	FE2X	Active	-	2	-	-	8A	33mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.709 L x 1.669 W (43.41mm x 42.39mm)	1.000 (25.40mm)

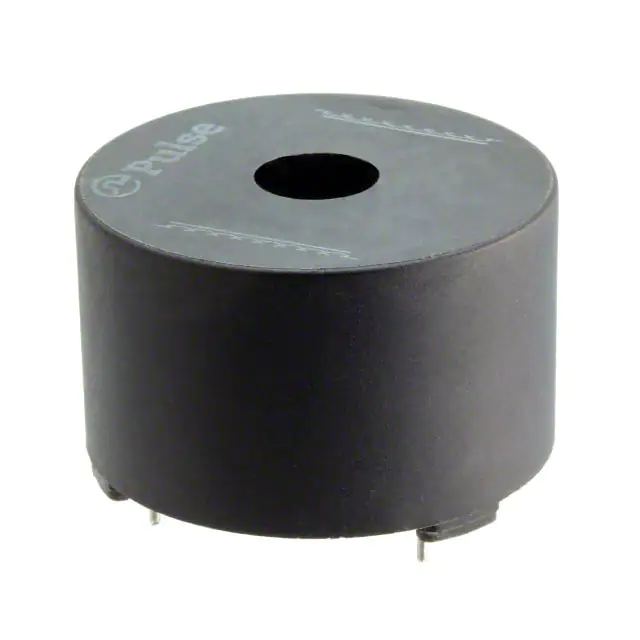

PE-96188NL CMC 10A 2LN TH Pulse Electronics Power	3,478	-	RFQ	Scheda tecnica	Tray	-	Active	Power Line	2	-	-	10A (Typ)	20mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.700 Dia (43.18mm)	1.030 (26.16mm)
