Induttanze di modo comune

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

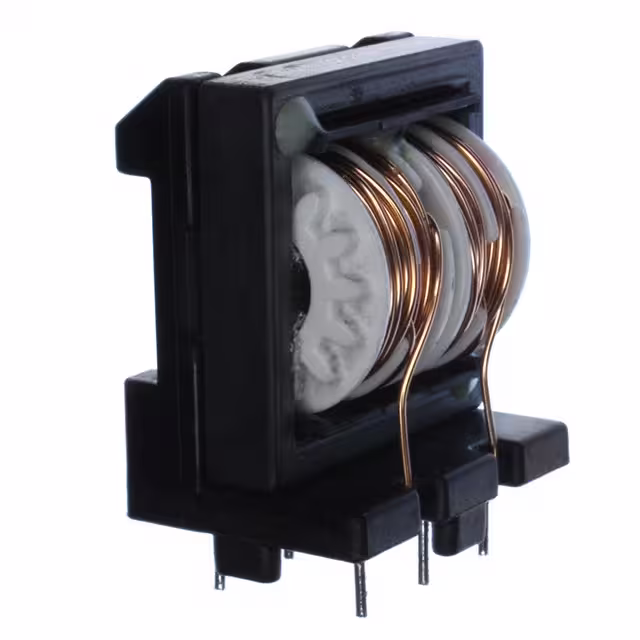

EV35-2.0-02-20M CMC 20MH 2A 2LN TH Schaffner EMC Inc.	2,506	-	RFQ	Scheda tecnica	Bulk	EV	Active	Power Line	2	-	20 mH @ 400 Hz	2A	150mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 0.965 W (36.00mm x 24.50mm)	1.681 (42.70mm)

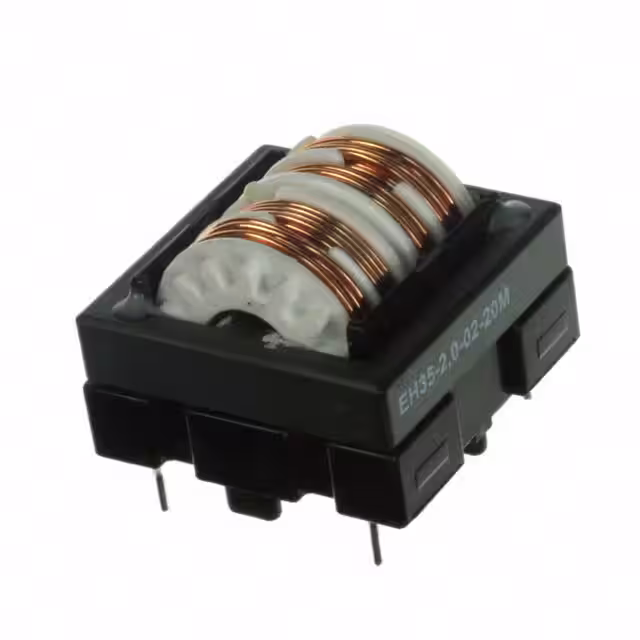

EH35-2.0-02-20M CMC 20MH 2A 2LN TH Schaffner EMC Inc.	3,716	-	RFQ	Scheda tecnica	Tube	EH	Active	Power Line	2	-	20 mH @ 10 kHz	2A	150mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 1.417 W (36.00mm x 36.00mm)	1.130 (28.70mm)

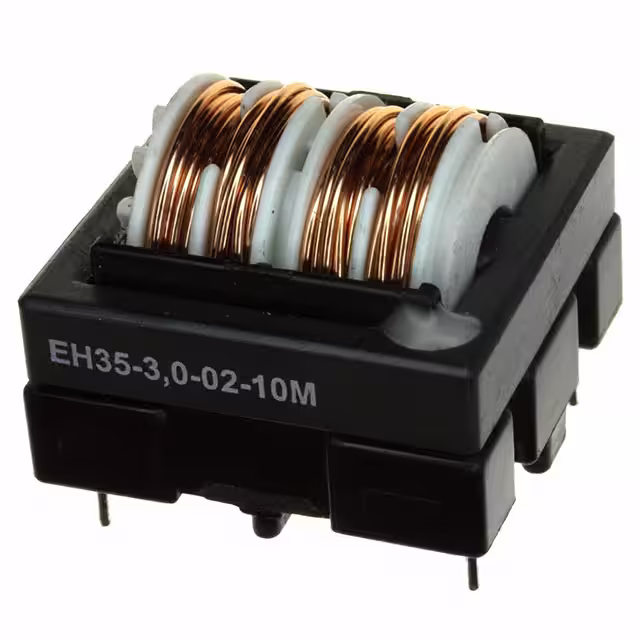

EH35-3.0-02-10M CMC 10MH 3A 2LN TH Schaffner EMC Inc.	3,653	-	RFQ	Scheda tecnica	Tube	EH	Active	Power Line	2	-	10 mH @ 400 Hz	3A	72mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 1.417 W (36.00mm x 36.00mm)	1.130 (28.70mm)

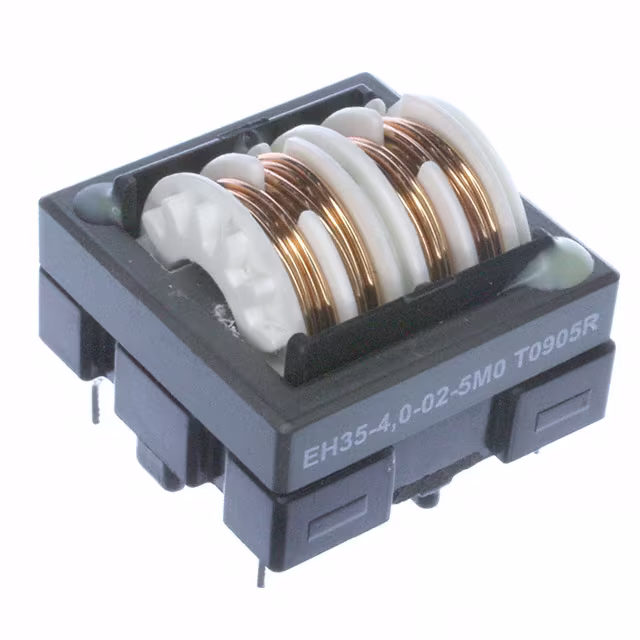

EH35-4.0-02-5M0 CMC 5MH 4A 2LN TH Schaffner EMC Inc.	2,374	-	RFQ	Scheda tecnica	Tube	EH	Active	Power Line	2	-	5 mH @ 400 Hz	4A	53mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 1.417 W (36.00mm x 36.00mm)	1.130 (28.70mm)
RB8522-50-0M8 CMC 750UH 50A 2LN TH Schaffner EMC Inc.	2,543	-	RFQ	Scheda tecnica	Bulk	RB	Active	Power Line	2	-	750 µH @ 400 Hz	50A	1.7mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.362 L x 1.988 W (60.00mm x 50.50mm)	3.150 (80.00mm)

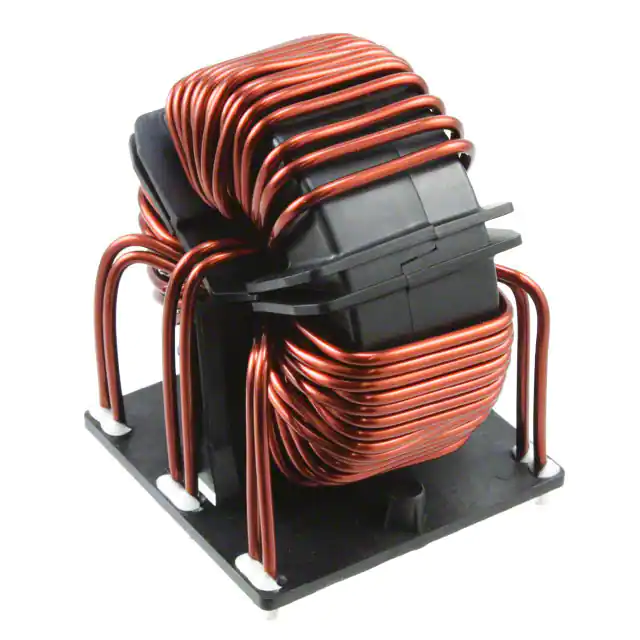

RB8532-50-0M3 CMC 330UH 50A 3LN TH Schaffner EMC Inc.	3,832	-	RFQ	Scheda tecnica	Bulk	RB	Active	Power Line	3	-	330 µH @ 1 kHz	50A	1.2mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.992 L x 2.480 W (76.00mm x 63.00mm)	3.228 (82.00mm)
RN102-0.6-02 CMC 4.4MH 600MA 2LN TH Schaffner EMC Inc.	2,649	-	RFQ	Scheda tecnica	Tube	RN	Obsolete	Power Line	2	-	4.4 mH @ 1 kHz	600mA (Typ)	385mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.551 L x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
RN102-1-02 CMC 3MH 1A 2LN TH Schaffner EMC Inc.	3,264	-	RFQ	Scheda tecnica	Tray	RN	Obsolete	Power Line	2	-	3 mH @ 1 kHz	1A (Typ)	205mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.551 L x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
RN102-1.5-02 CMC 1.6MH 1.5A 2LN TH Schaffner EMC Inc.	2,375	-	RFQ	Scheda tecnica	Tray	RN	Obsolete	Power Line	2	-	1.6 mH @ 10 kHz	1.5A (Typ)	100mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.551 L x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
RN102-2-02 CMC 1.1MH 2A 2LN TH Schaffner EMC Inc.	2,080	-	RFQ	Scheda tecnica	Tube	RN	Obsolete	Power Line	2	-	1.1 mH @ 10 kHz	2A (Typ)	70mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.551 L x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
RN112-0.4-02 CMC 39MH 400MA 2LN TH Schaffner EMC Inc.	3,275	-	RFQ	Scheda tecnica	Tray	RN	Obsolete	Power Line	2	-	39 mH @ 1 kHz	400mA (Typ)	1.67Ohm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN102-0.3-02 CMC 12MH 300MA 2LN TH Schaffner EMC Inc.	3,689	-	RFQ	Scheda tecnica	Tray	RN	Obsolete	Power Line	2	-	12 mH @ 1 kHz	300mA (Typ)	1.275Ohm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.551 L x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
RN112-0.6-02 CMC 15MH 600MA 2LN TH Schaffner EMC Inc.	2,491	-	RFQ	Scheda tecnica	Tray	RN	Obsolete	Power Line	2	-	15 mH @ 1 kHz	600mA (Typ)	465mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN112-0.8-02 CMC 10MH 800MA 2LN TH Schaffner EMC Inc.	3,389	-	RFQ	Scheda tecnica	Tray	RN	Obsolete	Power Line	2	-	10 mH @ 10 kHz	800mA (Typ)	370mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN112-1.2-02 CMC 6.8MH 1.2A 2LN TH Schaffner EMC Inc.	3,473	-	RFQ	Scheda tecnica	Tube	RN	Obsolete	Power Line	2	-	6.8 mH @ 1 kHz	1.2A (Typ)	245mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN112-1.5-02 CMC 3.3MH 1.5A 2LN TH Schaffner EMC Inc.	3,196	-	RFQ	Scheda tecnica	Tray	RN	Obsolete	Power Line	2	-	3.3 mH @ 1 kHz	1.5A (Typ)	135mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN112-2-02 CMC 1.8MH 2A 2LN TH Schaffner EMC Inc.	3,561	-	RFQ	Scheda tecnica	Tube	RN	Obsolete	Power Line	2	-	1.8 mH @ 10 kHz	2A (Typ)	75mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN112-4-02 CMC 700UH 4A 2LN TH Schaffner EMC Inc.	2,217	-	RFQ	Scheda tecnica	Tube	RN	Obsolete	Power Line	2	-	700 µH @ 1 kHz	4A (Typ)	27mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN114-0.3-02 CMC 47MH 300MA 2LN TH Schaffner EMC Inc.	2,404	-	RFQ	Scheda tecnica	Tray	RN	Obsolete	Power Line	2	-	47 mH @ 10 kHz	300mA (Typ)	1.75Ohm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN114-0.5-02 CMC 39MH 500MA 2LN TH Schaffner EMC Inc.	3,367	-	RFQ	Scheda tecnica	Tray	RN	Obsolete	Power Line	2	-	39 mH @ 1 kHz	500mA (Typ)	810mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
