Induttanze di modo comune

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

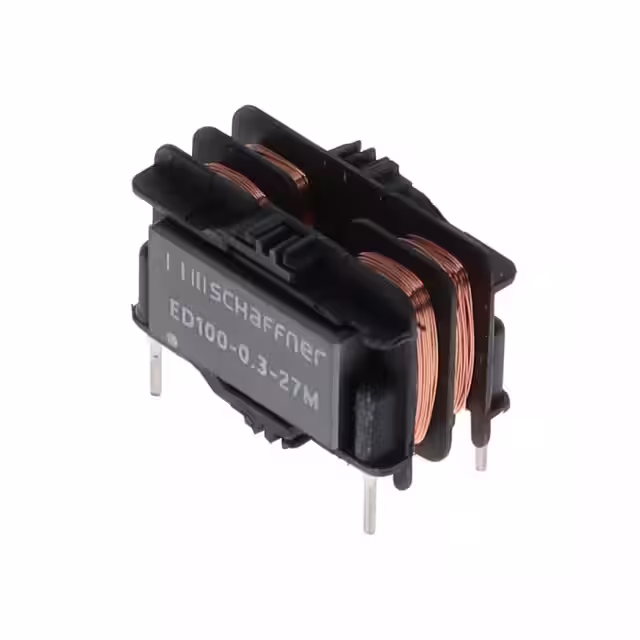

ED100-0.3-27M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED100	Active	Power Line	2	-	27 mH @ 10 kHz	300mA	5.5Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED100-0.2-40M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED100	Active	Power Line	2	-	40 mH @ 10 kHz	200mA	10Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

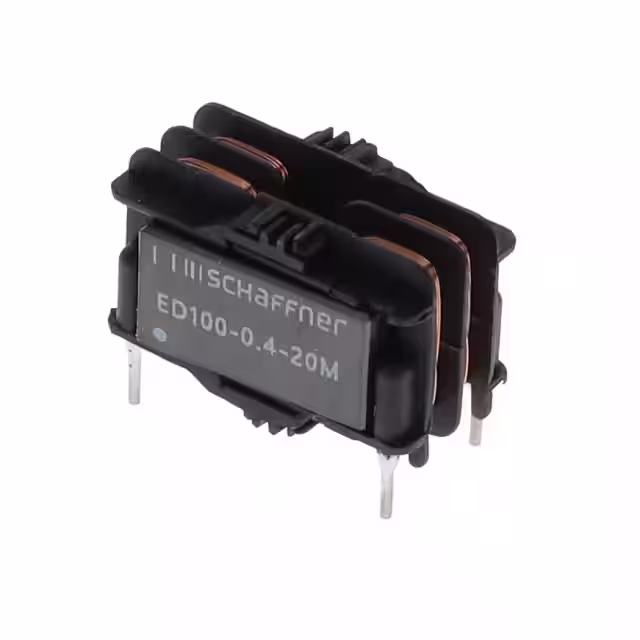

ED100-0.4-20M COMMON MODE CHOKE Schaffner EMC Inc.	447	-	RFQ	Scheda tecnica	Box	ED100	Active	Power Line	2	-	20 mH @ 10 kHz	400mA	3.7Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

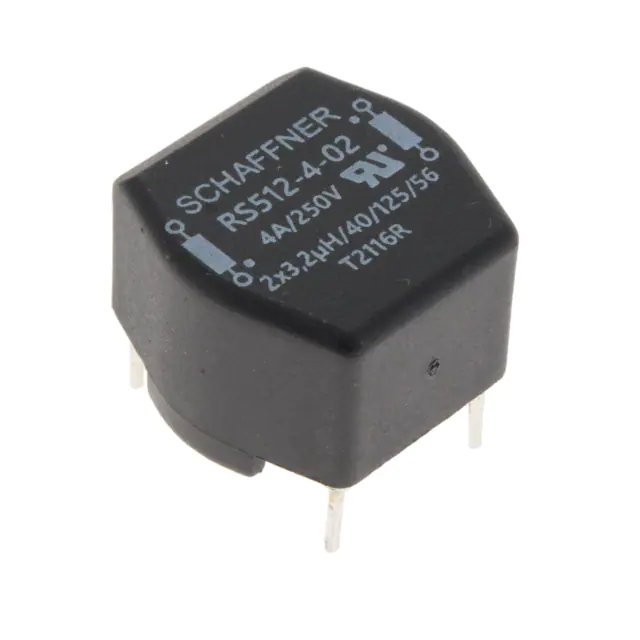

RS512-4-02 CMC 3UH 4A 2LN TH Schaffner EMC Inc.	294	-	RFQ	Scheda tecnica	Tray	RS	Active	Signal Line	2	-	3 µH @ 1 kHz	4A (Typ)	10mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.492 (12.50mm)

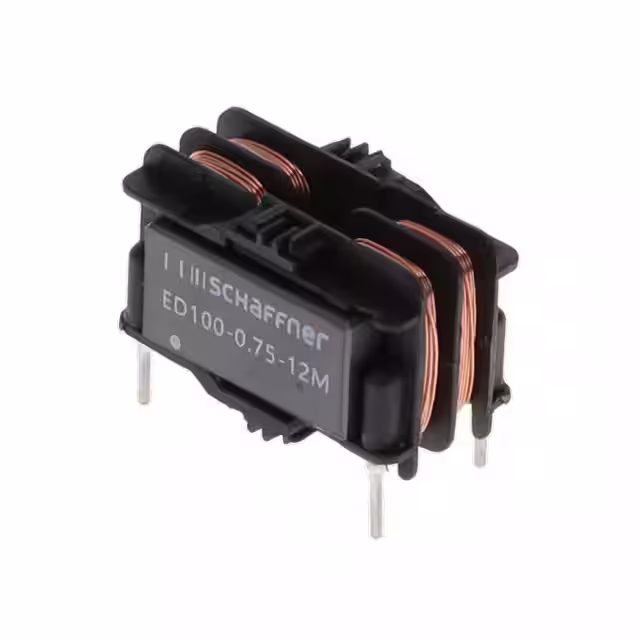

ED100-0.75-12M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED100	Active	Power Line	2	-	12 mH @ 10 kHz	750mA	1.2Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

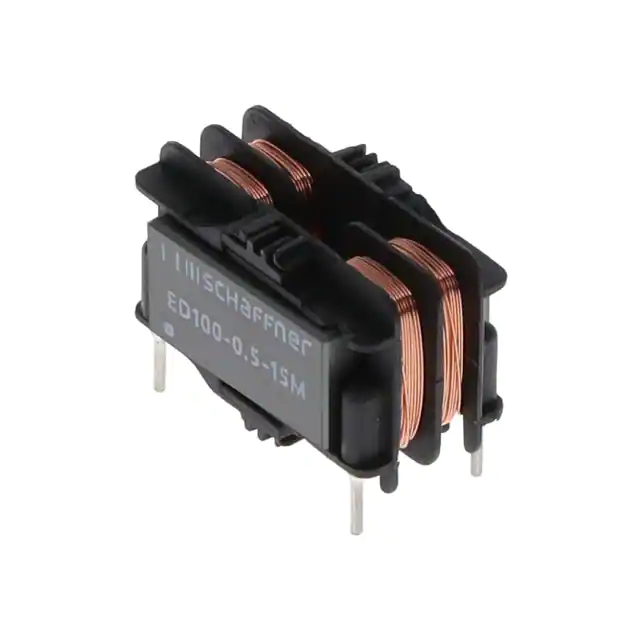

ED100-0.5-15M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED100	Active	Power Line	2	-	15 mH @ 10 kHz	500mA	2Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED100-1-9M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED100	Active	Power Line	2	-	9 mH @ 10 kHz	1A	600mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

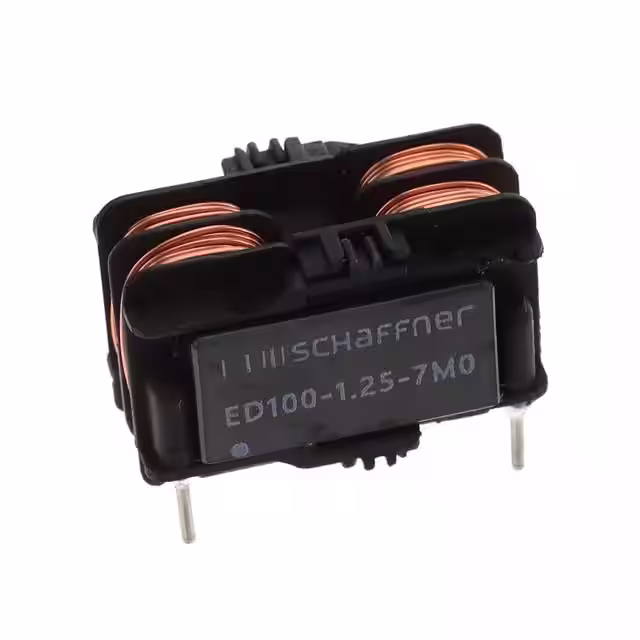

ED100-1.25-7M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED100	Active	Power Line	2	-	7 mH @ 10 kHz	1.25A	400mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

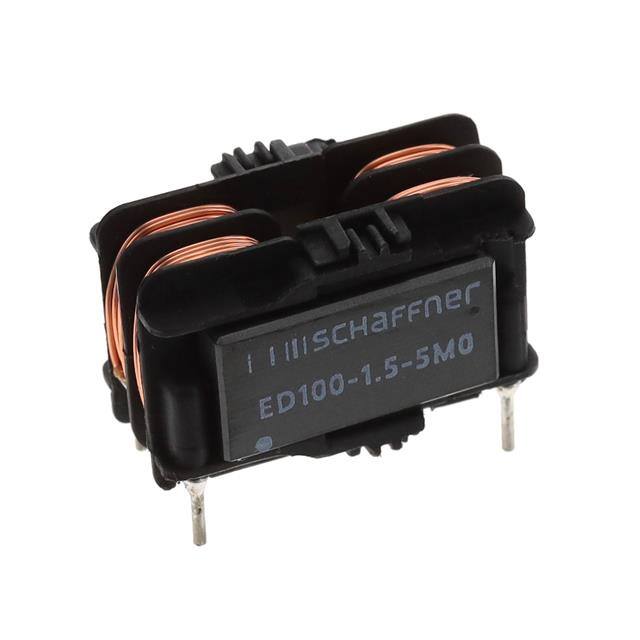

ED100-1.5-5M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED100	Active	Power Line	2	-	5 mH @ 10 kHz	1.5A	300mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED100-2-3M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED100	Active	Power Line	2	-	3 mH @ 10 kHz	2A	200mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

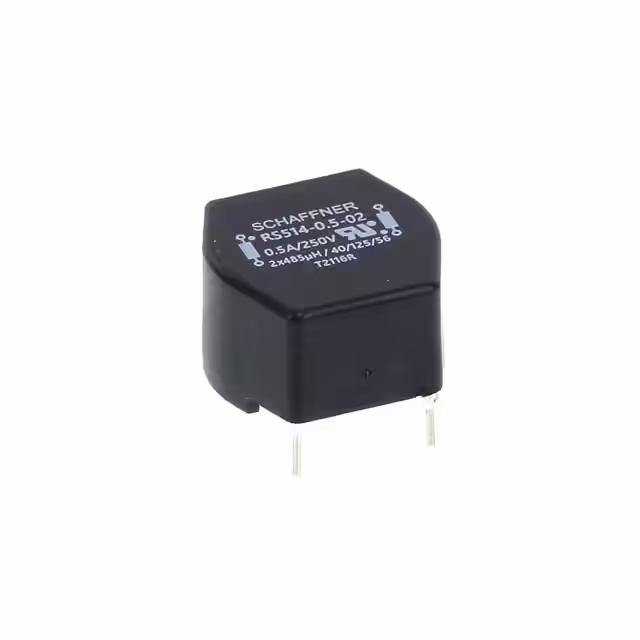

RS514-0.5-02 CMC 480UH 500MA 2LN TH Schaffner EMC Inc.	490	-	RFQ	Scheda tecnica	Tray	RS	Active	Signal Line	2	-	480 µH @ 1 kHz	500mA (Typ)	800mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.520 (13.20mm)

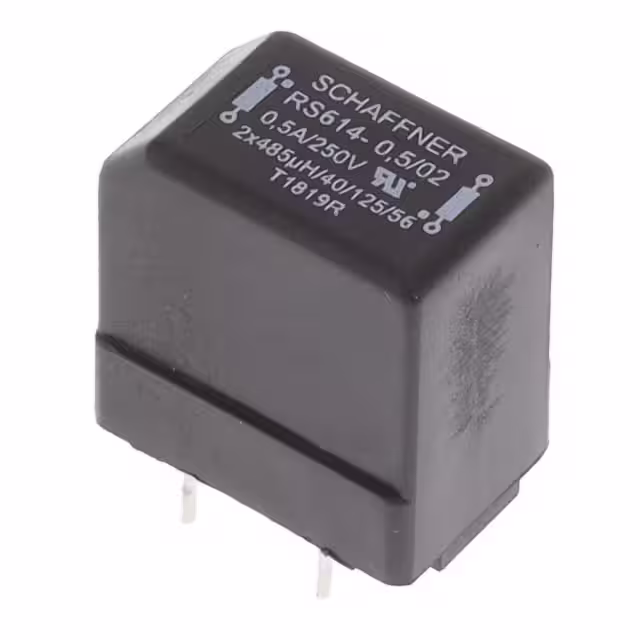

RS614-0.5-02 CMC 480UH 500MA 2LN TH Schaffner EMC Inc.	490	-	RFQ	Scheda tecnica	Tube	RS	Active	Signal Line	2	-	480 µH @ 1 kHz	500mA (Typ)	800mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)
ED101-0.4-20M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED101	Active	Power Line	2	-	20 mH @ 10 kHz	400mA	3.7Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED101-0.3-27M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED101	Active	Power Line	2	-	27 mH @ 10 kHz	300mA	5.5Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

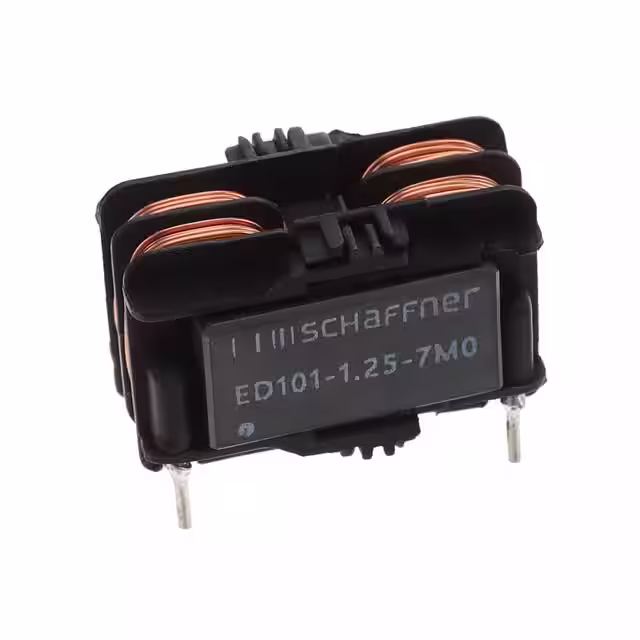

ED101-1.25-7M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED101	Active	Power Line	2	-	7 mH @ 10 kHz	1.25A	400mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED101-1.5-5M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED101	Active	Power Line	2	-	5 mH @ 10 kHz	1.5A	300mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED101-2-3M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Scheda tecnica	Box	ED101	Active	Power Line	2	-	3 mH @ 10 kHz	2A	200mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

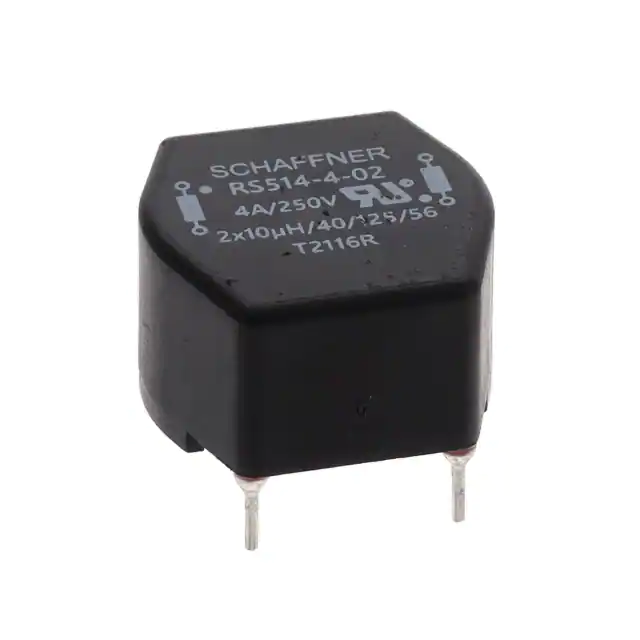

RS514-4-02 CMC 8UH 4A 2LN TH Schaffner EMC Inc.	458	-	RFQ	Scheda tecnica	Tray	RS	Active	Signal Line	2	-	8 µH @ 1 kHz	4A (Typ)	20mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.520 (13.20mm)

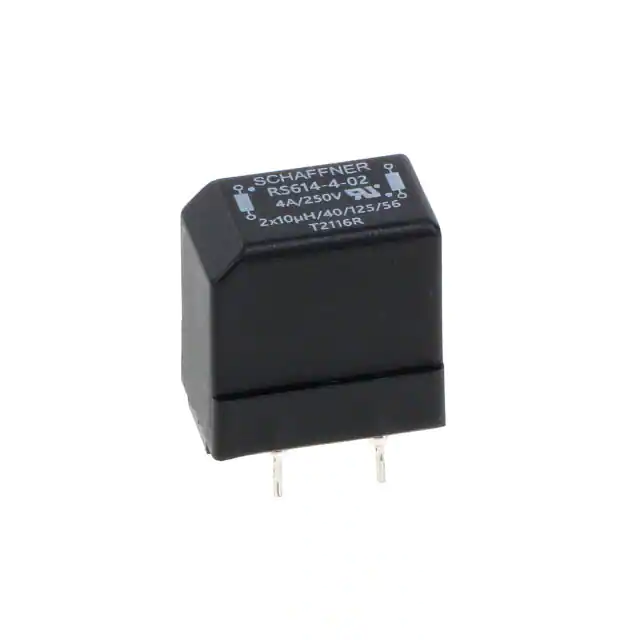

RS614-4-02 CMC 8UH 4A 2LN TH Schaffner EMC Inc.	278	-	RFQ	Scheda tecnica	Tube	RS	Active	Signal Line	2	-	8 µH @ 1 kHz	4A (Typ)	20mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)
EH28-1.0-02-75M-X CMC 75MH 1A 2LN TH Schaffner EMC Inc.	483	-	RFQ	Scheda tecnica	Tube	EH	Active	Power Line	2	-	75 mH @ 400 Hz	1A	880mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)
