Induttanze di modo comune

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
ET3542-057 CMC 6MH 3.5A 2LN TH ESD Triad Magnetics	2,565	-	RFQ	Scheda tecnica	Bulk	ET	Active	Power Line	2	-	6 mH @ 10 kHz	3.5A	100mOhm	-	250V	-20°C ~ 105°C	-	CSA, IEC, UL	ESD	Through Hole	1.496 L x 1.024 W (38.00mm x 26.00mm)	1.772 (45.00mm)
CME375-9 CMC 176.1MH 870MA 2LN TH ESD Triad Magnetics	2,778	-	RFQ	Scheda tecnica	Bulk	CME	Active	Power Line	2	-	176.1 mH @ 10 kHz	870mA	1.98Ohm	-	250V	-40°C ~ 80°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	1.500 L x 1.260 W (38.10mm x 32.00mm)	1.180 (29.97mm)
CMF16-153131-B CMC 15MH 1.3A 2LN TH Triad Magnetics	2,518	-	RFQ	Scheda tecnica	Bulk	CMF	Active	Power Line	2	-	15 mH @ 10 kHz	1.3A	470mOhm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
CMF16-273900-B CMC 27MH 900MA 2LN TH Triad Magnetics	3,131	-	RFQ	Scheda tecnica	Bulk	CMF	Active	Power Line	2	-	27 mH @ 10 kHz	900mA	850mOhm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
CMF16-473700-B CMC 47MH 700MA 2LN TH Triad Magnetics	2,104	-	RFQ	Scheda tecnica	Bulk	CMF	Active	Power Line	2	-	47 mH @ 10 kHz	700mA	1.39Ohm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
CMF16-683600-B CMC 68MH 600MA 2LN TH Triad Magnetics	3,124	-	RFQ	Scheda tecnica	Bulk	CMF	Active	Power Line	2	-	68 mH @ 10 kHz	600mA	2.17Ohm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
CMF23V-104700-B CMC 100MH 700MA 2LN TH Triad Magnetics	2,730	-	RFQ	Scheda tecnica	Bulk	CMF	Active	Power Line	2	-	100 mH @ 10 kHz	700mA	1.99Ohm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	1.142 L x 0.591 W (29.00mm x 15.00mm)	1.063 (27.00mm)
CMF23H-103231-B CMC 10MH 2.3A 2LN TH Triad Magnetics	3,610	-	RFQ	Scheda tecnica	Bulk	CMF	Active	Power Line	2	-	10 mH @ 10 kHz	2.3A	210mOhm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)
CMF23H-153191-B CMC 15MH 1.9A 2LN TH Triad Magnetics	3,861	-	RFQ	Scheda tecnica	Bulk	CMF	Active	Power Line	2	-	15 mH @ 10 kHz	1.9A	310mOhm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)
CMF23H-273141-B CMC 27MH 1.4A 2LN TH Triad Magnetics	2,473	-	RFQ	Scheda tecnica	Bulk	CMF	Active	Power Line	2	-	27 mH @ 10 kHz	1.4A	484mOhm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)
CMF23H-683900-B CMC 68MH 900MA 2LN TH Triad Magnetics	2,781	-	RFQ	Scheda tecnica	Bulk	CMF	Active	Power Line	2	-	68 mH @ 10 kHz	900mA	1.21Ohm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)
CMT-8101-B CMC 4MH 1.7A 2LN TH ESD Triad Magnetics	2,183	-	RFQ	Scheda tecnica	Bulk	CMT	Active	Power Line	2	-	4 mH @ 1 kHz	1.7A	173mOhm	-	1500V (1.5kV)	-55°C ~ 105°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	0.760 L x 0.615 W (19.30mm x 15.62mm)	0.900 (22.86mm)
CMT-8102-B CMC 2.5MH 2.4A 2LN TH ESD Triad Magnetics	3,449	-	RFQ	Scheda tecnica	Bulk	CMT	Active	Power Line	2	-	2.5 mH @ 1 kHz	2.4A	90mOhm	-	1500V (1.5kV)	-55°C ~ 105°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	0.760 L x 0.615 W (19.30mm x 15.62mm)	0.900 (22.86mm)
CMT-8103-B CMC 1MH 4.8A 2LN TH ESD Triad Magnetics	2,699	-	RFQ	Scheda tecnica	Bulk	CMT	Active	Power Line	2	-	1 mH @ 1 kHz	4.8A	22mOhm	-	1500V (1.5kV)	-55°C ~ 105°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	0.760 L x 0.615 W (19.30mm x 15.62mm)	0.900 (22.86mm)

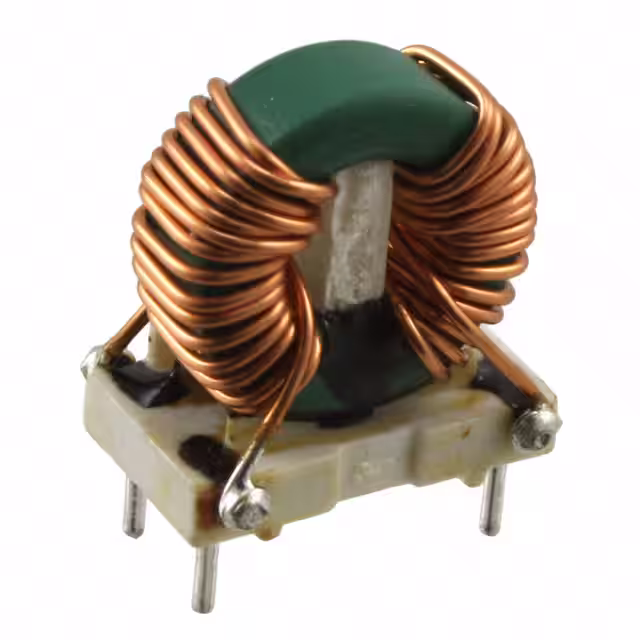

CMT-8103 CMC 1MH 4.8A 2LN TH ESD Triad Magnetics	2,230	-	RFQ	Scheda tecnica	Bulk	CMT	Active	Power Line	2	-	1 mH @ 1 kHz	4.8A	22mOhm	-	1500V (1.5kV)	-55°C ~ 105°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	0.760 L x 0.615 W (19.30mm x 15.62mm)	0.900 (22.86mm)
UT2020-001 CMC 9MH 500MA 2LN TH ESD Triad Magnetics	2,850	-	RFQ	Scheda tecnica	Bulk	UT	Active	Power Line	2	-	9 mH @ 10 kHz	500mA	1.4Ohm	-	250V	-20°C ~ 105°C	-	CSA, IEC, UL	ESD	Through Hole	0.905 L x 0.965 W (22.99mm x 24.51mm)	0.787 (20.00mm)
UT2020-002 CMC 4.5MH 600MA 2LN TH ESD Triad Magnetics	3,075	-	RFQ	Scheda tecnica	Bulk	UT	Active	Power Line	2	-	4.5 mH @ 10 kHz	600mA	750mOhm	-	250V	-20°C ~ 105°C	-	CSA, IEC, UL	ESD	Through Hole	0.905 L x 0.965 W (22.99mm x 24.51mm)	0.787 (20.00mm)
UT2020-003 CMC 2.5MH 700MA 2LN TH ESD Triad Magnetics	2,824	-	RFQ	Scheda tecnica	Bulk	UT	Active	Power Line	2	-	2.5 mH @ 10 kHz	700mA	400mOhm	-	250V	-20°C ~ 105°C	-	CSA, IEC, UL	ESD	Through Hole	0.905 L x 0.965 W (22.99mm x 24.51mm)	0.787 (20.00mm)
UT2020-005 CMC 0.45MH 1A 2LN TH ESD Triad Magnetics	2,893	-	RFQ	Scheda tecnica	Bulk	UT	Active	Power Line	2	-	0.45 mH @ 10 kHz	1A	130mOhm	-	250V	-20°C ~ 105°C	-	CSA, IEC, UL	ESD	Through Hole	0.905 L x 0.965 W (22.99mm x 24.51mm)	0.787 (20.00mm)
UT2024-006 CMC 9MH 500MA 2LN TH ESD Triad Magnetics	2,634	-	RFQ	Scheda tecnica	Bulk	UT	Active	Power Line	2	-	9 mH @ 10 kHz	500mA	1.4Ohm	-	250V	-20°C ~ 105°C	-	CSA, IEC, UL	ESD	Through Hole	0.728 L x 0.905 W (18.49mm x 22.99mm)	0.925 (23.50mm)
