Diodi-Raddrizzatori-Singoli

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If

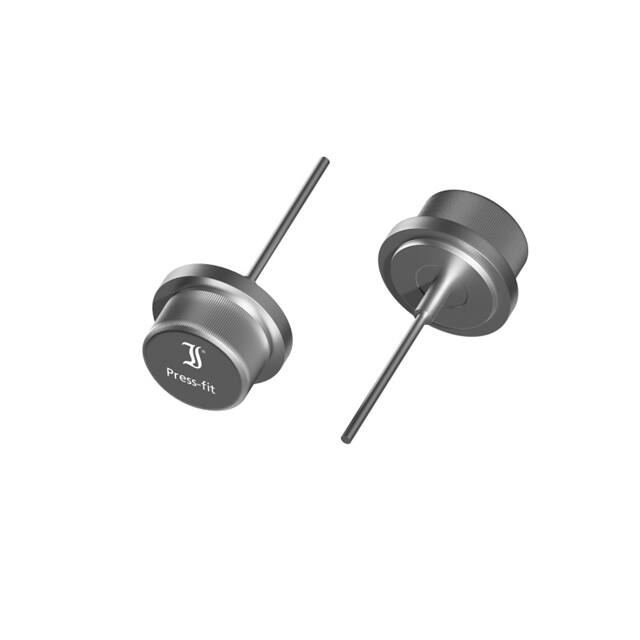

KYW35A4 DIODE STD D12.77X6.6W 400V 35A Diotec Semiconductor	500	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	100 µA @ 400 V	400 V	35A	-50°C ~ 175°C	1.1 V @ 35 A
SK1H10 SCHOTTKY SMA 100V 1A Diotec Semiconductor	200,000	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	4 µA @ 100 V	100 V	1A	-50°C ~ 175°C	770 mV @ 1 A
KYZ35K6 DIODE STD D12.77X6.6Z 600V 35A Diotec Semiconductor	500	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	100 µA @ 600 V	600 V	35A	-50°C ~ 175°C	1.1 V @ 35 A
US1M-AQ DIODE UFR SMA 1000V 1A Diotec Semiconductor	7,500	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	75 ns	5 µA @ 1000 V	1000 V	1A	-50°C ~ 150°C	1.7 V @ 1 A
US1J-AQ DIODE UFR SMA 600V 1A Diotec Semiconductor	7,500	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	75 ns	5 µA @ 600 V	600 V	1A	-50°C ~ 150°C	1.4 V @ 1.5 A
KYW35A3 DIODE STD D12.77X6.6W 300V 35A Diotec Semiconductor	500	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	100 µA @ 300 V	300 V	35A	-50°C ~ 175°C	1.1 V @ 35 A
US1G-AQ DIODE UFR SMA 400V 1A Diotec Semiconductor	7,500	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	50 ns	5 µA @ 400 V	400 V	1A	-50°C ~ 150°C	1.25 V @ 1 A
KYW35K3 DIODE STD D12.77X6.6W 300V 35A Diotec Semiconductor	500	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	100 µA @ 300 V	300 V	35A	-50°C ~ 175°C	1.1 V @ 35 A
EGL1J DIODE SFR DO-213AA 600V 1A Diotec Semiconductor	117,500	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	75 ns	5 µA @ 600 V	600 V	1A	-50°C ~ 175°C	1.8 V @ 1 A
ER1M DIODE SFR SMA 1000V 1A Diotec Semiconductor	60,000	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	75 ns	5 µA @ 1000 V	1000 V	1A	-50°C ~ 150°C	1.7 V @ 1 A

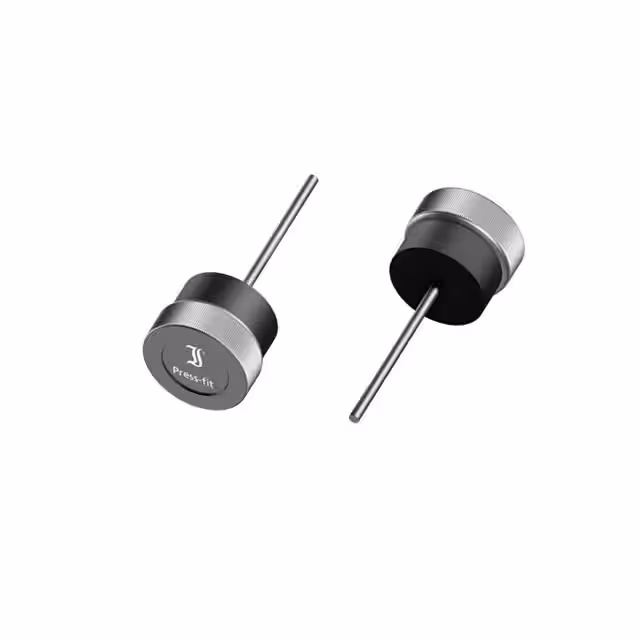

KYW25A05 DIODE STD D12.77X6.6W 50V 25A Diotec Semiconductor	500	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	100 µA @ 50 V	50 V	25A	-50°C ~ 175°C	1.1 V @ 25 A
BY253 DIODE STD DO-201 600V 3A Diotec Semiconductor	406,300	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	5 µA @ 600 V	600 V	3A	-50°C ~ 150°C	1.1 V @ 3 A
BY251 DIODE STD DO-201 200V 3A Diotec Semiconductor	202,300	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	5 µA @ 200 V	200 V	3A	-50°C ~ 150°C	1.1 V @ 3 A
KYW25K6 DIODE STD D12.77X6.6W 600V 25A Diotec Semiconductor	400	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	100 µA @ 600 V	600 V	25A	-50°C ~ 175°C	1.1 V @ 25 A
SM5060 DIODE STD MELF 400V 2A Diotec Semiconductor	35,000	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	1.5 µs	5 µA @ 400 V	400 V	2A	-50°C ~ 175°C	1.1 V @ 2 A
KYW25A6 DIODE STD D12.77X6.6W 600V 25A Diotec Semiconductor	400	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	100 µA @ 600 V	600 V	25A	-50°C ~ 175°C	1.1 V @ 25 A
BY252 DIODE STD DO-201 400V 3A Diotec Semiconductor	1,700	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	5 µA @ 400 V	400 V	3A	-50°C ~ 150°C	1.1 V @ 3 A
SGL34-30 SCHOTTKY DO-213AA 30V 0.5A Diotec Semiconductor	2,500	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	500 µA @ 30 V	30 V	500mA	-50°C ~ 150°C	500 mV @ 500 mA
SGL34-20 SCHOTTKY DO-213AA 20V 0.5A Diotec Semiconductor	2,500	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	500 µA @ 20 V	20 V	500mA	-50°C ~ 150°C	500 mV @ 500 mA
EGL1K DIODE SFR DO-213AA 800V 1A Diotec Semiconductor	12,500	-	RFQ	Scheda tecnica	Tape & Reel (TR)	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	75 ns	5 µA @ 800 V	800 V	1A	-50°C ~ 175°C	1.8 V @ 1 A
