Altre categorie di prodotti

Diodi-Raddrizzatori-Singoli

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
1N2134 DO5 70 AMP SILICON RECTIFIER Solid State Inc.	3,958	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	25 µA @ 350 V	350 V	70A	-65°C ~ 200°C	1.25 V @ 200 A
1N2135 DO5 70 AMP SILICON RECTIFIER Solid State Inc.	2,015	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	25 µA @ 400 V	400 V	70A	-65°C ~ 200°C	1.25 V @ 200 A
1N3294R DO8 100 AMP SILICON RECTIFIER Solid State Inc.	3,824	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 800 V	800 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N3295RA DO8 150 AMP SILICON RECTIFIER Solid State Inc.	2,235	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 1000 V	1000 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N411B DO8 100 AMP SILICON RECTIFIER Solid State Inc.	3,439	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 50 V	50 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N1401 DO8 100 AMP SILICON RECTIFIER Solid State Inc.	2,097	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 400 V	400 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N2442 DO8 150 AMP SILICON RECTIFIER Solid State Inc.	2,898	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 350 V	350 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N2438R DO8 150 AMP SILICON RECTIFIER Solid State Inc.	3,155	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 150 V	150 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N4587 DO8 150 AMP SILICON RECTIFIER Solid State Inc.	3,754	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 100 V	100 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N411RB DO8 100 AMP SILICON RECTIFIER Solid State Inc.	3,526	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 50 V	50 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N2439 DO8 150 AMP SILICON RECTIFIER Solid State Inc.	2,010	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 200 V	200 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N270 DO 7 GOLD GERM. DIODE 100V Solid State Inc.	6,820	-	RFQ	Scheda tecnica	Box	RoHS	Small Signal =< 200mA (Io), Any Speed	Standard	Active	Through Hole	0.8pF @ 1V, 1MHz	-	100 µA @ 50 V	100 V	40mA	-65°C ~ 90°C	1 V @ 200 mA

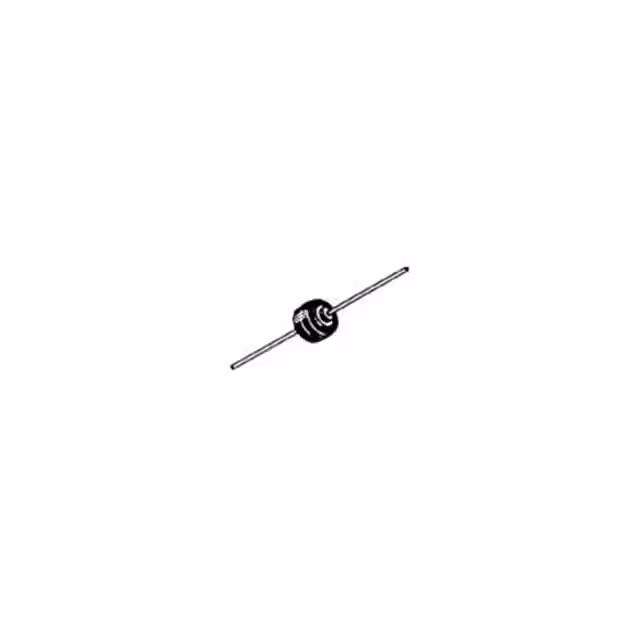

MR750 RECT 50 V 6 AMPS Solid State Inc.	4,880	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	-	-	-	25 µA @ 50 V	50 V	6A	-65°C ~ 175°C	900 mV @ 6 A
1N1399 DO8 100 AMP SILICON RECTIFIER Solid State Inc.	3,725	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 200 V	200 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N2443R DO8 150 AMP SILICON RECTIFIER Solid State Inc.	3,670	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 400 V	400 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N412RB DO8 100 AMP SILICON RECTIFIER Solid State Inc.	3,334	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 100 V	100 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N413B DO8 100 AMP SILICON RECTIFIER Solid State Inc.	2,658	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 200 V	200 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N3295R DO8 100 AMP SILICON RECTIFIER Solid State Inc.	2,199	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 1000 V	1000 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
MR751 RECT 100 V 6 AMPS Solid State Inc.	4,720	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	-	-	-	25 µA @ 100 V	100 V	6A	-65°C ~ 175°C	900 mV @ 6 A
MR760 RECT 1000 V 6 AMPS Solid State Inc.	4,600	-	RFQ	Scheda tecnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	-	-	-	25 µA @ 1 kV	1000 V	6A	-65°C ~ 175°C	900 mV @ 6 A
