Diodi-Raddrizzatori-Singoli

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
RFNL5BM6SFHTL SUPER FAST RECOVERY DIODE (AEC-Q Rohm Semiconductor	1,877	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	60 ns	10 µA @ 600 V	600 V	5A	150°C (Max)	1.3 V @ 5 A
RFN5BM3STL DIODE GEN PURP 350V 5A TO252 Rohm Semiconductor	1,706	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	30 ns	10 µA @ 350 V	350 V	5A	150°C (Max)	1.5 V @ 5 A
RF305BM6SFHTL SUPER FAST RECOVERY DIODE (AEC-Q Rohm Semiconductor	2,480	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	30 ns	10 µA @ 600 V	600 V	3A	150°C (Max)	1.7 V @ 3 A
SCS215AGHRC DIODE SCHOTTKY 650V 15A TO-220-2 Rohm Semiconductor	318	-	RFQ	Scheda tecnica	Tube	Automotive, AEC-Q101	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	550pF @ 1V, 1MHz	0 ns	300 µA @ 600 V	650 V	15A (DC)	175°C (Max)	1.55 V @ 15 A
SCS206AGHRC DIODE SCHOTTKY 650V 6A TO-220-2 Rohm Semiconductor	935	-	RFQ	Scheda tecnica	Tube	Automotive, AEC-Q101	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	219pF @ 1V, 1MHz	0 ns	120 µA @ 600 V	650 V	6A (DC)	175°C (Max)	1.55 V @ 6 A
RFN5BM2STL DIODE GEN PURP 200V 5A TO252 Rohm Semiconductor	1,492	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	25 ns	10 µA @ 200 V	200 V	5A	150°C (Max)	980 mV @ 5 A
SCS210AJTLL DIODE SCHOTTKY 650V 10A TO263AB Rohm Semiconductor	3,789	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	365pF @ 1V, 1MHz	0 ns	200 µA @ 600 V	650 V	10A (DC)	175°C (Max)	1.55 V @ 10 A
RR601BM4SFHTL RECTIFYING DIODE (AEC-Q101 QUALI Rohm Semiconductor	1,034	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	-	10 µA @ 400 V	400 V	6A	150°C (Max)	1.1 V @ 6 A
SCS212AMC DIODE SCHOTTKY 650V 12A TO220FM Rohm Semiconductor	182	-	RFQ	Scheda tecnica	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	438pF @ 1V, 1MHz	0 ns	240 µA @ 600 V	650 V	12A	175°C (Max)	1.55 V @ 12 A
RFV5BM6SFHTL RFV5BM6SFH IS THE HIGH RELIABILI Rohm Semiconductor	2,443	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	40 ns	10 µA @ 600 V	600 V	5A	150°C (Max)	2.8 V @ 5 A
SCS208AGHRC DIODE SCHOTTKY 650V 8A TO-220-2 Rohm Semiconductor	964	-	RFQ	Scheda tecnica	Tube	Automotive, AEC-Q101	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	291pF @ 1V, 1MHz	0 ns	160 µA @ 600 V	650 V	8A (DC)	175°C (Max)	1.55 V @ 8 A
SCS212AGHRC DIODE SCHOTTKY 650V 12A TO-220-2 Rohm Semiconductor	2,995	-	RFQ	Scheda tecnica	Tube	Automotive, AEC-Q101	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	438pF @ 1V, 1MHz	0 ns	240 µA @ 600 V	650 V	12A (DC)	175°C (Max)	1.55 V @ 12 A
SCS110AGC DIODE SCHOTTKY 600V 10A TO220AC Rohm Semiconductor	1,018	-	RFQ	Scheda tecnica	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	430pF @ 1V, 1MHz	0 ns	200 µA @ 600 V	600 V	10A	175°C (Max)	1.7 V @ 10 A
SCS210AGHRC DIODE SCHOTTKY 650V 10A TO-220-2 Rohm Semiconductor	798	-	RFQ	Scheda tecnica	Tube	Automotive, AEC-Q101	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	365pF @ 1V, 1MHz	0 ns	200 µA @ 600 V	650 V	10A (DC)	175°C (Max)	1.55 V @ 10 A

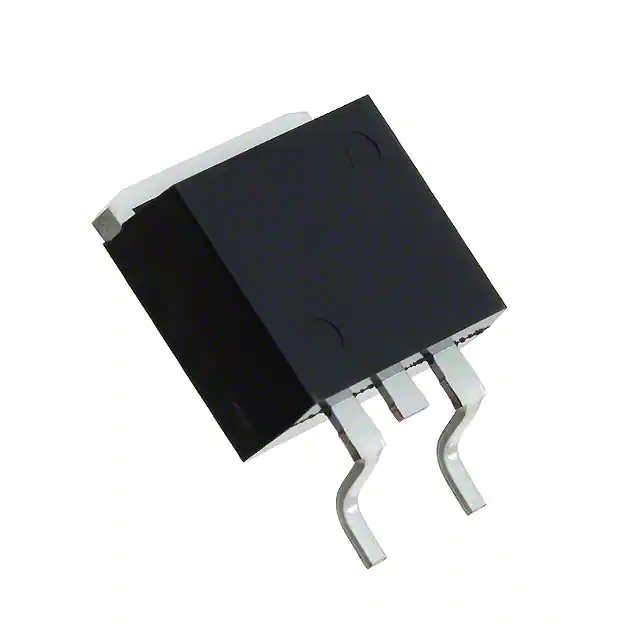

SCS215AJTLL DIODE SCHOTTKY 650V 15A TO263AB Rohm Semiconductor	7,692	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	550pF @ 1V, 1MHz	0 ns	300 µA @ 600 V	650 V	15A	175°C (Max)	1.55 V @ 15 A
SCS206AMC DIODE SCHOTTKY 650V 6A TO220FM Rohm Semiconductor	5,754	-	RFQ	Scheda tecnica	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	219pF @ 1V, 1MHz	0 ns	120 µA @ 600 V	650 V	6A	175°C (Max)	1.55 V @ 6 A
SCS306APC9 DIODE SC SCHKY 650V 6A TO220ACP Rohm Semiconductor	807	-	RFQ	Scheda tecnica	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	300pF @ 1V, 1MHz	0 ns	30 µA @ 650 V	650 V	6A	175°C (Max)	1.5 V @ 6 A
RB168VAM-60TR SCHOTTKY BARRIER DIODE Rohm Semiconductor	2,457	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	1 µA @ 60 V	60 V	1A	150°C (Max)	820 mV @ 1 A
RB450UMTL RB450UM IS SCHOTTKY BARRIER DIOD Rohm Semiconductor	2,474	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Small Signal =< 200mA (Io), Any Speed	Schottky	Active	Surface Mount	6pF @ 10V, 1MHz	-	10 µA @ 40 V	40 V	100mA	150°C (Max)	550 mV @ 100 mA
RB068LAM150TFTR AUTOMOTIVE SCHOTTKY BARRIER DIOD Rohm Semiconductor	2,455	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	3 µA @ 150 V	150 V	2A	150°C (Max)	-
