Diodi-Raddrizzatori-Singoli
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

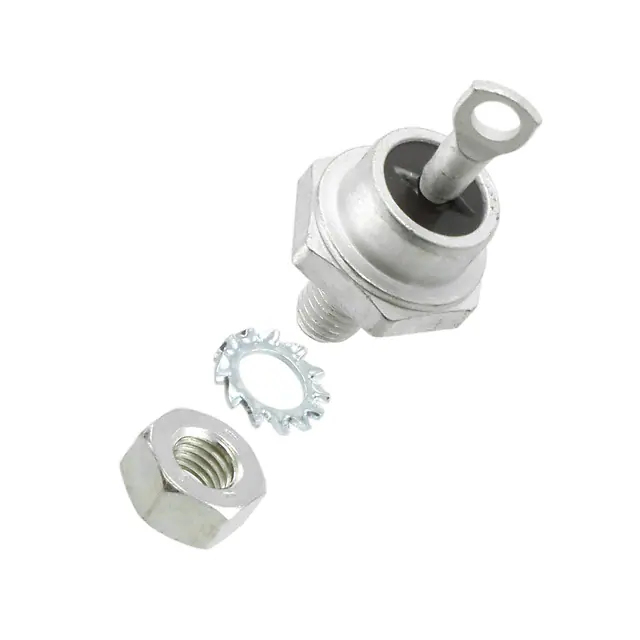

DSAI35-16ADIODE AVALANCHE 1.6KV 49A DO203 IXYS |
2,455 | - |
RFQ |
Scheda tecnica |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Obsolete | Chassis, Stud Mount | - | - | 4 mA @ 1600 V | 1600 V | 49A | -40°C ~ 180°C | 1.55 V @ 150 A | |
|
DSAI35-18ADIODE AVALANCHE 1.8KV 49A DO203 IXYS |
2,314 | - |
RFQ |
Scheda tecnica |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Obsolete | Chassis, Stud Mount | - | - | 4 mA @ 1800 V | 1800 V | 49A | -40°C ~ 180°C | 1.55 V @ 150 A | |
|
|
DSAI75-12BDIODE AVALANCHE 1.2KV 110A DO203 IXYS |
3,877 | - |
RFQ |
Scheda tecnica |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Obsolete | Chassis, Stud Mount | - | - | 6 mA @ 1200 V | 1200 V | 110A | -40°C ~ 180°C | 1.17 V @ 150 A | |
|
|
DSAI75-18BDIODE AVALANCHE 1.8KV 110A DO203 IXYS |
2,895 | - |
RFQ |
Scheda tecnica |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Obsolete | Chassis, Stud Mount | - | - | 6 mA @ 1800 V | 1800 V | 110A | -40°C ~ 180°C | 1.17 V @ 150 A | |
|
DSEP15-03ADIODE GEN PURP 300V 15A TO220AC IXYS |
3,531 | - |
RFQ |
Scheda tecnica |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 100 µA @ 300 V | 300 V | 15A | -55°C ~ 175°C | 1.68 V @ 15 A |
|
|
DSEP29-03ADIODE GEN PURP 300V 30A TO220AC IXYS |
3,036 | - |
RFQ |
Scheda tecnica |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 10 µA @ 300 V | 300 V | 30A | -55°C ~ 175°C | 1.26 V @ 30 A |
|
DNA30E2200PCDIODE GEN PURP 2.2KV 30A TO263 IXYS |
3,804 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 7pF @ 700V, 1MHz | - | 40 µA @ 2200 V | 2200 V | 30A | -55°C ~ 175°C | 1.26 V @ 30 A | |
|
|
DSEP29-06BSDIODE GEN PURP 600V 30A TO263 IXYS |
3,912 | - |
RFQ |
Tape & Reel (TR) | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 30 ns | 250 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 2.52 V @ 30 A | |
|
|
DNA30E2200PC-TUBDIODE GEN PURP 2.2KV 30A TO263 IXYS |
2,145 | - |
RFQ |
Scheda tecnica |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 7pF @ 700V, 1MHz | - | 40 µA @ 2200 V | 2200 V | 30A | -55°C ~ 175°C | 1.26 V @ 30 A | |
|
DSEP30-03ADIODE GEN PURP 300V 30A TO247AD IXYS |
2,991 | - |
RFQ |
Scheda tecnica |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 25 ns | 250 µA @ 300 V | 300 V | 30A | -55°C ~ 175°C | 1.55 V @ 30 A |
|
|
DNA30EM2200PCDIODE GEN PURP 2.2KV 30A TO263 IXYS |
2,519 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 7pF @ 700V, 1MHz | - | 40 µA @ 2200 V | 2200 V | 30A | -55°C ~ 175°C | 1.26 V @ 30 A | |
|
|
DSEP30-04ADIODE GEN PURP 400V 30A TO247AD IXYS |
3,624 | - |
RFQ |
Scheda tecnica |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 250 µA @ 400 V | 400 V | 30A | -55°C ~ 175°C | 1.46 V @ 30 A |
|
DSEP30-06CRDIODE GP 600V 30A ISOPLUS247 IXYS |
3,939 | - |
RFQ |
Scheda tecnica |
Tube | HiPerDynFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 15 ns | 250 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 3.07 V @ 30 A |
|
|
DSEP60-025ADIODE GEN PURP 250V 60A TO247AD IXYS |
2,221 | - |
RFQ |
Scheda tecnica |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 650 µA @ 250 V | 250 V | 60A | -55°C ~ 175°C | 1.31 V @ 60 A |
|
|
DSEP60-03ADIODE GEN PURP 300V 60A TO247 IXYS |
2,758 | - |
RFQ |
Scheda tecnica |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 650 µA @ 300 V | 300 V | 60A | -55°C ~ 175°C | 1.71 V @ 60 A |
|
|
DSEP60-04ADIODE GEN PURP 400V 60A TO247 IXYS |
2,410 | - |
RFQ |
Scheda tecnica |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 650 µA @ 400 V | 400 V | 60A | -55°C ~ 175°C | 1.5 V @ 60 A |
|
|
DSEP75-06ARDIODE GP 600V 75A ISOPLUS247 IXYS |
2,973 | - |
RFQ |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 1 mA @ 600 V | 600 V | 75A | -55°C ~ 175°C | 2.02 V @ 75 A | |
|
|
DSEP8-02ADIODE GEN PURP 200V 8A TO220AC IXYS |
2,791 | - |
RFQ |
Scheda tecnica |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 25 ns | 50 µA @ 200 V | 200 V | 8A | -55°C ~ 175°C | 1.3 V @ 8 A |
|
|
DSEP8-03ADIODE GEN PURP 300V 10A TO220AC IXYS |
2,280 | - |
RFQ |
Scheda tecnica |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 30 ns | 60 µA @ 300 V | 300 V | 10A | -55°C ~ 175°C | 1.75 V @ 10 A |
|
DSEP8-03ASDIODE GEN PURP 300V 8A TO252AA IXYS |
2,195 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 60 µA @ 300 V | 300 V | 8A | -40°C ~ 175°C | 1.69 V @ 8 A |
