Diodi-Raddrizzatori-Singoli
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HER105-TDIODE GEN PURP 400V 1A DO41 Diodes Incorporated |
2,535 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 50 ns | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|

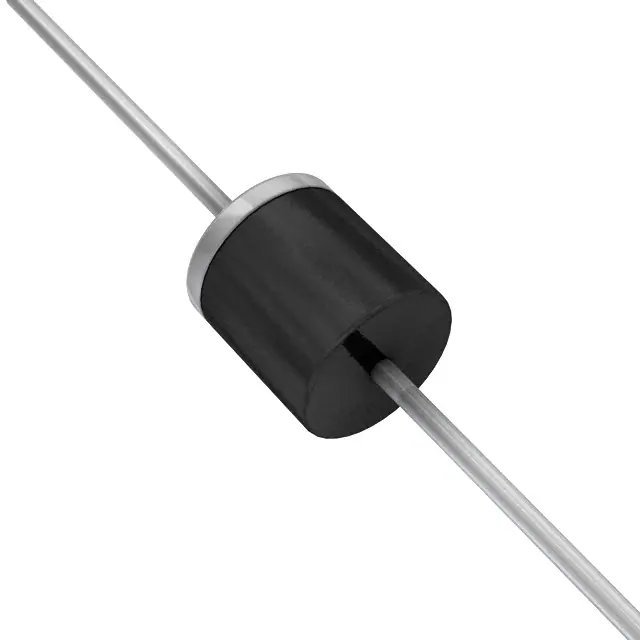

6A10-TDIODE GEN PURP 1KV 6A R6 Diodes Incorporated |
3,834 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 10 µA @ 1000 V | 1000 V | 6A | -65°C ~ 175°C | 900 mV @ 6 A | |
|
S1DB-13DIODE GEN PURP 200V 1A SMB Diodes Incorporated |
3,159 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 10pF @ 4V, 1MHz | 3 µs | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|

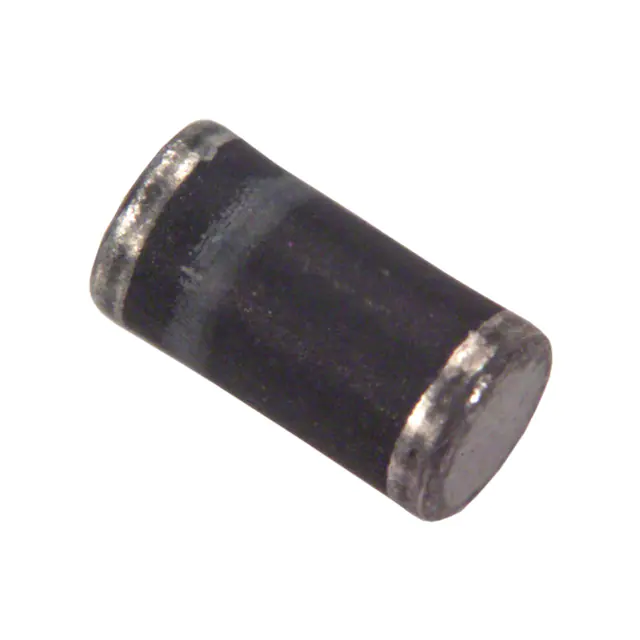

DL4001-13DIODE GEN PURP 50V 1A MELF Diodes Incorporated |
3,331 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
DL4002-13DIODE GEN PURP 100V 1A MELF Diodes Incorporated |
2,551 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
DL4003-13DIODE GEN PURP 200V 1A MELF Diodes Incorporated |
3,350 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
DL4004-13DIODE GEN PURP 400V 1A MELF Diodes Incorporated |
2,693 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
FR801DIODE GEN PURP 50V 8A TO220A Diodes Incorporated |
3,305 | - |
RFQ |
Scheda tecnica |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 150 ns | 10 µA @ 50 V | 50 V | 8A | -65°C ~ 175°C | 1.3 V @ 8 A | |
|
|
FR803DIODE GEN PURP 200V 8A TO220A Diodes Incorporated |
2,176 | - |
RFQ |
Scheda tecnica |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 150 ns | 10 µA @ 200 V | 200 V | 8A | -65°C ~ 175°C | 1.3 V @ 8 A | |
|
|
FR804DIODE GEN PURP 400V 8A TO220A Diodes Incorporated |
3,032 | - |
RFQ |
Scheda tecnica |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 150 ns | 10 µA @ 400 V | 400 V | 8A | -65°C ~ 175°C | 1.3 V @ 8 A | |
|
|
FR805DIODE GEN PURP 600V 8A TO220A Diodes Incorporated |
2,329 | - |
RFQ |
Scheda tecnica |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 250 ns | 10 µA @ 600 V | 600 V | 8A | -65°C ~ 175°C | 1.3 V @ 8 A | |
|
LL4148-13DIODE GP 75V 150MA MINI MELF Diodes Incorporated |
3,019 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | - | 4 ns | 5 µA @ 75 V | 75 V | 150mA | -65°C ~ 175°C | 1 V @ 10 mA | |
|
|
DL4934-13DIODE GEN PURP 100V 1A MELF Diodes Incorporated |
3,128 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | 200 ns | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 1.2 V @ 1 A | |
|
|
DL4935-13DIODE GEN PURP 200V 1A MELF Diodes Incorporated |
2,258 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | 200 ns | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 150°C | 1.2 V @ 1 A | |
|
|
DL4936-13DIODE GEN PURP 400V 1A MELF Diodes Incorporated |
3,794 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | 200 ns | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | 1.2 V @ 1 A | |
|
BAT54-7-FDIODE SCHOTTKY 30V 200MA SOT23-3 Diodes Incorporated |
2,677 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA (DC) | -65°C ~ 150°C | 800 mV @ 100 mA | |
|
|
BAS21TADIODE HI SPEED SWITCHING SOT23-3 Diodes Incorporated |
2,044 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 200mA | - | 1.25 V @ 200 mA | |
|
1N5406-TDIODE GEN PURP 600V 3A DO201AD Diodes Incorporated |
2,220 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 25pF @ 4V, 1MHz | - | 10 µA @ 600 V | 600 V | 3A | -65°C ~ 150°C | 1 V @ 3 A | |
|
|
S1BB-13DIODE GEN PURP 100V 1A SMB Diodes Incorporated |
2,770 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 10pF @ 4V, 1MHz | 3 µs | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|
RL203-TDIODE GEN PURP 200V 2A DO15 Diodes Incorporated |
2,859 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 5 µA @ 200 V | 200 V | 2A | -65°C ~ 150°C | 1 V @ 2 A |
