Diodi-Raddrizzatori-Singoli

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
CDBHA20120-HF DIODE SCHOTTKY 120V 20A TO-277B Comchip Technology	3,543	-	RFQ	Scheda tecnica	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	250 µA @ 120 V	120 V	20A	-55°C ~ 150°C	850 mV @ 20 A
CDBB240-G DIODE SCHOTTKY 40V 2A DO214AA Comchip Technology	2,947	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	500 µA @ 40 V	40 V	2A	-55°C ~ 125°C	500 mV @ 2 A
CDBJSC8650-G DIODE, SIC STKY 8A 650V TO-220-2 Comchip Technology	2,228	-	RFQ	Scheda tecnica	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	560pF @ 0V, 1MHz	0 ns	100 µA @ 650 V	650 V	8A (DC)	-55°C ~ 175°C	1.7 V @ 8 A
1N5401-G DIODE GEN PURP 100V 3A DO201AD Comchip Technology	2,741	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	5 µA @ 100 V	100 V	3A	-65°C ~ 125°C	950 mV @ 3 A
1N5404-G DIODE GEN PURP 400V 3A DO201AD Comchip Technology	2,637	-	RFQ	Scheda tecnica	Cut Tape (CT),Tape & Box (TB)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	5 µA @ 400 V	400 V	3A	-65°C ~ 125°C	950 mV @ 3 A
CDBC340-HF DIODE SCHOTTKY 40V 3A DO214AB Comchip Technology	469	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	250pF @ 4V, 1MHz	-	500 µA @ 40 V	40 V	3A	-50°C ~ 150°C	500 mV @ 3 A
ACGRBT303-HF DIODE GEN PURP 600V 3A 2114 Comchip Technology	138	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Last Time Buy	Surface Mount	23pF @ 4V, 1MHz	-	5 µA @ 600 V	600 V	3A	-65°C ~ 175°C	1 V @ 3 A
CURN103-HF DIODE GEN PURP 600V 1A 1206 Comchip Technology	785	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	10pF @ 4V, 1MHz	50 ns	-	600 V	1A	-65°C ~ 175°C	1.7 V @ 1 A
CDBC3100-G DIODE SCHOTTKY 100V 3A DO214AB Comchip Technology	525	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	500 µA @ 100 V	100 V	3A	-50°C ~ 125°C	850 mV @ 3 A

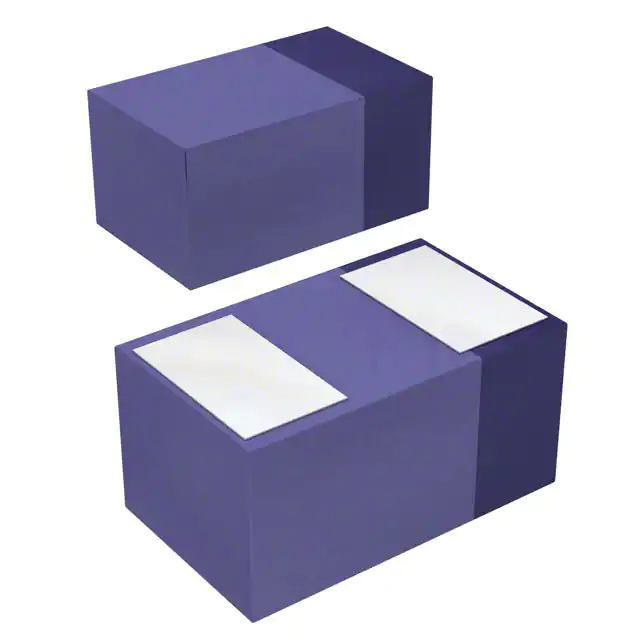

CDBQR0130L DIODE SCHOTTKY 30V 100MA 0402 Comchip Technology	3,904	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Small Signal =< 200mA (Io), Any Speed	Schottky	Active	Surface Mount	-	-	10 µA @ 10 V	30 V	100mA	125°C (Max)	350 mV @ 10 mA
CDBUR0230L DIODE SCHOTTKY 30V 200MA 0603 Comchip Technology	3,728	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Small Signal =< 200mA (Io), Any Speed	Schottky	Active	Surface Mount	-	-	30 µA @ 10 V	30 V	200mA	125°C (Max)	500 mV @ 200 mA
CDBA160-HF DIODE SCHOTTKY 60V 1A DO214AC Comchip Technology	3,462	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	120pF @ 4V, 1MHz	-	500 µA @ 60 V	60 V	1A	-50°C ~ 150°C	700 mV @ 1 A
SS115F-HF DIODE SCHOTTKY 1A 150V SMAF Comchip Technology	2,133	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	80pF @ 4V, 1MHz	-	100 µA @ 150 V	150 V	1A	-55°C ~ 125°C	900 mV @ 1 A
SS120F-HF DIODE SCHOTTKY 1A 200V SMAF Comchip Technology	3,046	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	80pF @ 4V, 1MHz	-	100 µA @ 200 V	200 V	1A	-55°C ~ 125°C	900 mV @ 1 A
ACGRAS1W-HF DIODE GEN PURP 1.6KV 1A DO214AC Comchip Technology	3,479	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	10pF @ 4V, 1MHz	-	5 µA @ 1600 V	1600 V	1A	-55°C ~ 150°C	1.2 V @ 1 A
CDSU400B-HF DIODE GEN PURP 80V 100MA 0603 Comchip Technology	3,416	-	RFQ	Scheda tecnica	Tape & Reel (TR)		RoHS	Small Signal =< 200mA (Io), Any Speed	Standard	Active	Surface Mount	3pF @ 0.5V, 1MHz	4 ns	100 nA @ 80 V	80 V	100mA	125°C (Max)	1 V @ 100 mA
CDSU4448 DIODE GEN PURP 80V 125MA 0603 Comchip Technology	3,590	-	RFQ	Scheda tecnica	Tape & Reel (TR)		RoHS	Small Signal =< 200mA (Io), Any Speed	Standard	Active	Surface Mount	9pF @ 0.5V, 1MHz	9 ns	100 nA @ 80 V	80 V	125mA	-40°C ~ 125°C	1 V @ 100 mA
CDSW20-G DIODE GEN PURP 150V 200MA SOD123 Comchip Technology	3,748	-	RFQ	Scheda tecnica	Tape & Reel (TR)		RoHS	Small Signal =< 200mA (Io), Any Speed	Standard	Active	Surface Mount	5pF @ 0V, 1MHz	50 ns	100 nA @ 150 V	150 V	200mA	-	1.25 V @ 200 mA
CDBQT140-HF DIODE SCHOTTKY 40V 1A 0402/DFN10 Comchip Technology	2,893	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	19pF @ 10V, 1MHz	-	40 µA @ 40 V	40 V	1A	150°C	610 mV @ 1 A
A1N4148WT-HF AUTOMOTIVE DIODE SWITCHING 100V Comchip Technology	3,234	-	RFQ	Scheda tecnica	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	2pF @ 0V, 1MHz	4 ns	1 µA @ 75 V	75 V	125mA	-65°C ~ 150°C	1.25 V @ 150 mA
