Diodi-Raddrizzatori-Singoli

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
STTH12R06DIRG DIODE GEN PURP 600V 12A TO220AC STMicroelectronics	3,742	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	45 ns	45 µA @ 600 V	600 V	12A	175°C (Max)	2.9 V @ 12 A
STTH1512G DIODE GEN PURP 1.2KV 15A D2PAK STMicroelectronics	3,757	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	105 ns	15 µA @ 1200 V	1200 V	15A	175°C (Max)	2.1 V @ 15 A
STTH3010D DIODE GEN PURP 1KV 30A TO220AC STMicroelectronics	2,183	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	100 ns	15 µA @ 1000 V	1000 V	30A	175°C (Max)	2 V @ 30 A
STTH3006W DIODE GEN PURP 600V 30A DO247 STMicroelectronics	2,409	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	70 ns	25 µA @ 600 V	600 V	30A	175°C (Max)	1.85 V @ 30 A
STTH3012D DIODE GEN PURP 1.2KV 30A TO220AC STMicroelectronics	2,923	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	115 ns	20 µA @ 1200 V	1200 V	30A	175°C (Max)	2.25 V @ 30 A
STPSC5H12D DIODE SCHOTTKY 1.2KV 5A TO220AC STMicroelectronics	2,172	-	RFQ	Scheda tecnica	Tube	ECOPACK®2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	450pF @ 0V, 1MHz	0 ns	30 µA @ 1200 V	1200 V	5A	-40°C ~ 175°C	1.5 V @ 5 A
STPSC10H12G-TR DIODE SCHOTTKY 1.2KV 10A D2PAK STMicroelectronics	2,967	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	ECOPACK®	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	725pF @ 0V, 1MHz	0 ns	60 µA @ 1200 V	1200 V	10A	-40°C ~ 175°C	1.5 V @ 10 A
STTH3012W DIODE GEN PURP 1.2KV 30A DO247 STMicroelectronics	2,250	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	115 ns	20 µA @ 1200 V	1200 V	30A	175°C (Max)	2.25 V @ 30 A
STPSC10H12GY-TR DIODE SCHOTTKY 1.2KV 10A D2PAK STMicroelectronics	3,583	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, ECOPACK®2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	725pF @ 0V, 1MHz	0 ns	60 µA @ 1200 V	1200 V	10A	-40°C ~ 175°C	1.5 V @ 10 A
STPSC20065GY-TR DIODES AND RECTIFIERS STMicroelectronics	2,795	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, ECOPACK®2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	1250pF @ 0V, 1MHz	0 ns	150 µA @ 600 V	650 V	20A	-40°C ~ 175°C	1.45 V @ 20 A
STTH30R06PI DIODE GEN PURP 600V 30A DOP3I STMicroelectronics	2,872	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	70 ns	25 µA @ 600 V	600 V	30A	175°C (Max)	1.85 V @ 30 A
STTH3010PI DIODE GEN PURP 1KV 30A DOP3I STMicroelectronics	2,378	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	100 ns	15 µA @ 1000 V	1000 V	30A	175°C (Max)	2 V @ 30 A
STBR6008WY AUTOMOTIVE 800 V, 60 A BRIDGE STMicroelectronics	3,820	-	RFQ	Scheda tecnica	Tube	Automotive, AEC-Q101	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	5 µA @ 800 V	800 V	60A	-40°C ~ 175°C	1.1 V @ 60 A
STTH60L06W DIODE GEN PURP 600V 60A DO247 STMicroelectronics	2,466	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	105 ns	50 µA @ 600 V	600 V	60A	175°C (Max)	1.55 V @ 60 A
STPSC20065DY DIODE SCHTKY 650V 20A TO220AC STMicroelectronics	3,690	-	RFQ	Scheda tecnica	Tube	Automotive, AEC-Q101, ECOPACK®2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	1250pF @ 0V, 1MHz	0 ns	150 µA @ 600 V	650 V	20A	-40°C ~ 175°C	1.45 V @ 20 A
STPS5H100SF 100V POWER SCHOTTKY RECTIFIER STMicroelectronics	2,354	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	ECOPACK®2	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	8 µA @ 100 V	100 V	5A	175°C (Max)	-
STTH802SF 200V ULTRAFAST RECOVERY DIODE STMicroelectronics	2,532	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	ECOPACK®2	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	35 ns	6 µA @ 200 V	200 V	8A	175°C (Max)	-
STPS1045SFY AUTOMOTIVE 45V POWER SCHOTTKY STMicroelectronics	3,936	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, ECOPACK®2	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	50 µA @ 45 V	45 V	10A	-40°C ~ 175°C	-

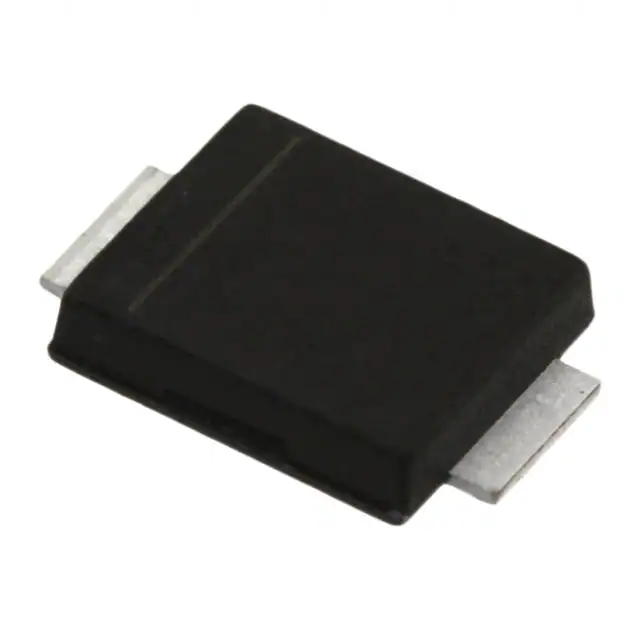

STTH112UFY DIODE GEN PURP 1.2KV 1A SMB STMicroelectronics	2,517	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, ECOPACK®2	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	75 ns	5 µA @ 1200 V	1200 V	1A	-40°C ~ 175°C	1.9 V @ 1 A
STPS1230SF 30V POWER SCHOTTKY RECTIFIER STMicroelectronics	3,851	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	ECOPACK®2	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	360 µA @ 30 V	30 V	12A	150°C (Max)	-
