Diodi-Raddrizzatori-Singoli

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
STTH1512GY-TR DIODE GEN PURP 1.2KV 15A D2PAK STMicroelectronics	2,918	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	105 ns	15 µA @ 1200 V	1200 V	15A	-40°C ~ 175°C	1.9 V @ 15 A
STTH3006DPI DIODE GEN PURP 600V 30A DOP3I STMicroelectronics	3,884	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	45 ns	40 µA @ 600 V	600 V	30A	150°C (Max)	3.6 V @ 30 A
STPSC20065D DIODE SCHOTTKY 650V 20A TO220AC STMicroelectronics	2,350	-	RFQ	Scheda tecnica	Tube	ECOPACK®2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	1250pF @ 0V, 1MHz	0 ns	300 µA @ 650 V	650 V	20A	-40°C ~ 175°C	1.45 V @ 20 A

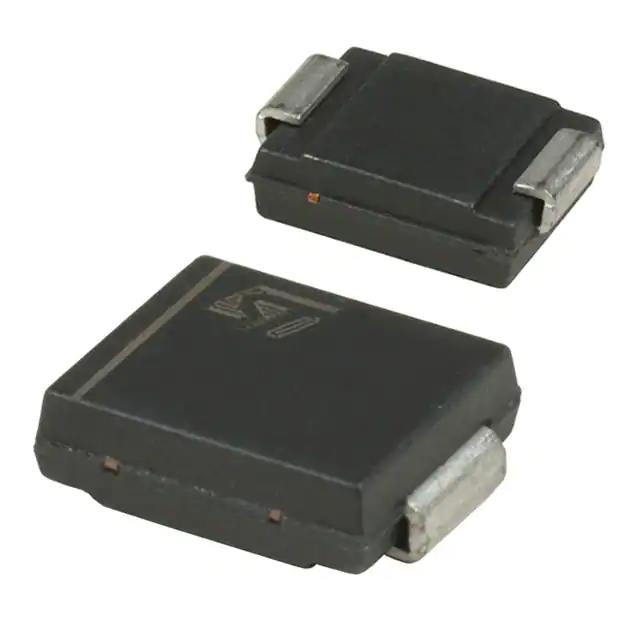

STPS5L60S DIODE SCHOTTKY 60V 5A SMC STMicroelectronics	2,101	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	220 µA @ 60 V	60 V	5A	150°C (Max)	520 mV @ 5 A
STTH8R06DIRG DIODE GEN PURP 600V 8A TO220AC STMicroelectronics	3,547	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	45 ns	30 µA @ 600 V	600 V	8A	175°C (Max)	2.9 V @ 8 A
STPSC406D DIODE SCHOTTKY 600V 4A TO220AC STMicroelectronics	2,309	-	RFQ	Scheda tecnica	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	200pF @ 0V, 1MHz	0 ns	50 µA @ 600 V	600 V	4A	-40°C ~ 175°C	1.9 V @ 4 A
STPSC20065DI DIODE SCHOTTKY 650V 20A TO220AC STMicroelectronics	3,114	-	RFQ	Scheda tecnica	Tube	ECOPACK®2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	1250pF @ 0V, 1MHz	0 ns	300 µA @ 650 V	650 V	20A	-40°C ~ 175°C	1.45 V @ 20 A
STPSC20065WY DIODE SCHOTTKY 650V 20A DO247 STMicroelectronics	2,515	-	RFQ	Scheda tecnica	Tube	Automotive, AEC-Q101, ECOPACK®2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	1250pF @ 0V, 1MHz	0 ns	300 µA @ 650 V	650 V	20A	-40°C ~ 175°C	1.45 V @ 20 A
STPS10200SF 200 V, 10A POWER SCHOTTKY RECTIF STMicroelectronics	2,916	-	RFQ	Scheda tecnica	Tape & Reel (TR),-,-	ECOPACK®2	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	6 µA @ 200 V	200 V	10A	175°C	895 mV @ 10 A
STTH15L06FP DIODE GEN PURP 600V 15A TO220FP STMicroelectronics	3,814	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	85 ns	15 µA @ 600 V	600 V	15A	175°C (Max)	1.55 V @ 15 A
STTH8R04DI DIODE GEN PURP 400V 8A TO220AC STMicroelectronics	3,565	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	50 ns	10 µA @ 400 V	400 V	8A	-40°C ~ 175°C	1.5 V @ 8 A
STTH15RQ06W DIODE GEN PURP 600V 15A DO247 STMicroelectronics	3,720	-	RFQ	Scheda tecnica	Tube	ECOPACK®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	50 ns	20 µA @ 600 V	600 V	15A	175°C (Max)	2.95 V @ 15 A
STTH812FP DIODE GEN PURP 1.2KV 8A TO220FP STMicroelectronics	3,049	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	100 ns	8 µA @ 1200 V	1200 V	8A	175°C (Max)	2.2 V @ 8 A
STPSC10H065BY-TR AUTOMOTIVE 650 V POWER SCHOTTKY STMicroelectronics	2,570	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	480pF @ 0V, 1MHz	0 ns	100 µA @ 650 V	650 V	10A	-40°C ~ 175°C	-
STPSC10065GY-TR DIODES AND RECTIFIERS STMicroelectronics	3,055	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, ECOPACK®2	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	670pF @ 0V, 1MHz	0 ns	130 µA @ 650 V	650 V	10A	-40°C ~ 175°C	1.45 V @ 10 A
STPSC10H065G-TR DIODE SILICON 650V 10A D2PAK STMicroelectronics	2,313	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	480pF @ 0V, 1MHz	0 ns	100 µA @ 650 V	650 V	10A	-40°C ~ 175°C	1.75 V @ 10 A
STTH810D DIODE GEN PURP 1KV 8A TO220AC STMicroelectronics	3,943	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	85 ns	5 µA @ 1000 V	1000 V	8A	175°C (Max)	2 V @ 8 A
STTH30M06SPF 600V, 30A, ULTRAFAST DIODE STMicroelectronics	2,378	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	35 ns	60 µA @ 600 V	600 V	30A	175°C (Max)	3.8 V @ 30 A
STTH8R06D DIODE GEN PURP 600V 8A TO220AC STMicroelectronics	2,581	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	45 ns	30 µA @ 600 V	600 V	8A	175°C (Max)	2.9 V @ 8 A
STTH1202D DIODE GEN PURP 200V 12A TO220AC STMicroelectronics	2,171	-	RFQ	Scheda tecnica	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	35 ns	10 µA @ 200 V	200 V	12A	175°C (Max)	1.1 V @ 12 A
