Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PC95ER14.5/6-Z FERRITE CORE ER 1.88UH 2PC SET TDK Corporation	2,197	-	RFQ	Scheda tecnica	Tray	Planar	Active	ER	ER 14.5 x 6	PC95	-	1.88 µH	±25%	Ungapped	-	-	1.08	17.6	19	17.3	333	Uncoated	0.118 (3.00mm)
PC47EI12.5-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	2,065	-	RFQ	Scheda tecnica	Tray	E	Active	E	-	PC47	-	1.2 µH	±25%	Ungapped	-	2500	1.48	21.3	14.4	-	308	Uncoated	0.291 (7.40mm)
PC47EI22-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	3,734	-	RFQ	Scheda tecnica	Tray	E	Active	E	-	PC47	-	2.4 µH	±25%	Ungapped	-	2500	0.936	39.3	42	-	1650	Uncoated	-
PC95ELT11X4-Z FERRITE CORE ELT 2.4UH 1SET TDK Corporation	2,473	-	RFQ	Scheda tecnica	Tray	Planar	Active	ELH, PLT	ELT 11 x 4	PC95	-	2.4 µH	±25%	Ungapped	-	-	0.83	16.5	13.7	15.9	226	Uncoated	0.119 (3.02mm)
PC95EI14/5/5-Z FERRITE CORE EI 1.55UH 1SET TDK Corporation	2,240	-	RFQ	Scheda tecnica	Tray	Planar	Active	HE, PLT	EI 14 x 5 x 5	PC95	-	1.55 µH	±25%	Ungapped	-	-	1.11	15	16.7	15	251	Uncoated	0.197 (5.00mm)
PC95ELT13X4.4-Z FERRITE CORE ELT 3.16UH 1SET TDK Corporation	3,164	-	RFQ	Scheda tecnica	Tray	Planar	Active	ELH, PLT	ELT 13 x 4.4	PC95	-	3.16 µH	±25%	Ungapped	-	-	0.67	23.1	15.4	22.4	357	Uncoated	0.125 (3.18mm)
PC95EIR18/5/12-Z FERRITE CORE EIR 3.69UH 1SET TDK Corporation	2,506	-	RFQ	Scheda tecnica	Tray	Planar	Active	HER, PLT	EI 18 x 5 x 12	PC95	-	3.69 µH	±25%	Ungapped	-	-	0.6	32.8	19.7	28.3	645	Uncoated	0.197 (5.00mm)
PC95EI22/8/16-Z FERRITE CORE EI 8.01UH 1SET TDK Corporation	3,133	-	RFQ	Scheda tecnica	Tray	Planar	Active	HE, PLT	EI 22 x 8 x 16	PC95	-	8.01 µH	±25%	Ungapped	-	-	0.33	79	26.1	79	2060	Uncoated	0.315 (8.00mm)
PC47EI25-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	3,673	-	RFQ	Scheda tecnica	Tray	E	Active	E	-	PC47	-	2.14 µH	±25%	Ungapped	-	2500	1.15	47	41	-	1930	Uncoated	-
PC95EIR22/5.5/15-Z FERRITE CORE EIR 4.15UH 1SET TDK Corporation	3,823	-	RFQ	Scheda tecnica	Tray	Planar	Active	HER, PLT	EIR 22 x 5.5 x 15	PC95	-	4.15 µH	±25%	Ungapped	-	-	0.51	46.1	23.2	36.3	1070	Uncoated	0.216 (5.50mm)
PC95EL25X8.6-Z FERRITE CORE EL 7.54UH 2PC SET TDK Corporation	3,571	-	RFQ	Scheda tecnica	Tray	Planar	Active	EL	EL 25 x 8.6	PC95	-	7.54 µH	±25%	Ungapped	-	-	0.35	30	85.6	83	2570	Uncoated	0.169 (4.29mm)
PC95PQI20/9Z-12 FERRITE CORE PQI 7.07UH 1SET TDK Corporation	3,562	-	RFQ	Scheda tecnica	Tray	Planar	Active	HPQ, PQD	PQI 20 x 9	PC95	-	7.07 µH	±25%	Ungapped	-	-	0.35	66	22.9	59.3	1510	Uncoated	0.236 (6.00mm)
HF60T31X13X19 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	2,578	-	RFQ	Scheda tecnica	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.512 (13.00mm)
HF90T38X14X22 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	3,799	-	RFQ	Scheda tecnica	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.551 (14.00mm)
PC95PQ26/20Z-12 FERRITE CORE PQ 7.47UH 2PC SET TDK Corporation	3,253	-	RFQ	Scheda tecnica	Tray	PQ	Active	PQ	PQ 26 x 20	PC95	-	7.47 µH	±25%	Ungapped	-	-	0.39	46.3	119	-	5490	Uncoated	0.793 (20.15mm)
PC47EER49-Z FERRITE CORE EER 6.25UH 2PC SET TDK Corporation	2,199	-	RFQ	Scheda tecnica	Tray	E	Active	E	EER 49	PC47	-	6.25 µH	±25%	Ungapped	-	-	0.4	91.3	231	-	21100	Uncoated	0.748 (19.00mm)
PC95PQ40/40Z-12 FERRITE CORE PQ 6.4UH 2PC SET TDK Corporation	2,172	-	RFQ	Scheda tecnica	Tray	PQ	Active	PQ	PQ 40 x 40	PC95	-	6.4 µH	±25%	Ungapped	-	-	0.51	102	201	-	20500	Uncoated	1.565 (39.75mm)
PC95PQ60/42-Z FERRITE CORE PQ 14.3UH 2PC SET TDK Corporation	2,597	-	RFQ	Scheda tecnica	Tray	Large PQ	Active	PQ	PQ 60 x 42	PC95	-	14.3 µH	±25%	Ungapped	-	-	0.2	98.1	483	-	47360	Uncoated	1.634 (41.50mm)

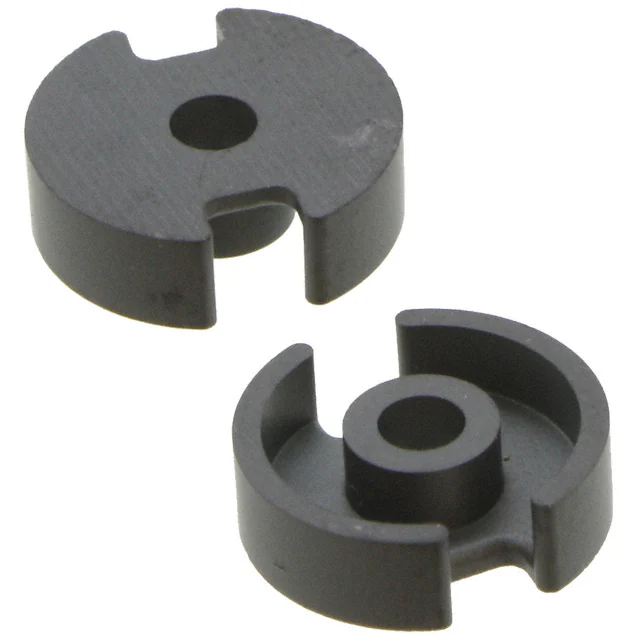

PC40P9/5Z-52H FERRITE CORE 2PC SET TDK Corporation	2,263	-	RFQ	Scheda tecnica	Tray	-	Last Time Buy	P (Pot Core)	P 9 x 5	PC40	0.288 (7.33mm)	-	-	Ungapped	821	-	1.24	12.4	10	-	124	Uncoated	0.136 (3.45mm)

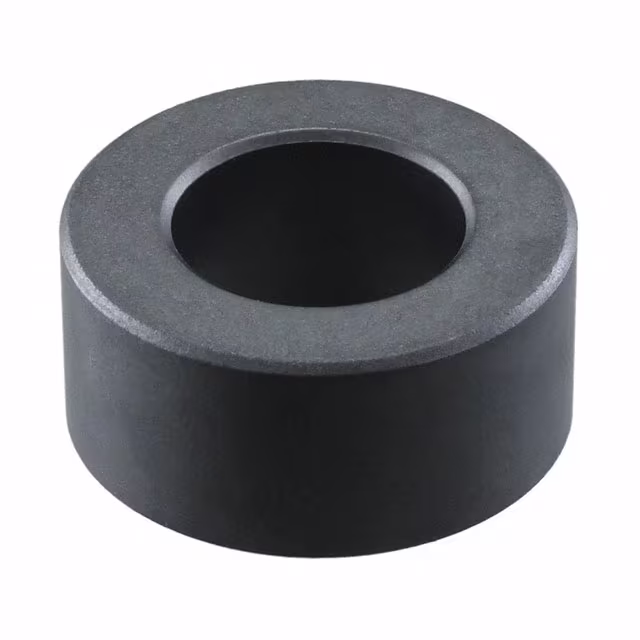

H5AT28X13X16 FERRITE CORE FOR TELECOMMUNICATI TDK Corporation	2,697	-	RFQ	Scheda tecnica	Tray	-	Last Time Buy	Toroid	-	H5A	-	-	±25%	Ungapped	-	-	-	-	-	-	-	Uncoated	0.512 (13.00mm)
