Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

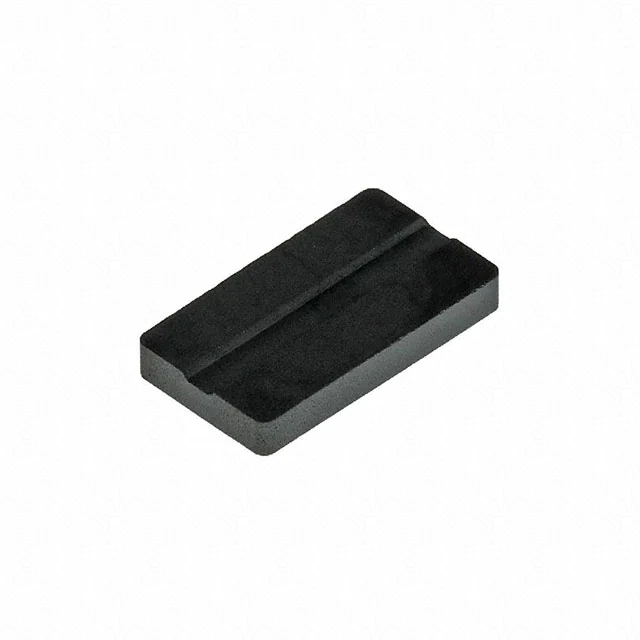

PLT18/10/2/S-3F46 FERRITE CORE Ferroxcube	737	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 18 x 10 x 2	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.094 (2.40mm)
E14/3.5/5/R-3F36 FERRITE CORE Ferroxcube	685	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 14 x 3.5 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
TX22/14/6.4-3C94 FERRITE CORES ROUND Ferroxcube	115	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	3C94	0.880 (22.35mm)	-	±20%	Ungapped	-	2300	2.2	54.2	24.8	-	1340	Epoxy	0.265 (6.75mm)
EP13-3C96 FERRITE CORE 2PC SET Ferroxcube	515	-	RFQ	Scheda tecnica	Bulk	-	Active	EP	EP 13	3C96	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.512 (13.00mm)
TX22/14/13-3C90 FERRITE CORES ROUND Ferroxcube	497	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 22 x 14 x 13	3C90	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.510 (12.95mm)
PLT32/20/3.2/R-3F4 FERRITE CORE Ferroxcube	682	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 32 x 20 x 3.2	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.125 (3.18mm)
PQ20/16-3C97 FERRITE CORE 2PC SET Ferroxcube	636	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 20 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.638 (16.20mm)
PQ20/16-3F36 FERRITE CORE 2PC SET Ferroxcube	414	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 20 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.638 (16.20mm)
E32/6/20/R-3C95 FERRITE CORE Ferroxcube	846	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 32 x 6 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
TX25/15/10-3E12 FERRITE CORES ROUND Ferroxcube	750	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 25 x 15 x 10	-	1.007 (25.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.429 (10.90mm)
E42/21/15-3C94 FERRITE CORE Ferroxcube	768	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 42 x 21 x 15	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E32/6/20/R-3F36 FERRITE CORE Ferroxcube	691	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 32 x 6 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
P18/11-3C91 FERRITE CORE 2PC SET Ferroxcube	577	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 18 x 11	3C91	0.724 (18.40mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.417 (10.60mm)
PQ26/20-3C97 FERRITE CORE 2PC SET Ferroxcube	235	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 26 x 20	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795 (20.20mm)
TX20/10/7-4C65 FERRITE CORES ROUND Ferroxcube	644	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 20 x 10 x 7	4C65	0.797 (20.25mm)	-	±30%	Ungapped	-	-	1.3	43.6	33.6	-	1465	Epoxy	0.291 (7.40mm)
PQ26/25-3C95 FERRITE CORE 2PC SET Ferroxcube	462	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 26 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)
E38/8/25-3F36 FERRITE CORE Ferroxcube	765	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 38 x 8 x 25	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)
PQ50/50-3C97 FERRITE CORE 2PC SET Ferroxcube	3,224	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 50 x 50	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.969 (50.00mm)
U93/76/16-3C94 FERRITE CORE Ferroxcube	2,096	-	RFQ	Scheda tecnica	Bulk	-	Active	U	U 93 x 76 x 16	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
E19/8/9-3C94 FERRITE CORE Ferroxcube	286	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 19 x 8 x 9	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.317 (8.05mm)
