Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ETD39/20/13-3C94 FERRITE CORE Ferroxcube	3,636	-	RFQ	Scheda tecnica	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)
TX13/7.9/6.4-4C65 FERRITE CORES ROUND Ferroxcube	3,366	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 13 x 7.9 x 6.4	4C65	0.526 (13.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.275 (7.00mm)
PQ20/16-3C95 FERRITE CORE 2PC SET Ferroxcube	3,223	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 20 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.638 (16.20mm)

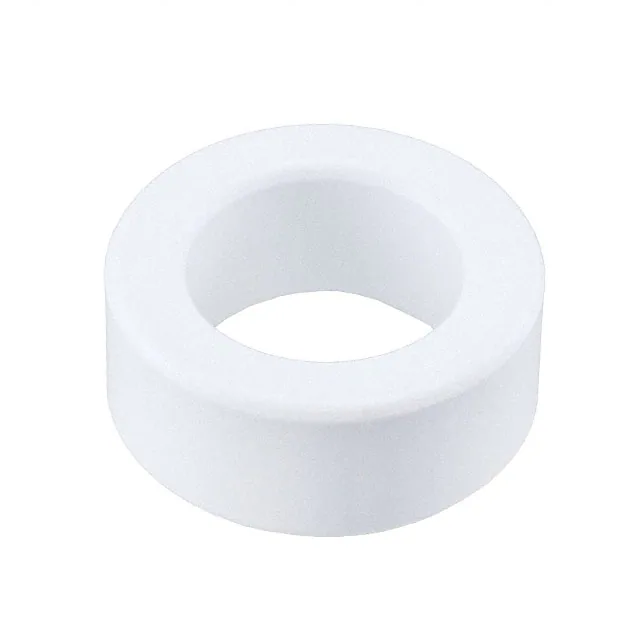

TX22/14/13-3E27 CORES Ferroxcube	2,603	-	RFQ	Scheda tecnica	Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Epoxy	0.551 (14.00mm)
PLT30/20/3-3C95 FERRITE CORE Ferroxcube	3,346	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 30 x 20 x 3	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.106 (2.70mm)
E42/21/15-3C92 FERRITE CORE Ferroxcube	2,921	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 42 x 21 x 15	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
EQ25-3C95 FERRITE CORE Ferroxcube	2,073	-	RFQ	Scheda tecnica	Bulk	-	Active	EQ	EQ 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)
E41/17/12-3C94 FERRITE CORE Ferroxcube	2,663	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 41 x 17 x 12	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.654 (16.60mm)
TX25/15/10-3E27 FERRITE CORES ROUND Ferroxcube	3,096	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 25 x 15 x 10	3E27	1.007 (25.95mm)	-	±25%	Ungapped	5500	-	1.23	60.2	48.9	-	2944	Epoxy	0.429 (10.90mm)

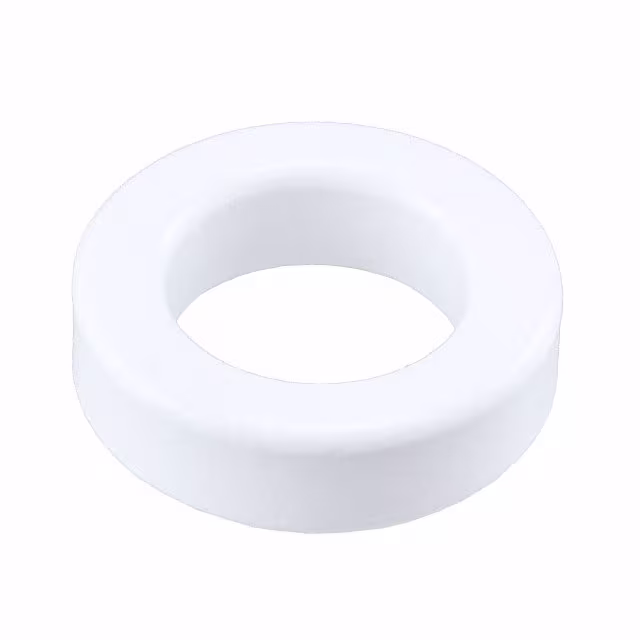

TX29/19/7.6-3E27 FERRITE CORES ROUND Ferroxcube	3,492	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 29 x 19 x 7.6	3E27	1.179 (29.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.329 (8.35mm)
EFD15/8/5-3F36-S FERRITE CORE 2PC SET Ferroxcube	2,385	-	RFQ	Scheda tecnica	Bulk	-	Active	EFD	EFD 15 x 8 x 5	3F36	-	-	±25%	Ungapped	1170	-	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
PLT32/20/3.2/R-3C95 FERRITE CORE Ferroxcube	3,886	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 32 x 20 x 3.2	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.125 (3.18mm)
PLT32/20/3.2/R-3F36 FERRITE CORE Ferroxcube	2,545	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 32 x 20 x 3.2	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.125 (3.18mm)
PQ20/20-3C97 FERRITE CORE 2PC SET Ferroxcube	2,304	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 20 x 20	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795 (20.20mm)
EQ30-3C95 FERRITE CORE Ferroxcube	2,519	-	RFQ	Scheda tecnica	Bulk	-	Active	EQ	EQ 30	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)
E32/6/20/R-3F4 FERRITE CORE Ferroxcube	3,120	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 32 x 6 x 20	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
RM8/I-3C95 FERRITE CORE 2PC SET Ferroxcube	2,784	-	RFQ	Scheda tecnica	Bulk	-	Active	RM	RM 8	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
P14/8-3C91 FERRITE CORE 2PC SET Ferroxcube	2,354	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 14 x 8	3C91	0.563 (14.30mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.165 (4.20mm)
E55/28/21-3C94 FERRITE CORE Ferroxcube	3,951	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 55 x 28 x 21	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
PQ32/20-3C95 FERRITE CORE 2PC SET Ferroxcube	950	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 32 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.811 (20.60mm)
