Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

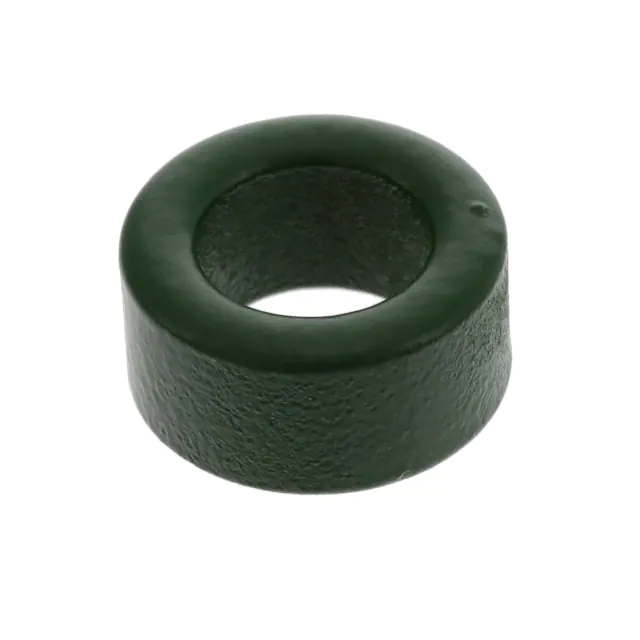

5961001121 61 TOROID PLASTIC COATED Fair-Rite Products Corp.	900	-	RFQ	Scheda tecnica	Box	-	Active	Toroid	-	61	0.530 (13.45mm)	75 nH	±25%	Ungapped	-	125	2.08	31.2	15	-	470	Plastic	0.280 (7.11mm)
B66317G0160X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,744	-	RFQ	Scheda tecnica	Box	E25/13/7	Active	E	E 25 x 13 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
B66417G0000X187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	3,729	-	RFQ	Scheda tecnica	Box	EFD20/10/7	Active	EFD	EFD 20 x 10 x 7	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
B66302G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,411	-	RFQ	Scheda tecnica	Box	E8.8/4/2	Active	E	E 8 x 8	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
5967000301 67 TOROID Fair-Rite Products Corp.	2,868	-	RFQ	Scheda tecnica	Box	-	Active	Toroid	-	67	0.500 (12.70mm)	-	-	Ungapped	-	40	-	29.5	12.9	-	380	Uncoated	0.188 (4.78mm)
PLT14/5/1.5/S-3F46 FERRITE CORE Ferroxcube	3,107	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 14 x 5 x 1.5	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
B64290P0751X038 FERRITE CORE TOROID 5.5UH T38 EPCOS - TDK Electronics	2,932	-	RFQ	Scheda tecnica	Box	TC8/4/4	Active	Toroid	-	T38	0.316 (8.02mm)	5.5 µH	±30%	Ungapped	-	10000	2.26	17.42	7.7	-	134	Parylene	0.158 (4.02mm)
PLT18/10/2/S-3C95 FERRITE CORE Ferroxcube	3,339	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 18 x 10 x 2	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.094 (2.40mm)
E14/3.5/5/R-3C95 FERRITE CORE Ferroxcube	3,899	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 14 x 3.5 x 5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
EFD20/10/7-3F36 FERRITE CORE Ferroxcube	3,479	-	RFQ	Scheda tecnica	Bulk	-	Active	EFD	EFD 20 x 10 x 7	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
ETD29/16/10-3C94 FERRITE CORE Ferroxcube	3,697	-	RFQ	Scheda tecnica	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
PLT18/10/2/S-3F36 FERRITE CORE Ferroxcube	2,050	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 18 x 10 x 2	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.094 (2.40mm)
E14/3.5/5/R-3F46 FERRITE CORE Ferroxcube	3,156	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 14 x 3.5 x 5	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
B66417G0000X197 FERRITE CORE EFD N97 1PC EPCOS - TDK Electronics	3,633	-	RFQ	Scheda tecnica	Box	EFD20/10/7	Active	EFD	EFD 20 x 10 x 7	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
B65523J0000R087 FERRITE CORE ER 800NH N87 2PCS EPCOS - TDK Electronics	2,694	-	RFQ	Scheda tecnica	Box	ER9.5	Active	ER	ER 9.5 x 5	N87	-	800 nH	-20%, +30%	Ungapped	1000	2200	1.54	13.6	8.81	-	120	Uncoated	0.098 (2.50mm)
B64290A0045X035 FERRITE CORE TOROID 3.87UH T35 EPCOS - TDK Electronics	2,573	-	RFQ	Scheda tecnica	Box	T16/9.6/6.3	Active	Toroid	R 16 x 9.6 x 6.3	T35	0.630 (16.00mm)	3.87 µH	±25%	Ungapped	-	6000	1.95	38.52	19.73	-	760	Uncoated	0.248 (6.30mm)

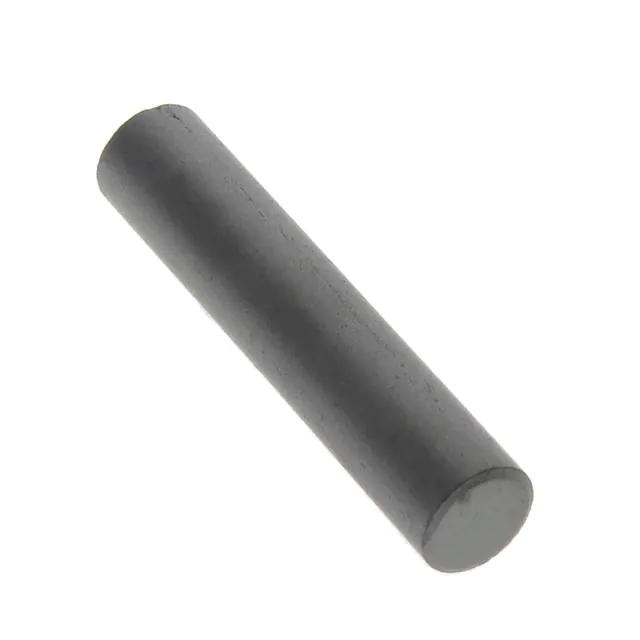

4077296011 77 SOLID ROD Fair-Rite Products Corp.	2,781	-	RFQ	Scheda tecnica	Bulk	-	Active	ROD	-	77	0.250 (6.35mm)	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-
B66417G0000X149 FERRITE CORE EFD N49 1PC EPCOS - TDK Electronics	2,185	-	RFQ	Scheda tecnica	Box	EFD20/10/7	Active	EFD	EFD 20 x 10 x 7	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
T60006L2012W902 NANOCRYSTALLINE CORE, 12X8X4.5 VACUUMSCHMELZE	2,738	-	RFQ	Scheda tecnica	Box	-	Active	Toroid	-	-	0.555 (14.10mm)	28 µH	-	Ungapped	-	-	-	31.4	7.2	-	-	Uncoated	0.248 (6.30mm)
E18/4/10/R-3C95 FERRITE CORE Ferroxcube	2,584	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 18 x 4 x 10	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
