Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B67345B0002X027 FERRITE CORE I N27 1PC EPCOS - TDK Electronics	3,604	-	RFQ	Scheda tecnica	Box	I93/28/30	Active	I	I 93 x 28 x 30	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.102 (28.00mm)
B64290L0730X830 FERRITE CORE TOROID 5.4UH N30 EPCOS - TDK Electronics	3,682	-	RFQ	Scheda tecnica	Box	TX87/54.3/13.5	Active	Toroid	-	N30	3.516 (89.30mm)	5.4 µH	±25%	Ungapped	-	4300	0.99	213.9	216.7	-	46360	Epoxy	0.573 (14.80mm)
B64290A0084X038 FERRITE CORE EPCOS - TDK Electronics	3,118	-	RFQ	Scheda tecnica	Box	T102/66/15	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B67370A0002X027 FERRITE CORE U N27 1PC EPCOS - TDK Electronics	3,797	-	RFQ	Scheda tecnica	Box	U101/76/30	Active	U	U 101 x 76 x 30	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
B65713A0000R027 FERRITE CORE PM 12UH N27 2PCS EPCOS - TDK Electronics	3,482	-	RFQ	Scheda tecnica	Box	PM87/70	Active	PM	PM 87 x 70	N27	3.425 (87.00mm)	12 µH	-20%, +30%	Ungapped	1530	2000	0.16	146	910	700	133000	Uncoated	1.378 (35.00mm)
B67345B0001X097 FERRITE CORE U N97 1PC EPCOS - TDK Electronics	2,183	-	RFQ	Scheda tecnica	Box	U93/76/30	Active	U	U 93 x 76 x 30	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
B65713A0400A027 FERRITE CORE PM 400NH N27 2PCS EPCOS - TDK Electronics	3,997	-	RFQ	Scheda tecnica	Box	PM87/70	Active	PM	PM 87 x 70	N27	3.425 (87.00mm)	400 nH	±3%	Gapped	51	2000	0.16	146	910	700	133000	Uncoated	1.378 (35.00mm)
B64290L0743X038 FERRITE CORE TOROID 5.4UH T38 EPCOS - TDK Electronics	3,097	-	RFQ	Scheda tecnica	Box	TX16/9/5	Active	Toroid	-	T38	0.661 (16.80mm)	5.4 µH	±30%	Ungapped	-	10000	2.33	36.75	15.78	-	580	Epoxy	0.215 (5.45mm)
B65523J0400K087 FERRITE CORE EPCOS - TDK Electronics	2,791	-	RFQ	Scheda tecnica	Box	ER9.5	Active	ER	ER 9.5 x 5	N87	-	400 nH	±10%	Gapped	-	2200	1.54	13.6	8.81	7.6	120	Uncoated	0.098 (2.50mm)
B66335Q0400K187 E55/28/21-N87-DG400 EPCOS - TDK Electronics	2,514	-	RFQ	Scheda tecnica	Bulk	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	400 nH	±10%	Distributed Gapped	-	-	0.35	124	354	351	43900	Uncoated	0.827 (21.00mm)
B66397Q0250K187 ETD59/31/22-N87-DG250 EPCOS - TDK Electronics	3,909	-	RFQ	Scheda tecnica	Bulk	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	250 nH	±10%	Distributed Gapped	-	-	0.38	139	368	368	51200	Uncoated	0.870 (22.10mm)
B66397Q0100K187 ETD59/31/22-N87-DG100 EPCOS - TDK Electronics	3,913	-	RFQ	Scheda tecnica	Bulk	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	100 nH	±10%	Distributed Gapped	-	-	0.38	139	368	368	51200	Uncoated	0.870 (22.10mm)
B66371Q0100K187 E70/33/32-N87-DG100 EPCOS - TDK Electronics	3,893	-	RFQ	Scheda tecnica	Bulk	E70/33/32	Active	E	E 70 x 33 x 32	N87	-	100 nH	±10%	Distributed Gapped	-	-	0.22	149	683	676	102000	Uncoated	1.307 (33.20mm)
B65981Q0250K097 PQ50/50-N97-DG250 EPCOS - TDK Electronics	3,903	-	RFQ	Scheda tecnica	Tray	PQ50/50	Active	PQ	PQ 50 x 50	N97	-	250 nH	±10%	Distributed Gapped	-	-	0.342	113	332	314	37630	Uncoated	0.984 (25.00mm)
B65981Q0100K095 PQ50/50-N95-DG100 EPCOS - TDK Electronics	2,119	-	RFQ	Scheda tecnica	Bulk	PQ50/50	Active	PQ	PQ 50 x 50	N95	-	100 nH	±10%	Distributed Gapped	-	3000	0.342	113	332	314	37630	Uncoated	0.984 (25.00mm)

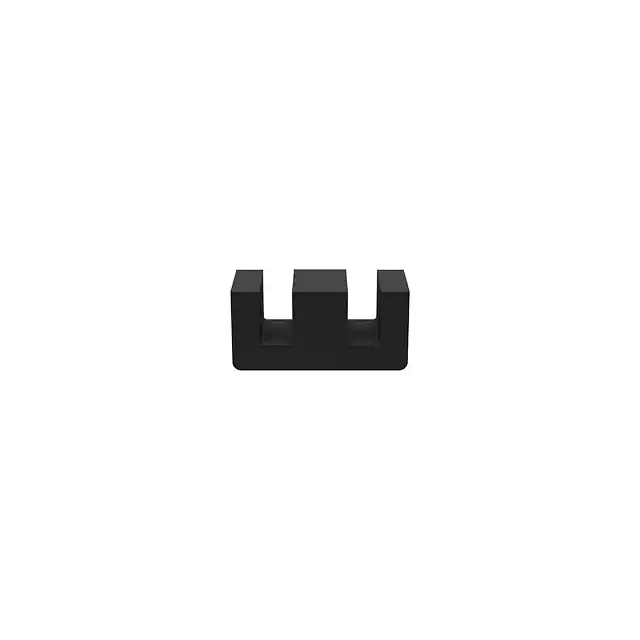

B66894G0000X197 FERRITE CORES EPCOS - TDK Electronics	2,996	-	RFQ	Scheda tecnica	Bulk	E100/60/28	Active	E	E 100/60/28	N95	-	-	-20%, +30%	Ungapped	2020	-	0.373	274	735	690	201390	Uncoated	2.339 (59.40mm)
B64290P0072X065 FERRITE CORE TOROID 600NH T65 EPCOS - TDK Electronics	2,698	-	RFQ	Scheda tecnica	Box	TC2.5/1.5/1.3	Active	Toroid	-	T65	0.099 (2.52mm)	600 nH	±30%	Ungapped	-	4600	9.41	6.02	0.64	-	3.85	Parylene	0.052 (1.32mm)
B64290A0035X038 FERRITE CORE TOROID 1.02UH T38 EPCOS - TDK Electronics	2,618	-	RFQ	Scheda tecnica	Box	T2.5/1.5/1	Active	Toroid	R 2.5 x 1.5 x 1	T38	0.098 (2.50mm)	1.02 µH	±30%	Ungapped	-	10000	12.3	6.02	0.49	-	3	Uncoated	0.039 (1.00mm)
B64290P0739X065 FERRITE CORE TOROID 2UH T65 EPCOS - TDK Electronics	2,945	-	RFQ	Scheda tecnica	Box	TC3.05/1.27/2.5	Active	Toroid	-	T65	0.121 (3.07mm)	2 µH	±30%	Ungapped	-	4500	2.82	5.99	2.12	-	12.7	Parylene	0.101 (2.56mm)
B64290P0036X065 FERRITE CORE TOROID 750NH T65 EPCOS - TDK Electronics	2,870	-	RFQ	Scheda tecnica	Box	TC4.0/2.4/1.6	Active	Toroid	-	T65	0.158 (4.02mm)	750 nH	±30%	Ungapped	-	4600	7.7	9.63	1.25	-	12	Parylene	0.064 (1.62mm)
