Nuclei di ferrite
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66361G0000X195FERRITE CORES EPCOS - TDK Electronics |
3,189 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | ETD34/17/11 | Active | ETD | ETD 34/17/11 | N95 | - | - | -20%, +30% | Ungapped | 2170 | - | 0.81 | 78.6 | 97.1 | 91.6 | 7630 | Uncoated | 0.689 (17.50mm) |
|
B65513J0200D097FERRITE CORE EPCOS - TDK Electronics |
2,233 | - |
RFQ |
Box | ER14.5 | Active | ER | ER 14.5 x 6 | N97 | - | - | - | Gapped | - | 2300 | 1.08 | 19 | 17.6 | 17.3 | 334 | Uncoated | 0.116 (2.95mm) | |
|

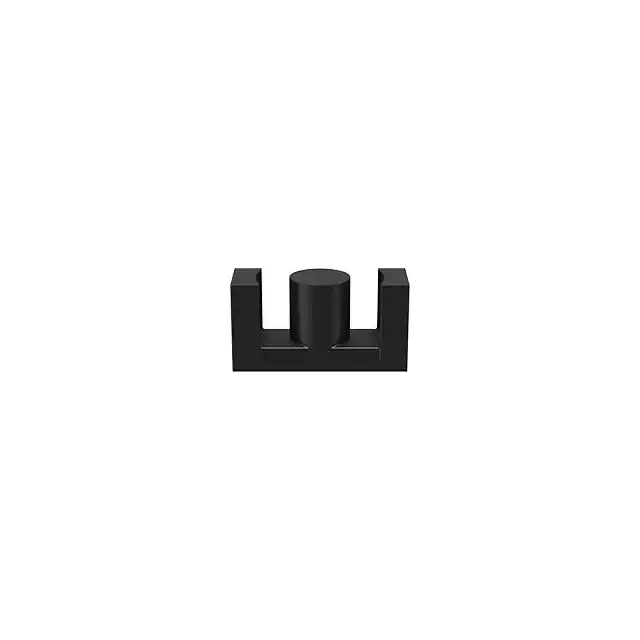

B66361G2500X187FERRITE CORE EPCOS - TDK Electronics |
3,595 | - |
RFQ |
Scheda tecnica |
Box | ETD34/17/11 | Active | ETD | ETD 34 x 17 x 11 | N87 | - | - | - | Gapped | - | 2200 | 0.81 | 78.6 | 97.1 | 91.6 | 7630 | Uncoated | 0.689 (17.50mm) |
|
|
B65525J0250B045FERRITE CORE EPCOS - TDK Electronics |
3,276 | - |
RFQ |
Scheda tecnica |
Box | ER11/2.5/6 | Active | ER | ER 11 x 5 | N45 | - | - | - | Gapped | - | 3800 | 1.1 | 14.1 | 12.4 | 10.3 | 174 | Uncoated | 0.098 (2.50mm) |
|
|
B65525J0400E045FERRITE CORE EPCOS - TDK Electronics |
3,598 | - |
RFQ |
Scheda tecnica |
Box | ER11/2.5/6 | Active | ER | ER 11 x 5 | N45 | - | - | - | Gapped | - | 3800 | 1.1 | 14.1 | 12.4 | 10.3 | 174 | Uncoated | 0.098 (2.50mm) |
|
B65843A0100A057FERRITE CORE EP 100NH T57 2PCS EPCOS - TDK Electronics |
2,577 | - |
RFQ |
Scheda tecnica |
Box | EP13 | Active | EP | EP 13 | T57 | - | 100 nH | ±3% | Gapped | 99 | 4000 | 1.24 | 24.2 | 19.5 | 14.9 | 472 | Uncoated | 0.256 (6.50mm) |
|
|
B65843A0125A057FERRITE CORE EPCOS - TDK Electronics |
2,878 | - |
RFQ |
Scheda tecnica |
Box | EP13 | Active | EP | EP 13 | T57 | - | - | - | Gapped | - | 4000 | 1.24 | 24.2 | 19.5 | 14.9 | 472 | Uncoated | 0.256 (6.50mm) |
|

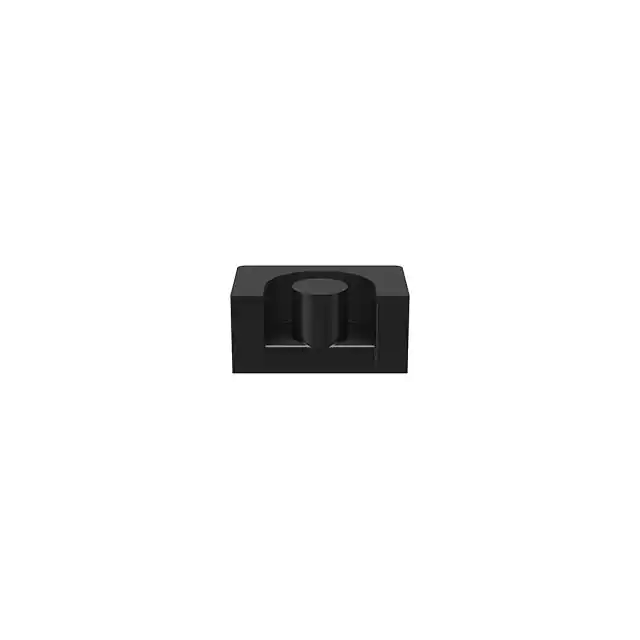

B65843A0160B057FERRITE CORE EP 160NH T57 2PCS EPCOS - TDK Electronics |
2,659 | - |
RFQ |
Scheda tecnica |
Box | EP13 | Active | EP | EP 13 | T57 | - | 160 nH | ±4% | Gapped | 158 | 4000 | 1.24 | 24.2 | 19.5 | 14.9 | 472 | Uncoated | 0.256 (6.50mm) |
|
|
B65843A0200B057FERRITE CORE EP 200NH T57 2PCS EPCOS - TDK Electronics |
2,663 | - |
RFQ |
Scheda tecnica |
Box | EP13 | Active | EP | EP 13 | T57 | - | 200 nH | ±4% | Gapped | 198 | 4000 | 1.24 | 24.2 | 19.5 | 14.9 | 472 | Uncoated | 0.256 (6.50mm) |
|
B65513J0000R092FERRITE CORE ER 1.1UH N92 2PCS EPCOS - TDK Electronics |
3,335 | - |
RFQ |
Scheda tecnica |
Box | ER14.5 | Active | ER | ER 14.5 x 6 | N92 | - | 1.1 µH | -20%, +30% | Ungapped | 970 | 1500 | 1.1 | 19 | 17.6 | - | 333 | Uncoated | 0.116 (2.95mm) |
|
|
B65843A0000R045FERRITE CORE EP 2.4UH N45 2PCS EPCOS - TDK Electronics |
3,761 | - |
RFQ |
Scheda tecnica |
Box | EP13 | Active | EP | EP 13 | N45 | - | 2.4 µH | -20%, +30% | Ungapped | 2370 | 3800 | 1.24 | 24.2 | 19.5 | 14.9 | 472 | Uncoated | 0.256 (6.50mm) |
|
|
B65843A0250J041FERRITE CORE EPCOS - TDK Electronics |
2,766 | - |
RFQ |
Scheda tecnica |
Box | EP13 | Active | EP | EP 13 | N41 | - | - | - | Gapped | - | 2800 | 1.24 | 24.2 | 19.5 | 14.9 | 472 | Uncoated | 0.256 (6.50mm) |
|
B64290L0719X035FERRITE CORE TOROID 4UH T35 EPCOS - TDK Electronics |
3,635 | - |
RFQ |
Scheda tecnica |
Box | TX22/14/7.9 | Active | Toroid | - | T35 | 0.917 (23.30mm) | 4 µH | ±25% | Ungapped | - | 5300 | 1.66 | 54.2 | 32.6 | - | 1763 | Epoxy | 0.354 (9.00mm) |
|
B65517D0200A048FERRITE CORE P 200NH N48 2PCS EPCOS - TDK Electronics |
3,014 | - |
RFQ |
Scheda tecnica |
Box | P9/5 | Active | P (Pot Core) | P 9 x 5 | N48 | 0.366 (9.30mm) | 200 nH | ±3% | Gapped | 200 | - | 1.25 | 12.5 | 10 | - | 125 | Uncoated | 0.106 (2.70mm) |
|
|
B64290A0045X001FERRITE CORE EPCOS - TDK Electronics |
2,166 | - |
RFQ |
Scheda tecnica |
Box | T16/9.6/6.3 | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - |
|
B66358G0100X127FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics |
2,958 | - |
RFQ |
Scheda tecnica |
Box | ETD29/16/10 | Active | ETD | ETD 29 x 16 x 10 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.630 (16.00mm) |
|
B66358G1000X127FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics |
2,215 | - |
RFQ |
Scheda tecnica |
Box | ETD29/16/10 | Active | ETD | ETD 29 x 16 x 10 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.630 (16.00mm) |
|

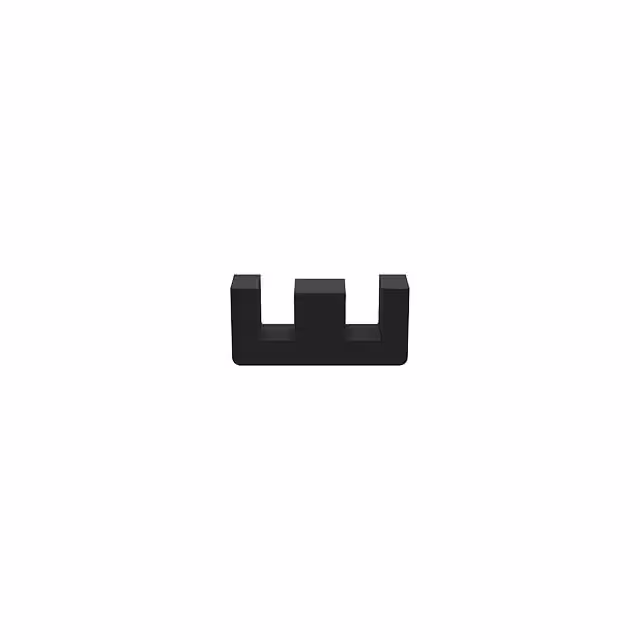

B66229G0500X127FERRITE CORE E N27 1PC EPCOS - TDK Electronics |
2,202 | - |
RFQ |
Scheda tecnica |
Box | E32/16/9 | Active | E | E 32 x 16 x 9 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.646 (16.40mm) |
|
|
B66358G1000X197FERRITE CORE EPCOS - TDK Electronics |
2,672 | - |
RFQ |
Scheda tecnica |
Box | ETD29/16/10 | Active | ETD | ETD 29 x 16 x 10 | N97 | - | - | - | Gapped | - | 2300 | 0.93 | 70.4 | 76 | 71 | 5350 | Uncoated | 0.630 (16.00mm) |
|
B65513J0000Y038FERRITE CORE EPCOS - TDK Electronics |
3,827 | - |
RFQ |
Scheda tecnica |
Box | ER14.5 | Active | - | - | - | - | 6.6 µH | -30%, +40% | Ungapped | - | - | - | - | - | - | - | - | - |
