Nuclei di ferrite
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B67345B0011X027FERRITE CORE I N27 1PC EPCOS - TDK Electronics |
2,429 | - |
RFQ |
Scheda tecnica |
Box | I93/28/20 | Active | I | I 93 x 28 x 20 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.102 (28.00mm) |
|
|
B67345B0011X087FERRITE CORE I N87 1PC EPCOS - TDK Electronics |
3,067 | - |
RFQ |
Scheda tecnica |
Box | I93/28/20 | Active | I | I 93 x 28 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.102 (28.00mm) |
|
|
B64290A0699X037FERRITE CORE TOROID 13.9UH T37 EPCOS - TDK Electronics |
2,047 | - |
RFQ |
Scheda tecnica |
Box | T63/38/25 | Active | Toroid | R 63 x 38 x 25 | T37 | 2.480 (63.00mm) | 13.9 µH | ±25% | Ungapped | - | 5500 | 0.5 | 152.1 | 305.9 | - | 46530 | Uncoated | 0.984 (25.00mm) |
|
B64290L0699X038FERRITE CORE EPCOS - TDK Electronics |
3,036 | - |
RFQ |
Scheda tecnica |
Box | TX63/38/25 | Active | Toroid | - | T38 | - | 17.6 µH | ±25% | Gapped | - | 10000 | - | - | - | - | - | Epoxy | - |
|
|
B65684A0234A027FERRITE CORE EPCOS - TDK Electronics |
3,039 | - |
RFQ |
Scheda tecnica |
Box | PM62/49 | Active | PM | PM 62 x 49 | N27 | 2.441 (62.00mm) | - | - | Gapped | - | 2000 | 0.191 | 109 | 570 | 470 | 62000 | Uncoated | 0.965 (24.50mm) |
|
|
B65646A0250A087FERRITE CORE EPCOS - TDK Electronics |
2,085 | - |
RFQ |
Scheda tecnica |
Box | PM50/39 | Active | - | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | - | - |
|
B66371G0000X195FERRITE CORE EPCOS - TDK Electronics |
3,308 | - |
RFQ |
Scheda tecnica |
Box | E70/33/32 | Active | E | E 70 x 33 x 32 | N95 | - | - | - | - | - | 3000 | 0.22 | 149 | 683 | 676 | 102000 | Uncoated | 1.307 (33.20mm) |
|
|
B64290A0040X010R58.3/40.8/17.6 EPCOS - TDK Electronics |
3,511 | - |
RFQ |
Scheda tecnica |
Box | T58/41/18 | Active | Toroid | R 58.3 x 40.8 x 17.6 | K10 | 2.295 (58.30mm) | 900 nH | ±25% | Ungapped | - | 700 | 1 | 152.4 | 152.4 | - | 23230 | Uncoated | 0.693 (17.60mm) |
|
|
B64290A0082X010FERRITE CORE TOROID 1.4UH K10 EPCOS - TDK Electronics |
2,695 | - |
RFQ |
Scheda tecnica |
Box | T50/30/20 | Active | Toroid | R 50 x 30 x 20 | K10 | 1.969 (50.00mm) | 1.4 µH | ±25% | Ungapped | - | 700 | 0.62 | 120.4 | 195.7 | - | 23560 | Uncoated | 0.787 (20.00mm) |
|
|
B64290A0696X010R68/48/13 EPCOS - TDK Electronics |
2,940 | - |
RFQ |
Scheda tecnica |
Box | T68/48/13 | Active | Toroid | R 68 x 40 x 13 | K10 | 2.677 (68.00mm) | 600 nH | ±25% | Ungapped | - | 700 | 1.39 | 178.6 | 128.7 | - | 22980 | Uncoated | 0.512 (13.00mm) |
|

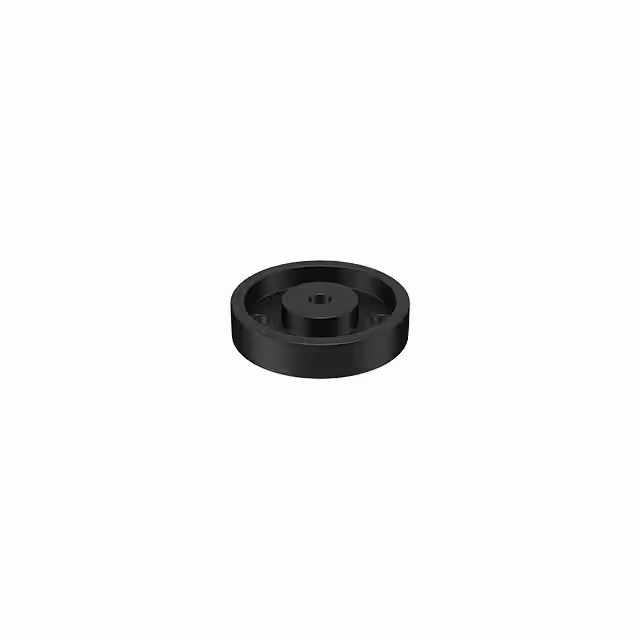

B65928A0000X022FERRITE CORE EPCOS - TDK Electronics |
2,261 | - |
RFQ |
Scheda tecnica |
Box | PS68/14.5 | Active | PS | - | N22 | 2.677 (68.00mm) | - | - | - | - | 2300 | - | - | - | - | - | Uncoated | 0.571 (14.50mm) |
|
|
B65928A0000X087FERRITE CORE EPCOS - TDK Electronics |
3,458 | - |
RFQ |
Scheda tecnica |
Box | PS68/14.5 | Active | PS | - | N87 | 2.677 (68.00mm) | - | - | - | - | 2200 | - | - | - | - | - | Uncoated | 0.571 (14.50mm) |
|
|
B64290A0042X010R58.3/40.8/20.2 EPCOS - TDK Electronics |
2,506 | - |
RFQ |
Scheda tecnica |
Box | T58/41/20 | Active | Toroid | R 58.3 x 40.8 x 20.2 | K10 | 2.295 (58.30mm) | 1 µH | ±25% | Ungapped | - | 700 | 0.87 | 152.4 | 174.9 | - | 26660 | Uncoated | 0.795 (20.20mm) |
|
|
B65646A0510A048FERRITE CORE EPCOS - TDK Electronics |
3,831 | - |
RFQ |
Scheda tecnica |
Box | PM50/39 | Active | PM | PM 50 x 39 | N48 | 1.969 (50.00mm) | - | - | Gapped | - | 2300 | 0.227 | 84 | 370 | 280 | 31000 | Uncoated | 0.768 (19.50mm) |
|
|
B65646A0000R097FERRITE CORE EPCOS - TDK Electronics |
3,375 | - |
RFQ |
Scheda tecnica |
Box | PM50/39 | Active | PM | PM 50 x 39 | N97 | 1.969 (50.00mm) | 7.4 µH | -20%, +30% | Ungapped | - | 2300 | 0.227 | 84 | 370 | 280 | 31000 | Uncoated | 0.768 (19.50mm) |
|
|
B65684A0000R049FERRITE CORE EPCOS - TDK Electronics |
3,244 | - |
RFQ |
Scheda tecnica |
Box | PM62/49 | Active | PM | PM 62 x 49 | N49 | 2.441 (62.00mm) | - | - | - | - | 1500 | 0.191 | 109 | 570 | 470 | 62000 | Uncoated | 0.965 (24.50mm) |
|

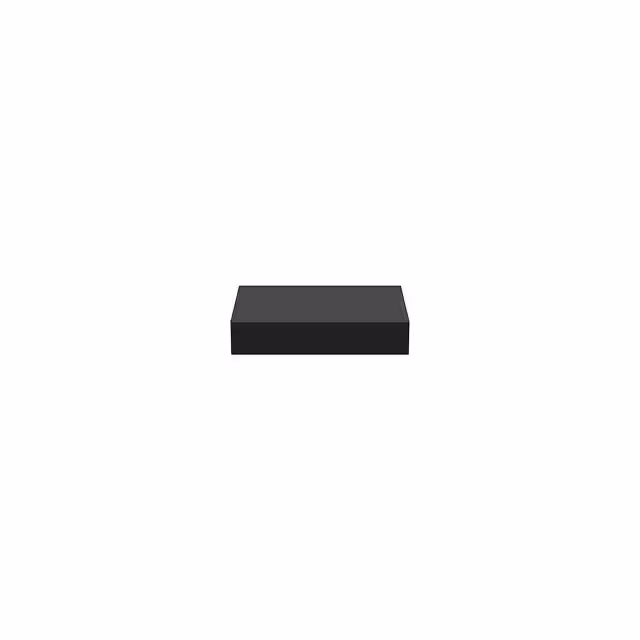

B67410A0201X195QU150/100/5 N95 EPCOS - TDK Electronics |
2,809 | - |
RFQ |
Scheda tecnica |
Box | QU150/100/5 | Active | - | - | N95 | - | - | - | Ungapped | - | 3000 | - | - | - | - | - | Uncoated | 0.197 (5.00mm) |
|
|
B65694A0250A027FERRITE CORES EPCOS - TDK Electronics |
2,313 | - |
RFQ |
Box | PM62/38 | Active | - | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | - | - | |
|
|
B64290A0043X010R58.3/32/18 EPCOS - TDK Electronics |
3,137 | - |
RFQ |
Scheda tecnica |
Box | T58/32/18 | Active | Toroid | R 58.3 x 32 x 18 | K10 | 2.295 (58.30mm) | 1.5 µH | ±25% | Ungapped | - | 700 | 0.58 | 134 | 230 | - | 30710 | Uncoated | 0.709 (18.00mm) |
|
B64290L0696X830FERRITE CORES EPCOS - TDK Electronics |
2,333 | - |
RFQ |
Scheda tecnica |
Bulk | TX68/48/13 | Active | Toroid | R 68.0 × 48.0 × 13.0 | N30 | - | - | ±25% | Ungapped | - | 4300 | 1.39 | 178.6 | 128.7 | - | 22980 | Epoxy | - |
