Nuclei di ferrite
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

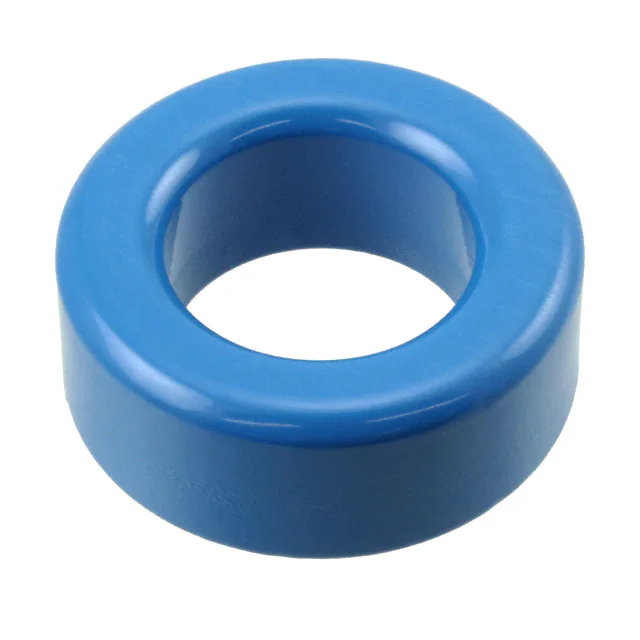

B64290L0082X038FERRITE CORE TOROID 17.4UH T38 EPCOS - TDK Electronics |
323 | - |
RFQ |
Scheda tecnica |
Tray | TX50/30/20 | Active | Toroid | - | T38 | 2.040 (51.80mm) | 17.4 µH | ±30% | Ungapped | - | 8500 | 0.62 | 120.4 | 195.7 | - | 23560 | Epoxy | 0.839 (21.30mm) |
|

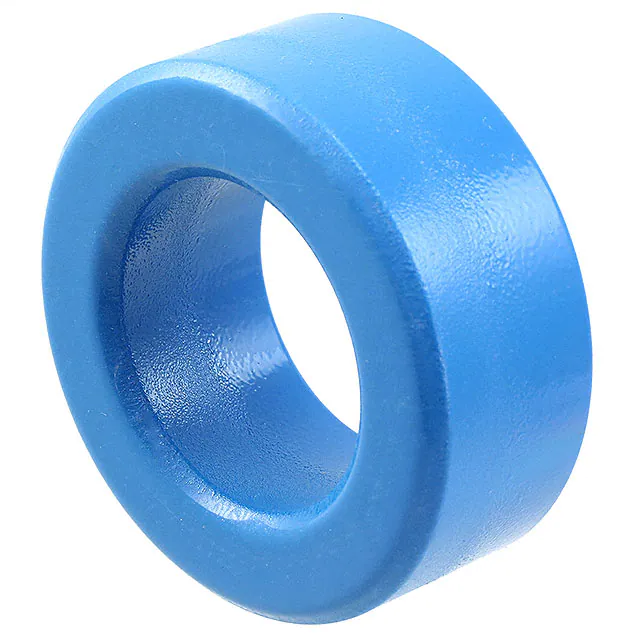

B64290L0699X065FERRITE CORE TOROID 12.6UH T65 EPCOS - TDK Electronics |
107 | - |
RFQ |
Scheda tecnica |
Box | TX63/38/25 | Active | Toroid | - | T65 | 2.571 (65.30mm) | 12.6 µH | ±30% | Ungapped | - | 5000 | 0.5 | 152.1 | 305.9 | - | 46530 | Epoxy | 1.047 (26.60mm) |
|
B65684A0315A027FERRITE CORE PM 315NH N27 2PCS EPCOS - TDK Electronics |
216 | - |
RFQ |
Scheda tecnica |
Box | PM62/49 | Active | PM | PM 62 x 49 | N27 | 2.441 (62.00mm) | 315 nH | ±3% | Gapped | 48 | 2000 | 0.191 | 109 | 570 | 470 | 62000 | Uncoated | 0.965 (24.50mm) |
|

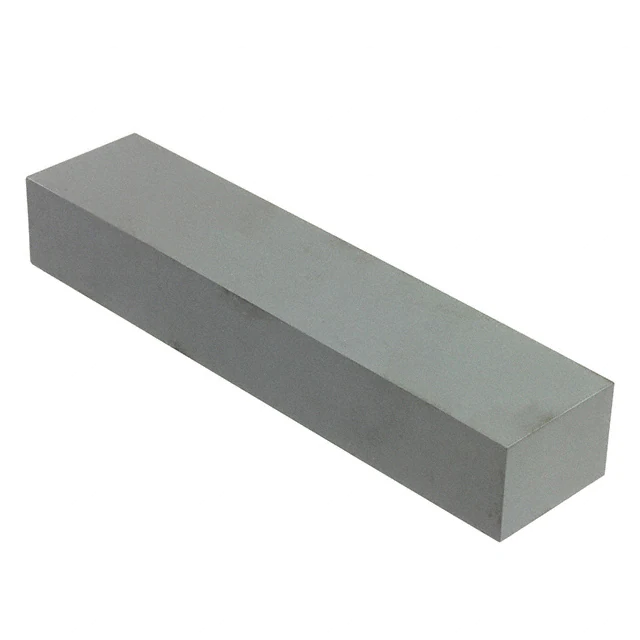

B67385P0000X187FERRITE CORE I N87 1PC EPCOS - TDK Electronics |
189 | - |
RFQ |
Scheda tecnica |
Box | I126/28/20 | Active | I | I 126 x 28 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.102 (28.00mm) |
|

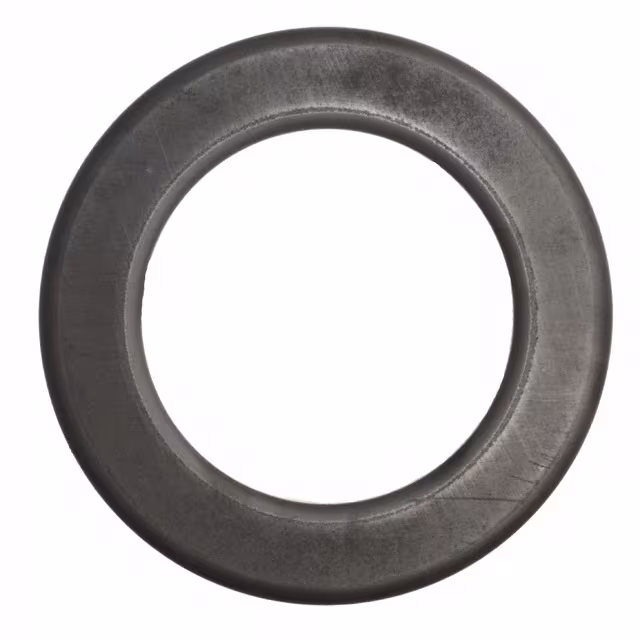

B64290A0084X830FERRITE CORE TOROID 5.5UH N30 EPCOS - TDK Electronics |
241 | - |
RFQ |
Scheda tecnica |
Tray | T102/66/15 | Active | Toroid | R 102 x 65.8 x 15 | N30 | 4.016 (102.00mm) | 5.5 µH | ±25% | Ungapped | - | 4200 | 0.96 | 255.3 | 267.2 | - | 68220 | Uncoated | 0.591 (15.00mm) |
|
B64290L0038X027FERRITE CORE EPCOS - TDK Electronics |
144 | - |
RFQ |
Scheda tecnica |
Box | TX10/6/4 | Active | Toroid | - | N27 | - | - | - | Gapped | - | 2000 | - | - | - | - | - | Epoxy | - |
|

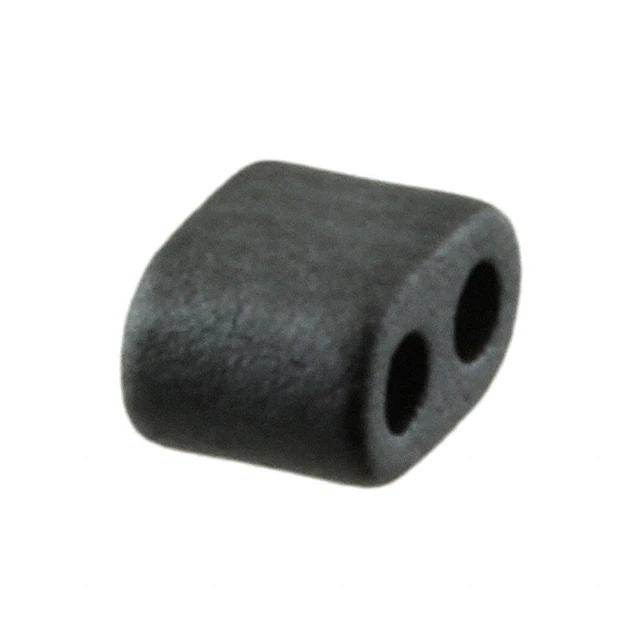

B62152A0008X030FERRITE CORE 2 HOLE 3.1UH N30 EPCOS - TDK Electronics |
3,368 | - |
RFQ |
Scheda tecnica |
Box | MHB2-2.5/3.6/2.1 | Active | Multi-Hole (2) | - | N30 | - | 3.1 µH | ±30% | Ungapped | - | 4300 | 1.78 | 3.7 | 2.1 | - | 7.8 | Uncoated | 0.098 (2.50mm) |
|
B64290L0044X027FERRITE CORE TOROID 1.02UH N27 EPCOS - TDK Electronics |
3,712 | - |
RFQ |
Scheda tecnica |
Box | TX12.5/7.5/5 | Active | Toroid | - | N27 | 0.535 (13.60mm) | 1.02 µH | ±25% | Ungapped | - | 2000 | 2.46 | 30.09 | 12.23 | - | 368 | Epoxy | 0.234 (5.95mm) |
|

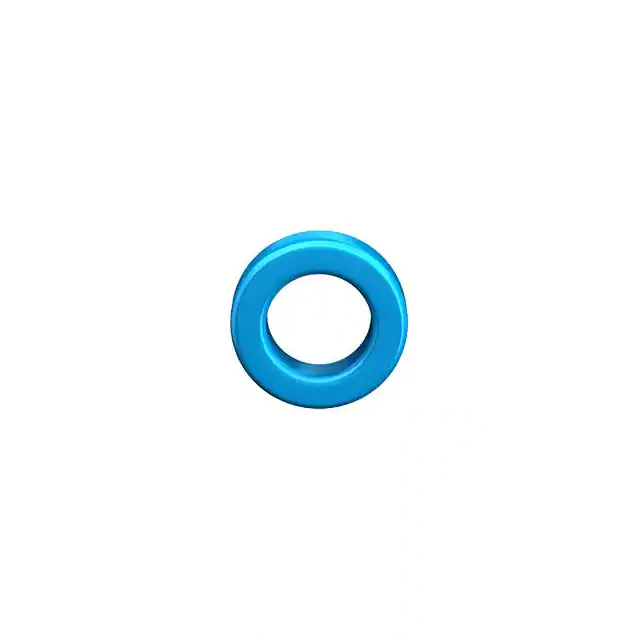

B64290L0644X830FERRITE CORE TOROID 2.03UH N30 EPCOS - TDK Electronics |
2,457 | - |
RFQ |
Scheda tecnica |
Box | TX13.3/8.3/5 | Active | Toroid | - | N30 | 0.567 (14.40mm) | 2.03 µH | ±25% | Ungapped | - | 4300 | 2.67 | 32.7 | 12.27 | - | 401 | Epoxy | 0.234 (5.95mm) |
|
B66305G0000X130FERRITE CORE E N30 1PC EPCOS - TDK Electronics |
3,148 | - |
RFQ |
Scheda tecnica |
Box | E13/7/4 | Active | E | E 13 x 7 x 4 | N30 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.256 (6.50mm) |
|

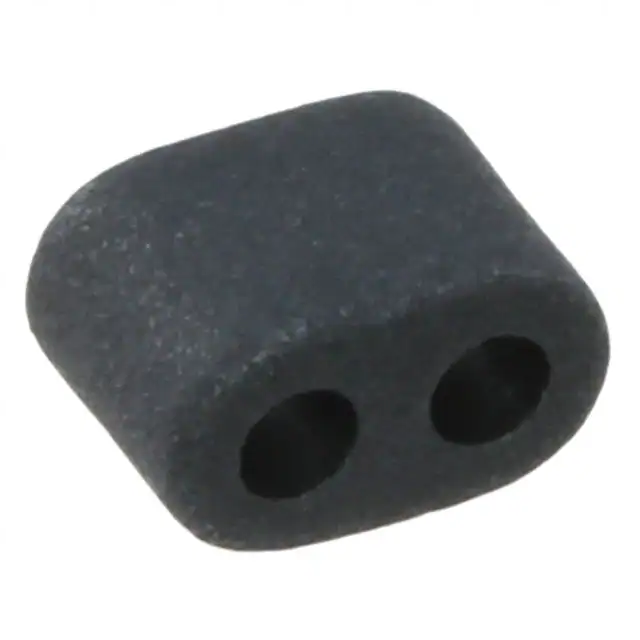

B62152P0008X030FERRITE CORE 2 HOLE 3.1UH N30 EPCOS - TDK Electronics |
2,370 | - |
RFQ |
Box | MHB2/P-3.6/2.1/2.5 | Active | Multi-Hole (2) | - | N30 | - | 3.1 µH | ±30% | Ungapped | - | 4300 | 1.78 | 3.7 | 2.1 | - | 7.8 | Parylene | 0.100 (2.54mm) | |
|
B64290L0658X830FERRITE CORE TOROID 1.9UH N30 EPCOS - TDK Electronics |
2,404 | - |
RFQ |
Scheda tecnica |
Box | TX14/9/5 | Active | Toroid | - | N30 | 0.594 (15.10mm) | 1.9 µH | ±25% | Ungapped | - | 4300 | 2.84 | 34.98 | 12.3 | - | 430 | Epoxy | 0.236 (6.00mm) |
|
B64290L0044X049FERRITE CORE TOROID 660NH N49 EPCOS - TDK Electronics |
3,341 | - |
RFQ |
Scheda tecnica |
Box | TX12.5/7.5/5 | Active | Toroid | - | N49 | 0.535 (13.60mm) | 660 nH | ±25% | Ungapped | - | 1300 | 2.46 | 30.09 | 12.23 | - | 368 | Epoxy | 0.234 (5.95mm) |
|

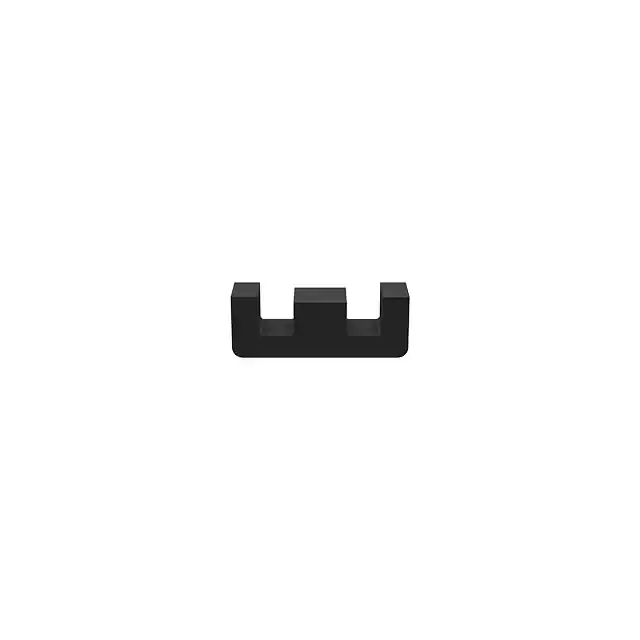

B66300G0000X187FERRITE CORE E N87 1PC EPCOS - TDK Electronics |
3,975 | - |
RFQ |
Scheda tecnica |
Box | E6.3 | Active | E | E 6 x 3 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.114 (2.90mm) |
|

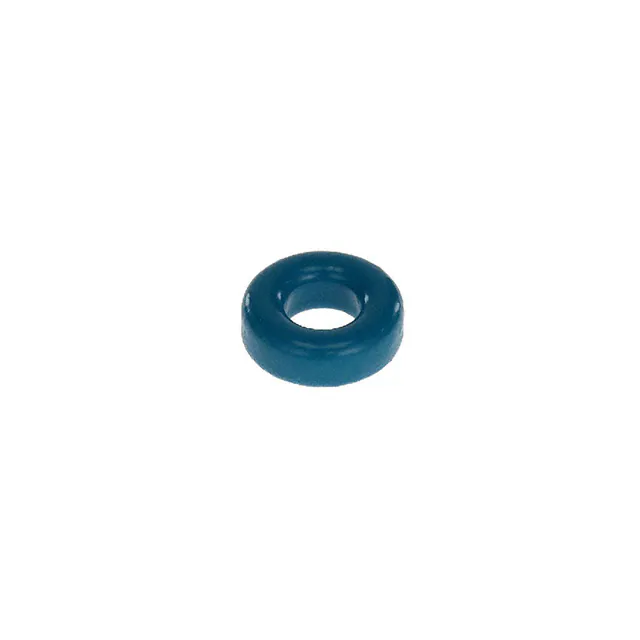

B64290L0062X065FERRITE CORE TOROID 2.05UH T65 EPCOS - TDK Electronics |
3,330 | - |
RFQ |
Scheda tecnica |
Box | TX9.5/4.8/3.2 | Active | Toroid | - | T65 | 0.413 (10.50mm) | 2.05 µH | ±30% | Ungapped | - | 4600 | 2.85 | 20.72 | 7.28 | - | 151 | Epoxy | 0.161 (4.10mm) |
|
B66307G0000X130FERRITE CORE E N30 1PC EPCOS - TDK Electronics |
3,182 | - |
RFQ |
Scheda tecnica |
Box | E16/8/5 | Active | E | E 16 x 8 x 5 | N30 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.323 (8.20mm) |
|

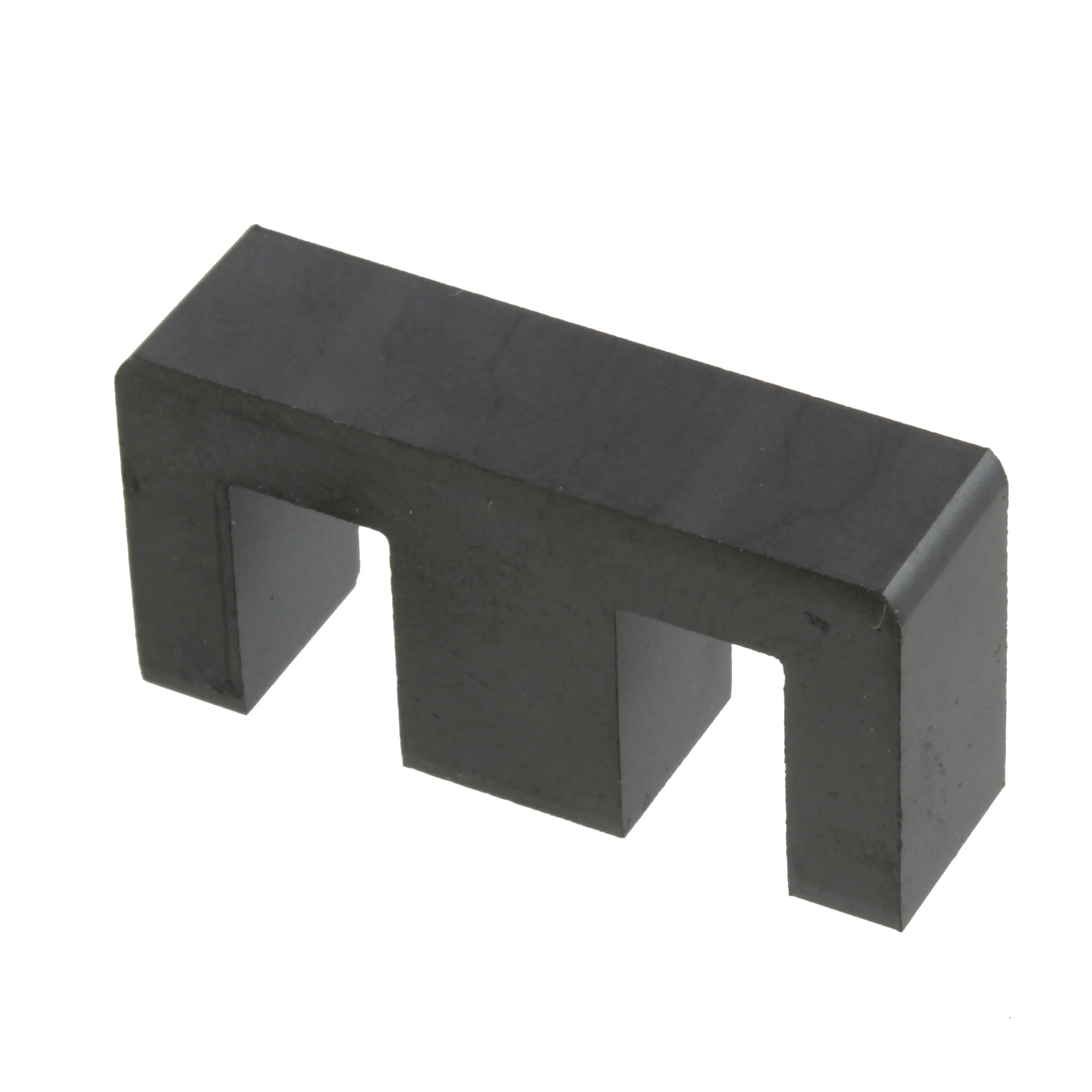

B66317G0100X187FERRITE CORE E N87 1PC EPCOS - TDK Electronics |
3,463 | - |
RFQ |
Scheda tecnica |
Box | E25/13/7 | Active | E | E 25 x 13 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504 (12.80mm) |
|

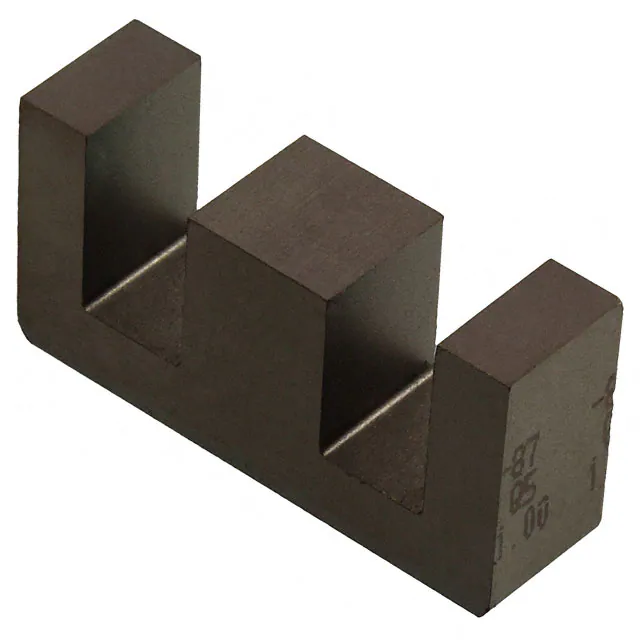

B66317G1000X187FERRITE CORE E N87 1PC EPCOS - TDK Electronics |
2,229 | - |
RFQ |
Scheda tecnica |
Box | E25/13/7 | Active | E | E 25 x 13 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504 (12.80mm) |
|
|
B64290L0658X038FERRITE CORE TOROID 4.42UH T38 EPCOS - TDK Electronics |
3,234 | - |
RFQ |
Scheda tecnica |
Box | TX14/9/5 | Active | Toroid | - | T38 | 0.594 (15.10mm) | 4.42 µH | ±30% | Ungapped | - | 10000 | 2.84 | 34.98 | 12.3 | - | 430 | Epoxy | 0.236 (6.00mm) |
|
B64290L0742X038FERRITE CORE TOROID 6.03UH T38 EPCOS - TDK Electronics |
2,864 | - |
RFQ |
Scheda tecnica |
Box | TX13/7.9/6.4 | Active | Toroid | - | T38 | 0.535 (13.60mm) | 6.03 µH | ±30% | Ungapped | - | 10000 | 2.08 | 31.17 | 14.96 | - | 466 | Epoxy | 0.281 (7.15mm) |
