Condensatori a film
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385530125JYM2T0CAP FILM 3UF 5% 1.25KVDC RADIAL Vishay Beyschlag/Draloric/BC Components |
3,721 | - |
RFQ |
Scheda tecnica |
Radial | Tray | MKP385 | Active | 3 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 2.264 L x 0.984 W (57.50mm x 25.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
MKP385530125JYP2T0CAP FILM 3UF 5% 1.25KVDC RADIAL Vishay Beyschlag/Draloric/BC Components |
3,561 | - |
RFQ |
Scheda tecnica |
Radial | Tray | MKP385 | Active | 3 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 2.264 L x 0.984 W (57.50mm x 25.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
MKP1848H65070JY2CAP FILM 50UF 5% 700VDC RADIAL Vishay Beyschlag/Draloric/BC Components |
2,641 | - |
RFQ |
Scheda tecnica |
Radial | Tray | MKP1848H DC-Link | Active | 50 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.008 (51.00mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
PMB2104300KSPFILM CAP BOXED LUGS Nichicon |
2,521 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 3 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 1.555 (39.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2154180KSPFILM CAP BOXED LUGS Nichicon |
2,685 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 1.8 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 1.555 (39.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2124250KSPFILM CAP BOXED LUGS Nichicon |
3,860 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 2.5 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 1.555 (39.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB1704400KFPFILM CAP BOXED LUGS Nichicon |
3,243 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 4 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.555 (39.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB1704400KFRFILM CAP BOXED LUGS Nichicon |
2,639 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 4 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.437 (36.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2253560KBNFILM CAP BOXED LUGS Nichicon |
3,464 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 0.56 µF | ±10% | 725V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2253560KBPFILM CAP BOXED LUGS Nichicon |
3,401 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 0.56 µF | ±10% | 725V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB1704400KVPFILM CAP BOXED LUGS Nichicon |
2,615 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 4 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.555 (39.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB1704400KSLFILM CAP BOXED LUGS Nichicon |
2,873 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 4 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.457 (37.00mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2253560KAPFILM CAP BOXED LUGS Nichicon |
2,520 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 0.56 µF | ±10% | 725V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 2.864 (72.75mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB1704400KVRFILM CAP BOXED LUGS Nichicon |
3,981 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | PMB | Active | 4 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.437 (36.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
MABA035270KJLFILM CAP BOXED RADIAL Nichicon |
2,343 | - |
RFQ |
Scheda tecnica |
Radial | Bulk | MAB | Active | 27 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 1.476 (37.50mm) | Motor Run | - |
|
|
MABA035270KJSFILM CAP BOXED RADIAL Nichicon |
3,772 | - |
RFQ |
Scheda tecnica |
Radial | Bulk | MAB | Active | 27 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 1.476 (37.50mm) | Motor Run | - |
|
|
PSB1854470KRSTFILM CAP BOXED RADIAL Nichicon |
3,830 | - |
RFQ |
Scheda tecnica |
Radial - 6 Leads | Bulk | PSB | Active | 4.7 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 1.8 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
MKP386M433125JT5CAP FILM 0.33UF 5% 1.25KVDC SCRW Vishay Beyschlag/Draloric/BC Components |
3,837 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | MKP386M | Active | 0.33 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 105°C | Chassis Mount | 1.319 L x 0.866 W (33.50mm x 22.00mm) | 1.201 (30.50mm) | Screw Terminals | 0.886 (22.50mm) | Snubber | - |
|

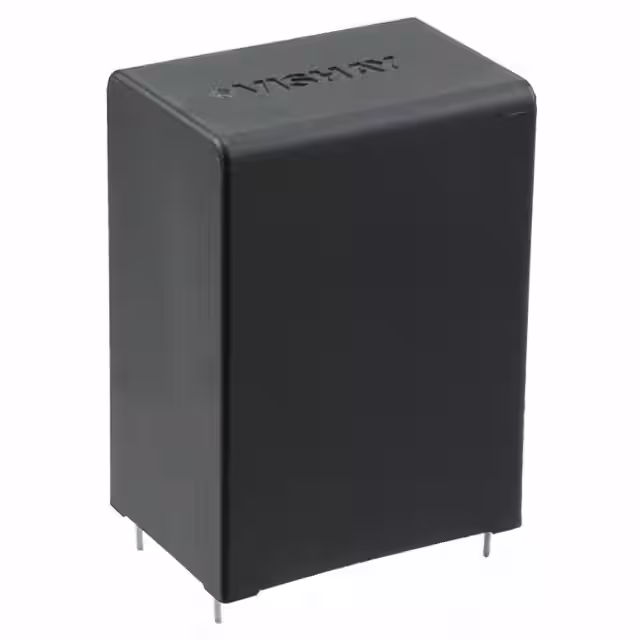

MKP1847550444P5CAP FILM 5UF 5% 440VAC RADIAL Vishay Beyschlag/Draloric/BC Components |
3,695 | - |
RFQ |
Scheda tecnica |
Radial - 4 Leads | Bulk | MKP1847 | Active | 5 µF | ±5% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 2.244 (57.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - |
|
|
MKP386M533070JT6CAP FILM 3.3UF 5% 700VDC SCREW Vishay Beyschlag/Draloric/BC Components |
2,964 | - |
RFQ |
Scheda tecnica |
Rectangular Box | Bulk | MKP386M | Active | 3.3 µF | ±5% | 420V | 700V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 1.181 W (44.00mm x 30.00mm) | 1.811 (46.00mm) | Screw Terminals | 0.433 (11.00mm) | Snubber | - |
