Alimentatori industriali, guida DIN
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | InputType | NumberofOutputs | ACVoltage-Input | DCVoltage-Input(Min) | DCVoltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Voltage-Output5 | Voltage-Output6 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Efficiency | OperatingTemperature | Features | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDR-100-15AC/DC CONVERTER 15V 92W MEAN WELL USA Inc. |
2,673 | - |
RFQ |
Scheda tecnica |
Box | HDR-100 (100W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 6.13A | 92W | 4 kV | ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.15 L x 2.76 W x 3.54 H (54.5mm x 70.0mm x 90.0mm) | CB, CE, cULus, cURus, TUV |
|
DRC-40BAC/DC CONVERTER 27.6V 27.6V 40W MEAN WELL USA Inc. |
2,724 | - |
RFQ |
Scheda tecnica |
Box | DRC-40 (40W) | Active | AC or DC | 2 | 90 ~ 264 VAC | 127V | 370V | 27.6V | 27.6V | - | - | - | - | 950mA, 500mA | 40W | 3 kV | ITE (Commercial) | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94 L x 1.57 W x 3.54 H (100.0mm x 40.0mm x 90.0mm) | CB, CE, cURus, TUV |
|

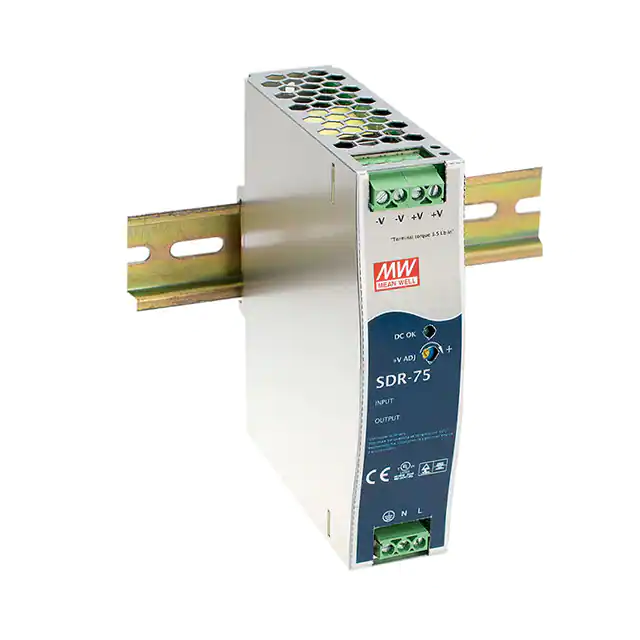

SDR-75-48AC/DC CONVERTER 48V 77W MEAN WELL USA Inc. |
3,601 | - |
RFQ |
Scheda tecnica |
Box | SDR-75 (75W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 1.6A | 77W | 3 kV | Industrial, ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.02 L x 1.26 W x 4.93 H (102.0mm x 32.0mm x 125.2mm) | CB, CE, cURus, TUV |
|
WDR-60-48AC/DC CONVERTER 48V 60W MEAN WELL USA Inc. |
3,207 | - |
RFQ |
Scheda tecnica |
Box | WDR-60 (60W) | Active | AC or DC | 1 | 180 ~ 550 VAC | 254V | 780V | 48V | - | - | - | - | - | 1.25A | 60W | 4.7 kV | Laboratory | 90.5% | -30°C ~ 85°C (With Derating) | Adjustable Output | 4.02 L x 1.26 W x 4.93 H (102.0mm x 32.0mm x 125.2mm) | CE, EAC, TUV, UL |
|
WDR-120-48AC/DC CONVERTER 48V 120W MEAN WELL USA Inc. |
3,849 | - |
RFQ |
Scheda tecnica |
Box | WDR-120 (120W) | Active | AC or DC | 1 | 180 ~ 550 VAC (2 Phase) | 254V | 780V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output | 4.47 L x 1.57 W x 4.93 H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cULus |
|
KNX-20E-640AC/DC CONVERTER 30V 19W MEAN WELL USA Inc. |
2,056 | - |
RFQ |
Scheda tecnica |
Box | KNX-20E (20W) | Active | AC or DC | 1 | 180 ~ 264 VAC | 230V | 370V | 30V | - | - | - | - | - | 640mA | 19W | 3 kV | ITE (Commercial) | 86% | -30°C ~ 70°C (With Derating) | IP20 | 2.30 L x 2.07 W x 3.54 H (58.5mm x 52.5mm x 90.0mm) | CE, EAC, TUV |
|
|
KNX-40E-1280AC/DC CONVERTER 30V 38W MEAN WELL USA Inc. |
2,733 | - |
RFQ |
Scheda tecnica |
Box | KNX-40E (40W) | Active | AC or DC | 1 | 180 ~ 264 VAC | 176V | 280V | 30V | - | - | - | - | - | 1.28A | 38W | 4.2 kV | ITE (Commercial) | 86% | -30°C ~ 70°C (With Derating) | IP20 | 2.83 L x 2.30 W x 3.54 H (72.0mm x 58.5mm x 90.0mm) | CE |
|
|
KNX-40E-1280DAC/DC CONVERTER 30V 38W MEAN WELL USA Inc. |
3,246 | - |
RFQ |
Scheda tecnica |
Box | KNX-40E (40W) | Active | AC or DC | 1 | 180 ~ 264 VAC | 176V | 280V | 30V | - | - | - | - | - | 1.28A | 38W | 4.2 kV | ITE (Commercial) | 86% | -30°C ~ 70°C (With Derating) | IP20 | 2.83 L x 2.30 W x 3.54 H (72.0mm x 58.5mm x 90.0mm) | CE |
|

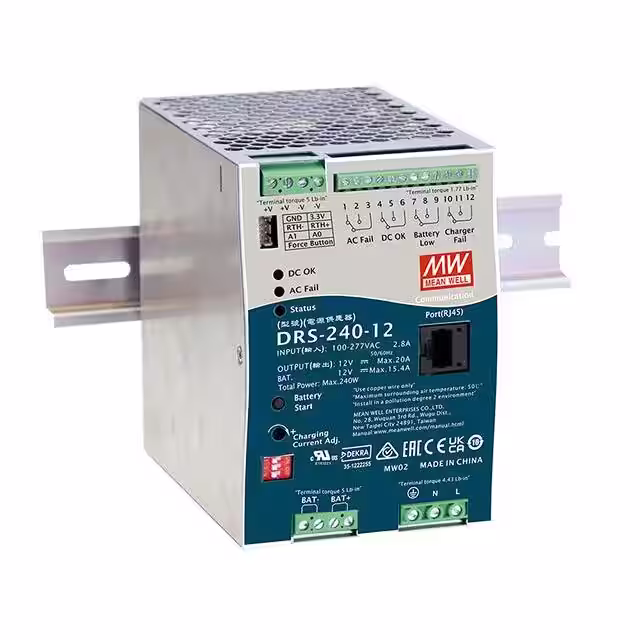

DRS-240-36O/P +36V6.6A +36V5.1A MEAN WELL USA Inc. |
2,965 | - |
RFQ |
Scheda tecnica |
Box | DRS-240 (240W) | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 36V | - | - | - | - | - | 6.6A | 238W | 4 kV | ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | 5.09 L x 3.37 W x 4.93 H (129.2mm x 85.5mm x 125.2mm) | CB, CE, cURus, EAC, UKCA |
|

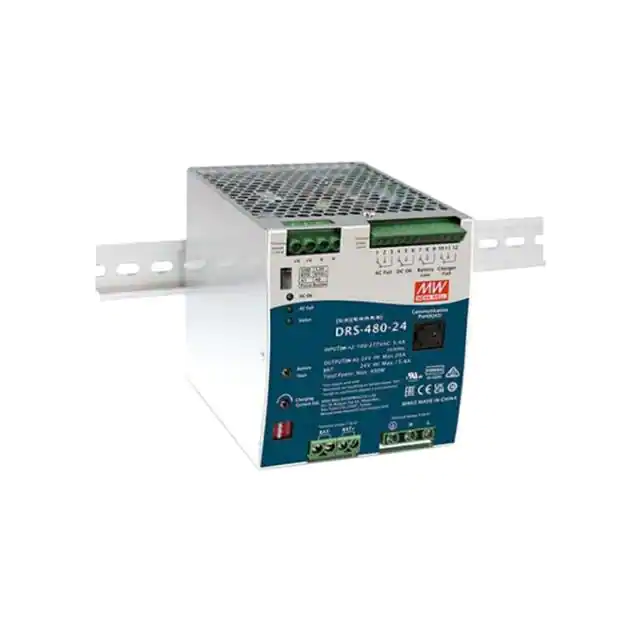

DRS-480-36O/P +36V13.3A +36V10.2A MEAN WELL USA Inc. |
2,793 | - |
RFQ |
Scheda tecnica |
Box | DRS-480 (480W) | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 36V | - | - | - | - | - | 13.3A | 479W | 4 kV | ITE (Commercial) | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | 5.93 L x 4.33 W x 4.94 H (150.7mm x 110.0mm x 125.5mm) | CB, CE, cURus, EAC, UKCA |
|
DR-100-12AC/DC CONVERTER 12V 90W MEAN WELL USA Inc. |
3,380 | - |
RFQ |
Scheda tecnica |
Box | DR-100 (100W) | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 12V | - | - | - | - | - | 7.5A | 90W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20 L x 3.94 W x 3.66 H (56.0mm x 100.0mm x 93.0mm) | CB, CE, cURus, TUV |
|
|
DR-100-15AC/DC CONVERTER 15V 98W MEAN WELL USA Inc. |
2,166 | - |
RFQ |
Scheda tecnica |
Box | DR-100 (100W) | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 15V | - | - | - | - | - | 6.5A | 98W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20 L x 3.94 W x 3.66 H (56.0mm x 100.0mm x 93.0mm) | CB, CE, cURus, TUV |
|
|
DR-100-24AC/DC CONVERTER 24V 101W MEAN WELL USA Inc. |
2,692 | - |
RFQ |
Scheda tecnica |
Box | DR-100 (100W) | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 4.2A | 101W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20 L x 3.94 W x 3.66 H (56.0mm x 100.0mm x 93.0mm) | CB, CE, cURus, TUV |
|
DR-120-12AC/DC CONVERTER 12V 120W MEAN WELL USA Inc. |
2,961 | - |
RFQ |
Box | DR-120 (120W) | Obsolete | AC or DC | 1 | 88 ~ 132 VAC, 176 ~ 264 VAC | 248V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Industrial, ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94 L x 2.58 W x 4.93 H (100.0mm x 65.5mm x 125.2mm) | CB, CE, cULus, cURus, TUV | |
|
|
DR-120-24AC/DC CONVERTER 24V 120W MEAN WELL USA Inc. |
2,729 | - |
RFQ |
Scheda tecnica |
Box | DR-120 (120W) | Obsolete | AC or DC | 1 | 88 ~ 132 VAC, 176 ~ 264 VAC | 248V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 84% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94 L x 2.58 W x 4.93 H (100.0mm x 65.5mm x 125.2mm) | CB, CE, cULus, cURus, TUV |
|
|
DR-120-48AC/DC CONVERTER 48V 120W MEAN WELL USA Inc. |
2,763 | - |
RFQ |
Box | DR-120 (120W) | Obsolete | AC or DC | 1 | 88 ~ 132 VAC, 176 ~ 264 VAC | 248V | 370V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | Industrial, ITE (Commercial) | 85% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94 L x 2.58 W x 4.93 H (100.0mm x 65.5mm x 125.2mm) | CB, CE, cULus, cURus, TUV | |
|
DR-15-12AC/DC CONVERTER 12V 15W MEAN WELL USA Inc. |
3,626 | - |
RFQ |
Scheda tecnica |
Box | DR-15 (15W) | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 1.25A | 15W | 3 kV | ITE (Commercial) | 84% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20 L x 0.98 W x 3.66 H (56.0mm x 25.0mm x 93.0mm) | CB, CE, cURus, TUV |
|
|
DR-15-24AC/DC CONVERTER 24V 15W MEAN WELL USA Inc. |
3,842 | - |
RFQ |
Scheda tecnica |
Box | DR-15 (15W) | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 630mA | 15W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20 L x 0.98 W x 3.66 H (56.0mm x 25.0mm x 93.0mm) | CB, CE, cURus, TUV |
|
|
DR-15-5AC/DC CONVERTER 5V 12W MEAN WELL USA Inc. |
2,333 | - |
RFQ |
Scheda tecnica |
Box | DR-15 (15W) | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 2.4A | 12W | 3 kV | ITE (Commercial) | 77% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20 L x 0.98 W x 3.66 H (56.0mm x 25.0mm x 93.0mm) | CB, CE, cURus, TUV |
|
DR-30-12AC/DC CONVERTER 12V 24W MEAN WELL USA Inc. |
2,138 | - |
RFQ |
Scheda tecnica |
Box | DR-30 (30W) | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2A | 24W | 3 kV | ITE (Commercial) | 81% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20 L x 3.07 W x 3.66 H (56.0mm x 78.0mm x 93.0mm) | CB, CE, cURus, TUV |
