Alimentatori industriali, guida DIN
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | InputType | NumberofOutputs | ACVoltage-Input | DCVoltage-Input(Min) | DCVoltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Voltage-Output5 | Voltage-Output6 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Efficiency | OperatingTemperature | Features | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

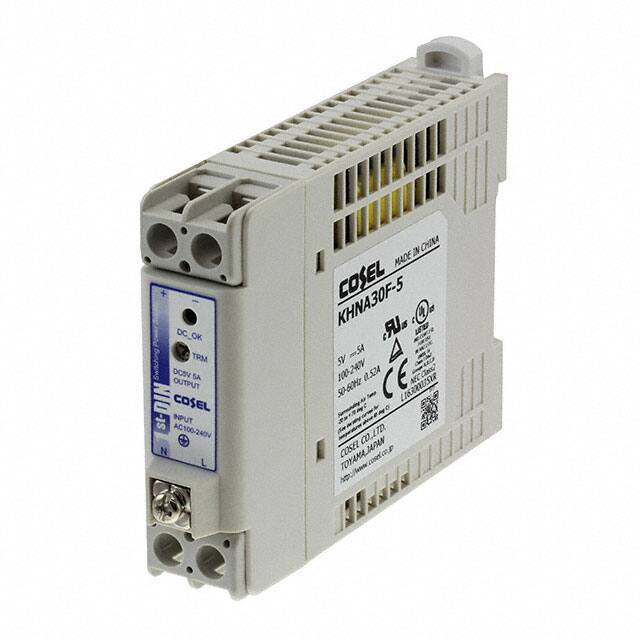

KHNA30F-5AC/DC CONVERTER 5V 30W Cosel USA, Inc. |
3,556 | - |
RFQ |
Scheda tecnica |
Box | KHNA (30W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 5A | 30W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | 4.77 L x 1.97 W x 4.88 H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV |
|
KHNA30F-12AC/DC CONVERTER 12V 30W Cosel USA, Inc. |
3,470 | - |
RFQ |
Scheda tecnica |
Box | KHNA (30W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2.3A | 30W | 3 kV | ITE (Commercial) | 88.5% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.77 L x 1.97 W x 4.88 H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV |
|

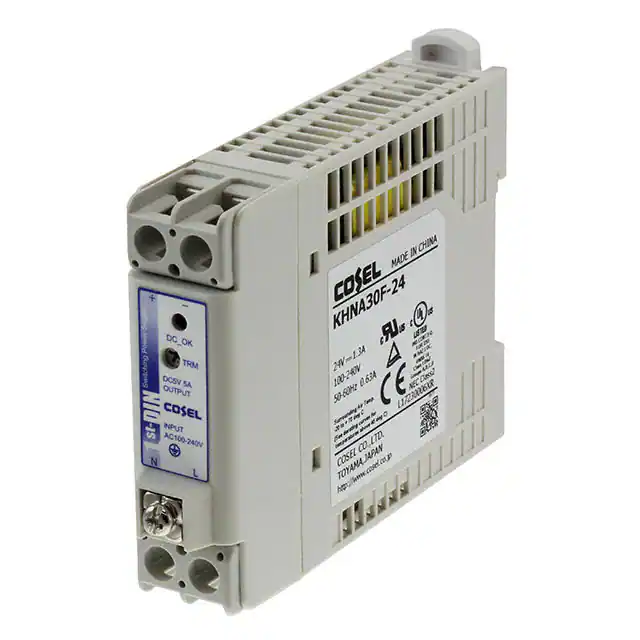

KHNA30F-24AC/DC CONVERTER 24V 30W Cosel USA, Inc. |
2,680 | - |
RFQ |
Scheda tecnica |
Box | KHNA (30W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 89.5% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.77 L x 1.97 W x 4.88 H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV |
|
AD1072-24F72W/3A DIN-RAIL 24VDC POWER SUPP ATOP Technologies |
2,209 | - |
RFQ |
Scheda tecnica |
Box | - | Active | AC or DC | 1 | 100 ~ 240 VAC | 120V | 370V | 24V | - | - | - | - | - | 3A | 72W | - | ITE (Commercial) | 81% | -20°C ~ 50°C | Adjustable Output | 4.76 L x 2.20 W x 4.33 H (121.0mm x 56.0mm x 110.0mm) | CB, CE, cULus |
|
AD1100-24F100W/4A DIN-RAIL 24VDC POWER SUP ATOP Technologies |
2,990 | - |
RFQ |
Scheda tecnica |
Box | - | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 4A | 100W | - | ITE (Commercial) | 81% | -20°C ~ 50°C | Adjustable Output | 4.76 L x 2.20 W x 4.33 H (121.0mm x 56.0mm x 110.0mm) | CB, CE, cULus |
|
DPP30-24AC/DC CONVERTER 24V 30W TDK-Lambda Americas Inc |
2,909 | - |
RFQ |
Scheda tecnica |
Bulk | DPP (15-100W) | Active | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 84% | -10°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58 L x 1.77 W x 2.95 H (90.9mm x 45.0mm x 74.9mm) | CE |
|
89451003AC/DC CONVERTER 24V 30W Crouzet |
3,742 | - |
RFQ |
Bulk | - | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 30W | 3 kV | Industrial, ITE (Commercial) | 90% | -20°C ~ 71°C (With Derating) | PFC, Universal Input | 2.19 L x 1.42 W x 3.58 H (55.6mm x 36.1mm x 90.9mm) | CE, CSA, UL | |
|
DRL100-24-1/C2AC/DC CONVERTER 24V 88W TDK-Lambda Americas Inc |
3,299 | - |
RFQ |
Scheda tecnica |
Bulk | DRL (10-100W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 24V | - | - | - | - | - | 4.2A | 101W | 3 kV | Hazardous Locations, ITE (Commercial) | 90% | -20°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19 L x 2.83 W x 3.58 H (55.6mm x 72.0mm x 90.9mm) | CE |
|

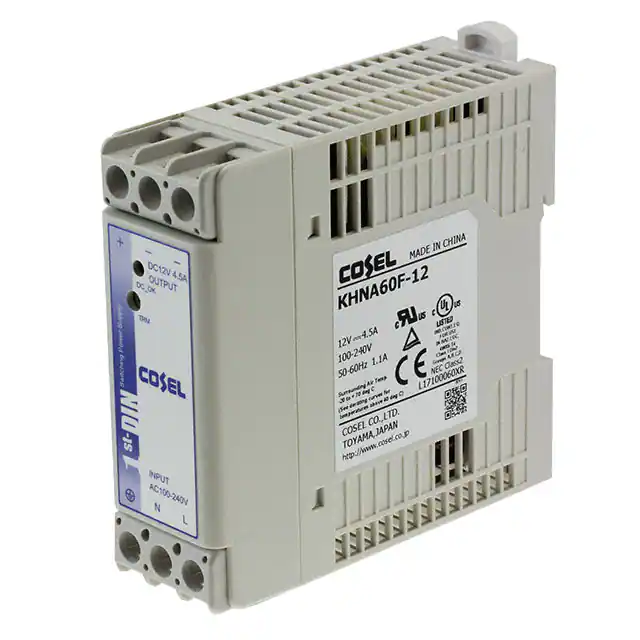

KHNA60F-12AC/DC CONVERTER 12V 60W Cosel USA, Inc. |
3,577 | - |
RFQ |
Scheda tecnica |
Box | KHNA (60W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 4.5A | 60W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.77 L x 1.97 W x 4.88 H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV |
|

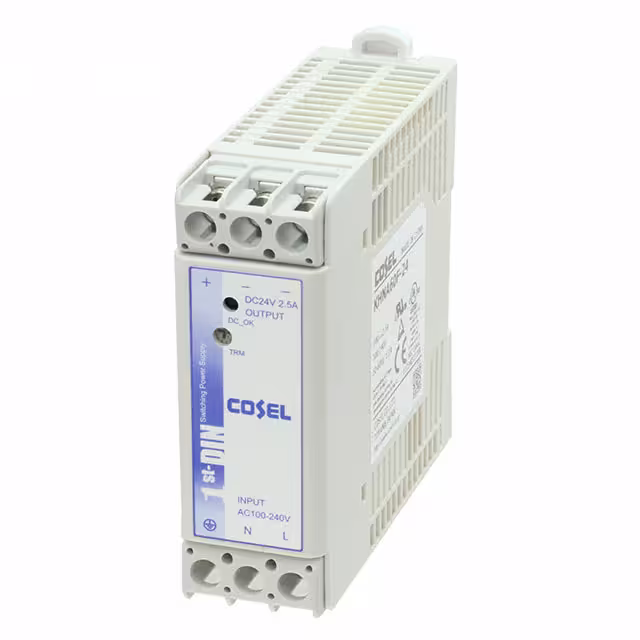

KHNA60F-24AC/DC CONVERTER 24V 60W Cosel USA, Inc. |
3,159 | - |
RFQ |
Scheda tecnica |
Box | KHNA (60W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 91% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.77 L x 1.97 W x 4.88 H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV |
|

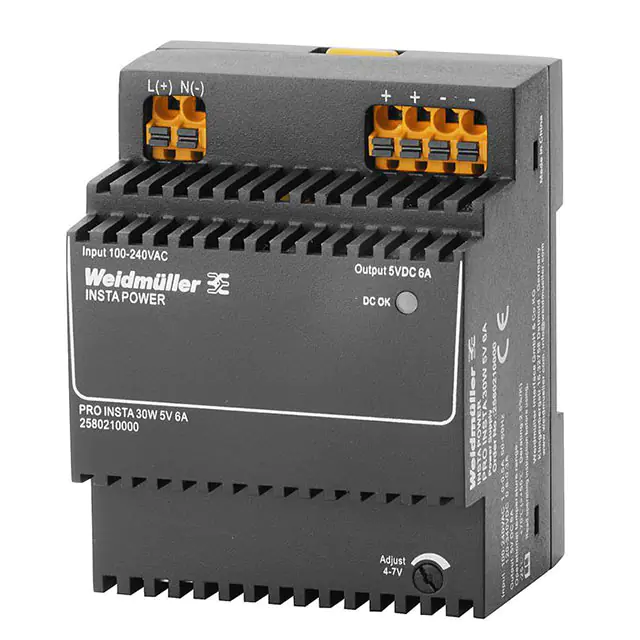

2580210000SWITCH MODE, PWR SUPPLY 5V Weidmüller |
3,062 | - |
RFQ |
Scheda tecnica |
Box | Connect Power INSTA (30W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 370V | 5V | - | - | - | - | - | 6A | 30W | 4 kV | ITE (Commercial) | 82% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.84 L x 2.36 W x 3.54 H (72.0mm x 60.0mm x 90.0mm) | cCSAus, TUV |
|
CSW65-5/DAC/DC CONVERTER 5V 40W TDK-Lambda Americas Inc |
2,497 | - |
RFQ |
Scheda tecnica |
Box | CSW65 (65W) | Active | AC | 1 | 90 ~ 305 VAC | - | - | 5V | - | - | - | - | - | 8A | 40W | 3 kV | ITE (Commercial) | 87.2% | -10°C ~ 70°C (With Derating) | - | 4.75 L x 2.50 W x 1.50 H (120.7mm x 63.5mm x 38.1mm) | CE |
|
|
CSW65-18/DAC/DC CONVERTER 18V 65W TDK-Lambda Americas Inc |
3,836 | - |
RFQ |
Scheda tecnica |
Box | CSW65 (65W) | Active | AC | 1 | 90 ~ 305 VAC | - | - | 18V | - | - | - | - | - | 3.62A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75 L x 2.50 W x 1.50 H (120.7mm x 63.5mm x 38.1mm) | CE |
|
|
CSW65-54/DAC/DC CONVERTER 54V 65W TDK-Lambda Americas Inc |
3,991 | - |
RFQ |
Scheda tecnica |
Box | CSW65 (65W) | Active | AC | 1 | 90 ~ 305 VAC | - | - | 54V | - | - | - | - | - | 1.21A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75 L x 2.50 W x 1.50 H (120.7mm x 63.5mm x 38.1mm) | CE |
|
|
CSW65-15/DAC/DC CONVERTER 15V 65W TDK-Lambda Americas Inc |
2,450 | - |
RFQ |
Scheda tecnica |
Box | CSW65 (65W) | Active | AC | 1 | 90 ~ 305 VAC | - | - | 15V | - | - | - | - | - | 4.34A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75 L x 2.50 W x 1.50 H (120.7mm x 63.5mm x 38.1mm) | CE |
|
|
CSW65-12/DAC/DC CONVERTER 12V 65W TDK-Lambda Americas Inc |
2,273 | - |
RFQ |
Scheda tecnica |
Box | CSW65 (65W) | Active | AC | 1 | 90 ~ 305 VAC | - | - | 12V | - | - | - | - | - | 5.42A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75 L x 2.50 W x 1.50 H (120.7mm x 63.5mm x 38.1mm) | CE |
|
|
CSW65-24/DAC/DC CONVERTER 24V 65W TDK-Lambda Americas Inc |
2,019 | - |
RFQ |
Scheda tecnica |
Box | CSW65 (65W) | Active | AC | 1 | 90 ~ 305 VAC | - | - | 24V | - | - | - | - | - | 2.71A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | 4.75 L x 2.50 W x 1.50 H (120.7mm x 63.5mm x 38.1mm) | CE |
|
TPC 030-112AC/DC CONVERTER 12V 26W Traco Power |
3,274 | - |
RFQ |
Scheda tecnica |
Box | TPC (30W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 12V | - | - | - | - | - | 2.2A | 26W | - | Industrial, ITE (Commercial) | 84% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.80 L x 1.04 W x 3.54 H (96.5mm x 26.4mm x 89.9mm) | CB, CE, cCSAus, SIQ |
|
TPC 030-105AC/DC CONVERTER 5V 20W Traco Power |
2,353 | - |
RFQ |
Scheda tecnica |
Box | TPC (30W) | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 5V | - | - | - | - | - | 4A | 20W | - | Industrial, ITE (Commercial) | 79% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.80 L x 1.04 W x 3.54 H (96.5mm x 26.4mm x 89.9mm) | CB, CE, cCSAus, SIQ |
|
CFM60C090-DRAC/DC CONVERTER 9V 60W Cincon Electronics Co. LTD |
2,084 | - |
RFQ |
Scheda tecnica |
Box | CFM60CXXX-DR (60W) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 9V | - | - | - | - | - | 6.67A | 60W | 4.242 kV | ITE (Commercial) | 84% | 0°C ~ 70°C (With Derating) | Universal Input | 4.33 L x 2.32 W x 1.62 H (110.0mm x 59.0mm x 41.2mm) | CE, cURus, FCC, TUV |
