Illuminazione LED - COB, motori, moduli, strisce
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRH-40H1000-G-83V6 HD NEUTRAL WHITE LED ARRAY Bridgelux |
561 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 700mA | 25°C | 18.3V | 109 lm/W | 1.2A | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-30H1000-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
554 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1321lm (Typ) | 700mA | 25°C | 18.3V | 103 lm/W | 1.2A | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-40G1000-G-83V6 HD NEUTRAL WHITE LED ARRAY Bridgelux |
505 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1543lm (Typ) | 700mA | 25°C | 18.3V | 120 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|

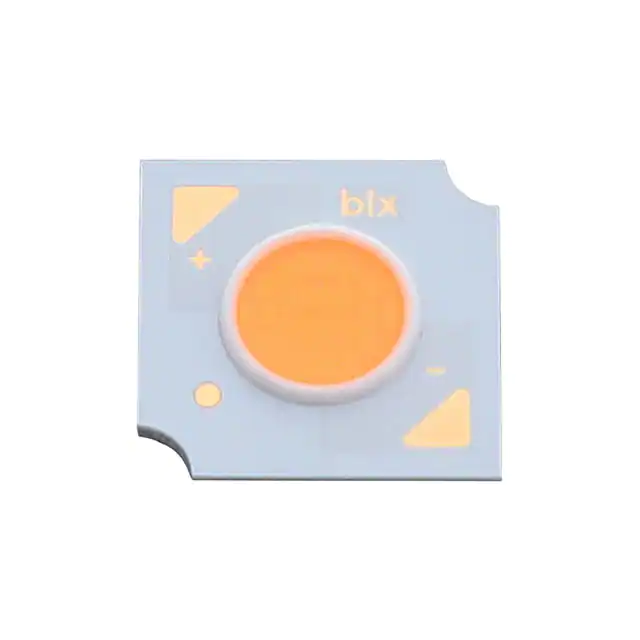

BXRH-30G10H0-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
495 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1522lm (Typ) | 700mA | 25°C | 18.3V | 119 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-27E1000-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
485 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1691lm (Typ) | 700mA | 25°C | 18.3V | 132 lm/W | 1.2A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-27G10H0-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
465 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1448lm (Typ) | 350mA | 25°C | 36.6V | 113 lm/W | 600mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-30H1000-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
447 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1321lm (Typ) | 350mA | 25°C | 36.6V | 103 lm/W | 600mA | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-30G10H0-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
417 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1522lm (Typ) | 350mA | 25°C | 36.6V | 119 lm/W | 600mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-30G1000-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
247 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1459lm (Typ) | 350mA | 25°C | 36.6V | 114 lm/W | 600mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-35G1000-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
2,587 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1512lm (Typ) | 350mA | 25°C | 36.6V | 118 lm/W | 600mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-30H3000-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
2,728 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2669lm (Typ) | 700mA | 25°C | 36.6V | 104 lm/W | 1.2A | 97 (Typ) | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
BXRC-30H1000-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
2,863 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1173lm (Typ) | 300mA | 25°C | 30.7V | 127 lm/W | 1A | 97 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-27H1000-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
3,304 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1098lm (Typ) | 300mA | 25°C | 30.7V | 119 lm/W | 1A | 97 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-65E1001-C-84-SEVERO SE 10C COOL WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 1614lm (Typ) | 300mA | 25°C | 30.7V | 175 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-30C1001-C-84-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 1670lm (Typ) | 300mA | 25°C | 30.7V | 181 lm/W | 1A | 70 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-50E1001-C-84-SEVERO SE 10C COOL WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1661lm (Typ) | 300mA | 25°C | 30.7V | 180 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-35E1000-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1633lm (Typ) | 300mA | 25°C | 30.7V | 177 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-40E1000-C-83-SEVERO SE 10C NEUTRAL WHITE LED AR Bridgelux |
100 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1642lm (Typ) | 300mA | 25°C | 30.7V | 178 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-27E1000-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1501lm (Typ) | 300mA | 25°C | 30.7V | 163 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-65C1001-C-84-SEVERO SE 10C COOL WHITE LED ARRAY Bridgelux |
2,814 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 1679lm (Typ) | 300mA | 25°C | 30.7V | 182 lm/W | 1A | 70 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
