Illuminazione LED - COB, motori, moduli, strisce
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-50E10K0-L-24LED ARRAY 10000LM COOL WHITE COB Bridgelux |
3,995 | - |
RFQ |
Scheda tecnica |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 11397lm (Typ) | 2.1A | 25°C | 38V | 143 lm/W | 4.2A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRC-30A10K1-L-23LED ARRAY 3000K WHT 10K LM COB Bridgelux |
3,566 | - |
RFQ |
Scheda tecnica |
Tray | Décor Series™ Class A Vero® 29 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 6668lm (Typ) | 2.1A | 85°C | 36.8V | 86 lm/W | 4.2A | 93 (Typ) | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRC-35A10K1-L-23LED ARRAY 3000K WHT 10K LM COB Bridgelux |
2,431 | - |
RFQ |
Scheda tecnica |
Tray | Décor Series™ Class A Vero® 29 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 7637lm (Typ) | 2.1A | 70°C | 37.2V | 98 lm/W | 4.2A | 93 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|

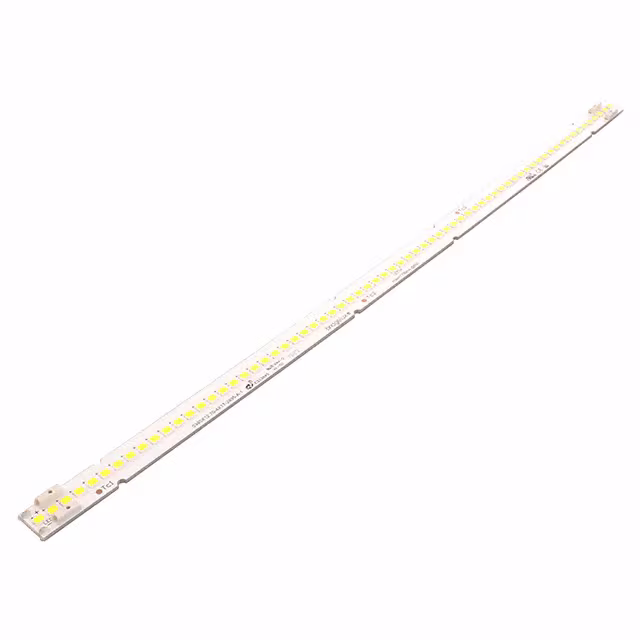

BXEB-L0340U-40E0750-C-C3EB SLIM GEN 3 340MM Bridgelux |
3,798 | - |
RFQ |
Scheda tecnica |
Tray | EB Series™ Slim Gen 3 | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1530lm (Typ) | 700mA | 25°C | 10.9V | 200 lm/W | 1.7A | 80 | 120° | With Connector | 340.00mm L x 12.70mm W | 4.30mm | - |
|
BXRV-TR-2750G-30A0-A-23VESTA TW15 GEN 2 Bridgelux |
2,098 | - |
RFQ |
Scheda tecnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 2884lm (Typ) | 650mA | 25°C | 35.5V | 125 lm/W | 950mA | 92 | 130° | - | 21.00mm L x 21.00mm W | 1.65mm | 16.30mm Dia |
|
BXEB-L0280Z-30S1000-C-C3EB GEN 3 LED MODULE, 280 MM, 300 Bridgelux |
2,636 | - |
RFQ |
Scheda tecnica |
Bulk | EB Series™ Gen 3 Thrive | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1235lm (Typ) | 480mA | 25°C | 20.3V | 127 lm/W | 960mA | 98 (Typ) | 120° | - | 280.00mm L x 24.00mm W | 6.10mm | - |
|
BXEB-L0590U-40E1500-C-C3EB SLIM GEN 3 590MM Bridgelux |
2,310 | - |
RFQ |
Scheda tecnica |
Tray | EB Series™ Slim Gen 3 | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2675lm (Typ) | 700mA | 25°C | 19.1V | 200 lm/W | 1.7A | 80 | 120° | With Connector | 590.00mm L x 12.70mm W | 4.30mm | - |
|
BXRC-50E4001-C-74-SELED COB VERO SE 5000K ROUND Bridgelux |
3,282 | - |
RFQ |
Scheda tecnica |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 5987lm (Typ) | 1.17A | 85°C | 34.1V | 150 lm/W | 2.34A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
BXRC-35E1000-D-73LED COB VERO 10 3500K STARBOARD Bridgelux |
3,935 | - |
RFQ |
Scheda tecnica |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1453lm (Typ) | 350mA | 25°C | 26V | 160 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRE-30E2000-B-73LED COB V13 3000K SQUARE Bridgelux |
2,400 | - |
RFQ |
Scheda tecnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2178lm (Typ) | 450mA | 85°C | 33.9V | 143 lm/W | 900mA | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
BXRV-DR-1830G-2000-A-13DW13A DIM-TO-WARM LED ARRAY Bridgelux |
2,148 | - |
RFQ |
Tray | Vesta™ | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 2312lm (Typ) | 600mA | 25°C | 33.5V | 115 lm/W | 720mA | 90 | 110° | - | 24.00mm L x 20.00mm W | 1.70mm | 14.00mm Dia | |
|
|
BXRV-DR-1830G-3000-A-13DW15A DIM-TO-WARM LED ARRAY Bridgelux |
2,754 | - |
RFQ |
Tray | Vesta™ | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 3725lm (Typ) | 950mA | 25°C | 34.1V | 115 lm/W | 1.05A | 90 | 110° | - | 24.00mm L x 20.00mm W | 1.70mm | 16.20mm Dia | |
|

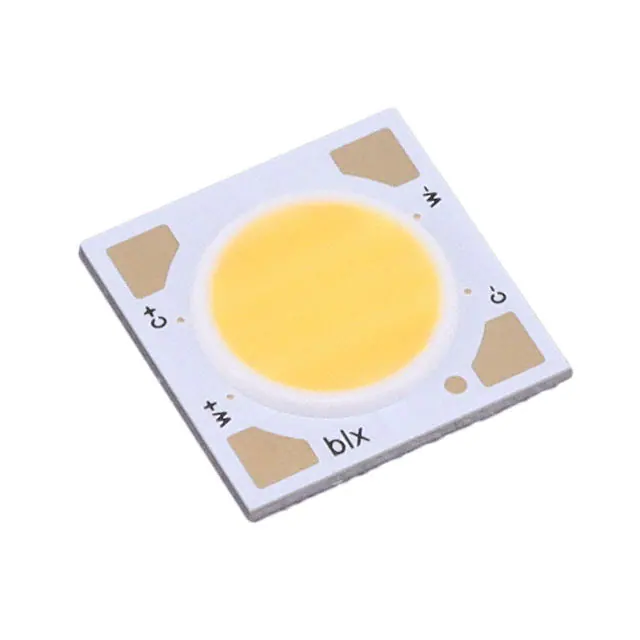

BXRV-TR-1840G-10A0-A-25TW9 GEN 2 TUNABLE WHITE LED ARRA Bridgelux |
2,290 | - |
RFQ |
Scheda tecnica |
Bulk | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Neutral | 1800K 5-Step MacAdam Ellipse, 4000K 3-Step MacAdam Ellipse | - | Square | 1060lm | 500mA | 25°C | 18V | 118 lm/W | 700mA | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia |
|
|
BXEB-L0590U-35E1500-C-C3EB SLIM GEN 3 590MM Bridgelux |
3,852 | - |
RFQ |
Scheda tecnica |
Tray | EB Series™ Slim Gen 3 | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2490lm (Typ) | 700mA | 25°C | 19.1V | 186 lm/W | 1.7A | 80 | 120° | With Connector | 590.00mm L x 12.70mm W | 4.30mm | - |
|
BXRC-50C4001-D-74LED COB VERO 18 5000K ROUND Bridgelux |
2,303 | - |
RFQ |
Scheda tecnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4826lm (Typ) | 1.05A | 85°C | 28.3V | 162 lm/W | 2.1A | 70 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRE-50C4001-C-74LED COB V18 5000K SQUARE Bridgelux |
2,996 | - |
RFQ |
Scheda tecnica |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 6453lm (Typ) | 1.17A | 85°C | 34V | 162 lm/W | 2.34A | 70 | - | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXEB-L0560Z-40S2000-C-C3EB GEN 3 LED MODULE, 560 MM, 400 Bridgelux |
2,584 | - |
RFQ |
Scheda tecnica |
Bulk | EB Series™ Gen 3 Thrive | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2690lm (Typ) | 960mA | 25°C | 20.3V | 138 lm/W | 1.92A | 98 (Typ) | 120° | - | 560.00mm L x 24.00mm W | 6.10mm | - |
|

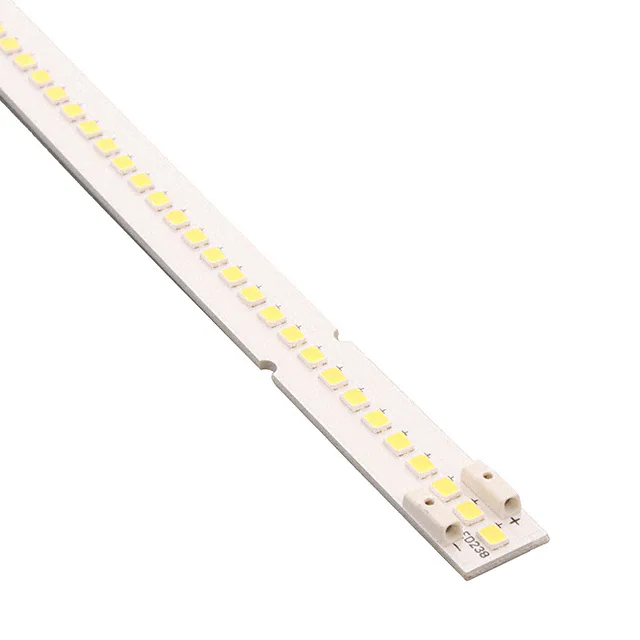

BXEB-L1190U-40E3000-C-C3EB SLIM GEN 3 1190MM Bridgelux |
2,138 | - |
RFQ |
Scheda tecnica |
Tray | EB Series™ Slim Gen 3 | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 5350lm (Typ) | 700mA | 25°C | 38.2V | 200 lm/W | 1.7A | 80 | 120° | With Connector | 1190.00mm L x 12.70mm W | 4.30mm | - |
|
BXRV-TR-2765S-10A0-B-23-S2TW LED ARRAY, LES=9MM, VF=36V, I Bridgelux |
2,919 | - |
RFQ |
Scheda tecnica |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | 757lm Warm White, 910lm Cool White | 250mA | 25°C | 34.8V Warm White, 34.8V Cool White | 97 lm/W Warm White, 116 lm/W Cool White | 480mA | 95 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia |
|
BXRC-17E10K0-B-74-SEVERO SE 29B WARM WHITE LED ARRAY Bridgelux |
2,414 | - |
RFQ |
Scheda tecnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Round | 8237lm (Typ) | 1.8A | 25°C | 52V | 88 lm/W | 3.6A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
