| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSR1-12C32-3070-00LED MODULE XP-G3 3000K New Energy |
3,131 | - |
RFQ |
Scheda tecnica |
Tray | XP-G3 | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | 1872lm | 350mA | 85°C | 32.76V | 163 lm/W | 2A | 70 | - | - | 146.61mm L x 45.01mm W | 1.52mm | - |
|
|
LSR1-12C32-3080-00LED MODULE XP-G3 3000K New Energy |
3,150 | - |
RFQ |
Scheda tecnica |
Tray | XP-G3 | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | 1668lm | 350mA | 85°C | 32.76V | 145 lm/W | 2A | 80 | - | - | 146.61mm L x 45.01mm W | 1.52mm | - |
|
|
LSR1-12C32-5080-00LED MODULE XP-G3 5000K New Energy |
2,357 | - |
RFQ |
Scheda tecnica |
Tray | XP-G3 | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 1872lm | 350mA | 85°C | 32.76V | 163 lm/W | 2A | 80 | - | - | 146.61mm L x 45.01mm W | 1.52mm | - |
|
|
LSR1-12C32-5780-00LED MODULE XP-G3 5700K New Energy |
2,334 | - |
RFQ |
Scheda tecnica |
Tray | XP-G3 | Active | LED Module | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Rectangle | 1872lm | 350mA | 85°C | 32.76V | 163 lm/W | 2A | 80 | - | - | 146.61mm L x 45.01mm W | 1.52mm | - |
|
LSH1-04C22-3070-00LED MODULE XHP50.2 3000K STRIP New Energy |
3,998 | - |
RFQ |
Scheda tecnica |
Tray | XHP50.2 | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 4160lm (Typ) | 700mA | 85°C | 44.8V | 132 lm/W | 1.5A | 70 | - | - | 170.18mm L x 32.99mm W | - | - |
|
|
LSH1-04C22-3080-00LED MODULE XHP50.2 3000K New Energy |
2,190 | - |
RFQ |
Scheda tecnica |
Tray | XHP50.2 | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 4160lm | 700mA | 85°C | 44.8V | 133 lm/W | 1.5A | 80 | - | - | 170.18mm L x 32.99mm W | 1.52mm | - |
|
LPH1-02C24-4070-00L2 BOARD, XHP70.2, LINEAR, 1X2 New Energy |
3,706 | - |
RFQ |
Scheda tecnica |
Tray | XHP70.2 | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3660lm (Typ) | 1.05A | 85°C | 22.4V | 156 lm/W | 2.4A | 70 | - | - | 93.98mm L x 32.99mm W | - | |
|
|
LPH1-02C24-4080-00L2 BOARD, XHP70.2, LINEAR, 1X2 New Energy |
2,516 | - |
RFQ |
Scheda tecnica |
Tray | XHP70.2 | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3660lm (Typ) | 1.05A | 85°C | 22.4V | 156 lm/W | 2.4A | 80 | - | - | 93.98mm L x 32.99mm W | - | |
|
|
LPH1-02C24-5770-00L2 BOARD, XHP70.2, LINEAR, 1X2 New Energy |
3,464 | - |
RFQ |
Scheda tecnica |
Tray | XHP70.2 | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 3660lm (Typ) | 1.05A | 85°C | 22.4V | 156 lm/W | 2.4A | 70 | - | - | 93.98mm L x 32.99mm W | - | |
|

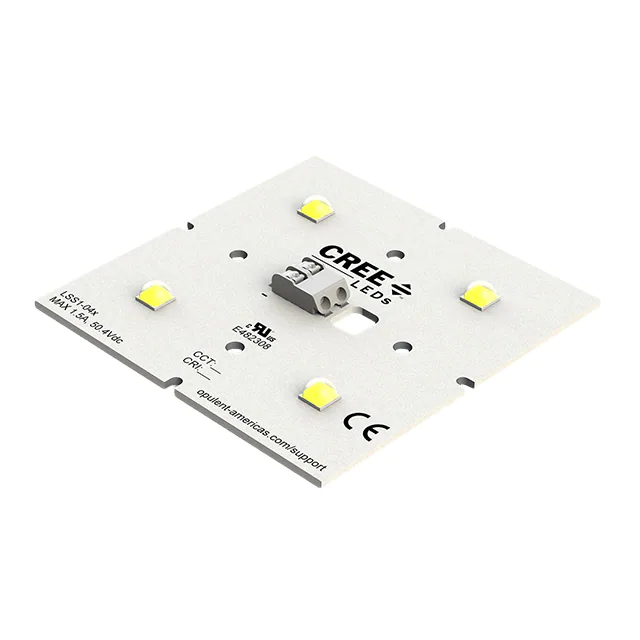

LSS1-04C22-3070-00LED MODULE XHP50.2 3000K SQUARE New Energy |
2,841 | - |
RFQ |
Scheda tecnica |
Tray | XHP50.2 | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Square | 4160lm (Typ) | 700mA | 85°C | 44.8V | 132 lm/W | 1.5A | 70 | - | - | 70.00mm L x 70.00mm W | - | - |
|
|
LSS1-04C22-2780-00LED MODULE XHP50.2 2700K SQUARE New Energy |
2,776 | - |
RFQ |
Scheda tecnica |
Tray | XHP50.2 | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3600lm (Typ) | 700mA | 85°C | 44.8V | 115 lm/W | 1.5A | 80 | - | - | 70.00mm L x 70.00mm W | - | - |
|
LSS1-04C22-2790-00LED MODULE XHP50.2 2700K SQUARE New Energy |
3,354 | - |
RFQ |
Scheda tecnica |
Tray | XHP50.2 | Active | LED Module | White, Warm | 2700K | - | Square | - | 700mA | 85°C | - | - | - | 90 | - | - | 70.00mm L x 70.00mm W | - | - |
|
|
LSS1-04C22-3080-00LED MODULE XHP50.2 3000K New Energy |
2,443 | - |
RFQ |
Scheda tecnica |
Tray | XHP50.2 | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Square | 4160lm | 700mA | 85°C | 44.8V | 132 lm/W | 1.5A | 80 | - | - | 170.18mm L x 32.99mm W | 1.52mm | - |
|
|
LSH1-04C22-2780-00LED MODULE XHP50.2 2700K STRIP New Energy |
3,196 | - |
RFQ |
Scheda tecnica |
Tray | XHP50.2 | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 3600lm (Typ) | 700mA | 85°C | 44.8V | 115 lm/W | 1.5A | 80 | - | - | 170.18mm L x 32.99mm W | - | - |
|
|
LSH1-04C22-2790-00LED MODULE XHP50.2 2700K New Energy |
3,546 | - |
RFQ |
Scheda tecnica |
Tray | XHP50.2 | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 3600lm | 700mA | 85°C | 44.8V | 115 lm/W | 1.5A | 90 | - | - | 170.18mm L x 32.99mm W | 1.52mm | - |
|
|
LPH1-02C24-5070-00L2 BOARD, XHP70.2, LINEAR, 1X2 New Energy |
2,142 | - |
RFQ |
Scheda tecnica |
Tray | XHP70.2 | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3660lm (Typ) | 1.05A | 85°C | 22.4V | 156 lm/W | 2.4A | 70 | - | - | 93.98mm L x 32.99mm W | - | |
|
|
LPH1-02C24-5080-00L2 BOARD, XHP70.2, LINEAR, 1X2 New Energy |
2,070 | - |
RFQ |
Scheda tecnica |
Tray | XHP70.2 | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3660lm (Typ) | 1.05A | 85°C | 22.4V | 156 lm/W | 2.4A | 80 | - | - | 93.98mm L x 32.99mm W | - | |
|
XHP50A-0L-04-0D0BJ450ELED MODULE 5000K LINEAR New Energy |
2,837 | - |
RFQ |
Scheda tecnica |
Tray | XHP50A | Not For New Designs | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 4480lm (Typ) | 700mA | 85°C | 46V | 139 lm/W | 1.5A | 70 | - | - | 170.18mm L x 33.02mm W | - | - |
|
|
XHP50A-0L-04-0D0HH440GL2 BOARD, XHP50, LINEAR, 1X4, WH New Energy |
3,927 | - |
RFQ |
Scheda tecnica |
Tray | XHP50 | Not For New Designs | LED Module | - | - | - | Linear Light Strip | - | 700mA | 85°C | - | - | - | 80 | - | - | - | - | - |
|
|
XHP50A-0L-04-0D0HJ250GL2 BOARD, XHP50, LINEAR, 1X4, WH New Energy |
3,122 | - |
RFQ |
Scheda tecnica |
Tray | XHP50 | Not For New Designs | LED Module | - | - | - | Linear Light Strip | - | 700mA | 85°C | - | - | - | 80 | - | - | - | - | - |
