| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZ4-40WW08-0435LED EMITTER WHT 650LM STAR MCPCB OSRAM SYLVANIA Inc. |
2,523 | - |
RFQ |
Scheda tecnica |
Tray | LZ4 | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 712lm (556lm ~ 868lm) | 700mA | 25°C | 12.6V | 81 lm/W | 1A | 80 (Typ) | 90° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia |
|

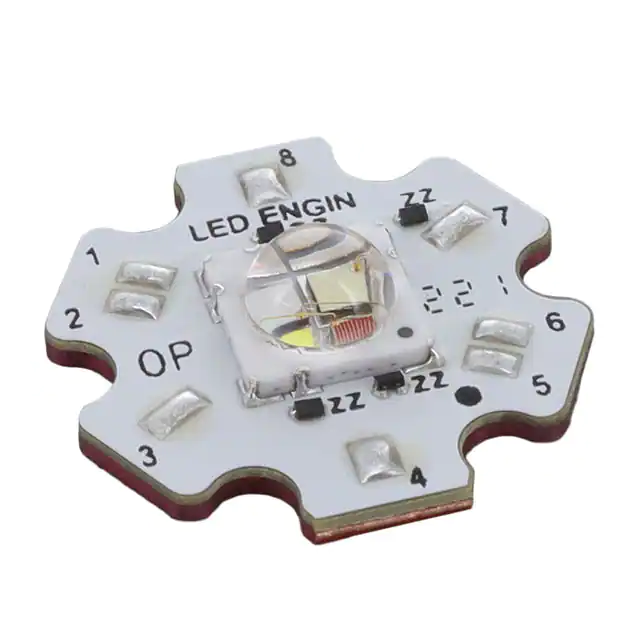

LZ4-60MD09-0000LED EMITTER RGBW DOME 4CH MCPCB OSRAM SYLVANIA Inc. |
3,614 | - |
RFQ |
Scheda tecnica |
Tray | LZ4 | Active | LED Module | Red, Green, Blue, White - Cool | 6173K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 115lm Red, 160lm Green, 30lm Blue, 190lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White | 66 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W | 1A Red, 1A Green, 1A Blue, 1A White | 75 (Typ) | 95° | - | 19.90mm Dia | 5.20mm | 7.00mm L x 7.00mm W |
|
|
LZ9-J0CW00-0055LED EMITTER WHT 227LM 1CH MCPCB OSRAM SYLVANIA Inc. |
2,499 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Cool | 5500K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 700mA | 25°C | 29.1V | 85 lm/W | 1.8A | 75 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-J0CW00-0056LED EMITTER WHT 227LM 1CH MCPCB OSRAM SYLVANIA Inc. |
3,656 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Cool | 5500K ~ 6500K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 700mA | 25°C | 29.1V | 85 lm/W | 1.8A | 75 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-J0CW00-0065LED EMITTER WHT 227LM 1CH MCPCB OSRAM SYLVANIA Inc. |
2,783 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 700mA | 25°C | 29.1V | 85 lm/W | 1.8A | 75 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-J0GW00-0430LED EMITTER WHT 1060LM 1CH MCPCB OSRAM SYLVANIA Inc. |
2,946 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1060lm (868lm ~ 1357lm) | 700mA | 25°C | 29.1V | 52 lm/W | 800mA | 95 | 115° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-J0SW00-0000LED EMITTER WHT 1430LM 1CH MCPCB OSRAM SYLVANIA Inc. |
2,381 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Cool | 5300K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 88 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-J0WW00-0027LED EMITTER WHT 1350LM 1CH MCPCB OSRAM SYLVANIA Inc. |
3,066 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-J0WW00-0035LED EMITTER WHT 1430LM 1CH MCPCB OSRAM SYLVANIA Inc. |
2,189 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-J0WW00-0227LED EMITTER WHT 1350LM 1CH MCPCB OSRAM SYLVANIA Inc. |
3,744 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-J0WW00-0435LED EMITTER WHT 1430LM 1CH MCPCB OSRAM SYLVANIA Inc. |
2,156 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0CW00-0055LED EMITTER WHT 227LM 3CH MCPCB OSRAM SYLVANIA Inc. |
3,547 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Cool | 5500K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 3 x 700mA | 25°C | 9.7V | 85 lm/W | 800mA | 75 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0CW00-0056LED EMITTER WHT 227LM 3CH MCPCB OSRAM SYLVANIA Inc. |
3,268 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Cool | 5500K ~ 6500K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 3 x 700mA | 25°C | 9.7V | 85 lm/W | 800mA | 75 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
LZ9-M0CW00-0065LED EMITTER WHT 227LM 3CH MCPCB OSRAM SYLVANIA Inc. |
3,699 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 3 x 700mA | 25°C | 9.7V | 85 lm/W | 800mA | 70 | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0GW00-0230LED EMITTER WHT 1060LM 3CH MCPCB OSRAM SYLVANIA Inc. |
2,689 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1060lm (868lm ~ 1357lm) | 3 x 700mA | 25°C | 9.7V | 52 lm/W | 800mA | 95 | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0GW00-0430LED EMITTER WHT 1060LM 3CH MCPCB OSRAM SYLVANIA Inc. |
2,347 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1060lm (868lm ~ 1357lm) | 3 x 700mA | 25°C | 9.7V | 52 lm/W | 800mA | 95 | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0NW00-0040LED EMITTER WHT 1650LM 3CH MCPCB OSRAM SYLVANIA Inc. |
3,671 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 1739lm (1357lm ~ 2120lm) | 3 x 700mA | 25°C | 9.7V | 85 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0SW00-0000LED EMITTER WHT 1430LM 3CH MCPCB OSRAM SYLVANIA Inc. |
3,315 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Cool | 5300K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 88 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0WW00-0027LED EMITTER WHT 1350LM 3CH MCPCB OSRAM SYLVANIA Inc. |
3,560 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0WW00-0030LED EMITTER WHT 1430LM 3CH MCPCB OSRAM SYLVANIA Inc. |
3,856 | - |
RFQ |
Scheda tecnica |
Tray | LZ9 | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1391lm (1085lm ~ 1696lm) | 3 x 700mA | 25°C | 9.7V | 68 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
