Microfoni

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	Type	OutputType	Direction	FrequencyRange	Sensitivity	S/NRatio	Impedance	Voltage-Rated	VoltageRange	Current-Supply	PortLocation	Ratings	Termination	Size/Dimension	Height(Max)

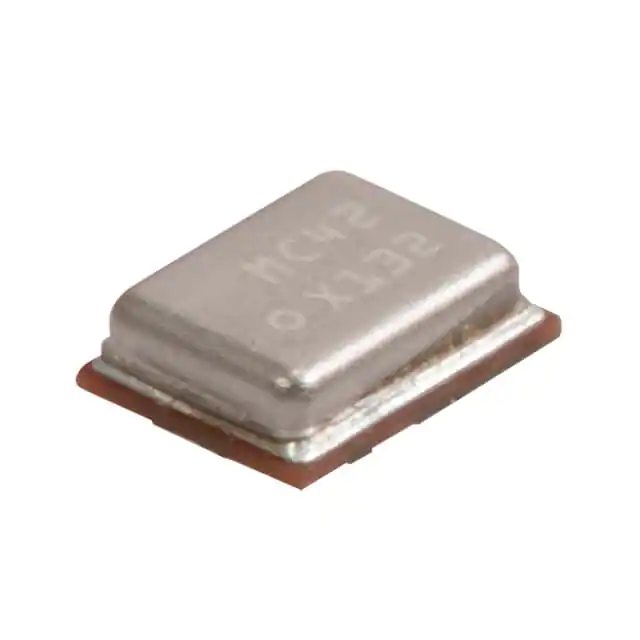

CMM-3526DB-37165-TR MICROPHONE, 3.5 MM X 2.65 MM X . CUI Devices	2,791	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	CMM	Active	MEMS (Silicon)	Digital, PDM	Omnidirectional	100 Hz ~ 10 kHz	-37dB ±1dB @ 94dB SPL	65dB	-	1.8 V	1.6 V ~ 3.6 V	1.12 mA	Bottom	-	Solder Pads	0.138 L x 0.104 W (3.50mm x 2.65mm)	0.039 (0.98mm)
MA-FRA381-A13-4 BP ANALOG MEMS MIC 2.75X1.85 Gettop Acoustics	3,598	-	RFQ	Scheda tecnica	Tape & Box (TB)	-	Active	MEMS (Silicon)	Analog	Omnidirectional	100 Hz ~ 10 kHz	-38dB ±1dB @ 94dB SPL	63dB	400 Ohms	2 V	1.6 V ~ 3.6 V	200 µA	Bottom	-	Solder Pads	0.108 L x 0.073 W (2.75mm x 1.85mm)	0.039 (1.00mm)

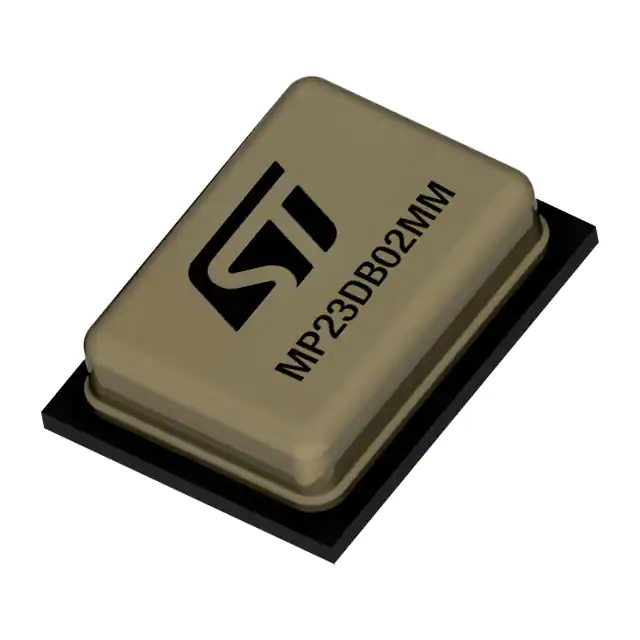

MP23DB02MMTR MICROPHONE STMicroelectronics	3,619	-	RFQ		Tape & Reel (TR),Cut Tape (CT)	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ICS-40720 MICROPHONE MEMS ANALOG OMNI TDK InvenSense	3,300	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	MEMS (Silicon)	Analog	Omnidirectional	75 Hz ~ 20 kHz	-38dB ±2dB @ 94dB SPL	70dB	-	-	1.5 V ~ 3.63 V	375 µA	Bottom	-	Solder Pads	0.157 L x 0.118 W (4.00mm x 3.00mm)	0.051 (1.30mm)
DUM-4537L-HD-R MICROPHONE UNI-DIRECTION -37DB 2 PUI Audio, Inc.	3,644	-	RFQ	Scheda tecnica	Tray	DUM	Active	-	Analog	Unidirectional	20 Hz ~ 20 kHz	-37dB ±3dB	68dB	2.2 kOhms	2 V	1 V ~ 10 V	500 µA	Top	-	Wire Leads	0.315 Dia (8.00mm)	0.177 (4.50mm)
CME-1538-100LB MIC COND ANALOG OMNI -38DB 4MM D CUI Devices	2,319	-	RFQ	Scheda tecnica	Bag	-	Active	Electret Condenser	Analog	Omnidirectional	20 Hz ~ 20 kHz	-38dB ±3dB @ 94dB SPL	58dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	IP67 - Dust Tight, Waterproof	Wire Leads	0.157 Dia (4.00mm)	0.114 (2.90mm)
AUM-4537L-HD-R MICROPHONE UNI-DIRECTION -37DB 1 PUI Audio, Inc.	2,663	-	RFQ	Scheda tecnica	Tray	AUM	Active	-	Analog	Unidirectional	20 Hz ~ 20 kHz	-37dB ±3dB	69dB	2.2 kOhms	1.5 V	1 V ~ 10 V	500 µA	Top	-	Wire Leads	0.394 Dia (10.00mm)	0.177 (4.50mm)
AOM-5024P-HD-MB-R MICROPHONE OMNI-DIRECTION -24DB PUI Audio, Inc.	2,360	-	RFQ	Scheda tecnica	Tray	AOM	Active	-	Analog	Omnidirectional	20 Hz ~ 20 kHz	-24dB ±3dB	80dB	2.2 kOhms	3 V	1 V ~ 10 V	500 µA	Top	-	Wire Leads	0.461 Dia (11.70mm)	0.276 (7.00mm)
PUM-2745L-HD-R MICROPHONE UNI-DIRECTION -45DB 2 PUI Audio, Inc.	3,808	-	RFQ	Scheda tecnica	Tray	PUM	Active	-	Analog	Unidirectional	20 Hz ~ 20 kHz	-45dB ±3dB	71dB	2.2 kOhms	2 V	1 V ~ 10 V	110 µA	Top	-	Wire Leads	0.236 Dia (6.00mm)	0.106 (2.70mm)
POM-3535L-2-R MIC COND ANALOG OMNI -35DB 6MM D PUI Audio, Inc.	3,962	-	RFQ	Scheda tecnica	Bulk	POM	Active	Electret Condenser	Analog	Omnidirectional	50 Hz ~ 20 kHz	-35dB ±4dB	68dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.146 (3.70mm)
POM-2739L-HD3-LW100-R MICROPHONE OMNI-DIRECTION -39DB PUI Audio, Inc.	2,387	-	RFQ	Scheda tecnica	Tray	POM	Active	-	Analog	Omnidirectional	20 Hz ~ 20 kHz	-39dB ± 3dB @ 94dB SPL	73dB	2.2 kOhms	3 V	1 V ~ 10 V	500 µA	Top	-	Wire Leads	0.236 Dia (6.00mm)	0.106 (2.70mm)
AOM-5035L-HD3-LW100-R MICROPHONE OMNI-DIRECTION -35DB PUI Audio, Inc.	2,049	-	RFQ	Scheda tecnica	Tray	AOM	Active	-	Analog	Omnidirectional	20 Hz ~ 20 kHz	-35dB ±3dB	75dB	2.2 kOhms	5 V	1 V ~ 10 V	600 µA	Top	-	Wire Leads	0.382 Dia (9.70mm)	0.197 (5.00mm)
POM-2739L-HD3-R MICROPHONE OMNI-DIRECTION -39DB PUI Audio, Inc.	3,084	-	RFQ	Scheda tecnica	Tray	POM	Active	-	Analog	Omnidirectional	20 Hz ~ 20 kHz	-39dB ± 3dB @ 94dB SPL	73dB	2.2 kOhms	3 V	1 V ~ 10 V	500 µA	Top	-	Wire Leads	0.236 Dia (6.00mm)	0.106 (2.70mm)
AOM-5035L-HD3-R MICROPHONE OMNI-DIRECTION -35DB PUI Audio, Inc.	3,272	-	RFQ	Scheda tecnica	Tray	AOM	Active	-	Analog	Omnidirectional	20 Hz ~ 20 kHz	-35dB ±3dB	75dB	2.2 kOhms	5 V	1 V ~ 10 V	600 µA	Top	-	Wire Leads	0.382 Dia (9.70mm)	0.197 (5.00mm)
SPV1840LR5H-B KASKADE MIC ANALOG BOTTOM PORT Knowles	3,108	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	SiSonic™, Zero-Height Mic™, SPV	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	100 Hz ~ 10 kHz	-38dB ±3dB @ 94dB SPL	62.5dB	400 Ohms	-	1.5 V ~ 3.6 V	60 µA	Bottom	-	Solder Pads	0.108 L x 0.073 W (2.75mm x 1.85mm)	0.039 (0.98mm)
SPM1423HM4H-B MICROPHONE MEMS DIGITAL PDM OMNI Knowles	3,726	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	SiSonic™ SPM	Obsolete	MEMS (Silicon)	Digital, PDM	Omnidirectional	100 Hz ~ 10 kHz	-22dB ±3dB @ 94dB SPL	61.5dB	-	-	1.6 V ~ 3.6 V	600 µA	Top	-	Solder Pads	0.186 L x 0.148 W (4.72mm x 3.76mm)	0.055 (1.40mm)
SPV1142LR5H-1 QUARTZ ANALOG BOTTOM PORT MIC Knowles	3,306	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	MEMS (Silicon)	Analog	Omnidirectional	25 Hz ~ 16 kHz	-38dB ±1dB @ 94dB SPL	63dB	-	1.8 V	1.5 V ~ 3.6 V	185 µA	Bottom	-	Solder Pads	0.108 L x 0.073 W (2.75mm x 1.85mm)	0.035 (0.90mm)
SPH1611LR5H-1 MICROPHONE MEMS ANALOG OMNI Knowles	3,352	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	SiSonic™, Zero-Height Mic™, SPH	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	100 Hz ~ 10 kHz	-38dB ±1dB @ 94dB SPL	65dB	400 Ohms	-	1.5 V ~ 3.6 V	185 µA	Bottom	-	Solder Pads	0.138 L x 0.104 W (3.50mm x 2.65mm)	0.043 (1.10mm)
MMICT4076-00-908 MICROPHONE MEMS ANALOG -38DB TDK InvenSense	2,843	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	MMIC	Active	MEMS (Silicon)	Analog	-	80 Hz ~ 20 kHz	-38db ±1dB @ 127dB	63dB	-	-	1.6 V ~ 3.6 V	-	Bottom	-	Solder Pads	0.108 L x 0.073 W (2.75mm x 1.85mm)	0.035 (0.90mm)
SPH0641LM4H-1 MORELLO MIC MULTIMODE DGT BOT PT Knowles	2,373	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	SiSonic™ SPH	Not For New Designs	MEMS (Silicon)	Digital, PDM	Omnidirectional	100 Hz ~ 10 kHz	-26dB ±1dB @ 94dB SPL	64.3dB	-	-	1.62 V ~ 3.6 V	700 µA	Bottom	-	Solder Pads	0.138 L x 0.104 W (3.50mm x 2.65mm)	0.043 (1.10mm)
