Altre categorie di prodotti

Microfoni

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	Type	OutputType	Direction	FrequencyRange	Sensitivity	S/NRatio	Impedance	Voltage-Rated	VoltageRange	Current-Supply	PortLocation	Ratings	Termination	Size/Dimension	Height(Max)
EM-23046-057 MIC OMNI .9-10VDC -36DB SENS Knowles	3,489	-	RFQ		-	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EM-23047-C36 MIC OMNI .9-10VDC -38.5DB SENS Knowles	3,465	-	RFQ		-	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EM-24046-C36 MICROPHONE COND ANALOG OMNI Knowles	2,859	-	RFQ		Tray	EM	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-56.5dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	-	50 µA	Side	-	Solder Pads	0.141 L x 0.141 W (3.57mm x 3.57mm)	0.090 (2.28mm)
EM-24068-C36 MIC OMNI .9-10VDC -36DB SENS Knowles	3,900	-	RFQ		-	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FG-23653-D65 MICROPHONE COND ANALOG OMNI Knowles	2,924	-	RFQ	Scheda tecnica	Tray	FG	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-53dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	-	50 µA	Side	-	Solder Pads	0.101 Dia (2.57mm)	0.102 (2.60mm)
FG-26108-C33 MIC ELECTRET OMNI MINI 2.5X2.5 Knowles	2,919	-	RFQ		-	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TM-23547-C36 MIC ELECT OMNI -38.5DB SENS Knowles	3,823	-	RFQ		Bulk	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TM-24547-C36 MICROPHONE COND ANALOG OMNI Knowles	2,360	-	RFQ	Scheda tecnica	Tray	TM	Obsolete	Electret Condenser	Analog	Omnidirectional	300 Hz ~ 7.3 kHz	-58.5dB ±4dB @ 74dB SPL	-	4.4 kOhms	1.3 V	0.9 V ~ 1.6 V	50 µA	Side	-	Solder Pads	0.141 L x 0.141 W (3.57mm x 3.57mm)	0.070 (1.77mm)
TP-24612-P21 MIC OMNI/UNI DUAL PORT Knowles	2,329	-	RFQ		-	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FG-26163-000 MICROPHONE COND ANALOG OMNI Knowles	2,565	-	RFQ	Scheda tecnica	Bulk	FG	Obsolete	Electret Condenser	Analog	Omnidirectional	500 Hz ~ 10 kHz	-53.5dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	0.9 V ~ 1.6 V	50 µA	Top	-	Solder Pads	0.101 Dia (2.57mm)	0.102 (2.60mm)
MB6022USC-3 MIC COND ANALOG UNI -47DB 6MM D Knowles	3,839	-	RFQ	Scheda tecnica	Bulk	MB	Obsolete	Electret Condenser	Analog	Unidirectional	100 Hz ~ 10 kHz	-47dB ±3dB @ 94dB SPL	50dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.094 (2.40mm)

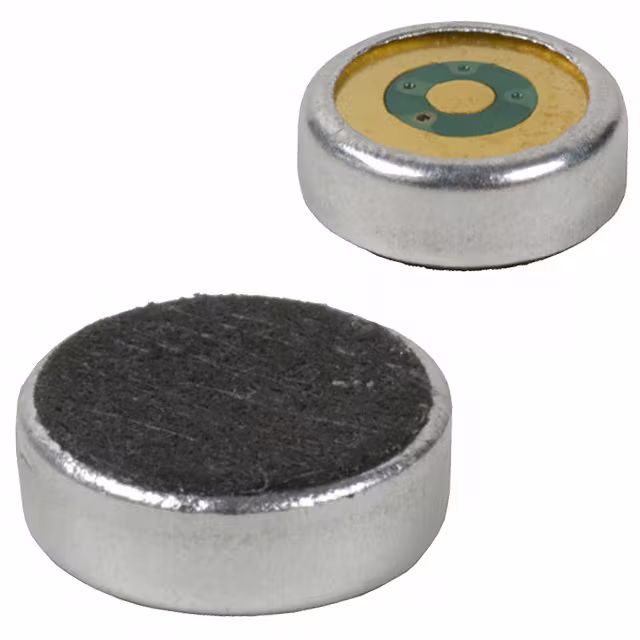

MB6022ABC-3 MIC COND ANALOG OMNI -45DB 6MM D Knowles	3,501	-	RFQ	Scheda tecnica	Bulk	MB	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-45dB ±2dB @ 94dB SPL	60dB	2.2 kOhms	3 V	3 V ~ 10 V	500 µA	Top	-	Solderless (Bullseye)	0.236 Dia (6.00mm)	0.094 (2.40mm)

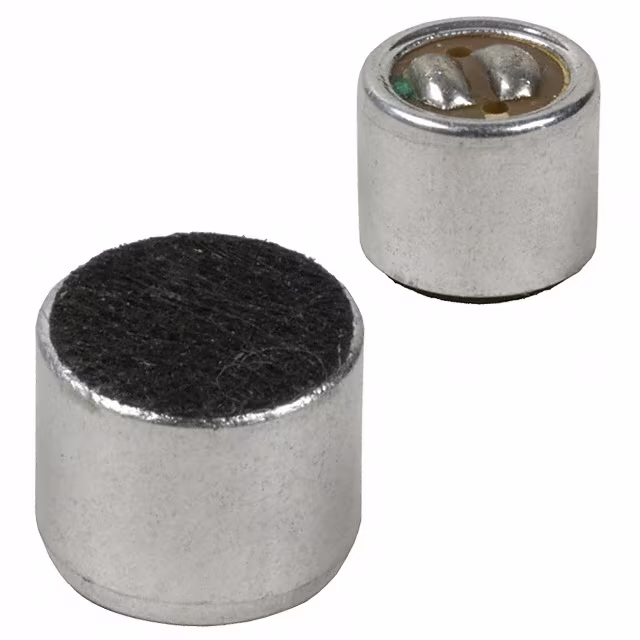

MB6052USZ-2 MIC COND ANALOG UNI -44DB 6MM D Knowles	3,985	-	RFQ	Scheda tecnica	Bulk	MB	Obsolete	Electret Condenser	Analog	Unidirectional	100 Hz ~ 10 kHz	-44dB ±3dB @ 94dB SPL	60dB	2.2 kOhms	2 V	1.5 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.213 (5.40mm)

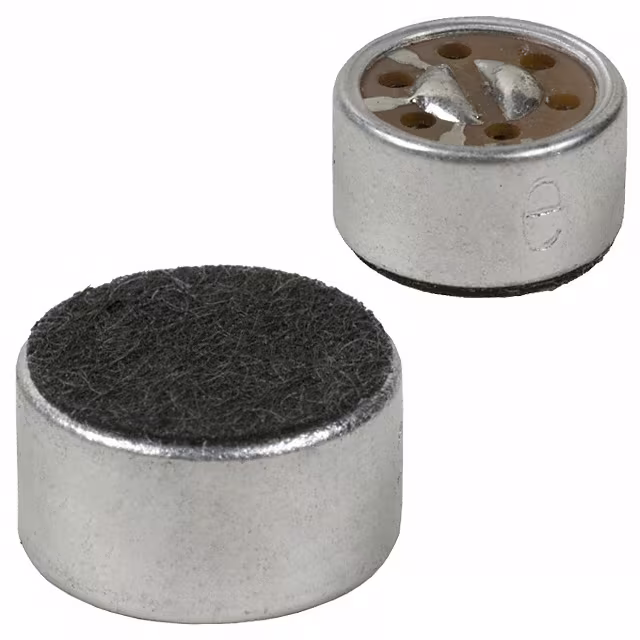

MD9752NSZ-1 MIC COND ANALOG NC -40DB 9.7MM D Knowles	3,423	-	RFQ	Scheda tecnica	Bulk	MD	Obsolete	Electret Condenser	Analog	Noise Cancelling	100 Hz ~ 10 kHz	-40dB ±3dB @ 94dB SPL	55dB	2.2 kOhms	3 V	3 V ~ 10 V	500 µA	Top	-	Solder Pads	0.382 Dia (9.70mm)	0.205 (5.20mm)
EM-23979-D52 MIC MATCHED PAIR SIDE PORT Knowles	3,162	-	RFQ		-	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PNM-2751L-R MIC COND ANALOG NC -51DB 6MM D PUI Audio, Inc.	3,541	-	RFQ	Scheda tecnica	Bulk	PNM	Obsolete	Electret Condenser	Analog	Noise Cancelling	30 Hz ~ 15 kHz	-51dB ±4dB	55dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.114 (2.90mm)
PNM-3546L-R MIC COND ANALOG NC -46DB 6MM D PUI Audio, Inc.	2,219	-	RFQ	Scheda tecnica	Bulk	PNM	Obsolete	Electret Condenser	Analog	Noise Cancelling	50 Hz ~ 16 kHz	-46dB ±4dB	60dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.146 (3.70mm)
POM-1242L-R MIC COND ANALOG OMNI -42DB 6MM D PUI Audio, Inc.	2,469	-	RFQ	Scheda tecnica	Bulk	POM	Obsolete	Electret Condenser	Analog	Omnidirectional	-	-42dB ±3dB	60dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.055 (1.40mm)
POM-1547P-R MIC COND ANALOG OMNI -47DB 6MM D PUI Audio, Inc.	3,691	-	RFQ	Scheda tecnica	Bulk	POM	Obsolete	Electret Condenser	Analog	Omnidirectional	-	-47dB ±3dB	60dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	PC Pins	0.236 Dia (6.00mm)	0.067 (1.70mm)
POM-1547S-R MIC COND ANALOG OMNI -47DB 6MM D PUI Audio, Inc.	3,049	-	RFQ	Scheda tecnica	Bulk	POM	Obsolete	Electret Condenser	Analog	Omnidirectional	-	-47dB ±3dB	60dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solderless (Bullseye)	0.236 Dia (6.00mm)	0.067 (1.70mm)
