Optoisolatori - Uscita logica
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP5772H(D4TP4,EGATE DRIVE COUPLER; 2.5A; WIDER Toshiba Semiconductor and Storage |
2,932 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 35kV/µs | DC | Push-Pull, Totem Pole | - | - | 150ns, 150ns | 56ns, 25ns | 1.55V | 8mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5772H(TP4,EGATE DRIVE COUPLER; 2.5A; WIDER Toshiba Semiconductor and Storage |
3,161 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 35kV/µs | DC | Push-Pull, Totem Pole | - | - | 150ns, 150ns | 56ns, 25ns | 1.65V | 8mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5832(D4-TP,EIGBT GATE DRIVE PHOTOCOUPLER; SO Toshiba Semiconductor and Storage |
3,052 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLP5832(TP,EIGBT GATE DRIVE PHOTOCOUPLER; SO Toshiba Semiconductor and Storage |
3,359 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 15ns, 8ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|

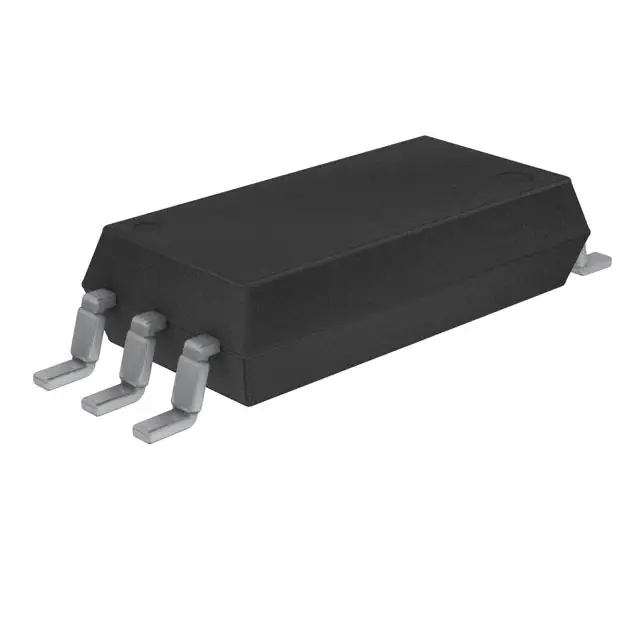

TLP2770(EOPTOISO 5KV TRI-STATE S06L Toshiba Semiconductor and Storage |
2,839 | - |
RFQ |
Scheda tecnica |
Bulk | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 60ns, 60ns | 1.3ns, 1ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
TLP2770(D4,EOPTOISO 5KV TRI-STATE S06L Toshiba Semiconductor and Storage |
3,908 | - |
RFQ |
Scheda tecnica |
Bulk | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 60ns, 60ns | 1.3ns, 1ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
TLP250H(D4,F)X36 PB-F DRIVER COUPLER DIP 8 TH Toshiba Semiconductor and Storage |
3,359 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Through Hole |
|
TLP250H(D4-LF1,F)X36 PB-F DRIVER COUPLER DIP8 GUL Toshiba Semiconductor and Storage |
2,310 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP250H(F)X36 PB-F DRIVER COUPLER DIP 8 TH Toshiba Semiconductor and Storage |
3,475 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Through Hole |
|
|
TLP250H(LF1,F)X36 PB-F DRIVER COUPLER 8 GULL W Toshiba Semiconductor and Storage |
2,446 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
TLP2261(D4-TP4,EHIGH SPEED LOGIC OUTPUT OPTOCOUP Toshiba Semiconductor and Storage |
3,867 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2261(TP4,EHIGH SPEED LOGIC OUTPUT OPTOCOUP Toshiba Semiconductor and Storage |
2,393 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5772(EOPTOISO 5KV 1CH PSH PULL 6SO Toshiba Semiconductor and Storage |
3,024 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 35kV/µs | DC | Push-Pull, Totem Pole | - | - | 150ns, 150ns | 15ns, 8ns | 1.65V | 8mA | 10V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLP2270(D4-TP4,EPHOTOCOUPLER; HI-SPEED; LOW INPU Toshiba Semiconductor and Storage |
2,666 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 60ns, 60ns | 1.3ns, 1ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5772(D4,EOPTOISO 5KV 1CH PSH PULL 6SO Toshiba Semiconductor and Storage |
3,079 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 35kV/µs | DC | Push-Pull, Totem Pole | - | - | 150ns, 150ns | 15ns, 8ns | 1.65V | 8mA | 10V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLP5772H(EGATE DRIVE COUPLER; 2.5A; HIGH T Toshiba Semiconductor and Storage |
2,862 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 35kV/µs | DC | Push-Pull, Totem Pole | - | - | 150ns, 150ns | 56ns, 25ns | 1.4V | 8mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5772H(D4,EGATE DRIVE COUPLER; 2.5A; HIGH T Toshiba Semiconductor and Storage |
3,671 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 35kV/µs | DC | Push-Pull, Totem Pole | - | - | 150ns, 150ns | 56ns, 25ns | 1.65V | 8mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
.JPG)
|
TLP2367(EHIGH SPEED LOGIC OUTPUT OPTOCOUP Toshiba Semiconductor and Storage |
3,631 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 50MBd | 20ns, 20ns | 2ns, 1ns | 1.6V | 15mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
TLP2767(EHIGH SPEED LOGIC OUTPUT OPTOCOUP Toshiba Semiconductor and Storage |
2,432 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 50MBd | 20ns, 20ns | 2ns, 1ns | 2.1V (Max) | 15mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5772H(LF4,EGATE DRIVE COUPLER; 2.5A; WIDER Toshiba Semiconductor and Storage |
2,999 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 35kV/µs | DC | Push-Pull, Totem Pole | - | - | 150ns, 150ns | 56ns, 25ns | 1.55V | 8mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
