PMIC - Driver gate
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | DrivenConfiguration | ChannelType | NumberofDrivers | GateType | Voltage-Supply | LogicVoltage-VILVIH | Current-PeakOutput(SourceSink) | InputType | HighSideVoltage-Max(Bootstrap) | Rise/FallTime(Typ) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SP0635V2M1-17IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
3,307 | - |
RFQ |
Scheda tecnica |
Bulk | SCALE™-2 | Active | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 9ns, 30ns | -40°C ~ 85°C (TA) | Surface Mount |
|
|
1SP0635V2M1-12IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
3,024 | - |
RFQ |
Scheda tecnica |
Bulk | SCALE™-2 | Active | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1200 V | 9ns, 30ns | -40°C ~ 85°C (TA) | Surface Mount |
|
2SP0115T2B0-06IC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
2,886 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 600 V | 5ns, 10ns | -20°C ~ 85°C (TA) | Surface Mount |
|
|
2SP0115T2C0-06IC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
3,942 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 600 V | 5ns, 10ns | -40°C ~ 85°C (TA) | Surface Mount |
|
|
2SP0115T2C0-17IC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
3,477 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 1700 V | 5ns, 10ns | -40°C ~ 85°C (TA) | Surface Mount |
|
2SD315AI ULIC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
3,815 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-1 | Not For New Designs | Half-Bridge | - | 2 | IGBT, N-Channel, P-Channel MOSFET | 15V | - | 18A, 18A | - | - | - | -40°C ~ 85°C (TA) | Surface Mount |
|
2SD300C17A3IC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
3,583 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | Half-Bridge | - | 2 | IGBT | 14V ~ 16V | - | 30A, 30A | - | - | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
2SP0115T2A0-12IC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
120 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 1200 V | 5ns, 10ns | -20°C ~ 85°C (TA) | Surface Mount |
|
1SC0450V2A0-65IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
115 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | Surface Mount |
|
2SC0108T2H0-17IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
100 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1200 V | 17ns, 15ns | -40°C ~ 85°C (TA) | Surface Mount |
|
|
2SP0115T2A0-06IC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
3,952 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 600 V | 5ns, 10ns | -20°C ~ 85°C (TA) | Surface Mount |
|

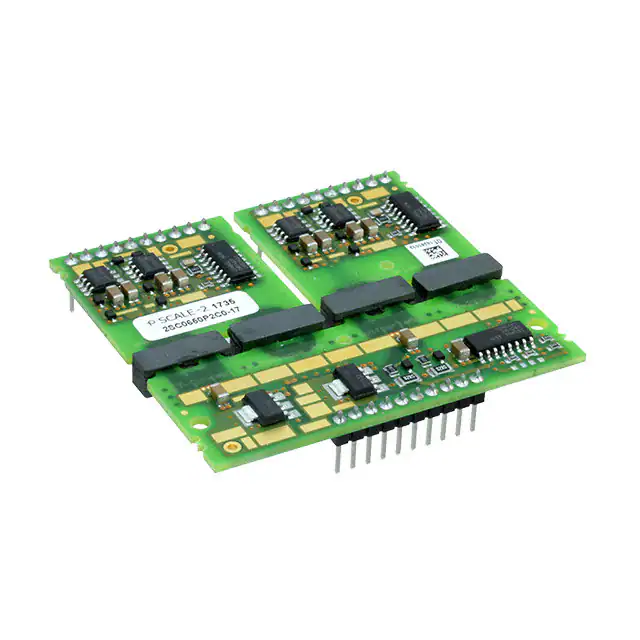

2SC0650P2C0-17IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
2,151 | - |
RFQ |
Scheda tecnica |
Bulk | SCALE™-2 | Active | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 1700 V | 25ns, 25ns | -40°C ~ 85°C (TA) | Surface Mount |
|
1SP0635D2S1-17IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
2,291 | - |
RFQ |
Scheda tecnica |
Bulk | SCALE™-2 | Active | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 9ns, 30ns | -40°C ~ 85°C (TA) | Surface Mount |
|

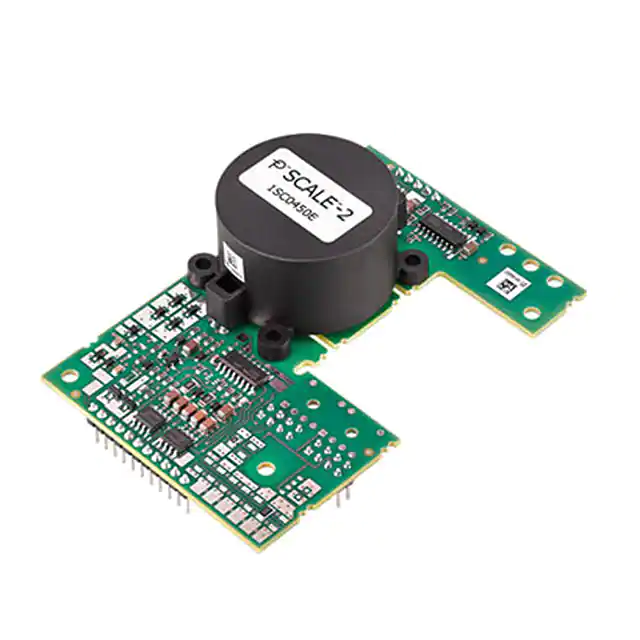

1SC0450E2B0-65IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
3,826 | - |
RFQ |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | Surface Mount | |
|
2SP0320T2A0-17IC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
3,738 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | - | 1700 V | 7ns, 25ns | -40°C ~ 85°C (TA) | Surface Mount |
|
1SC0450V2B0-45IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
3,561 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 4500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | Surface Mount |
|
|
1SC0450V2B0-65IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
2,852 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | Surface Mount |
|
|
2SC0108T2F1-17IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
2,392 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1700 V | 17ns, 15ns | -40°C ~ 85°C (TA) | Surface Mount |
|
IGD515EIIC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
3,386 | - |
RFQ |
Scheda tecnica |
Bulk | SCALE™-1 | Not For New Designs | High-Side or Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 12V ~ 16V | 0.9V, 3.8V | 15A, 15A | - | - | 40ns, 40ns | -40°C ~ 85°C (TA) | Through Hole |
|

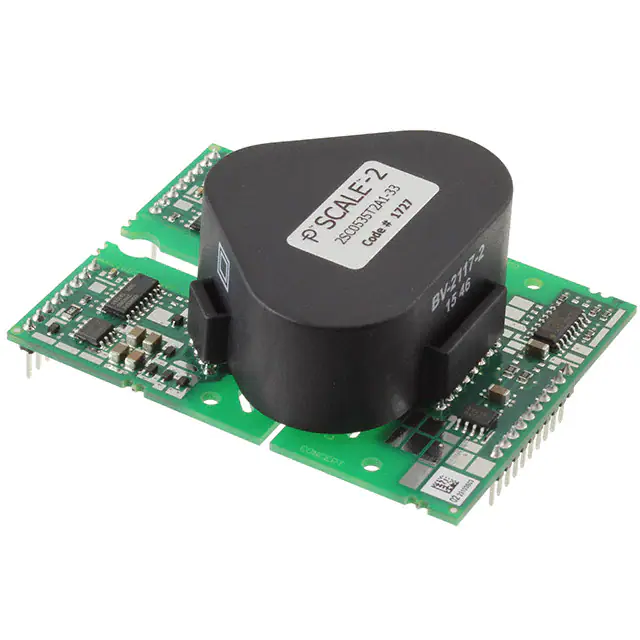

2SC0535T2A1-33IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
3,757 | - |
RFQ |
Scheda tecnica |
Bulk | SCALE™-2 | Active | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 3300 V | 20ns, 25ns | -40°C ~ 85°C (TA) | Surface Mount |
