PMIC - Driver gate
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | DrivenConfiguration | ChannelType | NumberofDrivers | GateType | Voltage-Supply | LogicVoltage-VILVIH | Current-PeakOutput(SourceSink) | InputType | HighSideVoltage-Max(Bootstrap) | Rise/FallTime(Typ) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX5075AAUA+IC GATE DRVR LOW-SIDE 8UMAX Analog Devices Inc./Maxim Integrated |
3,021 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | Low-Side | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 15V | - | 3A, 3A | RC Input Circuit | - | 10ns, 10ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
MAX5078BATT+TIC GATE DRVR LOW-SIDE 6TDFN Analog Devices Inc./Maxim Integrated |
2,499 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | Low-Side | Single | 1 | N-Channel MOSFET | 4V ~ 15V | 0.8V, 2.1V | 4A, 4A | Inverting, Non-Inverting | - | 32ns, 26ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
LTC1155CS8#PBFIC GATE DRVR HIGH-SIDE 8SOIC Analog Devices Inc. |
3,432 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | High-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | - | Non-Inverting | - | - | 0°C ~ 70°C (TA) | Surface Mount |
|
IXDD630CIIC GATE DRVR LOW-SIDE TO220-5 IXYS Integrated Circuits Division |
3,664 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 12.5V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 11ns, 11ns | -55°C ~ 150°C (TJ) | Through Hole |
|
IXDD630YIIC GATE DRVR LOW-SIDE TO263-5 IXYS Integrated Circuits Division |
591 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 12.5V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 11ns, 11ns | -55°C ~ 150°C (TJ) | Surface Mount |
|

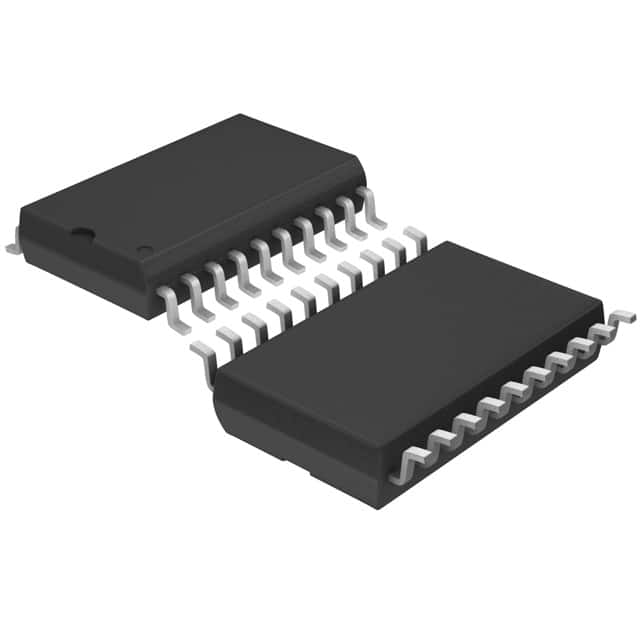

LT1161CSW#PBFIC GATE DRVR HIGH-SIDE 20SOIC Analog Devices Inc. |
198 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | High-Side | Independent | 4 | N-Channel MOSFET | 8V ~ 48V | 0.8V, 2V | - | Non-Inverting | - | - | 0°C ~ 125°C (TJ) | Surface Mount |
|
UC3707NIC GATE DRVR LOW-SIDE 16DIP Texas Instruments |
989 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 5V ~ 40V | 0.8V, 2.2V | 1.5A, 1.5A | Inverting, Non-Inverting | - | 40ns, 40ns | 0°C ~ 70°C (TA) | Through Hole |
|
UC3708NIC GATE DRVR LOW-SIDE 8DIP Texas Instruments |
2,025 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 5V ~ 35V | 0.8V, 2V | 3A, 3A | Non-Inverting | - | 25ns, 25ns | 0°C ~ 70°C (TA) | Through Hole |
|
IR2130SPBFIC GATE DRVR HALF-BRIDGE 28SOIC Infineon Technologies |
3,132 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 80ns, 35ns | -40°C ~ 150°C (TJ) | Surface Mount |
|

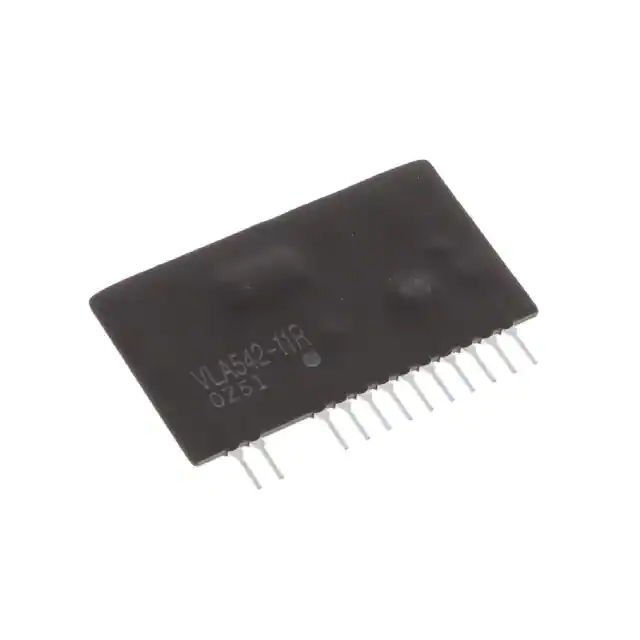

VLA542-11RIC GATE DRVR PWR MGMT MOSFET Powerex Inc. |
3,584 | - |
RFQ |
Scheda tecnica |
Bulk | - | Active | Half-Bridge | Single | 1 | IGBT | 14V ~ 17V | - | 5A, 5A | CMOS | - | 400ns, 300ns | -20°C ~ 70°C | Through Hole |
|

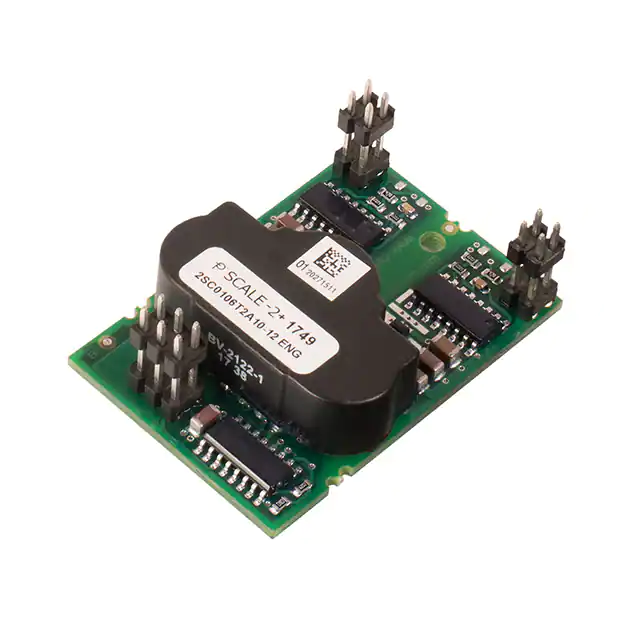

2SC0106T2A1-12IC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
324 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 6A, 6A | - | 1200 V | 20ns, 13ns | -40°C ~ 105°C (TA) | Surface Mount |
|

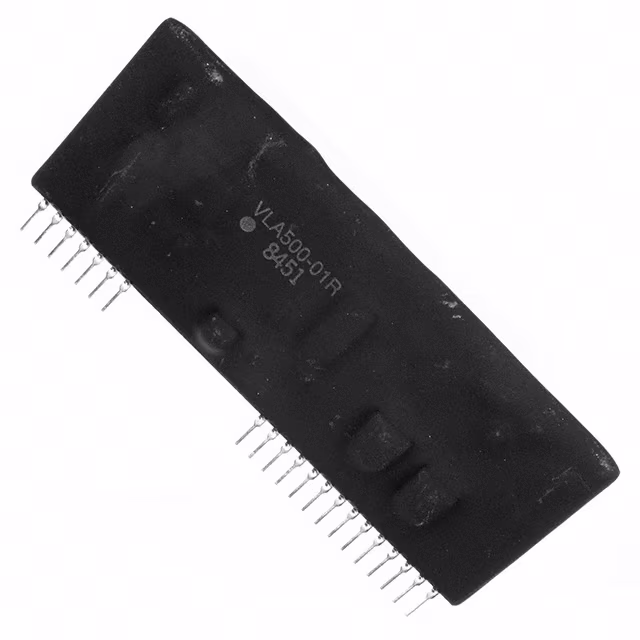

VLA500-01IC GATE DRVR LOW-SIDE MODULE Powerex Inc. |
738 | - |
RFQ |
Scheda tecnica |
Bulk | - | Active | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | 12A, 12A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | Through Hole |
|

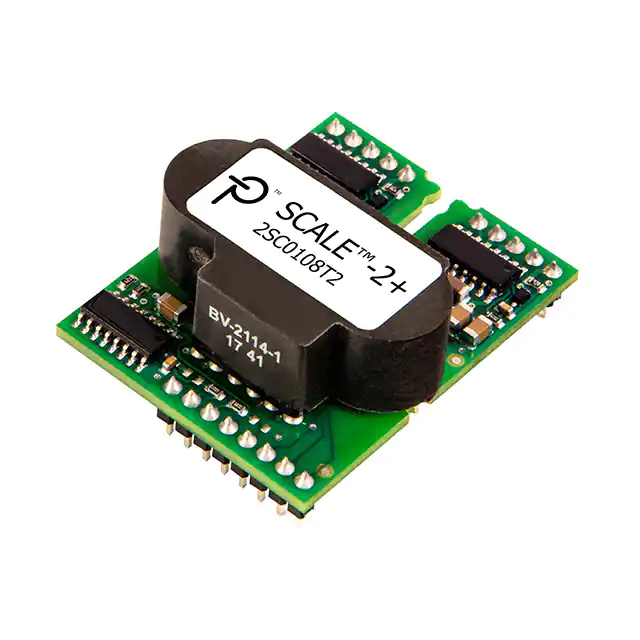

2SC0108T2G0-17IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
243 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1700 V | 17ns, 15ns | -40°C ~ 85°C (TA) | Surface Mount |
|
|
2SC0108T2D0-12IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
432 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1200 V | 17ns, 15ns | -40°C ~ 85°C (TA) | Surface Mount |
|

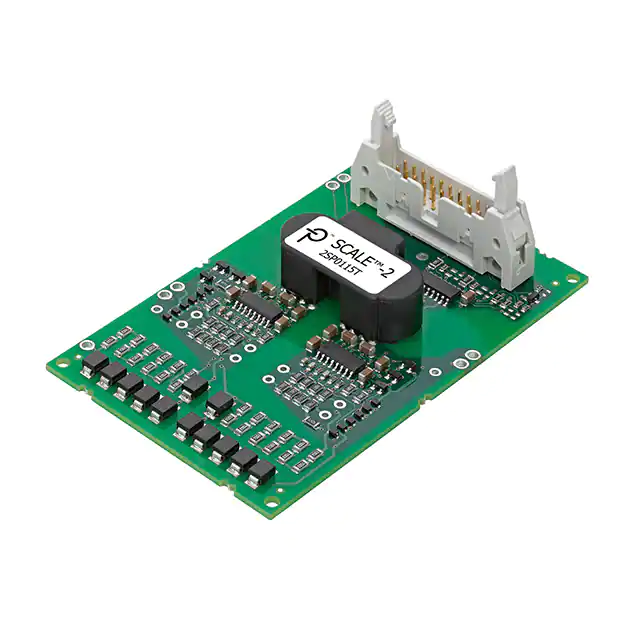

2SP0115T2B0-12IC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
138 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 1200 V | 5ns, 10ns | -20°C ~ 85°C (TA) | Surface Mount |
|

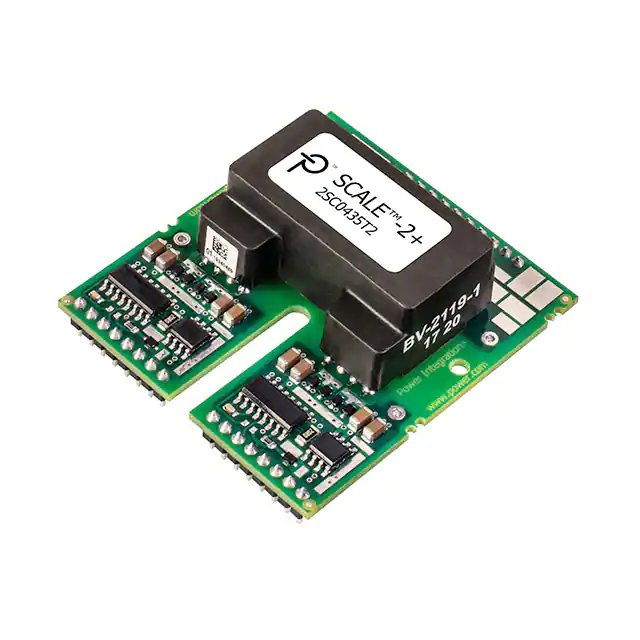

2SC0435T2H0-17IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
612 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | Surface Mount |
|
|
2SC0435T2F1-17IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
509 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-2 | Active | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | Surface Mount |
|
2SD106AI-17 ULIC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
177 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-1 | Not For New Designs | Half-Bridge | - | 2 | IGBT, N-Channel, P-Channel MOSFET | 15V | - | 6A, 6A | - | - | 100ns, 80ns | -40°C ~ 85°C (TA) | Surface Mount |
|
2SD315AIIC GATE DRVR HALF-BRIDGE MODULE Power Integrations |
356 | - |
RFQ |
Scheda tecnica |
Tray | SCALE™-1 | Active | Half-Bridge | - | 2 | IGBT, N-Channel, P-Channel MOSFET | - | - | 18A, 18A | - | - | 160ns, 130ns | -40°C ~ 85°C | Through Hole |
|
2SC0650P2A0-17IC GATE DRVR HI/LOW SIDE MODULE Power Integrations |
3,311 | - |
RFQ |
Scheda tecnica |
Bulk | SCALE™-2 | Active | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 1700 V | 25ns, 25ns | -40°C ~ 85°C (TA) | Surface Mount |
